Specifications
- Color FinishBlackProduct Height6 inchesProduct Width30 inchesProduct Depth17.5 inchesExhaust Vent LocationTop/RearVent TypeDucted, Ducted
- Key Specs
- Color Finish: Black
- Product Height: 6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 17.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ducted

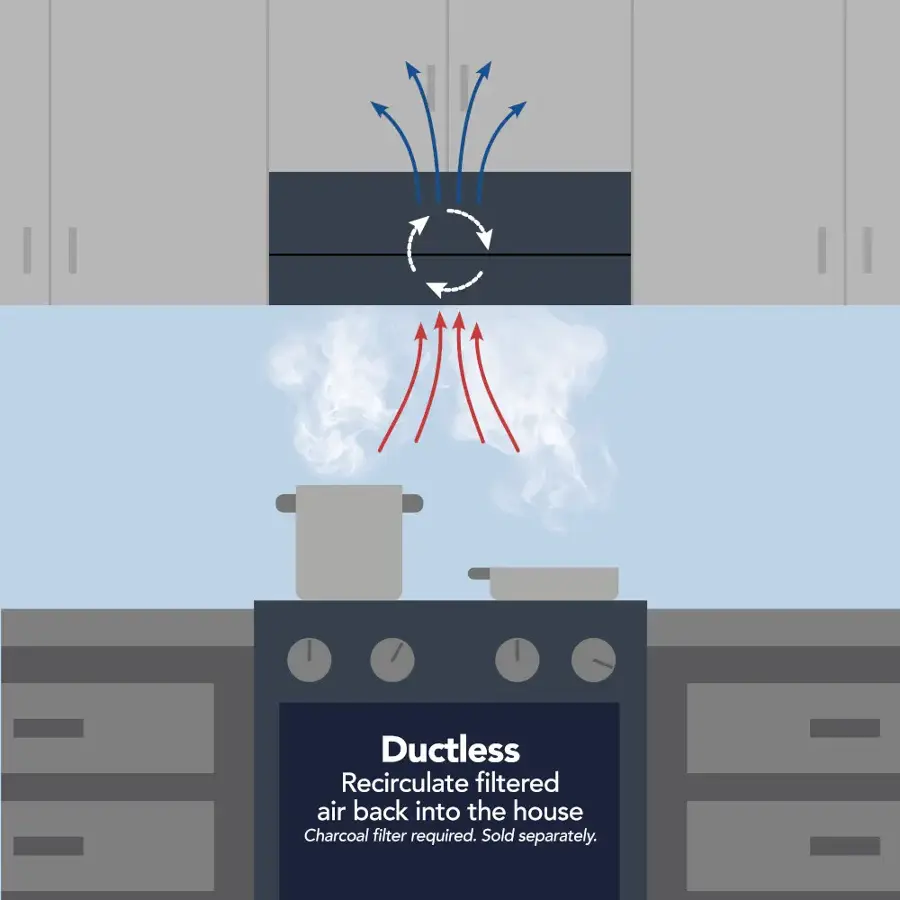

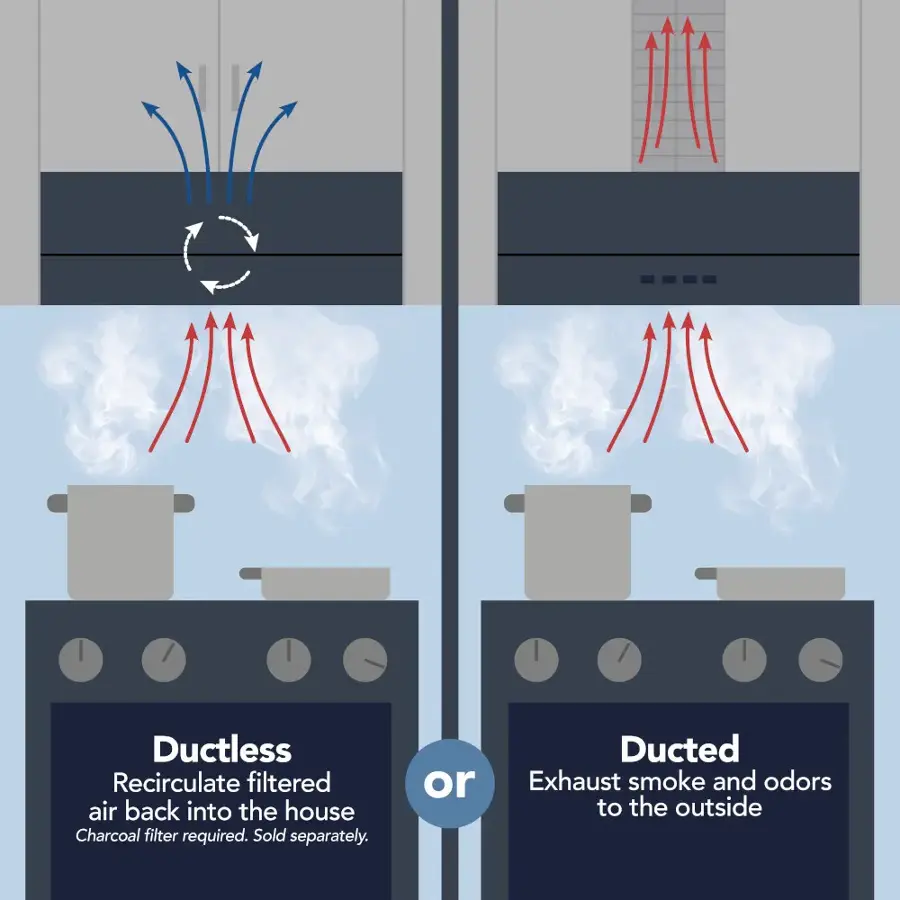

- Vent Style: Convertible, Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Broan
- Model Number: F403023

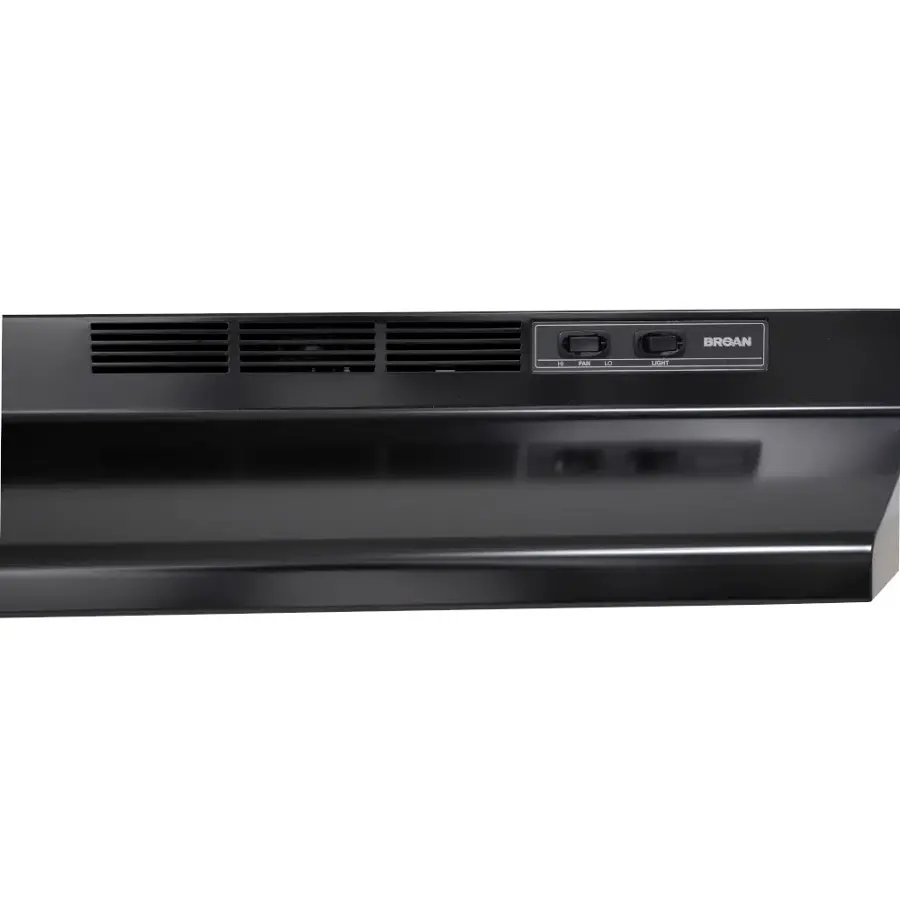

- Product Name: Broan® 30-Inch Convertible Under-Cabinet Range Hood, 230 Max Blower CFM, Black
- Color: Black
- Color Finish: Black
- Dimensions
- Product Height: 6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 18 inches
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 17.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 12.8 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 7 inches
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ducted
- Vent Style: Convertible, Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet, Under cabinet
- Number of Fan Speeds: 2
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Rocker
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: false
- Damper Included: true
- Integrated Light(s): true
- Number of Lights: 1
- Number of Light Levels: 1
- Bulb Type Required: Incandescent
- Bulb(s) Included: false
- Performance
- Maximum Air Flow Capacity: 160 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Operating Sound Level: 6.5 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 1
- Electrical Specification
- Amperage: 2.5 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: Not Applicable
- Other
- UPC: 026715143016
The F40000 series provides installation flexibility with 4-way convertibility to fit virtually all applications. The hood is designed for under cabinet use and installs as 3-1/4 in. x 10 in. ducted opening with vertical or horizontal ducting; or 7 in. round vertical ducting or as non-ducted with air recirculation. The hood is equipped with a 230 MAX Blower CFM designed for years of trouble free service, an easy to clean grease filter, and control switches for fan speed and light activation.
Whats Included
- 30" Convertible Range Hood
- Owner's manual
Q: What is the maximum airflow capacity of this range hood?
A: This range hood has a maximum airflow capacity of 160 cubic feet per minute.
Q: How many fan speeds does the Broan range hood have?
A: The Broan range hood has 2 fan speeds.
Q: Does this range hood come with a light?
A: Yes, this range hood has integrated cooktop lighting.
Q: What is the diameter of the round duct required for this range hood?
A: This range hood requires a 7-inch round duct.
Q: Is the grease filter on this range hood removable?
A: Yes, the range hood has a removable, dishwasher safe grease filter.
Q: does this need to be vented
A: There’s an option for it to vent into your kitchen.
A: yes
A: 240 amp
