CORSAIR - FRAME 4000D RS ATX Mid-Tower PC Case - Black
Color
BlackRelated Item
Specifications
- Motherboard Form FactorATXMaximum GPU Length430 millimetersProduct Height19.13 inchesProduct Width9.41 inchesProduct Depth19.7 inchesWindow Panel(s)Right side
- Key Specs
- Motherboard Form Factor: ATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 430 millimeters
- Product Height: 19.13 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.41 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19.7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)

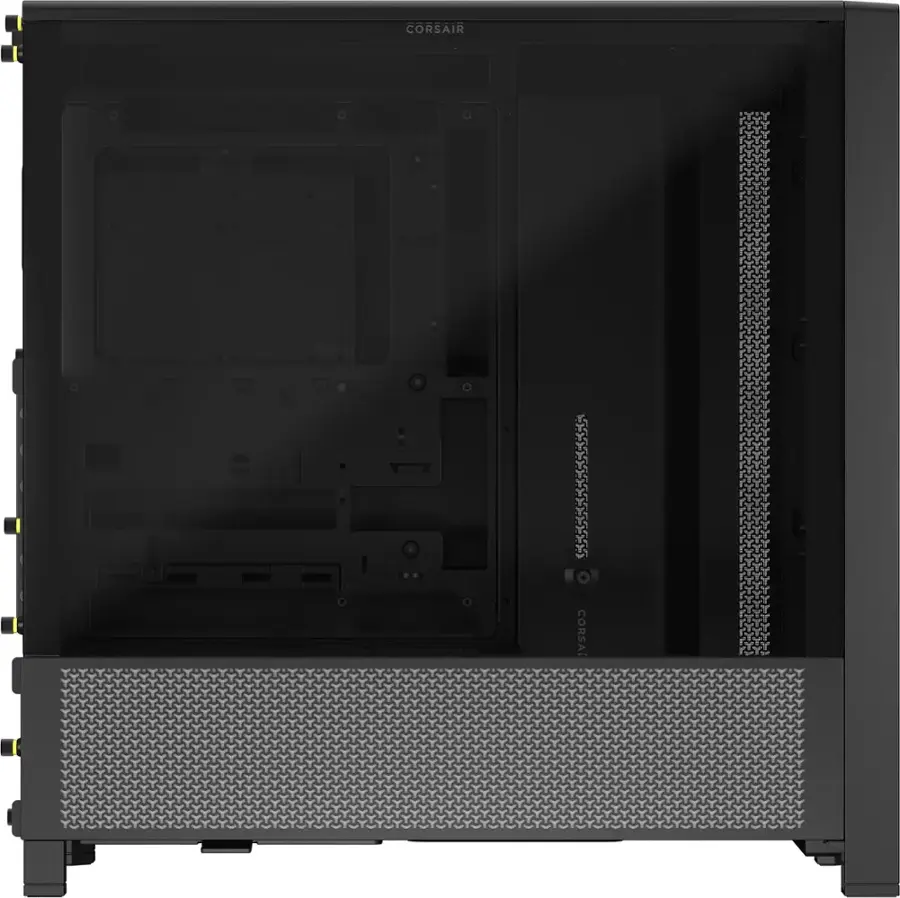

- Window Panel(s): Right side
- Case Material: Steel, Tempered glass
- General
- Brand: CORSAIR
- Model Number: CC-9011312-WW
- Product Name: FRAME 4000D RS ATX Mid-Tower PC Case
- Color: Black
- Case Material: Steel, Tempered glass
- Assembly Required: Yes
- Compatibility
- Motherboard Form Factor: ATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 220 millimeters
- Maximum GPU Length: 430 millimeters
- Number of Expansion Slots: 10
- Ports
- Number of USB Ports (Total): 3
- USB Ports: 2 x USB-A 3.2, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Number of Thunderbolt Ports (Total): 0
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Bays
- Number Of Internal 2.5" Bays: 4
- Number Of Internal 3.5" Bays: 2
- Dimensions
- Product Height: 19.13 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.41 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19.7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 289.6 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mid tower
- Window Panel(s): Right side
- Customizable Case Lighting: false
- Lighting Type: None
- Cooling
- Maximum CPU Cooler Height: 170 millimeters
- Number of Fans Supported: 12
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Number of Fans Included: 3
- Radiator Support: Top 360mm, 280mm, 240mm; Side 360mm, 280mm, 240mm; Front 360mm, 280mm, 240mm; Rear 140mm, 120mm
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 840440496571
Free yourself from the constraints of traditional PC building with the CORSAIR FRAME 4000D RS, featuring the innovative FRAME Modular Case System to perfectly customize your build. Includes 3x CORSAIR RS120 PWM Fans with daisy-chainable 4-pin connectors. The InfiniRail Mounting System simplifies fan installation, supporting dual 360mm radiators and a 3D Y-Pattern Airflow front panel for optimal cooling. The increased width and length ensure compatibility with powerful graphics cards and cooling options, with support for reverse connection motherboards. We provide the frame. You create the art.

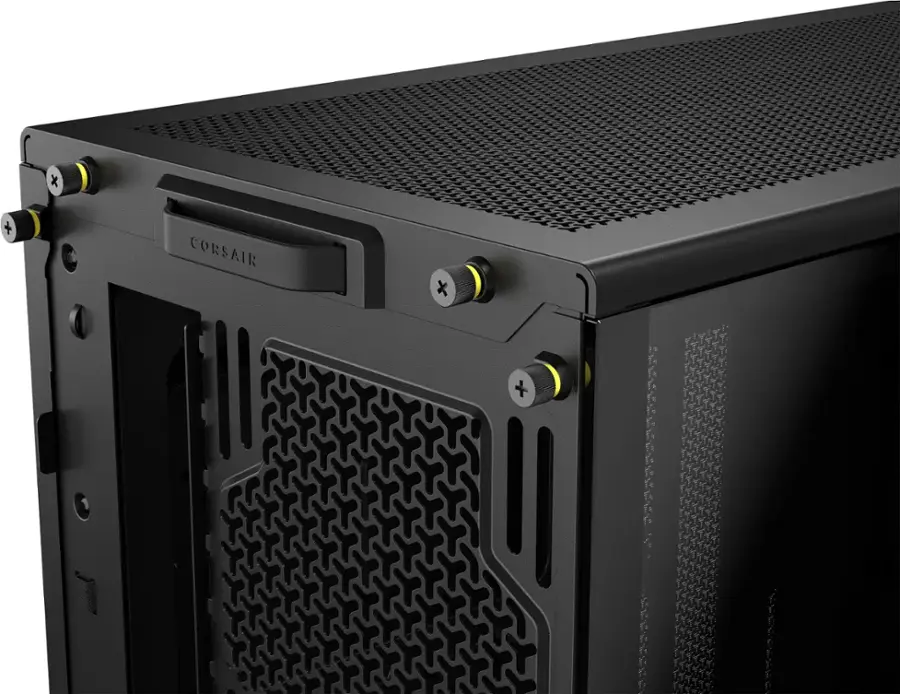

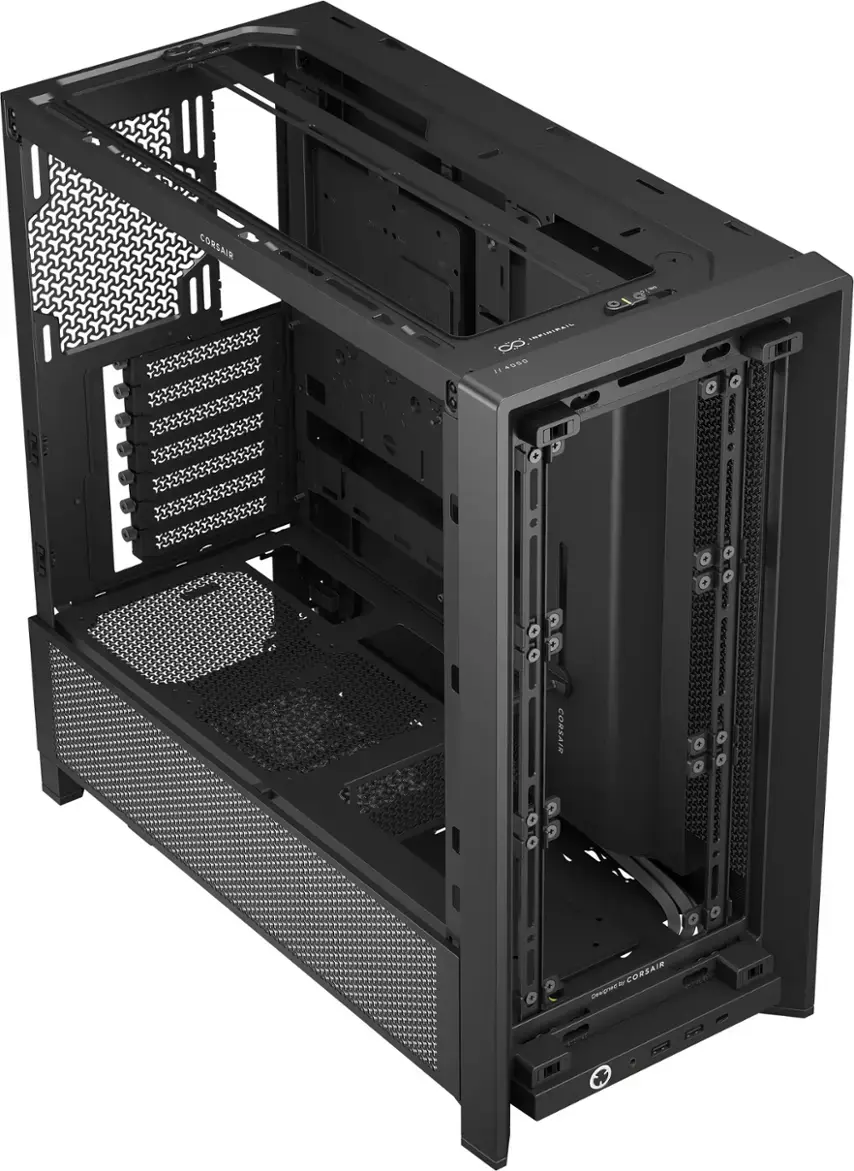

- FRAME Modular Case System: The revolutionary FRAME system gives new meaning to the word customization. Want to upgrade the motherboard tray to billet aluminum? Want to swap out your front I/O panel for more USB ports? Now you can. A case that can change and grow with your needs (or just your mood). The options are nearly limitless.
- 3x CORSAIR RS120 Performance PWM Fans: High-performance fans pre-installed in the front of case. Support daisy-chainable 4-pin PWM connections and Zero RPM mode for near-silent operation at low loads.

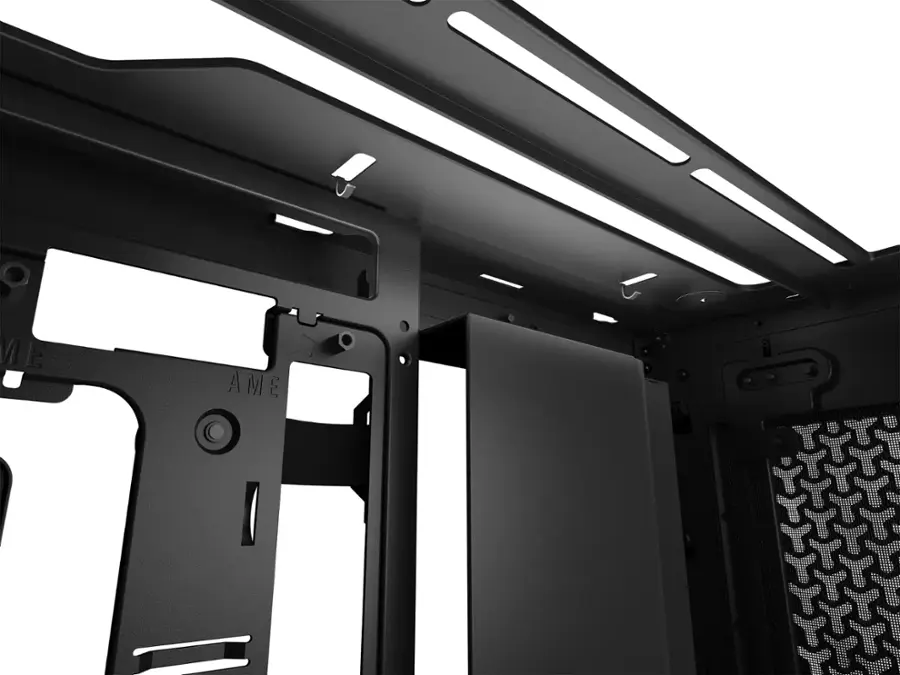

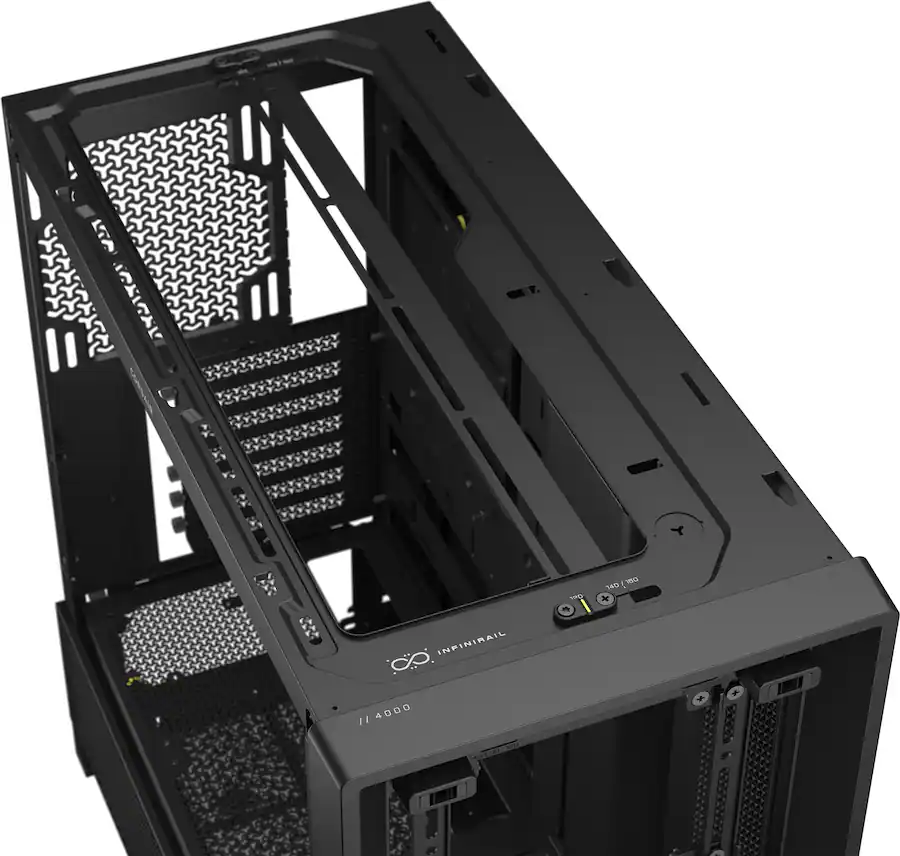

- CORSAIR InfiniRail Fan Mounting System: This steel multi-point mounting system offers unmatched flexibility in front and roof fan configuration. Simply slide the rail to mount fans up to 200mm (140mm in the roof) wherever you like, ensuring targeted airflow without fixed mounting constraints.

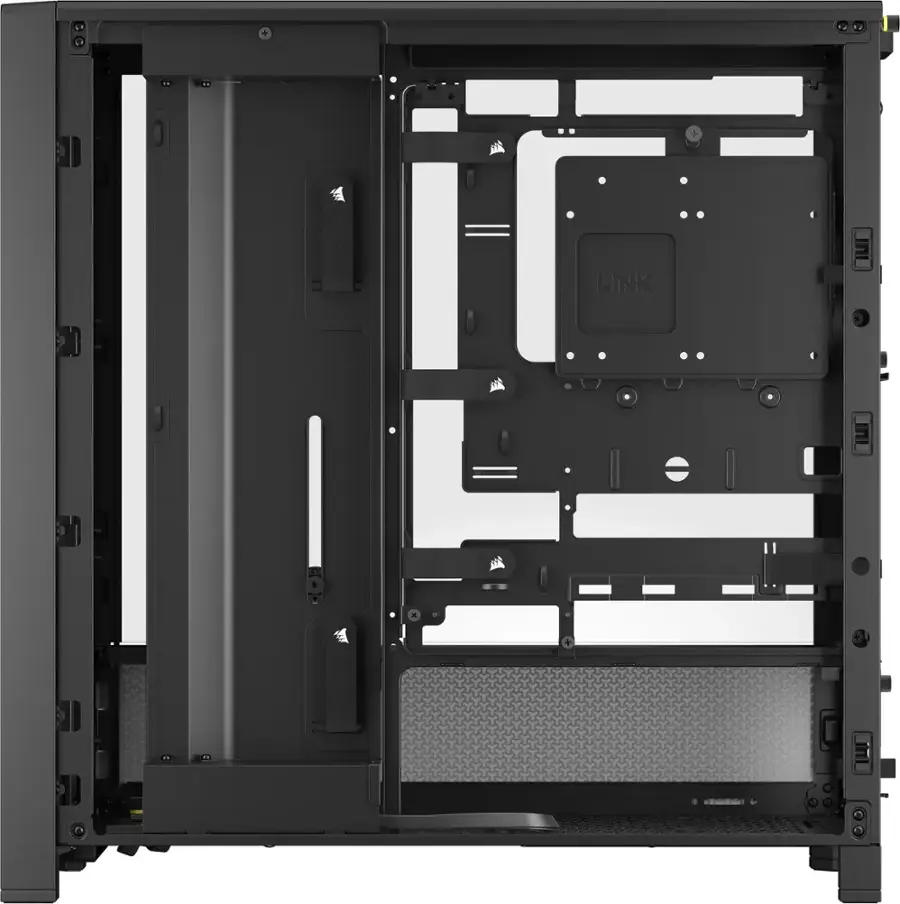

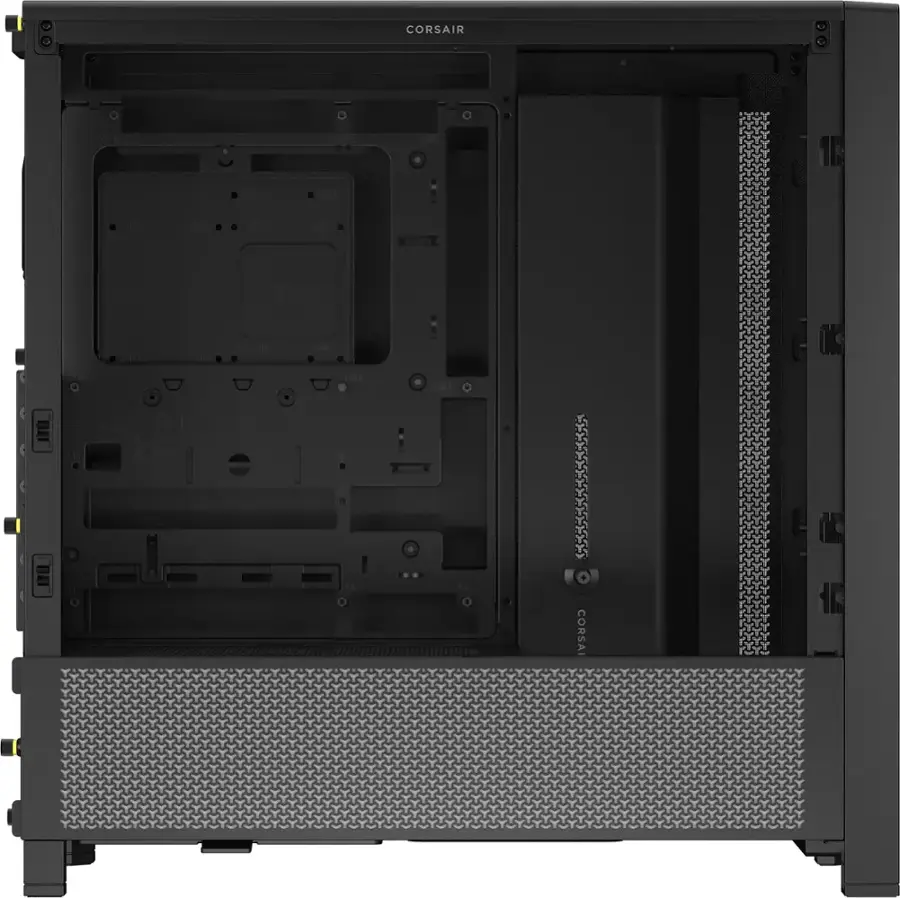

- Clean Lines or Turbo Cooled: The internal side panel near the motherboard tray can be used as a cable cover for clean cable management, or you can remove it and mount fans to the side for increased cooling potential.

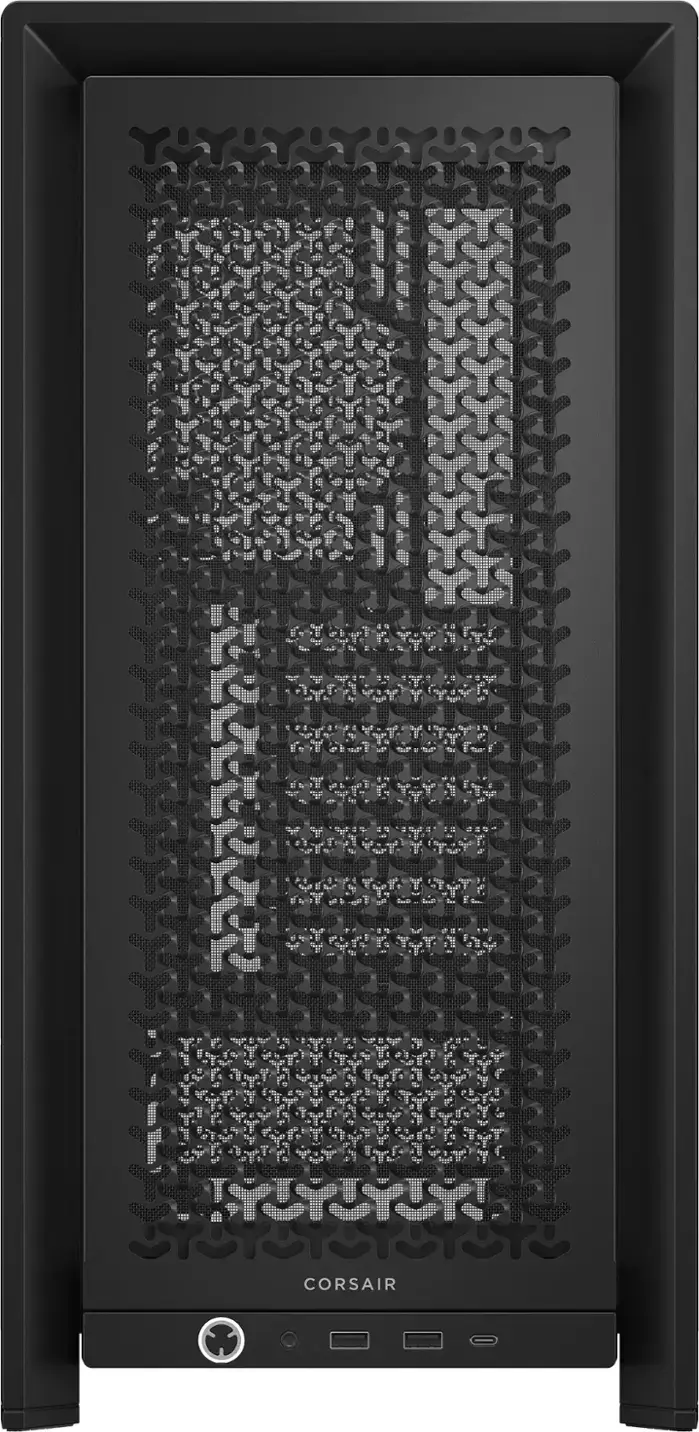

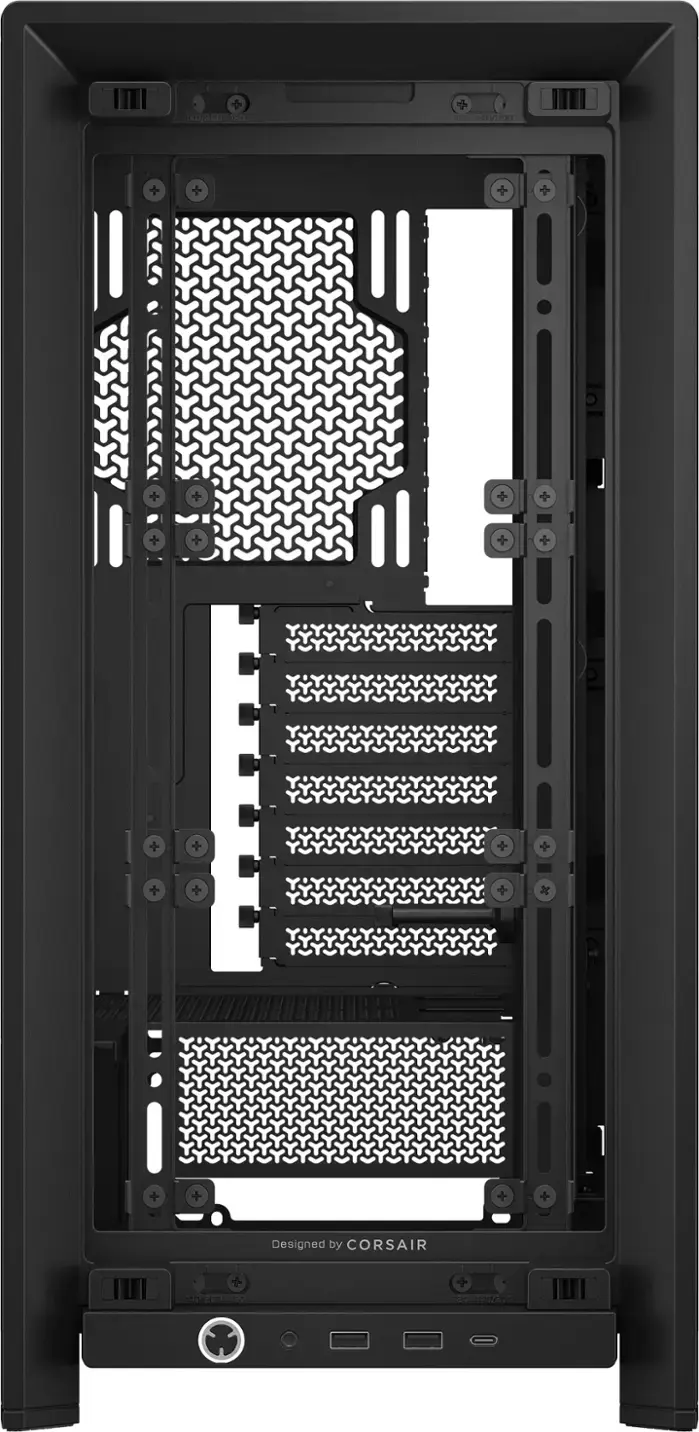

- 3D Y-Pattern Airflow Panel: Optimized for high airflow and minimal restriction, the steel front panel is perforated in three dimensions with a Y-pattern that provides a low-obstruction path for cool air.

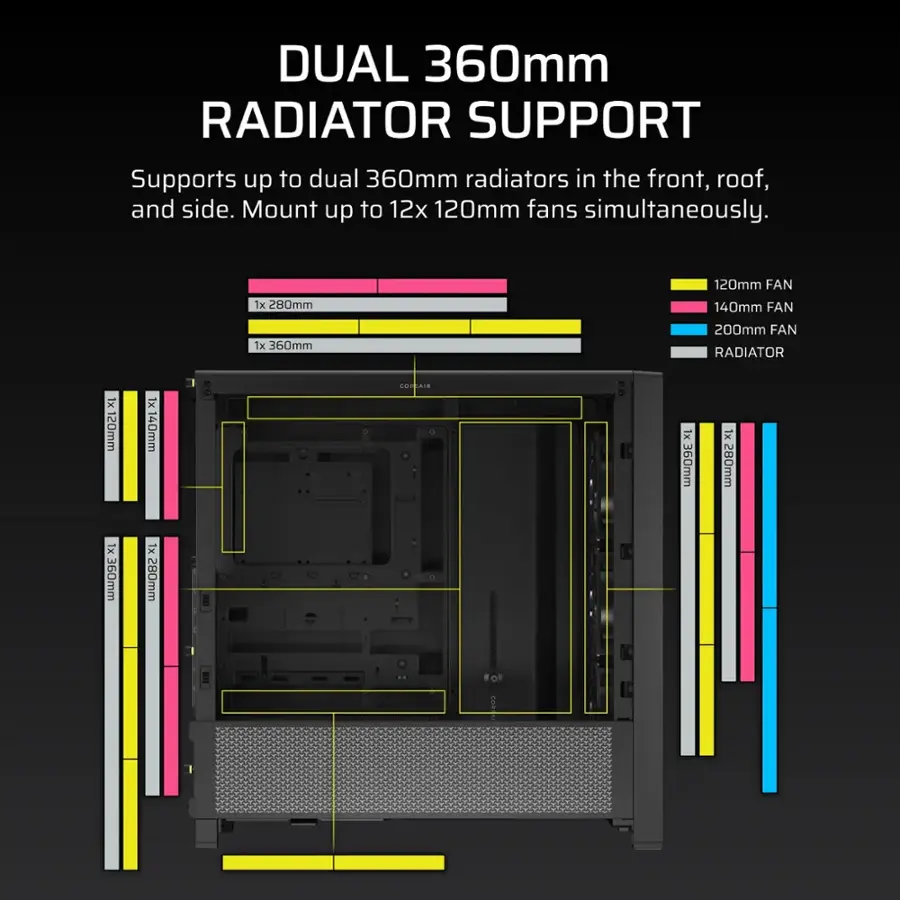

- Dual 360mm Radiator Support: Take your cooling to the next level with three mounting locations for 360mm radiators (front, roof, and side). Mount up to twelve 120mm fans simultaneously to keep cool air flowing in and hot air exhausting quickly and efficiently.

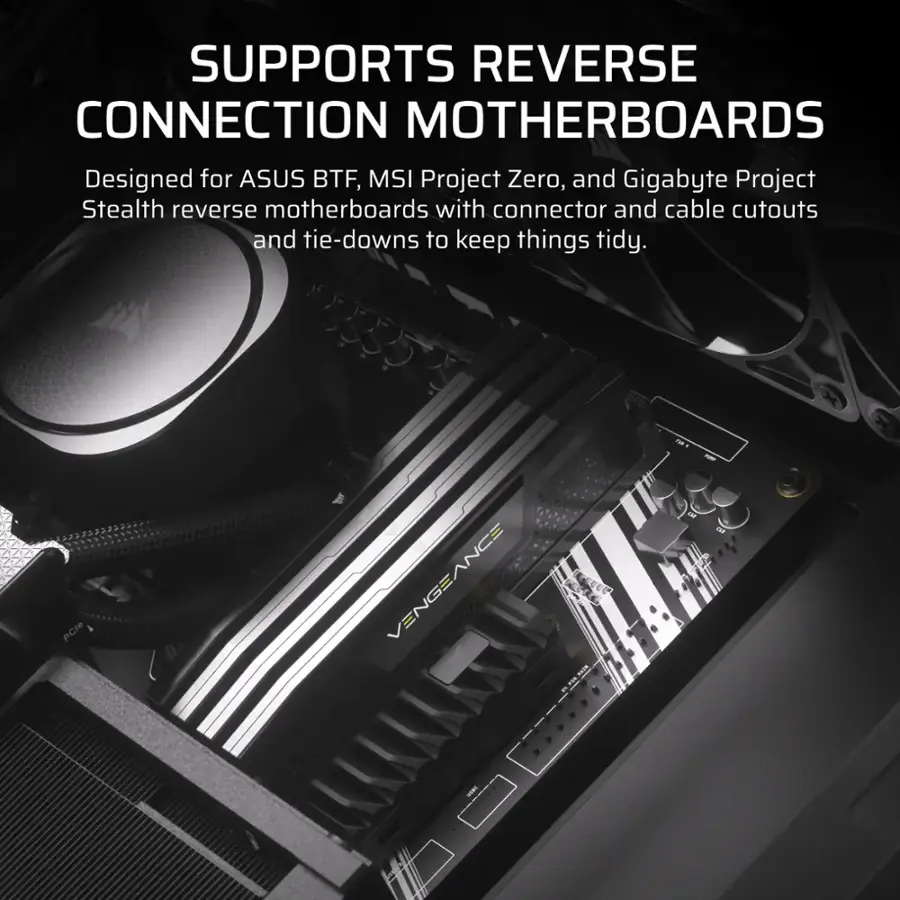

- Designed With Reverse Connection Motherboards in Mind: ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth validated with plenty of connector and cable cutouts and tie-downs to keep things tidy even where you can’t see them.

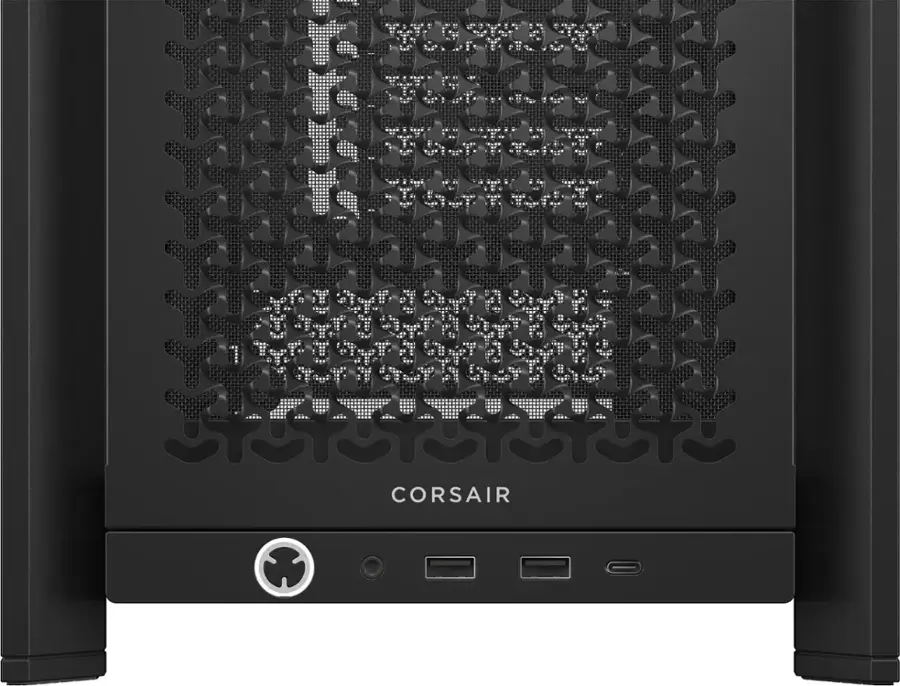

- Versatile Connectivity: Stay connected and charge your gear with two easily accessible USB 3.2 Gen 1 Type-A ports and a USB 3.2 Gen 2 Type-C front I/O panel. Want different connections? Better speed? Different layout? The I/O panel is easily swappable with upgrades available on corsair.com.
- Drives, Drives, Drives: Included drive trays for dual 3.5” hard drives or four 2.5” SSDs, or they can be removed entirely to make room for custom liquid cooling components and cables.
- Solid GPU Support (Literally: Modern graphics cards are bigger and heavier than ever, which is why every 4000D comes with an included GPU Antisag stabilization arm. Because nothing is sadder than a sagging GPU.

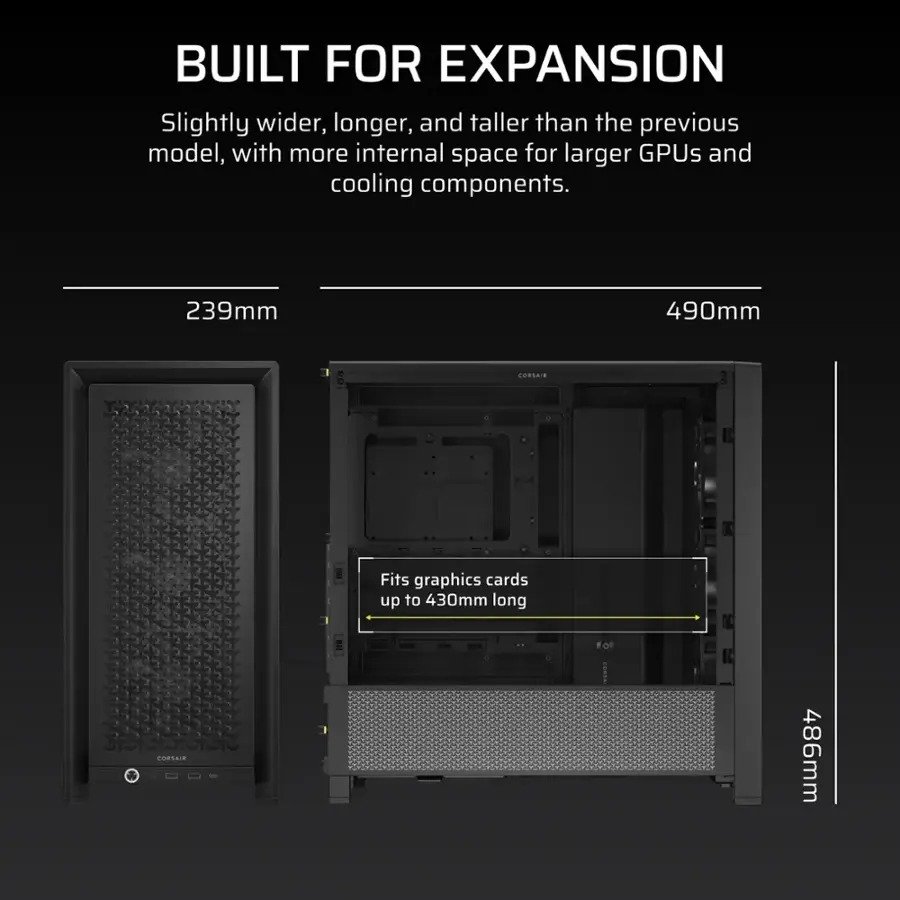

- Just a Bit Bigger: The FRAME 4000D is just a touch wider, longer, and taller than the previous 4000D to make room for more powerful GPUs and cooling components, but not so big as to hog your desktop space.

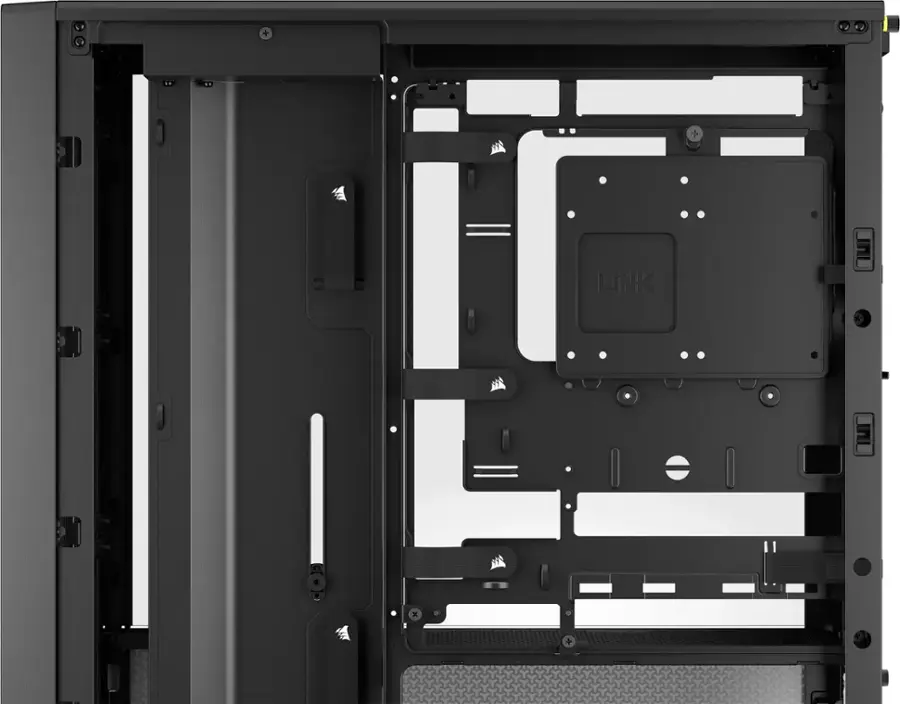

- Built for iCUE LINK: Designed from the ground up for easy iCUE LINK integration, the FRAME 4000D has cable hooks, increased tie downs, and a dedicated mounting pocket for an iCUE LINK System Hub (sold separately).
- FRAME Modular Case System: The revolutionary FRAME system gives new meaning to the word customization. Want to upgrade the motherboard tray to billet aluminum? Want to swap out your front I/O panel for more USB ports? Now you can. A case that can change and grow with your needs (or just your mood). The options are nearly limitless.
- 3x CORSAIR RS120 Performance PWM Fans: High-performance fans pre-installed in the front of case. Support daisy-chainable 4-pin PWM connections and Zero RPM mode for near-silent operation at low loads.
- CORSAIR InfiniRail Fan Mounting System: This steel multi-point mounting system offers unmatched flexibility in front and roof fan configuration. Simply slide the rail to mount fans up to 200mm (140mm in the roof) wherever you like, ensuring targeted airflow without fixed mounting constraints.
- Clean Lines or Turbo Cooled: The internal side panel near the motherboard tray can be used as a cable cover for clean cable management, or you can remove it and mount fans to the side for increased cooling potential.
- 3D Y-Pattern Airflow Panel: Optimized for high airflow and minimal restriction, the steel front panel is perforated in three dimensions with a Y-pattern that provides a low-obstruction path for cool air.
- Dual 360mm Radiator Support: Take your cooling to the next level with three mounting locations for 360mm radiators (front, roof, and side). Mount up to twelve 120mm fans simultaneously to keep cool air flowing in and hot air exhausting quickly and efficiently.
- Designed With Reverse Connection Motherboards in Mind: ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth validated with plenty of connector and cable cutouts and tie-downs to keep things tidy even where you can’t see them.
- Versatile Connectivity: Stay connected and charge your gear with two easily accessible USB 3.2 Gen 1 Type-A ports and a USB 3.2 Gen 2 Type-C front I/O panel. Want different connections? Better speed? Different layout? The I/O panel is easily swappable with upgrades available on corsair.com.
- Drives, Drives, Drives: Included drive trays for dual 3.5” hard drives or four 2.5” SSDs, or they can be removed entirely to make room for custom liquid cooling components and cables.
- Solid GPU Support (Literally: Modern graphics cards are bigger and heavier than ever, which is why every 4000D comes with an included GPU Antisag stabilization arm. Because nothing is sadder than a sagging GPU.
- Just a Bit Bigger: The FRAME 4000D is just a touch wider, longer, and taller than the previous 4000D to make room for more powerful GPUs and cooling components, but not so big as to hog your desktop space.
- Built for iCUE LINK: Designed from the ground up for easy iCUE LINK integration, the FRAME 4000D has cable hooks, increased tie downs, and a dedicated mounting pocket for an iCUE LINK System Hub (sold separately).
Whats Included
- FRAME 4000D Case
- 3x RS120 Performance Fans
- Case Accessory Box
- FRAME 4000D Case
- 3x RS120 Performance Fans
- Case Accessory Box
Q: Does this PC case support liquid cooling radiators?
A: Yes, the case supports dual 360mm radiators.
Q: What kind of front panel connections does the PC case have?
A: It has two USB 3.2 Gen 1 Type-A ports and one USB 3.2 Gen 2 Type-C port.
Q: Is this PC case compatible with iCUE LINK?
A: Yes, the case is designed for easy iCUE LINK integration and has cable hooks, tie-downs, and a mounting pocket for an iCUE LINK System Hub (sold separately).
Q: What type of motherboard form factor does the case support?
A: The case supports ATX motherboards.
Q: How many fans are included with the CORSAIR PC case?
A: The case includes three CORSAIR RS120 PWM fans.
Q: Can the front I/O panel be changed?
A: Yes, the I/O panel is swappable and upgrades are available on corsair.com.
Q: What is the maximum length of a graphics card that this case can support?
A: The CORSAIR 4000D RS can support graphics cards up to 430 millimeters long.
Q: Does this case come with the pre installed PSU?
A: No it dose not, mine did not come with a psu
