CORSAIR - iCUE H100i ELITE LCD Display Liquid CPU Cooler 120mm Fans + 240mm Radiator Liquid Cooling System + Custom IPS LCD Screen
- Key Specs
- Cooling System: Liquid (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Fan Size: 120 millimeters
- Fan Speed: 200 revolutions per minute
- Lighting Type: RGB
- Product Height: 4.72 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 10.9 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Processor Socket: Socket LGA 1700, Socket LGA 1200, Socket LGA 1150, Socket LGA 1151, Socket LGA 1155, Socket LGA 1156, Socket LGA 1366, Socket LGA 2011, Socket LGA 2066, Socket AM1, Socket AM4, Socket sTRX4 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Radiator Size: 240 millimeters (The overall size of the radiator based on the number of fans held within multiplied by the individual fan size.)
- General
- Product Name: iCUE H100i ELITE LCD Display Liquid CPU Cooler 120mm Fans + 240mm Radiator Liquid Cooling System + Custom IPS LCD Screen
- Brand: CORSAIR
- Model Number: CW-9060061-WW
- Cooling
- Cooling Fan Type: CPU
- Cooling System: Liquid (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Fan Size: 120 millimeters
- Fan Speed: 200 revolutions per minute
- Features
- Lighting Type: RGB
- Dimensions
- Product Height: 4.72 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 10.9 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 1.06 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 34.9 ounces (The out of box weight of the item.)
- Compatibility
- Processor Socket: Socket LGA 1700, Socket LGA 1200, Socket LGA 1150, Socket LGA 1151, Socket LGA 1155, Socket LGA 1156, Socket LGA 1366, Socket LGA 2011, Socket LGA 2066, Socket AM1, Socket AM4, Socket sTRX4 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Radiator Size: 240 millimeters (The overall size of the radiator based on the number of fans held within multiplied by the individual fan size.)
- Other
- UPC: 840006648130

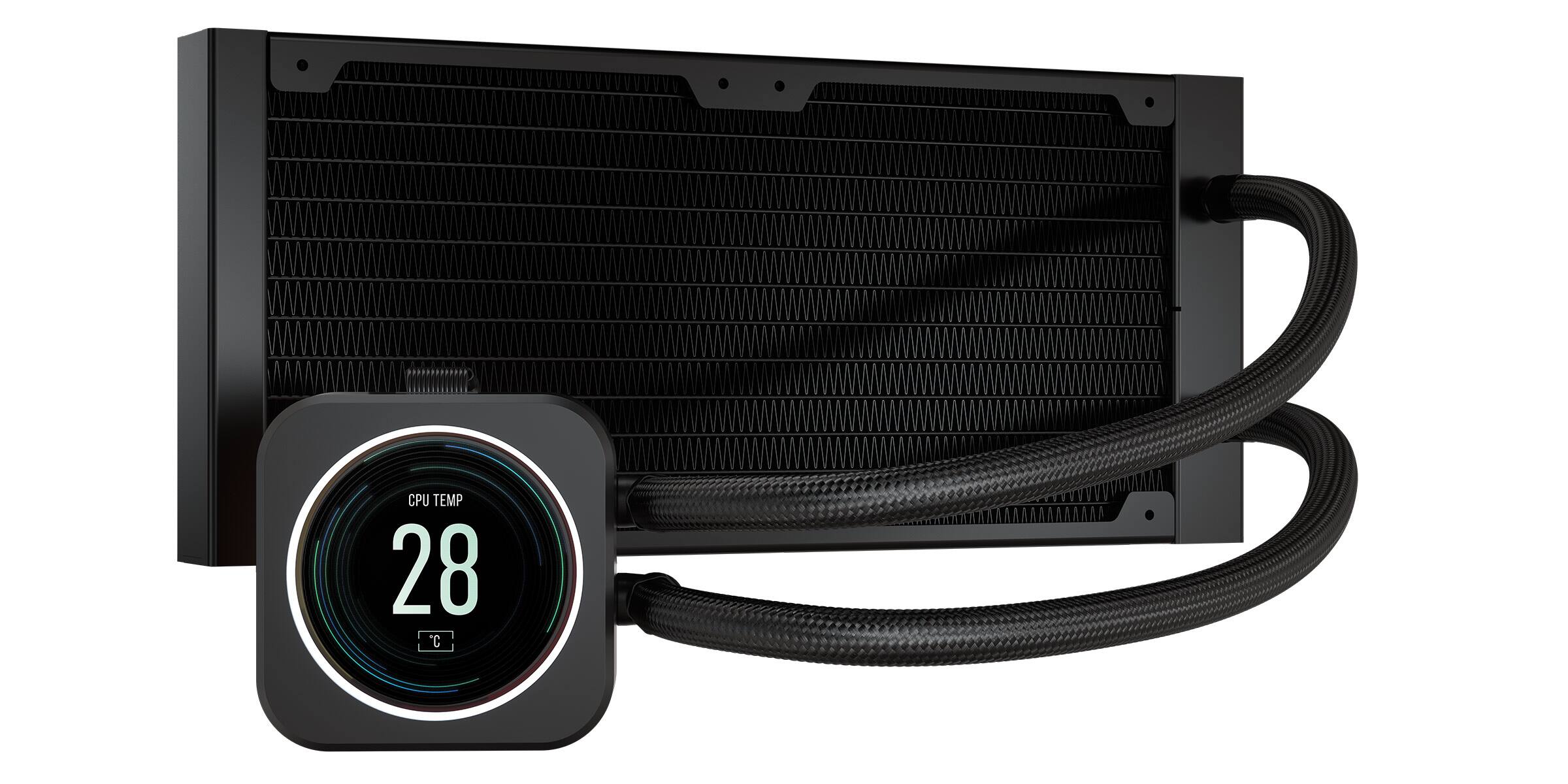

The CORSAIR iCUE H100i ELITE LCD Display Liquid CPU Cooler delivers powerful, customized cooling for your CPU, with a personalized LCD screen that displays GIFs, images, and system information. Two cutting-edge CORSAIR ML120 RGB ELITE PWM fans controllable between 450 - 2,000 RPM and 40 total RGB LEDs add extreme low-noise cooling performance and vibrant lighting effects. Connect to the included CORSAIR iCUE COMMANDER CORE and powerful CORSAIR iCUE software to orchestrate synchronized RGB lighting, adjust fan speeds, and enable Zero RPM mode on up to six fans. iCUE also controls LCD screen customization, enabling you to choose between a diverse library of graphical themes. With a 240mm radiator, thermally optimized copper cold plate, and easy installation on the latest CPU brackets, the H100i ELITE LCD puts your CPU cooling on full display.
- Premium All-in-One LCD CPU Cooler: Combines powerful, low-noise cooling and vibrant RGB lighting with a personalized LCD display, offering custom graphics to accent your system’s aesthetics and track its real-time performance at a glance.

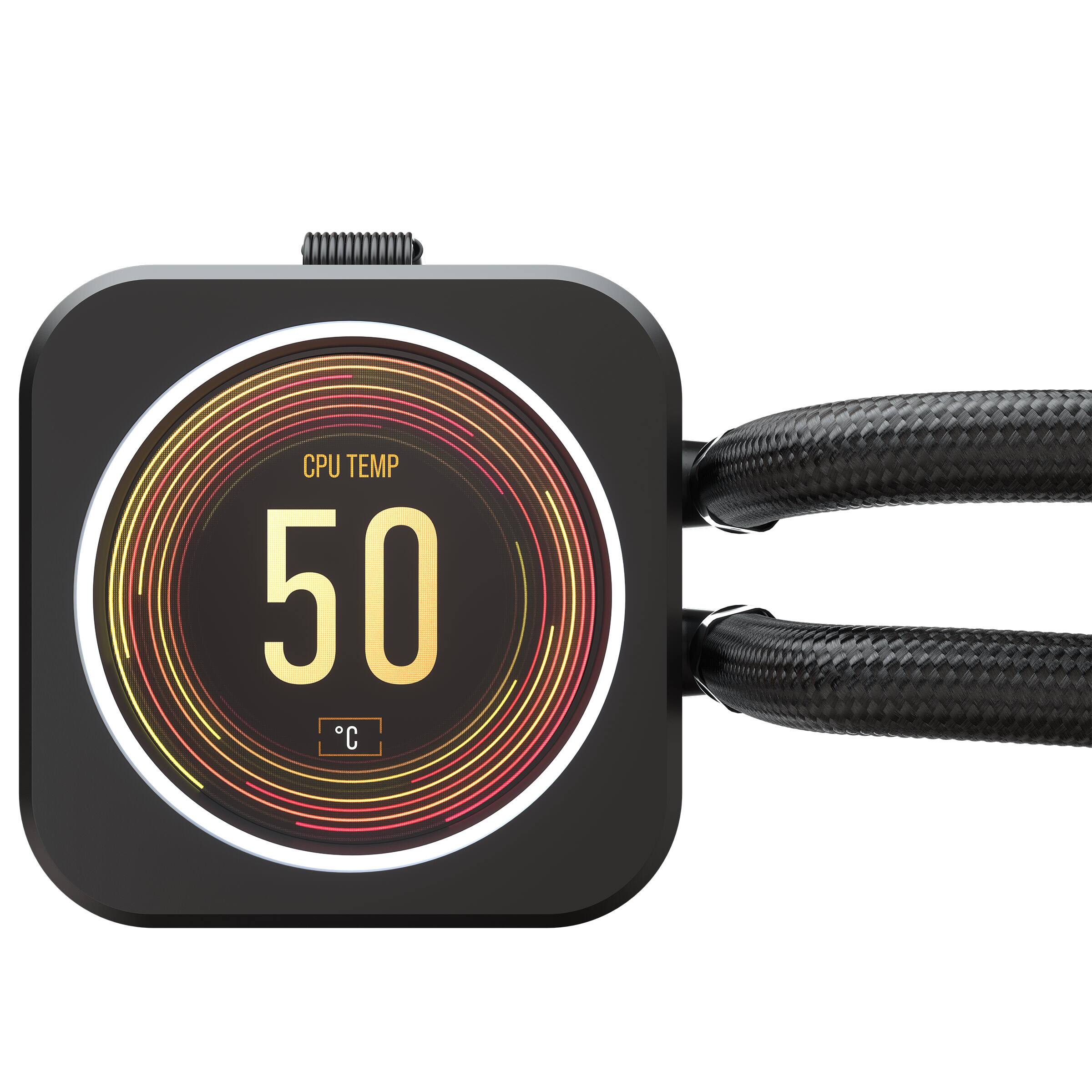

- Brilliant IPS LCD Display: Showcase your live CPU temperature, favorite animated GIF, funniest meme, your team’s logo, or anything you like on a custom 2.1” IPS LCD screen with 480x480 resolution, ultra-bright 600cd/m² backlight, 24-bit true color depth, and over 16.7 million colors.
- Decide Your Display Theme: A diverse library of colorful themes let you view vital system information in bold graphic display styles that suit your system and setup.

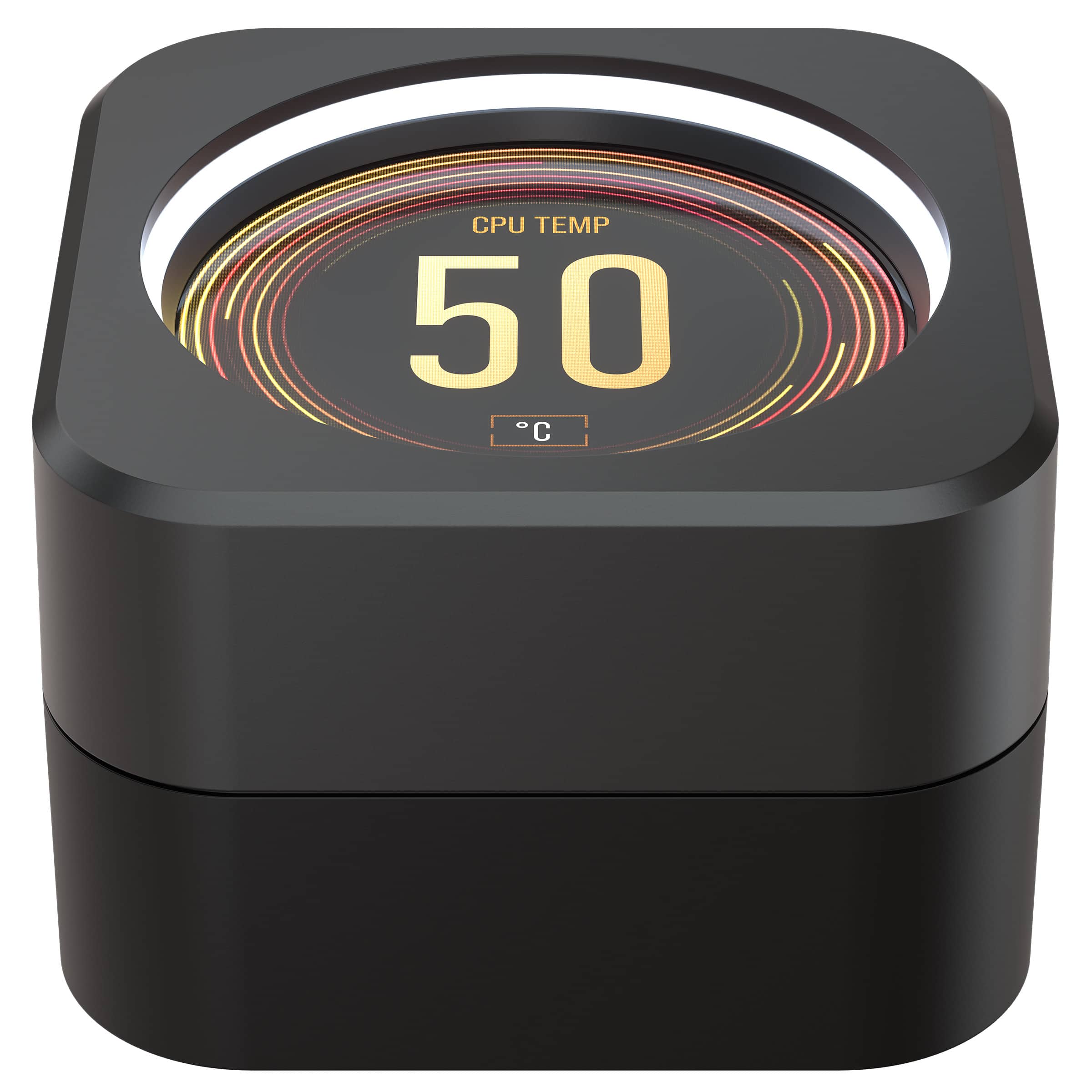

- High-Performance Pump Head with RGB LED Ring: Provides powerful, low-noise cooling for your CPU, with a ring of 24 individually addressable RGB LEDs encircling the screen for even more vibrant lighting effects.
- CORSAIR iCUE COMMANDER CORE Included: A smart RGB lighting and fan speed controller gives you precise speed and lighting control over up to six RGB fans.
- 2x ML120 RGB ELITE Fans Elevate Your CPU Cooling: Two all-new 120mm CORSAIR ML RGB ELITE magnetic levitation fans with eight RGB LEDs per fan and AirGuide technology channel airflow as quietly as 30.4 dBA.
- Extreme CPU Cooling at Your Command: Control incredible cooling fan performance via PWM, from 450 up to 2,000 RPM while in operation.
- Control incredible cooling fan performance via PWM, from 450 up to 2,000 RPM while in operation.: Zero RPM fan mode and Variable Pump Speed specialized cooling modes in iCUE keep your cooler’s noise to a minimum when your system is idle or under light loads.
- Powerful CORSAIR iCUE Software: You can switch between a variety of display options such as fan speeds, CPU temps, images and GIFs, and more, adjust fan and pump speeds, and control and synchronize RGB lighting with all iCUE-compatible devices.

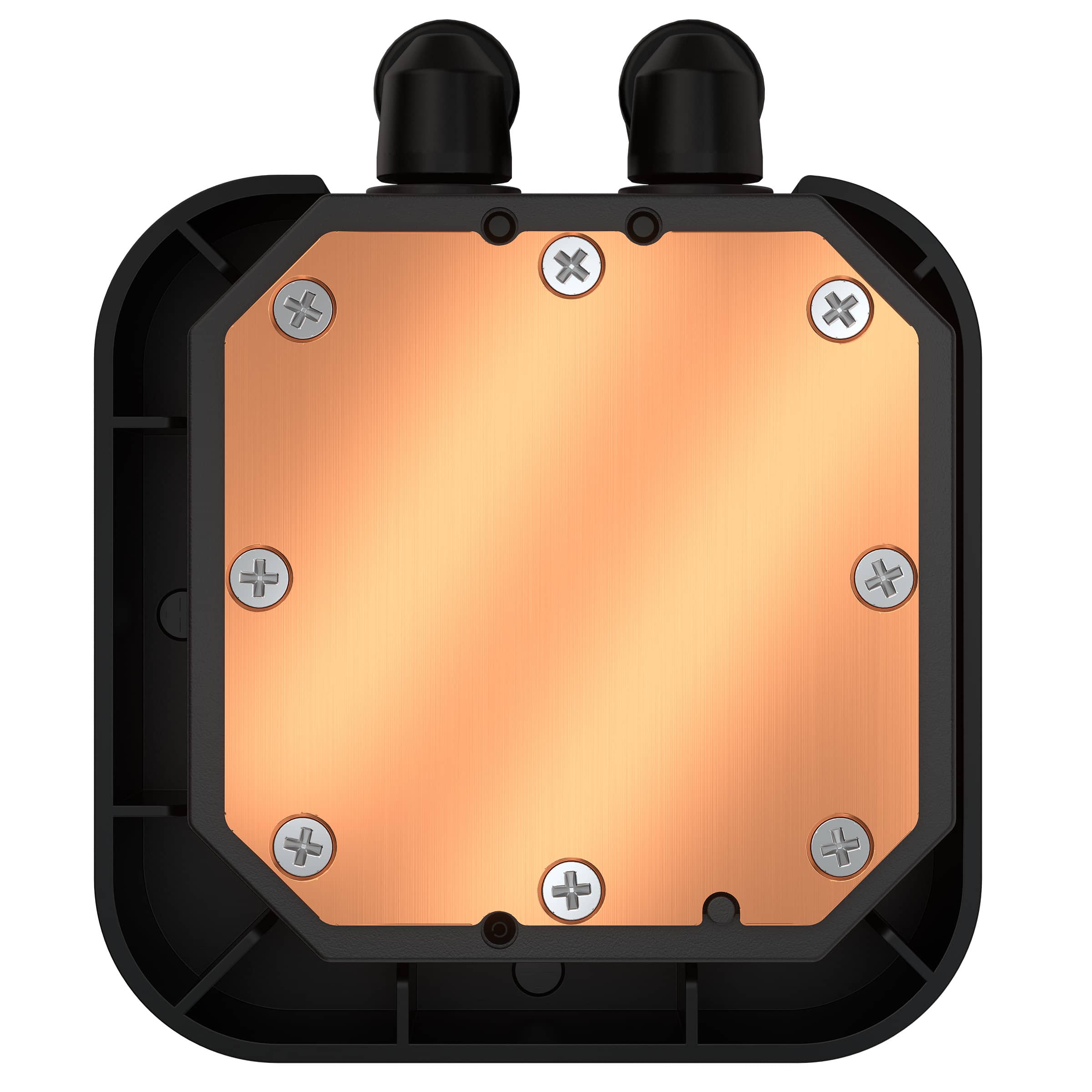

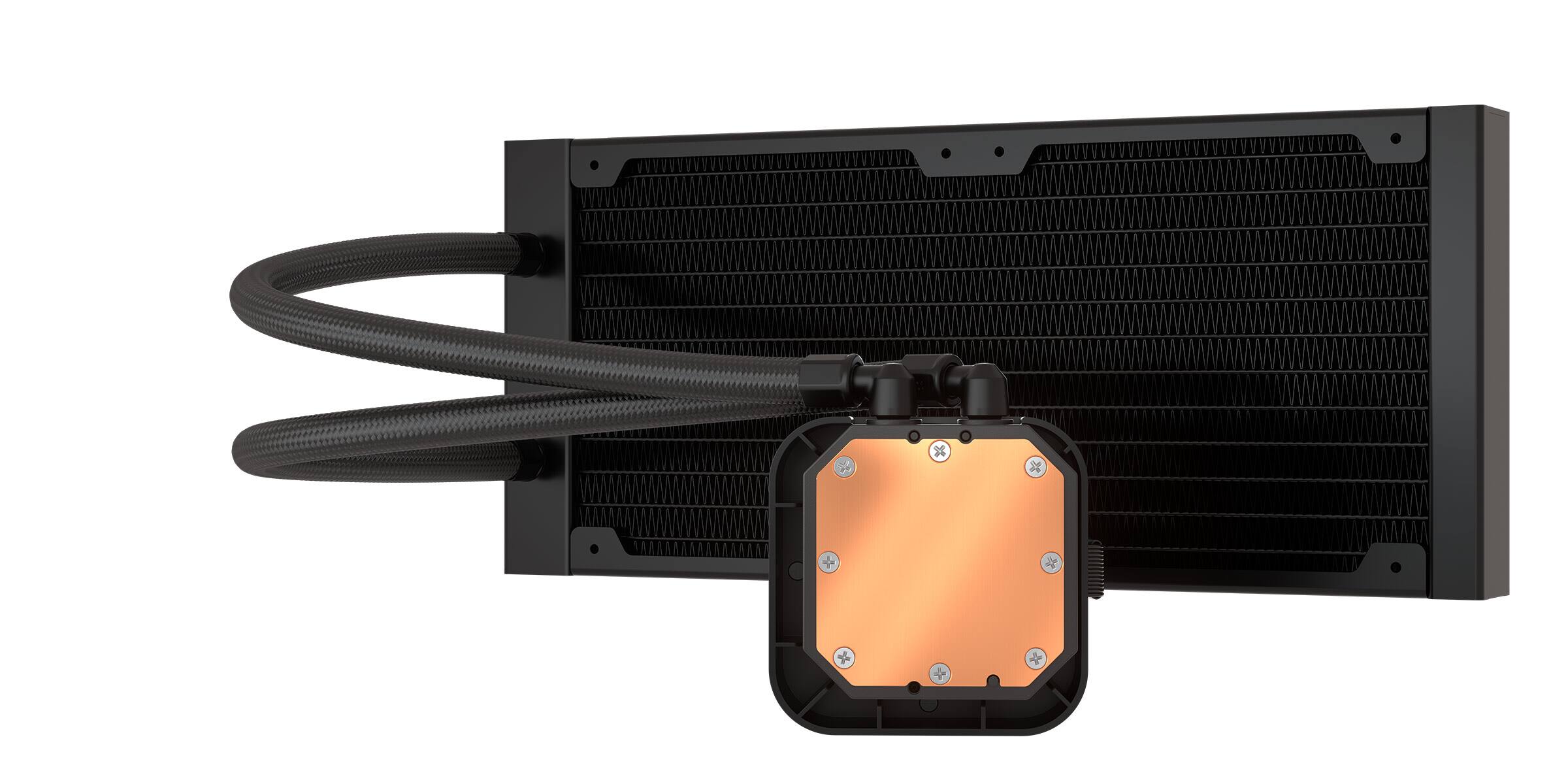

- Split-Flow Copper Cold Plate: An optimal cold plate with pre-applied thermal compound and a high-density stack of 128 micro-skived fins-per-inch provide your CPU highly efficient cooling at all loads.
- Low-Noise Centrifugal Pump: Delivers a flow rate of up to 0.82L/min while generating less than 20 dBA, for exceptional cooling with low noise.

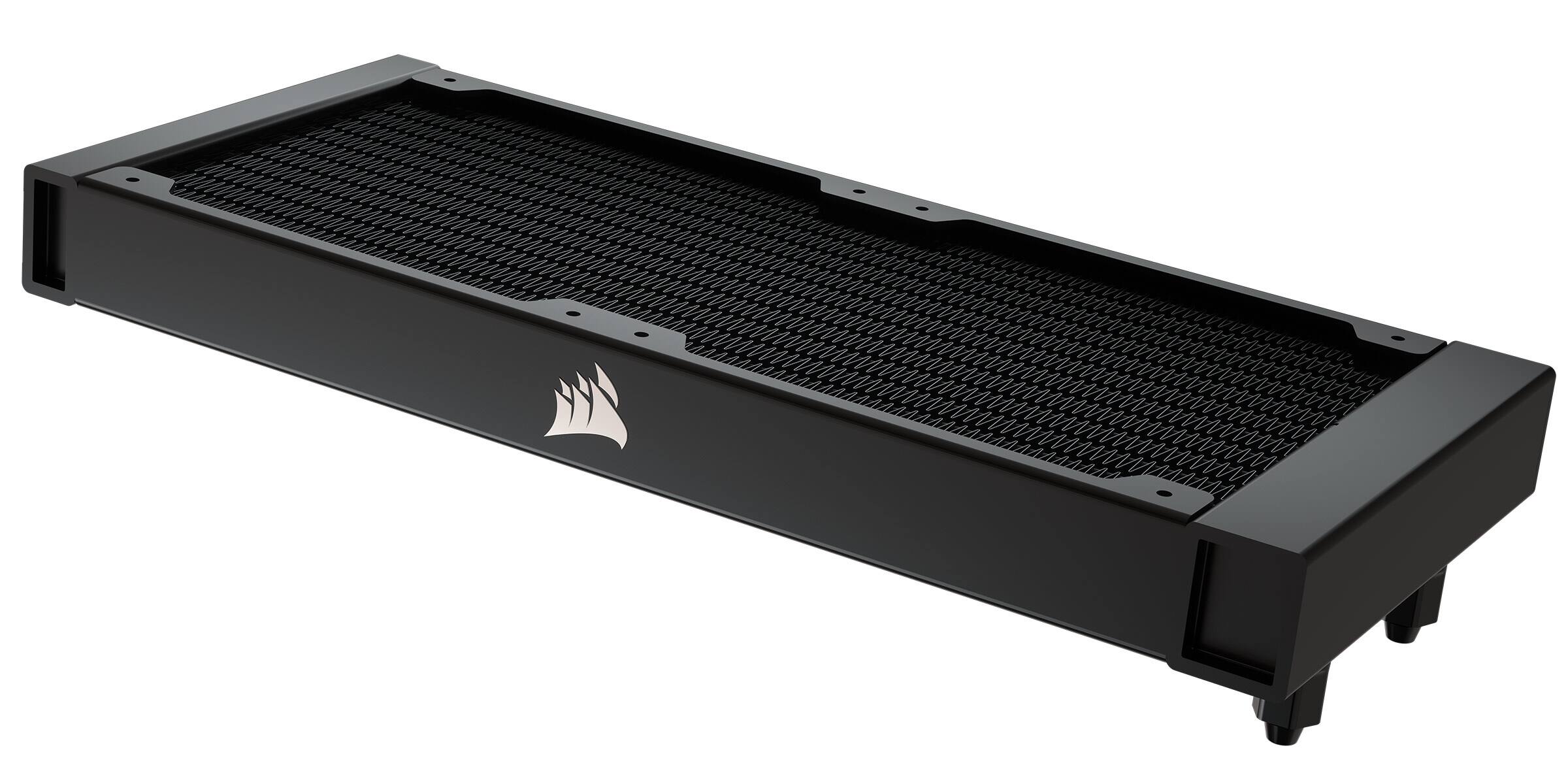

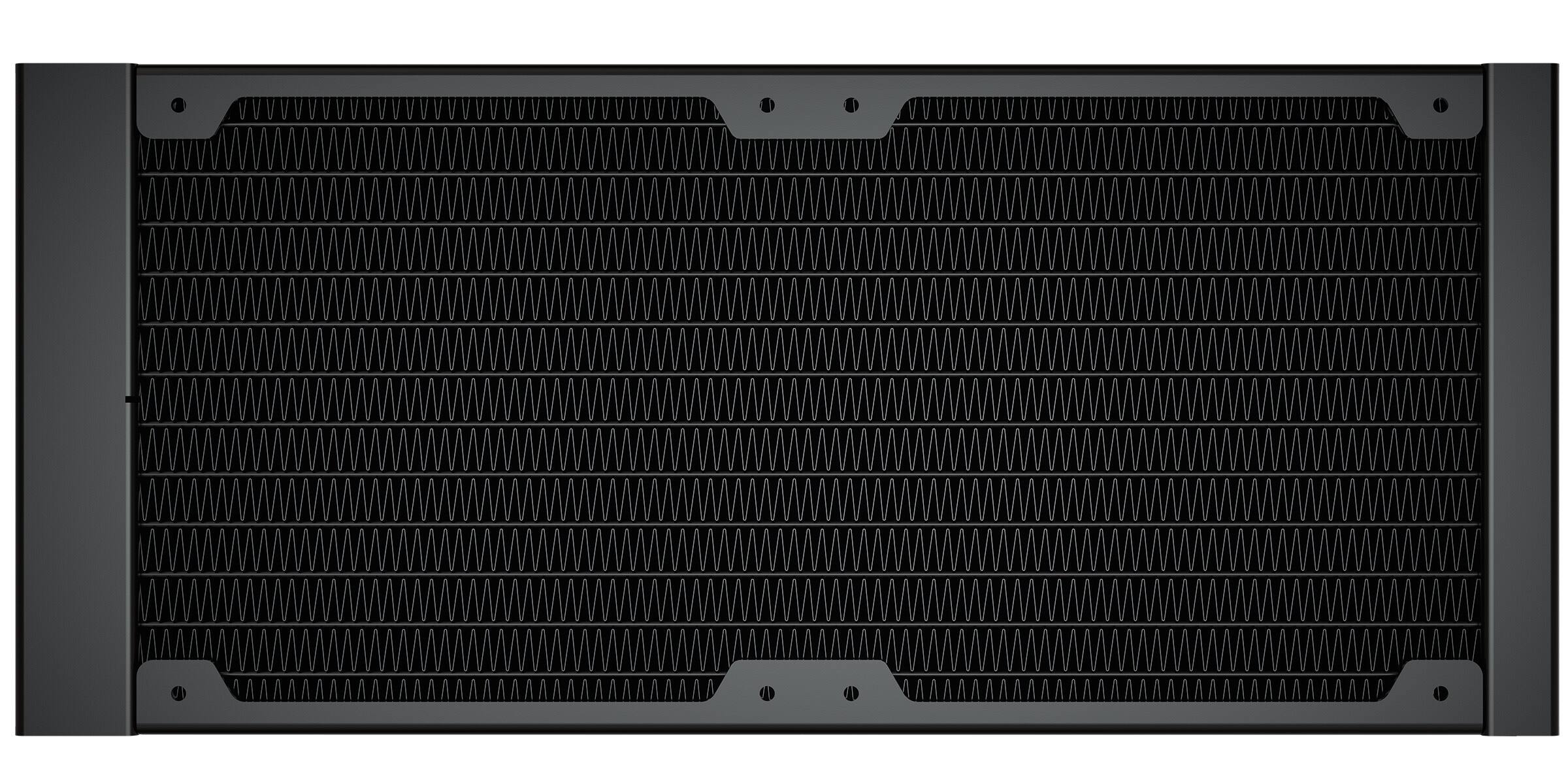

- 240mm Radiator: High surface area for powerful cooling.
- Intel 12th Gen Ready: Compatible with Intel Alder Lake socket LGA 1700 processors out of the box.
- Effortlessly Install Your Cooler: Modular, tool-free mounting bracket and elongated tubing for quick and painless installation on all modern Intel® and AMD sockets, including LGA 1700, 1200,115X, 2066, and AM4.
- Five-Year Warranty: Grants you complete peace of mind.
Q: Is this compatible with AMD AM5 platform?
A: Hi, Yes, this cooler is compatible with AM5. You would use the provided AM4 mounting hardware for AM5 installation. For video guidance on installation, please feel free to refer to our installation video on our CORSAIR LAB channel (youtube.com/c/CORSAIRHowTo). If you have any additional questions, we'd be happy to assist: help.corsair.com -Albert
Q: Does anyone know if this fits the new generation? LGA 1700 socket
A: Yes. It should come with adaptors. If not you can get them on the corsair website for $5
Q: Does it comes in white color
A: It does but I have not seen best buy carrying it. You might get lucky at your store but none of the stores around me have had the white version.
Q: Does this come with thermal paste?
A: The h150i came with pre applied thermal paste, I assume the h100i does as well. It comes with a plastic cover over it I suggest leaving it on until you are ready to put it on the CPU. This is a mistake I made, I didn't notice the thermal paste rubbing around on everything until it was too late.
Q: Does this work with a ryzen 9 5950x
A: This product is compatible with am4 and am5. Many different brackets are included just make sure you read the instructions carefully to know exactly which one to use to properly mount it to your motherboard.
Q: is this compatible with the MPG B550 Gaming edge wifi motherboard?
A: The b550 motherboards have am4 socket which this product is compatible with. Make sure to read instructions carefully to know exactly which bracket to use because it comes with multiple different brackets for compatibility with different platforms.
A: You can put any 120mm fans on it you want. There is a industrial standard for 120mm fans that almost all companies follow, including Corsair, noctua, coolermaster, even the cheaper stuff like ezdiy-fab fans you can get off Amazon. I use Corsair fans mostly and I mix and match them throughout several different builds just throwing them wherever. Just pay attention to fan rpm, you want higher rpm fans cooling your radiator.
