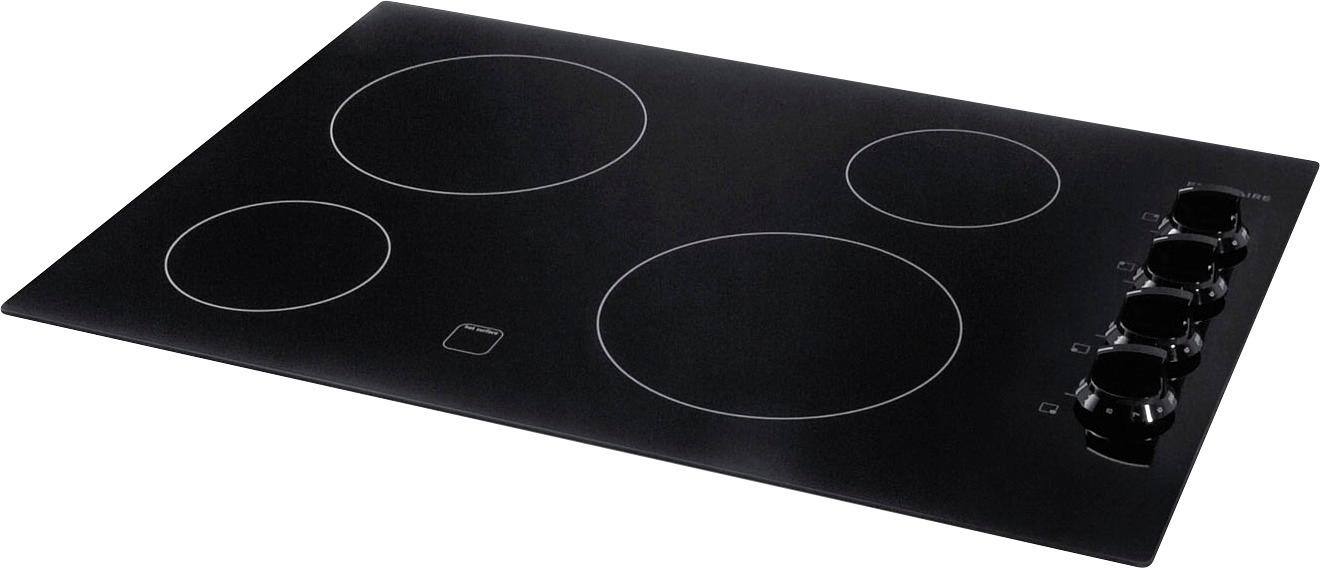

Frigidaire - 30" Built-In Electric Cooktop
- Key Specs
- Product Height: 3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 3/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Color Finish: Black
- General
- Product Name: 30" Built-In Electric Cooktop
- Brand: Frigidaire
- Model Number: Ffec3024lb
- Color Finish: Black
- Dimensions
- Product Height: 3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 3/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 38 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 5 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 20 1/2 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Control Type: Electronic
- Control Location: Top Right Side
- Digital Display: false
- Power-On Indicator Light(s): false
- Hot Surface Indicator(s): true (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Portable: false
- Cooktop Features
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Ceramic, Glass
- Bridge Element: false (This feature is an additional heating element located between two individual burners. When this is enabled, the individual burners and the bridge element act as one connected cooktop. This equal heat distribution on the cooktop surface helps accommodate larger cookware, such as roaster pans or griddles.)
- Specialty Element(s): false
- Expandable Element: false (Accommodate large cookware and ensure even heat distribution with this feature, which allows more surface area for the individual heating element.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Power
- Cooktop Power Source: Electric
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Other
- UPC: 057112990217
This cooktop meets a range of cooking requirements with 4 elements that deliver between 1200 and 2500 watts of power. The SpillSaver design ensures quick and easy cleanup so you spend less time in the kitchen.
- Ready-Select controls: Allow you to easily select options with the touch of a button.
- 4 elements deliver 1200 to 2500 watts of power: For versatile heating options that meet a range of cooking requirements.
- Ceramic-glass cooktop: Provides a smooth surface that makes cleaning fast and simple.
- SpillSaver design: Contains spills, making cleanup quick and easy.
Q: cut out dimensions...this is a replacement
A: Hey JH! The cooktop FFEC3024LB will require a cutout space of 29-5/8 (minimum) or 29-7/8 (maximum) inches wide, 20-1/4 (minimum) or 20-1/2 (maximum) inches deep, and 5 inches high. We hope this information is helpful to your shopping experience. –Thanks!-
Q: Does this work great with cast iron pots and pans?
A: Hi SweetE. Cast Iron is a poor heat conductor however will retain heat very well. It cooks evenly once cooking temperature is reached. We do want to express to use caution while cooking with cast iron on a ceramic glass cooktop. If dropped, cast iron can damage the cooktop due to the weight. Sliding cast iron across the cooktop could scratch the surface. We hope this information is helpful. ~ Anna
Q: Difference between electric and induction cooktop
A: A regular electric oven uses a large coiled resistor as a heating element. A large electric current is passed through this element which generates heat, similar to the tungsten filament of an incandescent light bulb. An induction stove doesn't actually generate heat itself, but rather induces it the pot or pan. It does this using a rapidly oscillating magnetic field. This field induces an electric current in a ferromagnetic pan which generates heat, thus heating the food. Induction stoves are faster, safer, and more energy efficient than traditional electric stoves. It requires significantly less electricity to create the magnetic field than it does to drive enough current through a resistor to make it heat up. They are safer because they don't actually generate heat themselves. After taking a pot off the "burner" (glass surface) it quickly begins to cool. With regards to differences in the cooking process, there's not much. You just need to be aware that it heats up much more quickly and cools down much more quickly than a traditional electric stove. It does affect your choice of pans however. All aluminum pans will not work, nor will some lower quality stainless steel ones. If a magnet sticks to the pan then it will work just fine. The pan must also have a flat bottom to make full contact with the surface.
Q: What are the dimensions of this stovetop?
A: undefined
A: Hi Monchi. The requirements are: Connected Load @ 240V: 7.4 / 5.6, Amps @ 240 Volts: 30.8 / 26.9, Voltage Rating: 240V / 208V 60Hz. If needed, our team can be reached by calling 1-888-203-1389 Mon - Fri, 8am - 8pm (EST) Sat, 9am - 6pm (EST) Kindly, Anna
Q: What is the outer dimension?
A: Hey there Fancy! In researching, I was able to see that the dimensions are located as follows: 30-3/4" W x 21-3/8" D x 3" H. I certainly hope this information was helpful to you. –Ciara
A: Hey there, Alex. The Voltage Rating for this model is 240V / 208V 60Hz. For further assistance feel free to reach out to your local Best Buy retailer. Hope this helps! -Alexis
Q: What is the cut out size or the counter?
A: Hi, Kongdingy. The cutout dimensions are: Width (Min.) 29-5/8" - Width (Max.) 29-7/8" x Depth (Min.) 20-1/4" - Depth (Max.) 20-1/2" x Height 5" . ~ Brandi
