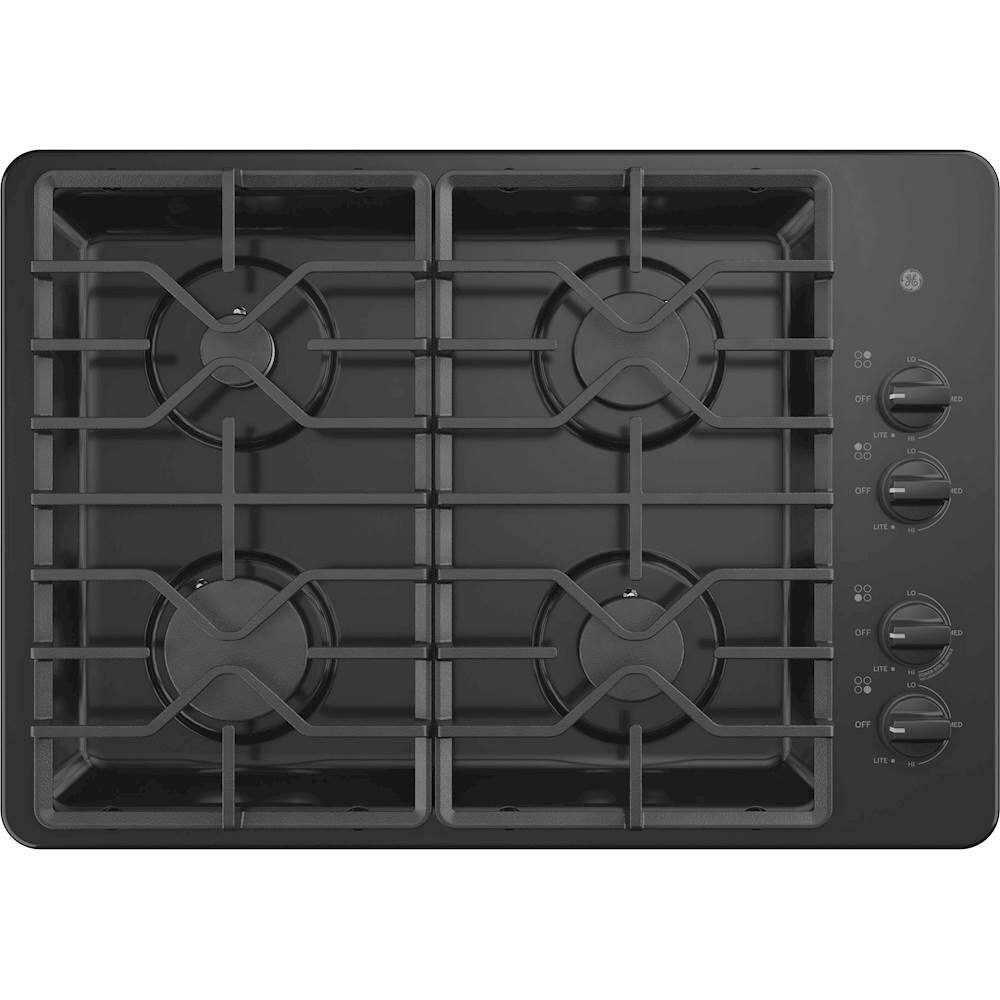

GE - 30" Gas Cooktop
- Key Specs
- Product Height: 4 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Color Finish: Black
- General
- Product Name: 30" Gas Cooktop
- Brand: GE
- Model Number: JGP3530DLBB
- Color Finish: Black
- Dimensions
- Product Height: 4 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 37.92 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Width: 28 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 19 5/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Installs Over Built-In Oven: true
- Control Type: Analog
- Control Location: Top
- Digital Display: false
- Hot Surface Indicator(s): false (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Portable: false
- Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Stainless steel
- Number of Cooking Zones: 4
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Grate Type: Continuous (Continuous grates allow cookware to be slid from burner to burner, while individual grates require the pot or pan to be lifted when moving around the cooktop.)
- Grate Material: Cast iron
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Power
- Cooktop Power Source: Gas
- Ignition Type: Electric
- Propane Conversion Kit Included: true
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Other
- UPC: 084691823032
Enhance your kitchen with this 30-inch GE gas cooktop. Its Power Boil burner produces up to 18,000 BTUs for fast heating, while its Precise Simmer burner lets you cook on ultralow temperatures without scorching. This built-in GE gas cooktop has continuous grates, so you can slide pots and pans easily without spilling.
- Fit Guarantee: Replacing a similar cooktop from GE or another brand? GE cooktops are guaranteed for an exact fit to make replacement easy. See offer criteria and details
- 18,000 BTU Power Boil burner: Boil water fast with intense heat from this 18,000 BTU burner
- Precise Simmer burner: Delicate foods don’t burn with low, even heat
- Sealed cooktop burners: Contains spills and make cleaning quick and easy
- Heavy-duty, dishwasher-safe grates: Easily and safely clean grates in the dishwasher
- Deep recessed cooktop: Designed with a recessed surface to help contain spills and make cleaning easy
- MAX burner system: Delivers the same maximum BTU power to propane and natural gas cooktops
Product Manuals
A: Hi - Thank you for your interest in a new GE gas cooktop. We would encourage you to locate the model number which can be found on the model/serial tag on the underside of your existing cooktop or measure the actual opening available in your countertop so we can assist you in selecting an appropriate replacement model. We look forward to hearing from you again. All our best! Vikki@GEA
A: Hey there, We definitely understand your concern with keeping your appliance clean. We'll share some tips on cleaning stainless steel. General Cleaning: For regular daily maintenance: Use mild soap (dish soap) and water. Cerama Bryte® stainless steel appliance cleaner on stainless steel exteriors or interiors. This can be purchased through GE Appliance Parts, 16 oz bottle Part number PM10X311. Citrushine Stainless Steel Wipes, removes fingerprints, de-greases and shines without streaking. This can be purchased through GE Appliance Parts, Part number WX10X10007. For heavy soils: Use a paste of baking soda and water while rubbing with a soft cloth. Do not use appliance wax, polish, bleach, steel wool, abrasives, ammonia, acids or commercial oven cleaners. Other Cleaning Suggestions: For appliances previously cleaned with a mineral oil-based stainless cleaner: Before using the Cerama Bryte® stainless steel appliance cleaner, wash the surface with dish soap and water to remove oily residue. Then use a generous amount of Cerama Bryte® stainless steel appliance cleaner to clean the appliance. (Future cleanings require only the normal amount of Cerama Bryte®.) For rust, tarnish, and small blemishes: Cleaners that contain Oxalic Acid, such as Bar Keepers Friend Soft Cleanser, will remove rust, tarnish, and small blemishes. Use only the liquid cleanser (free of grit) and be sure rub in the direction of the metal grain lines with a damp soft sponge. For discoloration: Use a stainless steel cleaner and polish in the direction of the brush marks with a soft sponge per the User's Manual. Do not use an abrasive 'green' scrub pad, as that can scratch the surface. This should remove the discoloration. Rinse cooktop surface well with water. We hope this helps. Have a great day! Mike@GEA
A: Hi there, Thank you so much for reaching out! This cooktop will require a height of 3-11/16" to install properly. If for some reason your cooktop will not fit, we offer a Fit Guarantee. This guarantees an exact fit or GE will pay up to $100 towards modifications. Let us know if you have any other questions. Thanks for your continued loyalty to GE! Mike@GEA
Q: IS this unit LP convertible
A: Hello, Thanks for asking! We appreciate your interest in this model and we'd be more than happy to provide you with an answer. We found that this cooktop will come equipped with an LP Conversion Kit. Let us know if you have any further questions or concerns. Take care! -Sylvia@GEA
Q: what's the difference between JGP3030 and JGP3530?
A: Hello manneke! Great question! We appreciate your interest in GE Appliances, and we're glad to hear from you regarding these cooktops. These two models are very similar. The only difference between them is the power boil. The JGP3530 has a power boil measuring 18,000 BTU (British Thermal Units) and the JGP3030 has 15,000 BTU. Both also have the same width of 30". You can find this information on the product pages of both models. If you should have any other questions, please reach out to us on social media or our website. Hope this helps! -SylviaGEA
Q: Is cooktop surface enamal or stainless?
A: Hi Marty - GE 30" Gas Cooktop Model JGP3530DLBB (Black) is porcelain enamel. Thanks for viewing GE! Sue
A: Hi- Thanks for choosing GE! The power cord is included with this gas cooktop. The three-prong (grounding) plug plugs into a standard three-prong grounding wall receptacle to minimize the possibility of electric shock hazard from this appliance. Check out the Installation Instructions online: http://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=31-11089.pdf - Enjoy! SUE@GEA
Q: Are the knobs plastic or metal?
A: The knobs are plastic.
