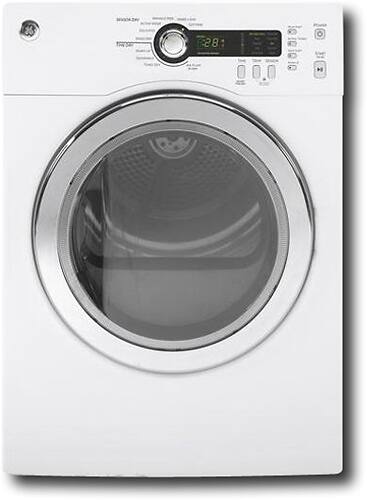

GE - 4.0 Cu. Ft. 10-Cycle Electric Dryer
- Key Specs
- Product Height: 33.38 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 69/100 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 42 inches (Measurement from the back of the product to its front, with door fully open.)
- Capacity: 4 cubic feet
- Steam Function: false (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Dryer Heating Source: Electric
- Moisture Sensor: true (This feature automatically senses moisture levels of the items in the cycle to determine the proper drying time.)
- Matching Washer Model Number: DCVH480EKWW
- Stackable: true (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)
- Color Finish: White
- General
- Product Name: 4.0 Cu. Ft. 10-Cycle Electric Dryer
- Brand: GE
- Model Number: DCVH480EKWW
- Color Finish: White
- Dimensions
- Product Height: 33.38 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 69/100 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 42 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 88 pounds (The out of box weight of the item.)
- Capacity
- Capacity: 4 cubic feet
- Features
- Steam Function: false (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Dryer Heating Source: Electric
- Automatic Temperature Control: true (This feature regulates hot and cold temperatures of the water or air within the appliance in order to keep them in the optimal range for each cycle.)
- Moisture Sensor: true (This feature automatically senses moisture levels of the items in the cycle to determine the proper drying time.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Time-Remaining Display: true
- Vibration Reduction: false (Additional features, such as sensors that adjust spin speeds or weights that counter unbalanced loads, help to minimize vibration for smoother, quieter operation.)
- Interior Light(s): true
- Design
- Exhaust Vent Location: Rear, Side
- 4-Way Venting: true (The appliance has four possible vent locations (right, left, front, or rear), which allows for placement versatility.)
- Control Location: Front panel
- Drum Material: Stainless steel
- Drying Rack: false
- Window: false
- Cycle Specifications
- Number Of Drying Cycles: 10
- Drying Cycles: Cottons, Mix Load, Wrinkle Free, Active Wear, Delicates, Speed Dry, Warm up, Dewrinkle, Timed Dry, Air Fluff (Dryers typically have multiple pre-programmed drying cycles to accommodate various fabrics and materials. These often include Normal/Regular, Permanent Press/Wrinkle Reduction, Heavy Duty, and Delicate/Gentle.)
- Options and Programs: Clean Lint Filter Reminder Light, Cycle Countdown, Damp Dry Signal, Delay Start - Up to 18 hours End-of-Cycle Signal, LED Cycle Status Lights, Wrinkle Free
- Number of Temperature Settings: 5
- Temperature Settings: Anti Bacterial, High, Medium, Low, Extra Low
- Compatibility
- Matching Washer Available: true
- Matching Washer Model Number: DCVH480EKWW
- Stackable: true (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)
- Electrical Specification
- Amperage: 24 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Other
- UPC: 084691191230
This electric dryer features 10 cycles and 20 custom options, including cottons, antibacterial, mixed load, air fluff and more to ensure clothes are thoroughly dried. Five heat selections and Sensor Dry technology offer enhanced drying performance and fabric care.
- Stainless steel drum: Resists rust and helps protect clothes
- 5 heat selections: Offer enhanced drying performance and fabric care
- HE Sensor Dry: Keep your clothes looking and feeling their best. Dual thermistors continually monitor temperature with a sensor bar that measures moisture to prevent over-drying
- Multiple dry cycles: Deliver optimal drying results
- Cycle countdown display with LED indicators: Know exactly how much time is left for each cycle with bright display and lights
- Delay start: Lets you do the laundry on your terms
- Antibacterial option: Certified by the NSF® to reduce up to 99.9% of certain types of bacteria
- Extended Tumble: Tumble clothes without heat to help prevent creasing and wrinkling
- Speed dry: Delivers ready-to-go results in minutes
Q: it takes 3-4 hours to dry towels/bed sheets... is this a problem everyone have?
A: Hi Osman- This is Sue at GE Appliances. We can certainly understand your concern and glad to help. 3-4 hours would not be considered normal. Make sure the Time Dry setting is not set to Air Fluff (No Heat). You can change the temperature of your dry cycle. Choose Medium or High for permanent press and regular to heavy cottons. For reference, see page 7 of the Owner's Manual: http://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=49-90370-1.pdf - If the cycle selection is appropriate, the vent system may need to be checked. We suggest to view the following troubleshooting link for details: http://products.geappliances.com/appliance/gea-support-search-content?contentId=18058 - We hope this is helpful. Keep in touch!
A: Rear vented and ours has six inches behind dryer.
Q: Does the washer plug into the dryer? I know Bosch offers this feature and I only have 1 220V outlet.
A: No, the washer and dryer do NOT work off the same outlet, but the washer only requires a 110 circuit where the dryer requires a 220 circuit. I am very pleased with the pair, I might add. Very quiet and all the features I expected and liked. The Bosch works with an indoor evaporative dryer. In other words, all the heat and some humidity from the dryer gets put into your laundry room. I did not want that type of setup in Florida. We always need to get the heat and moisture out of the buildings. This is why I chose the GE. Of course the GE won't work in a high rise without outside ventilation.
A: Hi Ron! - Thanks for your excellent question! The only extra required part for side venting is the cover required for the pre-cut hole in the back of the unit. This part number is WE1M454. For all the imstructions for side venting, see page 21 of the manual here: https://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=49-90370-1.pdf - Happy Side Venting! - John
Q: If I side vent the dryer, can I install it closer than 3 inches to the back wall.
A: Hi Dave- Per the Installation Instructions, the minimum clearances to combustible surfaces is 0" both sides, 3" rear (Alcove or Closet Installation: 0" either side, 3" front and rear.) We suggest to view the Quick Specs at the following link: http://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=360423_dcvh480_485ek_r4.pdf - Matching Washer: GE® 2.2 DOE Cu. Ft. Frontload WCVH4800KWW. Optional Stacking Kit GE24STACK (sold separately). Thanks for choosing GE! SUE@GEA
Q: Can I stack the Dryer on top of the washing machine?
A: Yes, you can stack this with washer and dryer. Just needed to buy stacking kits.
Q: Is there a pedestal that will work with this washer and dryer stacked?
A: Hi Ozzy- Thanks for viewing GE! GE® Electric Dryer DCVH480EKWW is compatible with GE® Frontload Washer WCVH4800KWW. Optional Stacking Kit GE24STACK is sold separately. Pedestals are not available for these models. Also, on models with pedestal option, they cannot be used with stacked installation. Thanks for checking with us! SUEatGEA
A: Don't waste your time or make a jerry-rigged mess out of the ventilation. Just buy a Bosch, Samsung or LG that all offer ventless drying.
