j5create - USB-C ULTRADRIVE MINIDOCK
- Key Specs
- Maximum Number of Displays Supported: 1
- Number of DisplayPort Outputs (Total): 0
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- General
- Product Name: USB-C ULTRADRIVE MINIDOCK
- Brand: j5create
- Model Number: JCD388
- Color Category: Silver
- Display
- Maximum Number of Displays Supported: 1
- Ports
- Display Connector(s): No external display connection (The number and type of connectors used to connect to an external display.)
- Number of DisplayPort Outputs (Total): 0
- Number of HDMI Ports (Total): 0
- Number of VGA Ports: 0 (VGA (Video Graphics Adapter or Video Graphics Array) is a display standard that transmits via analog signals. This type of interface is typically used to connect a computer to a display device such as a monitor, projector, or TV.)
- Number of USB Ports (Total): 3
- USB Ports: 2 x USB-A 3.1 (The number and type of USB ports the product has.)
- Memory Card Slot: true
- Memory Card Type: Secure Digital, microSD
- Power
- Powered: true
- Power Supply Included: false
- Power Supply Input: USB Type C
- Maximum Input Power: 60 watts (The maximum amount of power allowed to come into the device.)
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- Power Supply Output: USB Type C (The connector type(s) used by the device to send electrical power to another device.)
- Maximum Output Power: 60 watts (The maximum amount of power produced or allowed to flow through the device.)
- Compatibility
- Maximum Data Speed: 5000 megabits per second
- System Requirements: Available USB-C port that supports USB Power Delivery 2.0 or 3.0. (The software that a product must have for it to be able to integrate with another product.)
- Brand Compatibility: Available USB-C port that supports USB Power Delivery 2.0 or 3.0.
- Model Compatibility: Available USB-C port that supports USB Power Delivery 2.0 or 3.0.
- Features
- Material: Aluminum
- Indicator Light(s): true
- Dimensions
- Product Height: 1.26 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 0.43 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 4.21 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1.73 ounces (The out of box weight of the item.)
- Warranty
- Manufacturer's Warranty - Parts: 2 year limited
- Manufacturer's Warranty - Labor: 2 years limited
- Other
- UPC: 847626002731

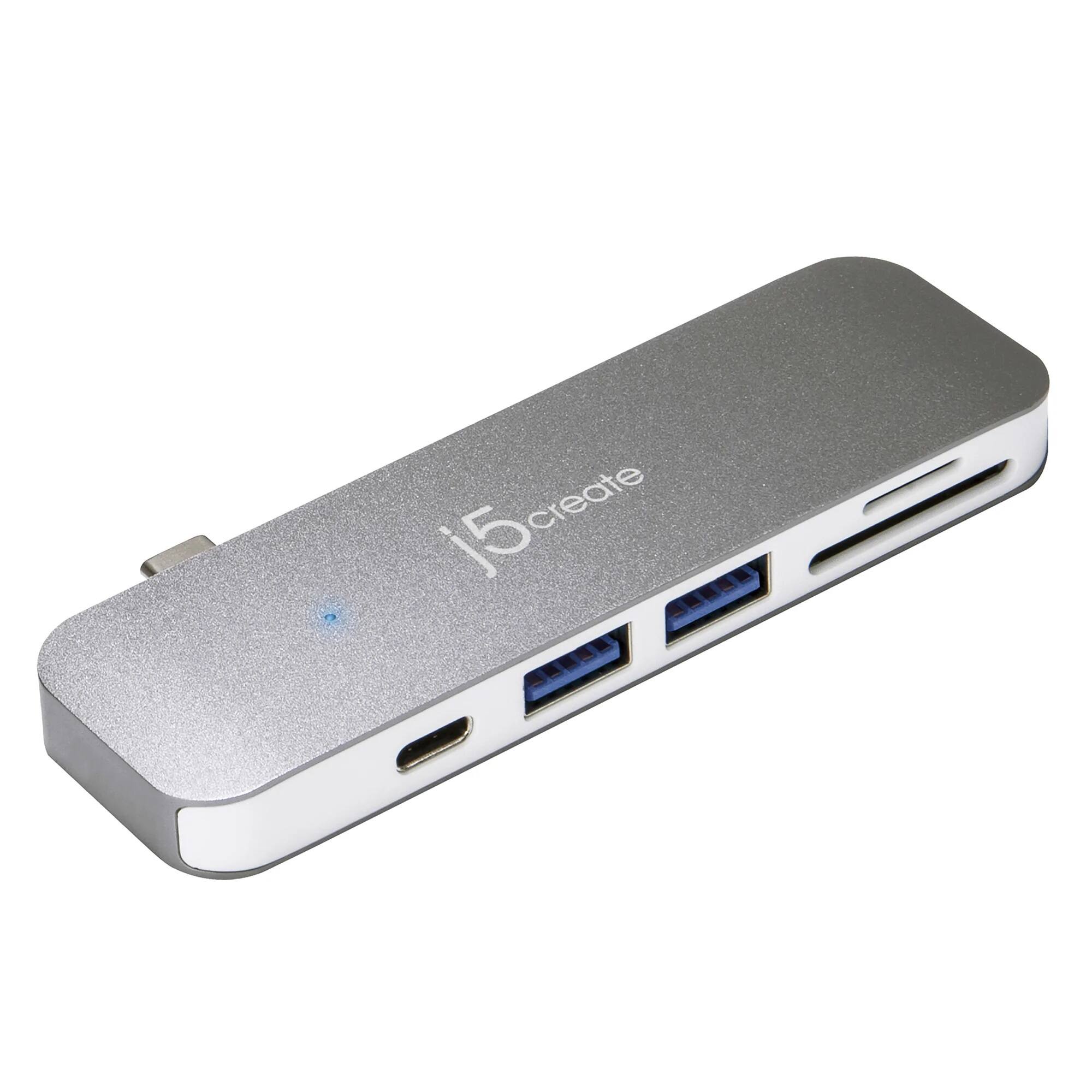

This multi-port USB-C hub couples your USB peripherals with SD & microSD cards into a single convenient hub with support for USB Power Delivery. You can power and charge your USB-C devices through the USB-C port while simultaneously powering the hub.
- Expand: Expand one USB-C port into five ports: 3x USB 3.0 ports, SD & MicroSD slots. All ports can be used simultaneously.
- Easy Expansion with USB Devices: Compatible with any device with a USB-C connection.
- SuperSpeed USB 3.0 Ports: Maximum transmission speed up to 5 Gbps.
- Card Reader: Memory card reader/writer supports up to 2 TB of storage.
- Power Delivery 3.0 + Data Transfer: The built-in Type-C port supports both PD 3.0 and data transmission,so you can use Type-C device data transfer when not charging PD.
Whats Included
- 1 - JCD388 USB-C 5-in-1 UltraDrive Mini Dock
- 1 - Quick Installation Guide
Product Manuals
A: The USB-C port on the USB-C ULTRADRIVE MINIDOCK will provides charging power to the connected devices up to 60W.
Q: I cannot find out HDMI in the photo, is 5 ports or 6 ports
A: No, the JCD386 does not have HDMI built in; the JCD382 does.
Q: Is this compatible with macbook air 2020 ?
A: Yes this device will work with a Macbook Air 2020
Q: Is this compatible with the Microsoft Surface Pro X? Does this device have to plug into an outlet?
A: Yes, the JCD388 will work with the Surface Pro X and does not require additional power but will support upstream & downstream charging through the type-c port for device charging while in use.
Q: Is this compatible with hp elitebook folio g1?
A: Yes, this is compatible with a HP EliteBook Folio G1.
