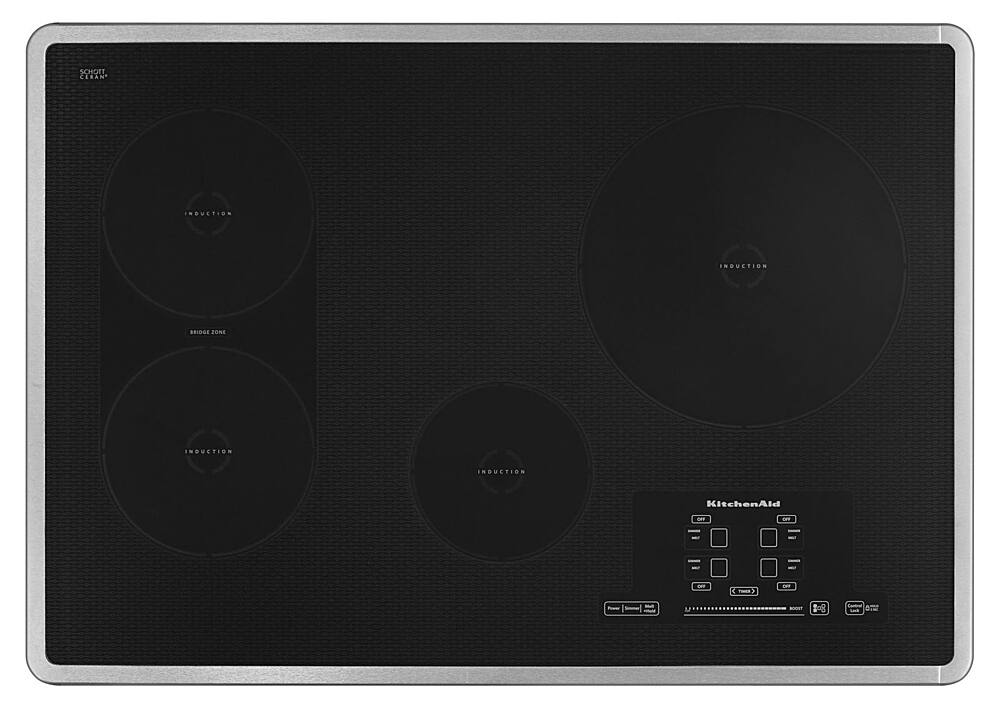

KitchenAid - 30" Built-In Electric Induction Cooktop - Stainless Steel
Model: KICU509XSS
SKU: 6651636
This item is no longer available in new condition. See similar items below
- Key Specs
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Product Height: 3 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 5/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Elements: 4
- Color Finish: Stainless steel
- General
- Product Name: 30" Built-In Electric Induction Cooktop
- Brand: KitchenAid
- Model Number: KICU509XSS
- Color: Stainless Steel
- Color Finish: Stainless steel
- Compatibility
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Dimensions
- Product Height: 3 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 5/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 31 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 51 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Width: 29 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 19 1/3 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Installs Over Built-In Oven: true
- Control Type: LED display with touchscreen controls
- Control Location: Top Right Side
- Digital Display: true
- Power-On Indicator Light(s): true
- Fingerprint Resistant: false
- Hot Surface Indicator(s): true (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Portable: false
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cooktop Features
- Induction: true (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Ceramic, Glass
- Number of Cooking Zones: 4
- Number of Elements: 4
- Pan Presence Sensor: true (Sensors detect when a pan comes into contact with the cooking surface and when it is removed. When a pan is removed, the cooktop will automatically shut off as a safety precaution.)
- Pan Size Sensor: true (This feature adjusts the heated surface of the element to fit the cookware placed on top. This helps ensure optimal heat distribution and more evenly cooked foods.)
- Bridge Element: true (This feature is an additional heating element located between two individual burners. When this is enabled, the individual burners and the bridge element act as one connected cooktop. This equal heat distribution on the cooktop surface helps accommodate larger cookware, such as roaster pans or griddles.)
- Specialty Element(s): No
- Expandable Element: true (Accommodate large cookware and ensure even heat distribution with this feature, which allows more surface area for the individual heating element.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Power
- Cooktop Power Source: Electric
- Electrical Specification
- Wattage: 3700 watts (Measurement of electrical power.)
- Amperage: 40 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Other
- UPC: 883049231457
This 30-inch induction cooktop uses electromagnetic energy to generate instant heat directly to your cookware without spreading the heat across the entire cooking surface. A bridge function lets you combine the power of two elements into one large cooking zone for specialty cookware such as a griddle or oval pan.
- 4-Element Cooktop: Provides four independent cooking surface areas.
- 2 Elements with Bridge Function: Allows the flexibility to convert two cooking zones into one large cooking zone which provides additional space to accommodate specialty cookware.
- 12 Heat Level Settings: Provide various levels of heat to fine tune cooking techniques ranging from melting chocolate and simmering a sauce to searing meat or achieving a rapid boil.
- Performance Boost: Allows you to exceed the maximum heat-level setting for up to 10 minutes, perfect for rapid boiling
- Touch-Activated Controls: Integrate seamlessly into the surface and include a slider for heat-level selection.
- Melt and Hold: Uses low power levels for melting delicate ingredients or keeping cooked food warm without scorching.
- Simmer Function: Automatically selects a low power level to help maintain a constant simmer without boiling over.
- Pan Size Detection: Provides feedback on whether pan size is suitable for the selected element.
- Control Lock: Helps prevent unintended use and makes it easier to clean the control panel.
A: Curious about the age, Seem like BS but I have a unit less than 5 years old and the control board is out and they have no replacement parts for it. No new unit from them fits existing opneing. seems like a crock.
Q: What is the thickness of the actual cooktop?
A: Hello lisakiddoc! The dimensions of this model are Depth 21 5/16", Height 3 1/8", and Width 30 3/4". Thank you for your inquiry on our KitchenAid appliances.
Q: What are the cutout dimensions?
A: Hi Fred, The Cutout Depth is 19 5/16 and the Cutout Height is 29 1/2. We hope this helps.
Q: any recommended griddle work with the bridge mode?
A: Hello skv, we do not have any griddle's designed for induction cooktops. You will need a ferromagnetic model in order for the Induction system to work. Please also note a rough bottom surface can easily damage the cooktop glass.
Q: What is voltage and amperage on this unit?
A: Hi Dan81, This model is labeled as a 240 Volt, and 40 amps. We hope this helps.
A: 220 volts
A: no this is not possible nor would it be safe
Q: What are the sizes of the 4 cooking elements?
A: Hi ERN. The Cooktop has two medium sized elements, a large element, and a smaller element, as well. We hope this helps!
