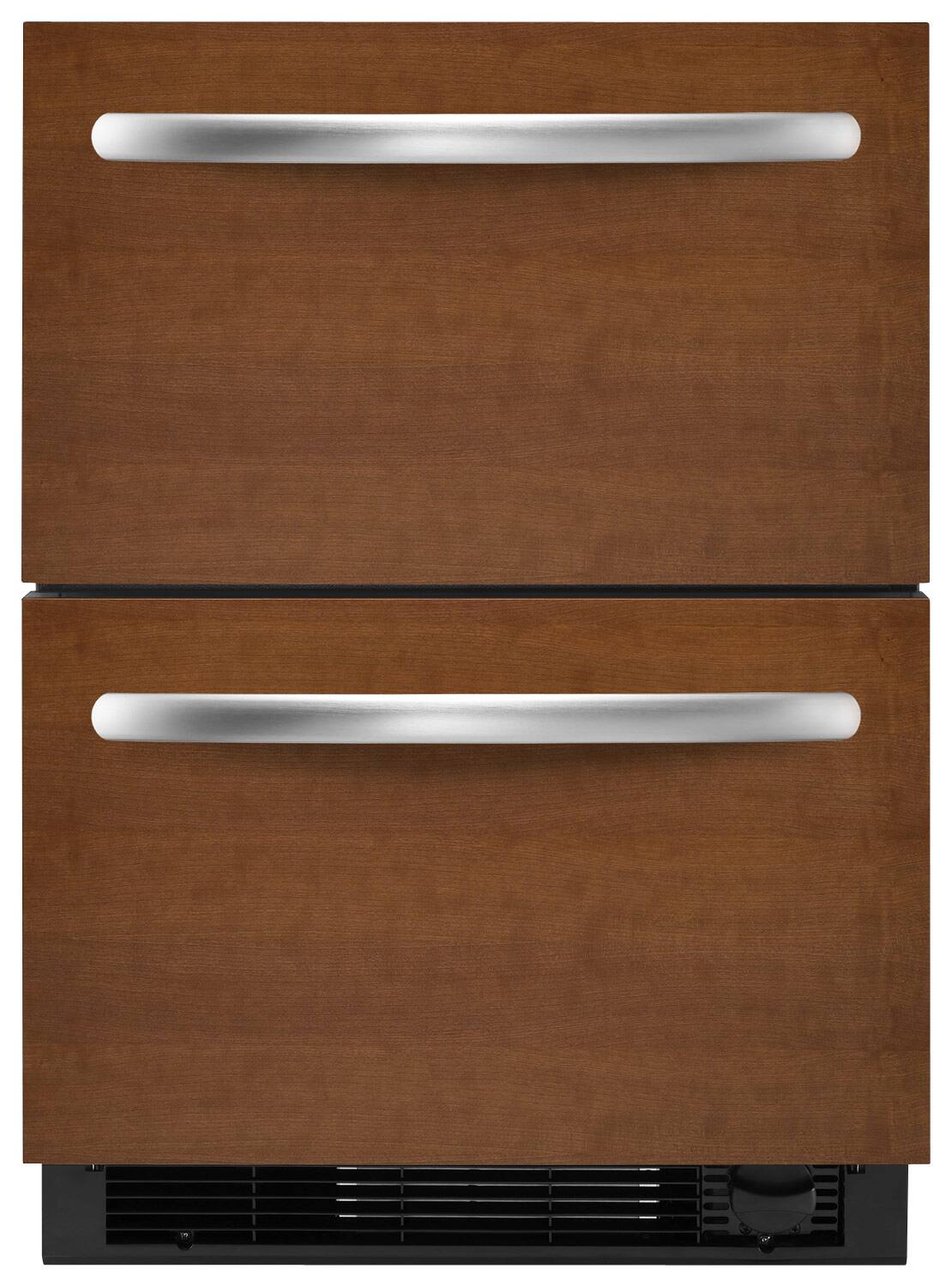

Name: KitchenAid - Architect Series II 4.8 Cu. Ft. Built-In Double Drawer Refrigerator/ Freezer - Black/Other
Brand: KitchenAid
SKU: 9219598
Rating: 5 (1 reviews)

Key Specs
- Product Height: 36.38 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 34.75 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 24.1 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Refrigerator Style: French Door
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
General
- Product Name: Architect Series II 4.8 Cu. Ft. Built-In Double Drawer Refrigerator/ Freezer
- Brand: KitchenAid
- Model Number: KDDO24CVX
Dimensions
- Product Height: 36.38 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24.25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 34.75 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 24.1 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth Without Door: 22.5 inches (Measurement from the back of the product to its front, not including the door.)
- Product Weight: 150 pounds (The out of box weight of the item.)
Capacity
- Refrigerator Capacity: 4.8 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 2.4 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
Features
- Configuration: Freestanding (The size, arrangement, and physical configuration of the product.)
- Refrigerator Style: French Door
- Door-Open Alarm: false
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Temperature Control Type: Electronic
- Defrost Type: Manual (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Lighting Type: LED
Ice & Water
- Ice Maker: Yes
Storage
- Dairy Center: false (Designated storage with closure for dairy items such as butter, yogurt, and cream cheese, helps keep these items accessible and may reduce the risk of cross-contamination.)
Freezer Info
- Freezer Compartment: true
- Freezer Door Type: Pull Out Drawer
- Freezer Interior Light: true
- Quick Freeze: false (Feature that allows you to quickly reduce the temperature when needed, perfect for chilling drinks or freezing large quantities of fresh food. Fast freezing may help maintain food quality.)
Filter Info
- Water Filtration: true
- Water Filter Model Number: Not available (The water filter model(s) recommended for use with the product.)
Electrical Specification
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 437 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 47 United States dollars (Predicted cost of operating the product under average conditions for one year.)
Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
Other
- UPC: 883049146133

Keep your fresh and frozen foods cool and easily accessible in this 2-drawer refrigerator that features an automatic icemaker to ensure you have a steady supply of ice on hand. Product specs and dimensions (PDF)

Electronic controls: Provide easy adjustment of the temperature to keep foods cool and fresh.
Refrigerator drawer: Provides storage space for fresh foods.
Freezer drawer: Keeps frozen treats easily accessible.
Interior LED lights: Provides a clear view of items in both drawers.
Automatic icemaker: Delivers ice at the touch of a button. The base-grille filtration system removes water impurities for great-tasting ice.
