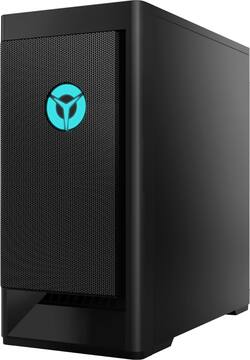

Lenovo - Legion Tower 5 AMD Gaming Desktop - AMD Ryzen 7-5700G - 16GB RAM - NVIDIA GeForce GTX 1660 Super - 256GB SSD + 1TB HDD - Raven Black
- Key Specs
- Processor Model: AMD Ryzen 7 5000 Series (Your computer's processor is like its brain. Working in combination with system memory, the power of the processor determines the complexity of software you can run, how many programs you can have open at the same time, and how fast those programs will run. Most computers feature an AMD, Intel or Snapdragon processor.)
- Storage Type: SSD, HDD
- Total Storage Capacity: 1256 gigabytes
- System Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a computing device's short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the device can handle large amounts of information at one time. For example, gaming or video editing requires more RAM for optimal performance.)
- Graphics Type: Dedicated (Dedicated graphics uses a separate graphics card for processing video images. Because it does not use memory from the system's RAM, there is no extra burden on the CPU and graphics are processed more efficiently. Integrated graphics shares system RAM to process video images.)
- Graphics: NVIDIA GeForce GTX 1660 SUPER (Often referred to as a "graphics processing unit" (GPU), this device is responsible for displaying image content and decoding/encoding video content in programs and games.)
- General
- Product Name: Legion Tower 5 AMD Gaming Desktop - AMD Ryzen 7-5700G - 16GB RAM - NVIDIA GeForce GTX 1660 Super - 256GB SSD + 1TB HDD
- Brand: Lenovo
- Model Number: 90RB001DUS
- Year of Release: 2021
- Processor
- Processor Brand: AMD
- Processor Model: AMD Ryzen 7 5000 Series (Your computer's processor is like its brain. Working in combination with system memory, the power of the processor determines the complexity of software you can run, how many programs you can have open at the same time, and how fast those programs will run. Most computers feature an AMD, Intel or Snapdragon processor.)
- Processor Model Number: 5700G
- Storage
- Storage Type: SSD, HDD
- Total Storage Capacity: 1256 gigabytes
- Solid State Drive Capacity: 256 gigabytes (The amount of data that can be stored on the device's solid state drive (SSD). SSD is a flash-based storage with faster speeds than a hard disk drive (HDD).)
- Hard Drive Capacity: 1000 gigabytes (The amount of data that can be stored on the device's mechanical hard drive. Hard disk drives (HDDs) typically have larger capacities than solid state drives (SSDs) but may have slower speeds.)
- Solid State Drive Interface: NVMe (Connects the solid state drive to the host system. PCI and SATA interfaces are the most common; PCI interfaces are typically faster, but SATA interfaces are compatible with a wider range of systems.)
- Hard Drive Interface: SATA (Connects the hard drive to the host system for transferring data between the hard disk cache and system memory. IDE and SATA interfaces are primarily used for personal computing, while larger servers and workstations typically use SAS or SCSI.)
- Hard Drive RPM: 7200 revolutions per minute (A hard drive's data is stored on disks, or platters, that spin while transferring information to the host system. The higher the RPM, the faster the hard drive's performance.)
- Hard Drive Accelerator: None (A module integrated (or added) into a PC to improve performance speed. By acting as a high-speed cache, an accelerator speeds up access times to the hard drive, which results in faster web browsing, improved gaming experience, and overall more responsiveness.)
- Memory
- System Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a computing device's short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the device can handle large amounts of information at one time. For example, gaming or video editing requires more RAM for optimal performance.)
- Type of Memory (RAM): DDR4 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- System Memory RAM Speed: 3200 megahertz (How fast the information-storing hardware operates. The faster the RAM, the faster memory can be transferred to other system components. Ultimately, faster RAM improves operational efficiency.)
- Number Of Memory Slots: 4
- Number of Memory Sticks Included: 2
- System Memory RAM Expandable To: 128 gigabytes (Adding more random-access memory (RAM) to a computer speeds up performance and improves efficiency. Upgrades to memory are limited by the number of expansion slots for additional RAM and existing RAM installed on the device.)
- Graphics
- Graphics Type: Dedicated (Dedicated graphics uses a separate graphics card for processing video images. Because it does not use memory from the system's RAM, there is no extra burden on the CPU and graphics are processed more efficiently. Integrated graphics shares system RAM to process video images.)
- GPU Brand: NVIDIA
- Graphics: NVIDIA GeForce GTX 1660 SUPER (Often referred to as a "graphics processing unit" (GPU), this device is responsible for displaying image content and decoding/encoding video content in programs and games.)
- Compatibility
- Operating System: Windows 10 Home (The operating system manages all software and hardware, including files, memory and connected devices. Most importantly, it lets you interact with your device and your programs in a visual way; otherwise, you'd be typing computer code to get anything done.)
- Operating System Architecture: 64-bit (An operating system (OS) manages computer hardware, software resources, and programs in conjunction with the system's processor. 64-bit operating systems can handle more data at once than 32-bit systems, resulting in faster speeds, more effiency, and overall improved performance.)
- Connectivity
- Number of HDMI Outputs (Total): 0
- Number of DisplayPort Outputs (Total): 1
- Number of USB Ports (Total): 7
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Ethernet Card: 10/100/1000 (Also known as an Ethernet adapter, this card plugs into a computer's motherboard and enables it to access an Ethernet network. Ethernet data transmission speeds are measured in Mbps (megabits per second) and Gbps (gigabits per second). For example, a 10/100 Ethernet port transmits 10 and 100 Mbps, while a 10/100/1000 Ethernet port transmits 10 and 100 Mbps and has a maximum speed of 1000 Mbps (1 Gbps).)
- Number Of Ethernet Ports: 1
- Expansion
- Number Of Internal 3.5" Bays: 2
- Number Of PCI-E x16 Slots: 1
- Features
- Customizable Keyboard Lighting: No
- Media Card Reader: false (A hardware device that allows for access to data on a memory card and enables the transfer of its files to a computer. These devices may have one or multiple slots for various types of memory cards, and may be integrated into the computer or available as an external device.)
- Customizable Case Lighting: true
- Dimensions
- Product Height: 16.18 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.07 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15.59 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 30.8644 pounds (The out of box weight of the item.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- EPEAT Qualified: false (The Electronic Product Environmental Assessment Tool (EPEAT) was designed to provide an environmental assessment tool for purchasers. In order to qualify for EPEAT, a product must meet all 23 required criteria.)
- Included
- Optical Drive Type: None (An optical disk drive (ODD) uses a laser light to read data from or write data to an optical disc. These discs include CDs, DVDs, and Blu-ray Discs. This allows you to play music or watch movies using prerecorded discs.)
- Keyboard Included: true
- Mouse Included: true
- Wireless Keyboard: false
- Wireless Mouse: false
- Other
- UPC: 196118057613
Engineered out of a passion for savage power and unmatched speed, the Lenovo™ Legion Tower 5 AMD delivers powerful performance that combines AMD Ryzen processors and top-of-the-line NVIDIA® GeForce® graphics cards for blazing-fast frame rates at up to 4K resolution. Pushing far beyond the upper bounds of smaller rig configurations while keeping things cool and whisper quiet, the Legion Tower 5 is a marvel of build and design, accentuated by its illuminated blue LED logo and lighting, as well a transparent side panel that can properly showcase your internals.
- Microsoft Windows 10 operating system: Windows 10 brings back the Start Menu from Windows 7 and introduces new features, like the Edge Web browser that lets you markup Web pages on your screen. Learn more ›
- Ryzen 7 5700G: Imagine, design and create without boundaries. The powerful AMD Ryzen™ 7 processor features machine intelligence that anticipates your needs. Discover true responsiveness with 8 cores and 16 threads for ultimate performance.
- 16GB system memory for intense multitasking and gaming: Reams of high-bandwidth DDR4 RAM to smoothly run your graphics-heavy PC games and video-editing applications, as well as numerous programs and browser tabs all at once.
- 1TB hard drive and 256GB solid state drive (SSD) for a blend of storage space and speed: The hard drive provides ample storage, while the SSD delivers faster start-up times and data access.
- NVIDIA GeForce GTX 1660 Super graphics: Backed by 6GB GDDR6 dedicated video memory for a fast, advanced GPU to fuel your games.
- 4 USB 3.2 ports maximize the latest high-speed devices: Also includes 1 USB C port and 2 USB 2.0 ports to connect more accessories and peripherals. The USB 3.0 ports are backward-compatible with USB 2.0 devices (at 2.0 speeds).
- Wireless and wired network connectivity: Built-in high-speed wireless LAN connects to your network on 802.11ax (2.4Gbps) Wi-Fi standards. The Gigabit Ethernet LAN port plugs into wired 10/100/1000 networks.
- Bluetooth 5.0 interface syncs with compatible devices: Wirelessly transfer photos, music and other media between the desktop and your Bluetooth-enabled cell phone or MP3 player, or connect Bluetooth wireless accessories.
- Multimedia software package included: Microsoft 365 (30 days trial), McAfee LiveSafe (30 days trial) and Lenovo Vantage.
- Multidisplay capability: Connect the usual single monitor, or add a second monitor to double your viewing space for work and games. (Monitors sold separately.)
- Additional ports: Microphone and headphone jacks.
Whats Included
- Legion Tower 5 AMD
- Power Cord
- Keyboard
- Mouse
A: The Lenovo Legion Tower 5 AMD Gaming Desktop, model number 90RB001DUS ships with a 400W internal power supply (00-240Vac,400W 90% PSU POWER SUPPLIES INTERNAL, Lenovo Part Number - 5P50V03178). Here is a link to the complete parts list for this model configuration: https://pcsupport.lenovo.com/us/en/products/desktops-and-all-in-ones/legion-series/legion-t5-26amr5/90rb/90rb001dus/parts/display/model
A: The Lenovo Legion Tower 5 AMD Gaming Desktop, model number 90RB001DUS, ships with the AMD Vermeer B550 WIN DPK SYSTEM BOARD, Lenovo Part Number - 5B20W27654. This configuration ships with 16GB DDR4-3200MHz RAM (2x8GB), 2x UDIMM,8GB,DDR4,3200,Samsung MEMORY, Lenovo Part Number - 5M30V06840. The maximum RAM supported by this configuration is 128GB DDR4-3200MHz RAM within 4 RAM Memory slots. Here is a link to the complete parts list for this model configuration: https://pcsupport.lenovo.com/us/en/products/desktops-and-all-in-ones/legion-series/legion-t5-26amr5/90rb/90rb001dus/parts/display/model
A: You can control the internal aRGB lighting within the Legion Vantage Dashboard installed on this computer. If you continue to heave issues, we recommend you contact Lenovo Tech Support at: 877-453-6686.
Q: What motherboard does this pc have?
A: The Lenovo Legion Tower 5 AMD Gaming Desktop Computer, model number 90RB001DUS, ships with the AMD Vermeer B550 WIN DPK SYSTEM BOARD, Lenovo Part Number - 5B20W27654. Here is a link to the complete parts list for this model configuration: https://pcsupport.lenovo.com/us/en/products/desktops-and-all-in-ones/legion-series/legion-t5-26amr5/90rb/90rb001dus/parts/display/model
Q: Can I have two monitors connected to the pc
A: Yes. The Lenovo Legion Tower 5 AMD Gaming Desktop Computer, model number 90RB001DUS, ships with the Nvidia GeForce GTX1660 Super GPU, which within this configuration, provides 1x VGA port and 1x HDMI port for connecting monitors to the computer.
Q: Does this desktop have any hdmi ports
A: Yes. The Lenovo Legion Tower 5 AMD Gaming Desktop computer, model number 90RB001DUS, ships with one HDMI and one DisplayPort connection through the Nvidia GeForce GTX1660 Super GPU.
A: I am by no means an expert or a reliable source on this so I advise you to wait for an official response from Lenovo since I am just relaying what I've read online, but I am fairly certain there is capability for RAM, storage (SSD and HHD), and motherboard upgrades. The cooling on this system is very good from what I have heard, but if the 3 fans and various vents don't end up providing adequate airflow then there is also room to install a small fan near the back of the system. I do know most prebuilt computers allow for swapping out CPUs and GPUs so while I haven't researched that with this system it is likely an option here too. Not sure which parts, if any, can only be exchanged with other Lenovo products but I believe Ryzen CPUs can be swapped with Ryzen CPUs, GTX swapped with GTX, etc. I would just look for parts from the same manufacturer of each part. I do not know anything for sure but this should hopefully help you know where and what to look for, also I have attached a link to a help page I found for this exact model that could have your answers https://pcsupport.lenovo.com/us/en/products/desktops-and-all-in-ones/legion-series/legion-t5-26amr5/90rb/90rb001dus/parts/display/model
A: The Lenovo Legion Tower 5 AMD Gaming Desktop ships with just two adware programs, a 30-day trial of Microsoft Office 365 (as part of Windows 10 operating system) and a 30-day trial of McAfee virus protection. Lenovo computers ship with one of the cleanest factory software installs within the consumer computer industry.
