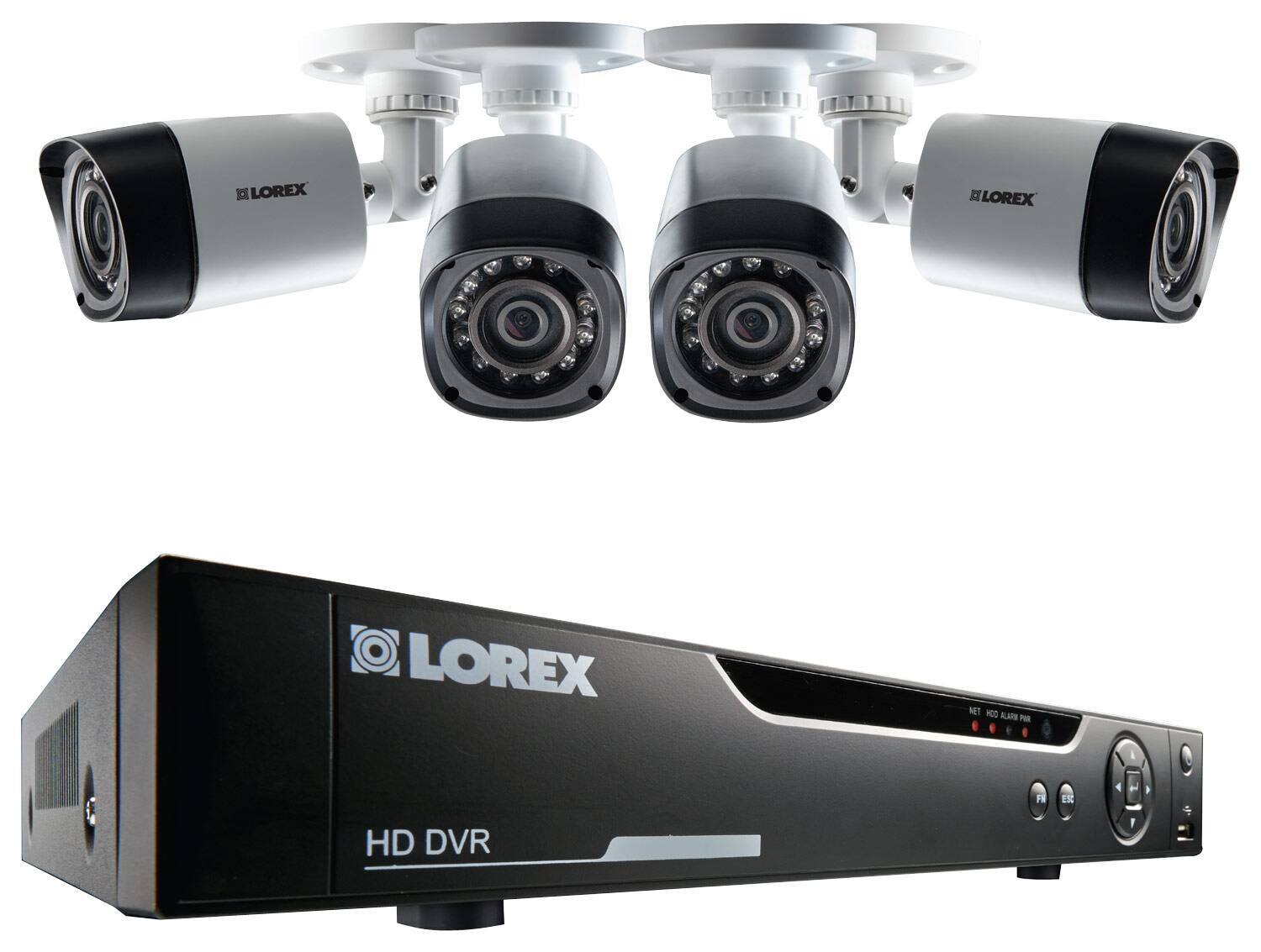

Lorex - 4-Channel, 4 Camera Indoor/Outdoor High-Definition DVR Security System - Black
- Key Specs
- Camera Resolution: 1280 x 720 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 90 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Number Of Cameras Included: 4
- Number Of Channels: 4
- Indoor Or Outdoor Use: Indoor, Outdoor (Indicates the appropriate environment product was designed to be used in.)
- General
- Product Name: 4-Channel, 4 Camera Indoor/Outdoor High-Definition DVR Security System
- Brand: Lorex
- Model Number: LHV10041TC4
- Camera
- Camera Resolution: 1280 x 720 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 90 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Night Vision Distance: 90 feet
- Number Of Cameras Included: 4
- Number Of Cameras Supported: 4
- Number of IR LEDs: 12 (Quantity of infrared (IR) LED lights for emitting IR light and allowing the camera to detect objects in low light.)
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Compatibility
- Camera Compatibility: Select Lorex cameras
- Operating System Compatibility: Android, Apple iOS, Mac, Windows
- Connectivity
- Camera Connectivity: Wired (Security system cameras can be set up in several ways. Wired cameras require cables for power and footage transmission, while wire-free cameras don't need cables for either. Wireless cameras still require cables for receiving power but are able to transmit footage via a wireless network.)
- Recording & Playback
- Number Of Channels: 4
- Storage
- DVR Storage Capacity: 1000 gigabytes
- Performance
- Indoor Or Outdoor Use: Indoor, Outdoor (Indicates the appropriate environment product was designed to be used in.)
- Dimension
- Camera Width: 2.75 inches
- Camera Weight: 0.3 pounds
- DVR Height: 2 inches
- DVR Depth: 9.63 inches
- Included
- Camera(s) Included: true
- DVR Included: true
- Monitor Included: false
- Warranty
- Manufacturer's Warranty - Parts: 1 year
- Manufacturer's Warranty - Labor: 1 year
- Other
- UPC: 695529001845
Monitor your perimeters with this Lorex LHV10041TC4 security system, which features 4 cameras with 1/2.9" image sensors that capture 720p high-definition video. ClearNight imaging delivers enhanced performance in low-light conditions.
- 4 surveillance cameras: Each feature a 1/2.9" 1.0MP image sensor that records in 1280 x 720 resolution at 30 fps. Also features a 1/50 - 1/100,000 sec. AES shutter speed. A motion detection function offers automatic recording.
- 12 IR LEDs: Provide night vision up to 90' in complete darkness and up to 130' in ambient lighting. The split glass design minimizes IR reflection.
- Wide-angle 90° field of view: For optimal viewing.
- FLIR Cloud app: Enables 3-step remote viewing with most Apple® iPad®, iPhone® and other iOS or Android devices.
- Motion-triggered recording: Begins recording when motion is detected by a camera. Continuous and scheduled recording provide flexible recording options.
Whats Included
- 4 indoor/outdoor surveillance cameras (LBV1521PK4B), DVR with 1TB hard drive
- IR remote, USB mouse, 4 mounting kits with Allen key
- Power adapter, four 60' BNC/power extension cables, 4-in-1 power adapter, HDMI cable, Ethernet cable
A: Hello, The operating temperature for the included cameras is –22°F up to 122°F ( –30°C up to 50°C). Thanks, Lorex
Q: How are the cameras powered?
A: Hello, The cameras are powered through the 60' cables with an included 4-in-1 power adapter. The adapter is plugged in near the DVR, and connected into the camera cables. Power is send from the adapter through the cables to the 4 cameras. Thanks, Lorex
Q: Can you see all the camera views at once from the app? or only 1 camera view at a time?
A: Hello, You will have access to view all cameras once you log in, and can switch between full screen views of each camera within the app. Thanks, Lorex
A: Hello, Yes, the DVR and the multi-power adapter can be plugged into a UPS. The system comes with standard 110-240V, 50/60Hz power adapters with North American plug heads for use with standard electrical outlets. Thanks, Lorex
Q: Are you able to extend the 60' cables?
A: Yes, longer cables could be purchased and used with this system.
A: Hello, the system will work as a standalone unit for recording. If you wish to view the unit remotely on a smartphone or computer, then you would need to connect the DVR into your router/modem for access to the internet (however this is not required for the unit to function correctly for local recording only). Thanks, Lorex
A: Hello, The system does not include a guest mode, so if you would like the system to stop running when you are there, you could unplug the unit and cameras from the UPS unit and it would power off. Another option would be to go into the system and turn off the recording from the recording menu, but you would need to re-enable the recording when you leave the property for it to begin recording again. Thanks, Lorex
Q: Can the wires be run in a wall or in an attic by electrical codes ??
A: You have check with your city/county building department for local code requirements. Typically you can run the cables of the Lorex 4-Channel Indoor/Outdoor High-Definition DVR Security Systemin walls or attic space.
