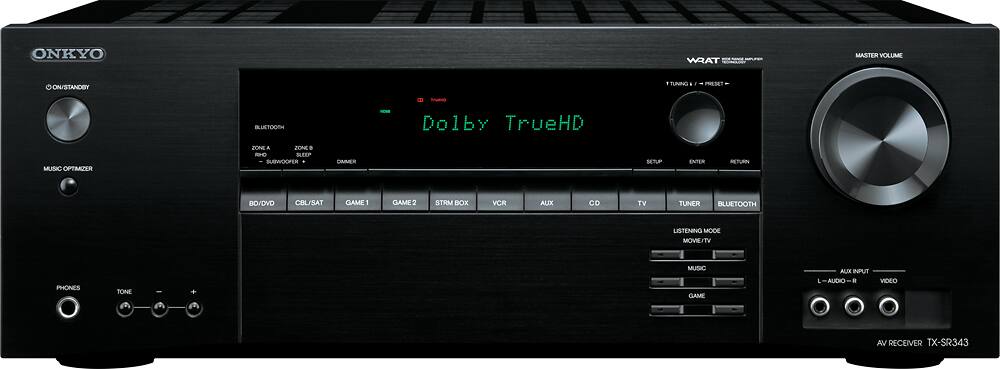

Name: Onkyo - 5.1-Ch. 4K Ultra HD and 3D Pass-Through A/V Home Theater Receiver - Black
Brand: Onkyo
SKU: 4960014
Rating: 3.7 (3 reviews)

Key Specs
- Number of Channels: 7.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
General
- Product Name: 5.1-Ch. 4K Ultra HD and 3D Pass-Through A/V Home Theater Receiver
- Brand: Onkyo
- Model Number: TX-SR343
- Color: Black
- Color Category: Black
Audio
- Number of Channels: 7.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Surround Sound Supported: Dolby TrueHD, DTS (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Speaker A/B Switching: false (Allows a user to select between one of two sets of primary speakers.)
- Equalizer: false (Allows for the control of different frequencies within an audio signal, such as adjusting treble and bass levels.)
Inputs
- Number of HDMI Inputs (Total): 4
Outputs
- Speaker Connection Type: Binding posts
- Number of HDMI Outputs (Total): 1
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
Features
- Auto Calibration: false (Home theater systems and receivers with an autocalibration function can automatically determine basic settings like speaker volume, crossover point, equalization, and more.)
- Remote Control Included: true
Dimensions
- Product Height: 6.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.125 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 12.9375 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 17.2 pounds (The out of box weight of the item.)
Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
Warranty
- Manufacturer's Warranty - Parts: 2 years
- Manufacturer's Warranty - Labor: 2 years
Other
- UPC: 751398012181

Enjoy movies, games and more with detailed images and clear, crisp audio with this Onkyo TX-SR343 receiver. Includes HDMI 4K Ultra HD and 3D pass-through technologies for compatibility with 3D TVs, Blu-ray players and gaming consoles and 4K Ultra HD TVs.

65W of power: At 8 Ohms, 20Hz - 20kHz frequency response, 2 channels driven, for powerful sound.
Surround sound decoders: Include Dolby TrueHD and DTS for full, clear audio.
Bluetooth technology: Allows you to stream music wirelessly from a compatible device.
Video upconversion: Takes analog video input and converts it to high-definition images via an HDMI output and compatible TV.
Discrete amplifier circuitry with WRAT (Wide Range Amp Technology): Reduces distortion for high-quality sound.
3D and 4K Ultra HD/60Hz full-rate pass-through with 4:4:4 Color Space support: Helps bring your favorite media to life.
Easy connection diagrams: Connections to speakers and external devices are illustrated and clearly labeled on the back panel.
Ready for streaming media devices: USB port right next to the streaming media player HDMI input to conveniently power the device.
