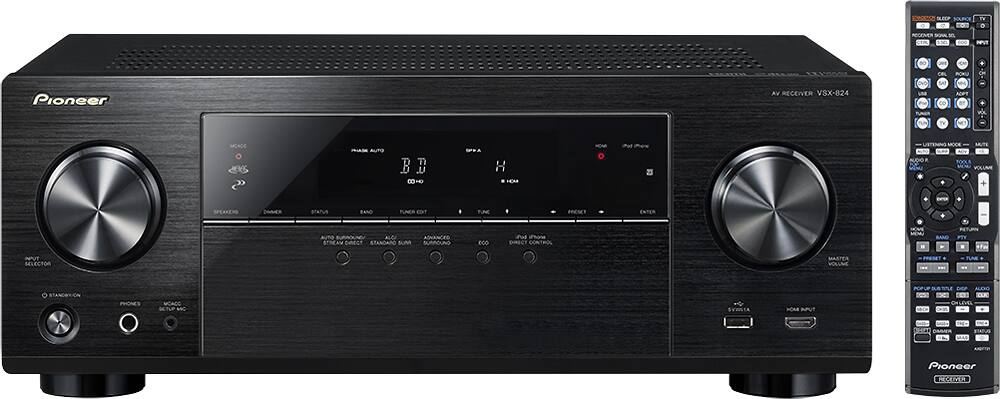

Name: Pioneer - 700W 5.2-Ch. Network-Ready 4K Ultra HD and 3D Pass-Through A/V Home Theater Receiver - Black
Brand: Pioneer
SKU: 5096088
Rating: 0 (0 reviews)

Key Specs
- Continuous Watts x Channel @ Ohms: 140 watts x 5 channels @ 6 ohms
- Number of Channels: 5.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 1 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Audio Only Inputs: 1 x 3.5mm audio
General
- Product Name: 700W 5.2-Ch. Network-Ready 4K Ultra HD and 3D Pass-Through A/V Home Theater Receiver
- Brand: Pioneer
- Model Number: VSX-824-K
- Color: Black
Audio
- Continuous Watts x Channel @ Ohms: 140 watts x 5 channels @ 6 ohms
- Number of Channels: 5.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 1 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Surround Sound Supported: DTS Neo:6, DTS-HD, Dolby Digital Plus, Dolby Pro Logic II, Dolby TrueHD (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Speaker A/B Switching: false (Allows a user to select between one of two sets of primary speakers.)
- Equalizer: true (Allows for the control of different frequencies within an audio signal, such as adjusting treble and bass levels.)
- Tuner Type(s): AM/FM
Inputs
- Audio Only Inputs: 1 x 3.5mm audio
- Number of HDMI Inputs (Total): 6
- Number of USB Inputs: 1
Outputs
- Video Only Outputs: 1 x Composite video (The number and type of video signal only outputs the product has.)
- Speaker Connection Type: Binding posts
- Number of HDMI Outputs (Total): 1
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
Features
- Auto Calibration: true (Home theater systems and receivers with an autocalibration function can automatically determine basic settings like speaker volume, crossover point, equalization, and more.)
- Remote Control Included: true
Dimensions
- Product Height: 6.6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.13 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 13.06 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 18.7 pounds (The out of box weight of the item.)
Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
Other
- UPC: 884938244039

This Pioneer VSX-824-K receiver's 3D technology ensures immersive movies, broadcasts, games and more. Includes HDMI 4K Ultra HD and 3D pass-through technologies for compatibility with 3D TVs, Blu-ray players and gaming consoles and 4K Ultra HD TVs.

Connect to the Internet: Via an Ethernet port, so you can quickly access a variety of online music services, including Pandora Internet Radio, Spotify and vTuner Internet Radio.
700W total power: 140W x 5 at 6 ohms, 1kHz for rich, powerful sound.
Surround sound decoders: Include Dolby Digital, Dolby Digital Plus, Dolby Pro Logic II, Dolby TrueHD, DTS, DTS-HD Master Audio, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS 96/24 and DTS Neo:6 for Blu-ray playback.
192kHz/24-bit DAC: Plus a Digital Core Engine with Texas Instruments Aureus DSP ensures clear, powerful acoustic output.
2-channel Advanced Sound Retriever: Along with a 2-channel auto level control enhances audio, so you can immerse yourself in crisp, vibrant tones.
Advanced surround modes: Include action, drama, advanced game, sports, classical, rock/pop and more to complement a wide variety of genres.
Pioneer Auto MCACC room calibration: Optimizes sound based on your room's specific acoustics.
Built-in AM/FM tuner: With 30 station presets lets you program your favorites for simple one-touch recall.
Front USB port: Enables simple connection of a compatible Apple® iPod® or iPhone®, so you can simultaneously stream stored music files and charge your device.
4K Ultra HD and 3D pass-through: Along with 36-bit Deep Color and x.v. Color technologies ensure visuals are displayed in strikingly clear, ultrarealistic detail on a compatible display.
Apple AirPlay, DLNA and HTC Connect certified: For flexible streaming options. Roku-ready design allows enhanced functionality.
Optional wireless LAN converter (model AS-WL300, not included): Enables wireless connection to the Internet. Optional Bluetooth adapter (model AS-BT200, not included) allows easy pairing with select devices.
