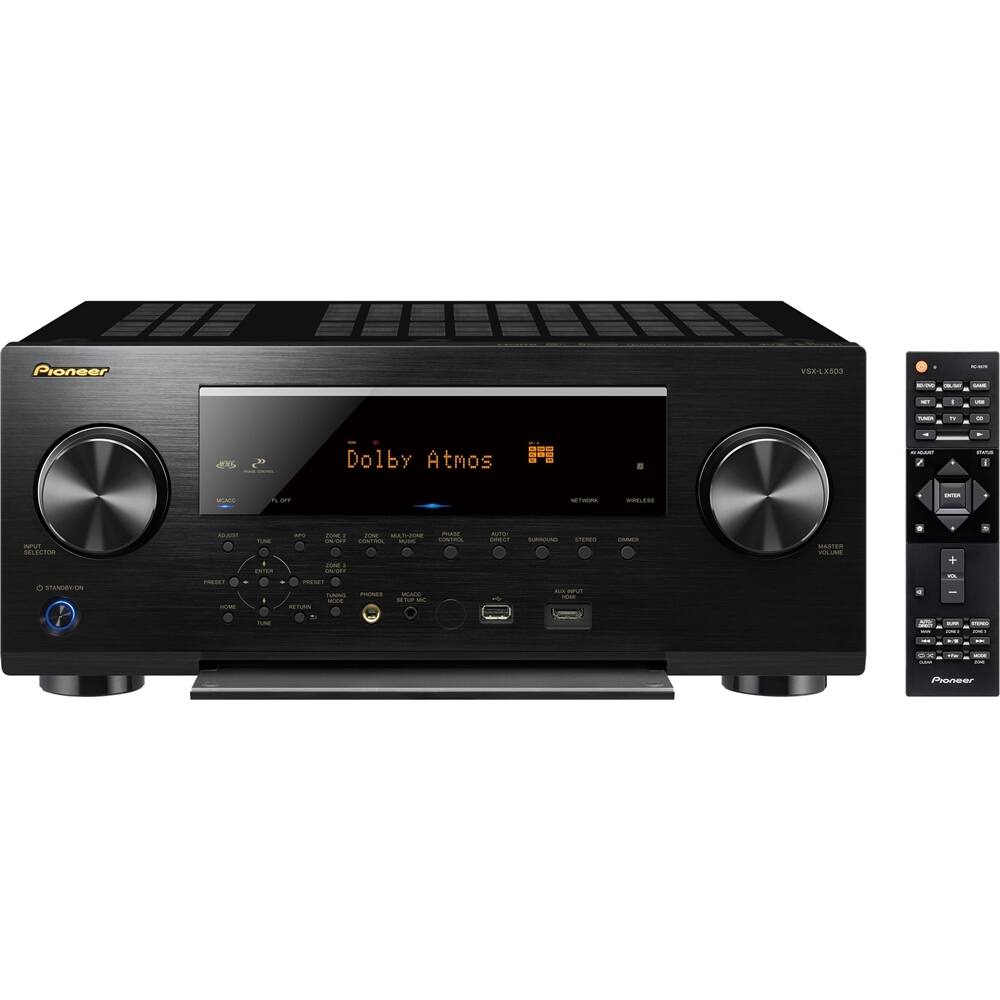

Pioneer - Elite 9.2-Ch. Hi-Res 4K Ultra HD A/V Home Theater Receiver with Google Voice Assistant Built-in - Black
Model: VSXLX503/US
SKU: 6199202
This item is no longer available in new condition. See similar items below
- Key Specs
- Continuous Watts x Channel @ Ohms: 120 watts x 9 channels @ 6 ohms, 8 ohms
- Number of Channels: 9.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 3 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Audio Only Inputs: 4 x Analog audio, 1 x 3.5mm audio, 1 x Phono
- Network Connector(s): 1 x LAN
- Maximum Supported Resolution (Video Passthrough): 2160p (4K) (The highest video resolution supported by the device for passing through video to another device.)
- Audio/Video Outputs: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- General
- Product Name: Elite 9.2-Ch. Hi-Res 4K Ultra HD A/V Home Theater Receiver with Google Voice Assistant Built-in
- Brand: Pioneer
- Model Number: VSXLX503/US
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 120 watts x 9 channels @ 6 ohms, 8 ohms
- Number of Channels: 9.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- High Resolution Audio: true (Hear music the way musicians and sound technicians intended it to be heard. Products that support hi-res audio deliver audio signals with a dynamic range and bandwidth far greater than that of a standard CD so you'll be able to enjoy pure music with outstanding sound quality. The device supports high-resolution audio signals, which more closely resemble the quality of music as it was originally recorded, with more texture and detail than can be heard via typical music streaming services or CDs.)
- Number of Audio Zones: 3 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Number of Audio Zone Source Outputs: 3 (Multiple source outputs from the receiver mean different speakers are able to receive different sound sources from the receiver or preamp/processor. For every output, a different sound source can be accessed simultaneously in different zones. For example, two source outputs could be a streaming media player in one room and a Blu-ray player in another.)
- Surround Sound Supported: DTS 96/24, DTS:X, Dolby Atmos, Dolby Digital Plus, Dolby TrueHD (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Supported File Formats: WAV, AIFF, FLAC, DSD, ALAC
- DSP Modes: 10 (Available sound modes that alter how the audio is processed and played back. A common example is a mode that allows stereo audio to be played on all available surround sound speakers, creating a simulated surround sound effect.)
- Inputs
- Audio Only Inputs: 4 x Analog audio, 1 x 3.5mm audio, 1 x Phono
- Video Only Inputs: 1 x Component video, 2 x Composite video (The number and type of video signal only inputs the product has.)
- Network Connector(s): 1 x LAN
- Front Facing Inputs: USB, HDMI
- Number of HDMI Inputs (Total): 2
- Number of USB Inputs: 2
- Video
- Maximum Supported Resolution (Video Passthrough): 2160p (4K) (The highest video resolution supported by the device for passing through video to another device.)
- Outputs
- Audio/Video Outputs: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Speaker Connection Type: RCA
- Number of HDMI Outputs (Total): 1
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Features
- Auto Calibration: true (Home theater systems and receivers with an autocalibration function can automatically determine basic settings like speaker volume, crossover point, equalization, and more.)
- Digital Content Protection: HDCP 2.2 (High-bandwidth Digital Content Protection (HDCP) is designed to prevent copying of digital audio and video content as it travels across connections. Newer versions of HDCP support more connection types, increase security, and resolve weaknesses of previous versions.)
- Remote Control Included: true
- Connectivity
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Dimensions
- Product Height: 7.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15.2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 28.7 pounds (The out of box weight of the item.)
- Other
- UPC: 889951001300
Give your home theater system a powerful upgrade with this Pioneer Elite 9.2-channel receiver. Dolby Atmos and Dolby Surround Upmixer support DTS formats for rich, immersive audio, and multi-Zone Music means you can control tunes in any room of your home. Ultra HD pass-through delivers clear, vivid picture quality for a true home theater experience. With Bluetooth technology and the Pioneer remote app, this Pioneer Elite 9.2-channel receiver makes streaming video and music easy.
- Connect to the Internet: Via built-in Wi-Fi for access to Pandora, Deezer, Spotify, TuneIn, TIDAL and Amazon Music.
- Up to 4K HDMI passthrough: Transfers 4K video and audio signals from your set-top devices to the TV via the AV receiver.
- Surround sound decoders: Include Dolby Surround, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, Dolby Vision, DTS-ES decoder, DTS 96/24 and more for crystal surround sound.
- Headphone jack: Enables private listening.
- USB port: Enables simple connection of a variety of USB-enabled devices.
- Auxiliary input: Makes it easy to connect a variety of devices.
- 7 HDMI inputs, 2 HDMI outputs: HDMI cable not included. High-speed HDMI cable is the only connection that can deliver a full high-definition experience with a full 1080p picture and digital surround sound.
- Hi-Res audio support: Lets you enjoy high-quality audio playback via LAN, USB, Bluetooth.
- x.v.Color and Deep Color technology: Produce vibrant hues for a lifelike picture.
- 0.08% total harmonic distortion: Ensures clear audio.
- Advanced surround modes: Include classic, unplugged, entertainment, pop/rock, action, drama, sports, advanced game, extended stereo and mono for quality sound in almost any genre.
- Remote: Lets you control the receiver from afar.
- Advanced MCACC automatic room calibration: Automatically optimizes receiver output to optimum sound for the room acoustics.
- Auto Power Off: Automatically turns off the power after a certain amount of time to help save energy.
- Works with Sonos: With Sonos Connect, your Elite receiver can now be part of your existing Sonos Home Sound System, or the start of a new one.
Whats Included
- Pioneer Elite 9.2-Ch. Hi-Res 4K Ultra HD A/V Home Theater Receiver with Google Voice Assistant Built-in
A: Yeah, I’ve noticed this as well. I had a previous Pioneer Elite and didn’t have to crank the volume as much. This is definitely an Onkyo box now, but the sound quality is great.
A: Airplay, pandora, chromeCast, Tidal, deeper and more
Q: Does this have subwoofer output? Can't tell from picture of back of unit
A: Yes. There are dual outputs for two subwoofers
A: I have the 503, and the Logitech Harmony One. Yes, it works great. Honestly though, we’ve been using the Samsung all in one remote that came with our new TV. That works great as well.
Q: Can you have different audio from different sources going to each zone?
A: Yes, you can use the mobile app to merge your sound or port different sound to different zones.
A: undefined
A: I guess the answer depends on the size of your speakers and the acoustics of your room. I have a BOSE surround sound system: 4 cube speakers in the corners, a center speaker plus the woofer. The sound is rich and natural.
