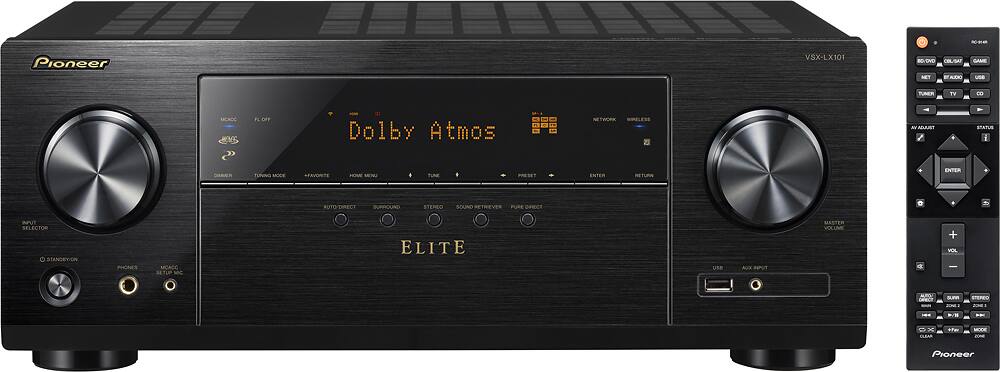

Pioneer - Elite 980W 7.2-Ch. Hi-Res Network-Ready 4K Ultra HD and 3D Pass-Through A/V Home Theater Receiver - Black
- Key Specs
- Number of Channels: 7.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- General
- Product Name: Elite 980W 7.2-Ch. Hi-Res Network-Ready 4K Ultra HD and 3D Pass-Through A/V Home Theater Receiver
- Brand: Pioneer
- Model Number: VSXLX101
- Audio
- Number of Channels: 7.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- High Resolution Audio: true (Hear music the way musicians and sound technicians intended it to be heard. Products that support hi-res audio deliver audio signals with a dynamic range and bandwidth far greater than that of a standard CD so you'll be able to enjoy pure music with outstanding sound quality. The device supports high-resolution audio signals, which more closely resemble the quality of music as it was originally recorded, with more texture and detail than can be heard via typical music streaming services or CDs.)
- Surround Sound Supported: DTS 96/24, DTS:X, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Supported File Formats: AIFF, ALAC, DSD, FLAC, WAV
- Equalizer: true (Allows for the control of different frequencies within an audio signal, such as adjusting treble and bass levels.)
- Features
- Remote Control Included: true
- Connectivity
- Wireless Multi-Room Audio: true (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Multi-Room Technology: Apple AirPlay (Proprietary technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Outputs
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Dimensions
- Product Height: 6.8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 14.6 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 19.8 pounds (The out of box weight of the item.)
- Warranty
- Manufacturer's Warranty - Parts: 3 years
- Manufacturer's Warranty - Labor: 3 years
- Other
- UPC: 889951000051
Listen to music wherever you want with this Pioneer wireless audio receiver. It connects via wireless technology to music services such as Pandora and Spotify. Any mobile device connect to program the receiver, which uses the Google Cast app. This Pioneer audio wireless receiver delivers quality sound with 400W of power. Includes HDMI 4K Ultra HD and 3D pass-through technologies for compatibility with 3D TVs, Blu-ray players and gaming consoles and 4K Ultra HD TVs.
- Hi-Res audio support: Lets you enjoy high-quality audio playback via LAN, USB, Bluetooth.
- Smart Enabled: Get access to a world of instant entertainment with this product. Just connect to the Internet and stream movies, listen to music, and access a wide variety of other content.
- Connect to the Internet: Via built-in Wi-Fi for access to DLNA, Pandora, Spotify, TuneIn and TIDAL.
- 980W total system power: Enables you to achieve robust audio output.
- Surround sound decoders: Include Dolby Surround, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS-ES decoder, DTS 96/24 and more for crystal surround sound.
- Apple AirPlay support: Supports distributed audio playback in another room, so you can enjoy music throughout your home.
- x.v.Color and Deep Color technology: Produce vibrant hues for a lifelike picture.
- 3D and 4K pass-through: Enables 3D and 4K video signals to pass-through to 3D- and 4K-capable TVs and projectors, so you can enjoy lifelike, ultrarealistic visuals.
- 0.08% total harmonic distortion: Ensures clear audio.
- Advanced surround modes: Include classic, unplugged, entertainment, pop/rock, action, drama, sports, advanced game and extended stereo for quality sound in almost any genre.
- Remote: Lets you control the receiver from afar.
- Advanced MCACC automatic room calibration: Automatically optimizes receiver output to optimum sound for the room acoustics.
- AM/FM tuner: With 40 station presets lets you program your favorites for simple one-touch recall.
- Headphone jack: Enables private listening.
- USB port: Enables simple connection of a variety of USB-enabled devices.
- Auxiliary input: Makes it easy to connect a variety of devices.
- 6 HDMI inputs, 1 HDMI output: HDMI cable not included. High-speed HDMI cable is the only connection that can deliver a full high-definition experience with a full 1080p picture and digital surround sound.
- Vacuum fluorescent display: Ensures optimal brightness and a high level of visibility.
- Enjoy AirPlay audio: Lets you stream music from your Apple® iPod®, iPhone® or iPad®.
- Bluetooth technology: Supports simple wireless music streaming via compatible devices. Advanced music optimizer technology promotes quality sound when streaming audio.
Whats Included
- Pioneer Elite 980W 7.2-Ch. Hi-Res Network-Ready 4K Ultra HD and 3D Pass-Through A/V Home Theater Receiver
A: Yes it will ! I have a room about that size with 6 speakers and a sub woofer. And its plenty lound good luck
Q: Can I use wireless headphones and speakers with this receiver
A: Whether or not you can use wireless headphones and speakers with this receiver depends on the type of wireless device. If the wireless device has two RCA connectors, it can be connected to the audio output jacks. The receiver does not have a dedicated main output. Thus, it does not work with most wireless subwoofers. It does have a mini-jack on the rear panel for wired devices and iPod/Pad connectivity.
Q: Is 4K HDR?
A: Yes, supports HDR and Dolby vision also.
A: Yes you can as I do now and it is awesome with 4K/UHD sound as well.
Q: Does it have multiple slots to load DVDs?
A: No, this is a receiver, your choice of DVD players would be fed through this device
A: That is a great question. Used to be (in the "good old days") that receivers, amps, etc. had a pretty standard power rating system (X watts into 8 ohms all channels driven). Today, harder to gather from the ads and you really do have to go to the manufacturer's site to look at the specific specs. From the Pioneer site for my bedroom receiver (Pioneer LX101) the site gives these reports: 140 W/ch (6 ohms, 1 kHz, THD 0.9 %, 1ch Driven FTC) 80 W/ch (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven FTC) When you see an amplifier wattage rating of 100 watts-per-channel at 1 KHz with one channel driven, the real-world wattage output when all 5 or 7 channels are operating at the same time across all frequencies will be lower, possibly as much as 30 or 40% lower. A better indicator is to base the measurement when two channels are driven, and use 20Hz to 20kHz tones as opposed to 1KHz. However, that still doesn't fully take into account the amplifier's power output capability when all channels are driven. Compare the specifics with other products and find the common denominator. That's the best way for me to make a determination of receiver/amp power. I am no expert by a long shot, but it is more than amperage that goes into the issue of sound quality. The effect of amplifier power is demonstrated by this excerpt I found online: Sound levels are measured in Decibels (db). Our ears detect differences in volume level in a non-linear fashion. Ears become less sensitive to sound as it increases. Decibels are a logarithmic scale of relative loudness. A difference of approximately 1 db a minimum perceptible change in volume, 3 db is a moderate change in volume, and about 10 db is an approximate perceived doubling of volume. To give you an idea of how this relates to real-world situations the following examples are listed: 0 db is the threshold of hearing Whisper: 15-25 dB Background noise: about 35 dB Normal home or office background: 40-60 dB Normal speaking voice: 65-70 dB Orchestral climax: 105 dB Live Rock music: 120 dB+ Pain Threshold: 130 dB Jet aircraft: 140-180 dB Other features such as THD (total harmonic distortion) can go into the equation, although on most modern equipment I think the THD is so low as to be negligible. Hope that helps! Good luck.
