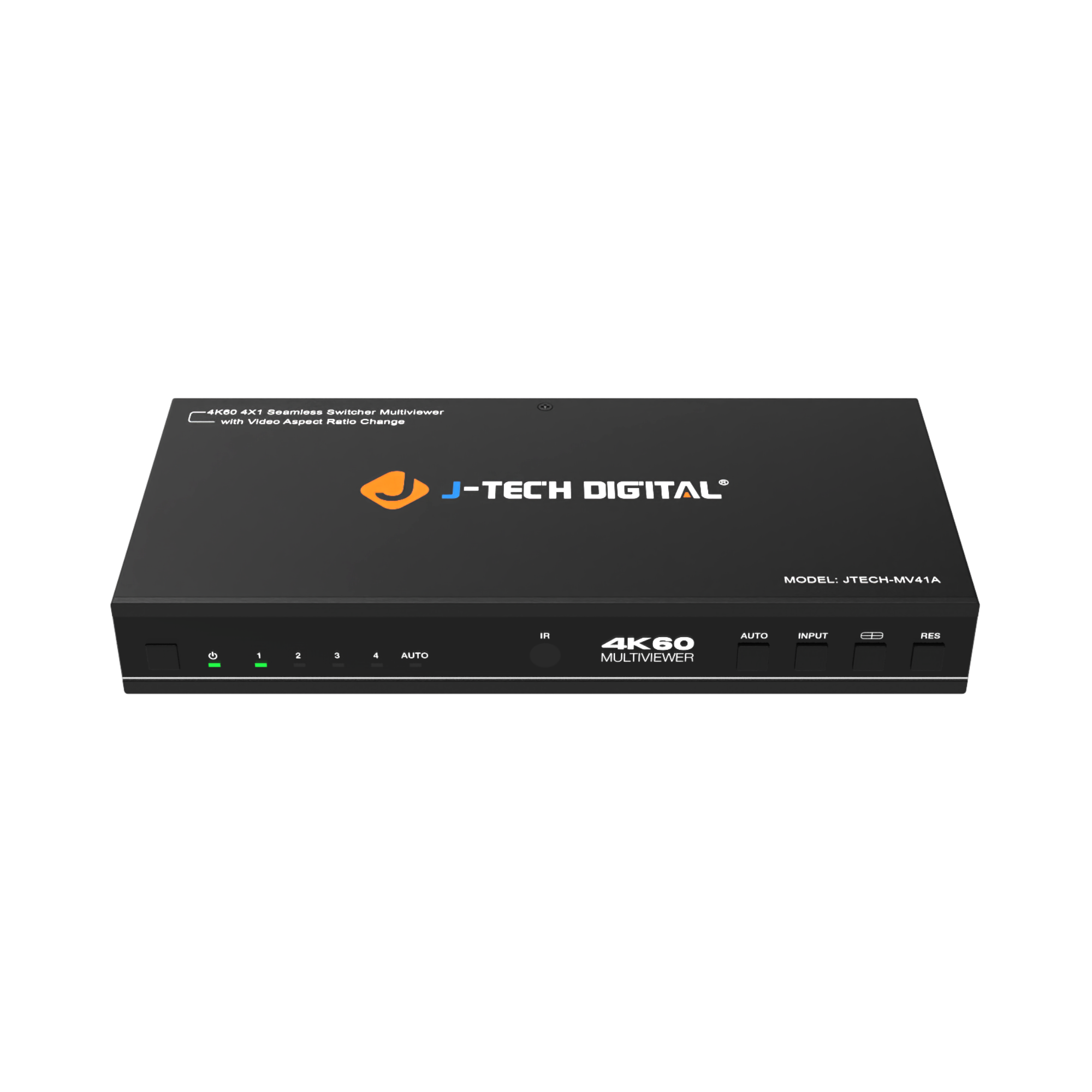

  • J-TECH DIGITAL MODEL: JTECH-MV41A 4K60 MULTIEWER AUTO INPUT RES
  • DIGITAL J-TECH Aspect Video Switcher 4X1 INPUT/OUTPUT

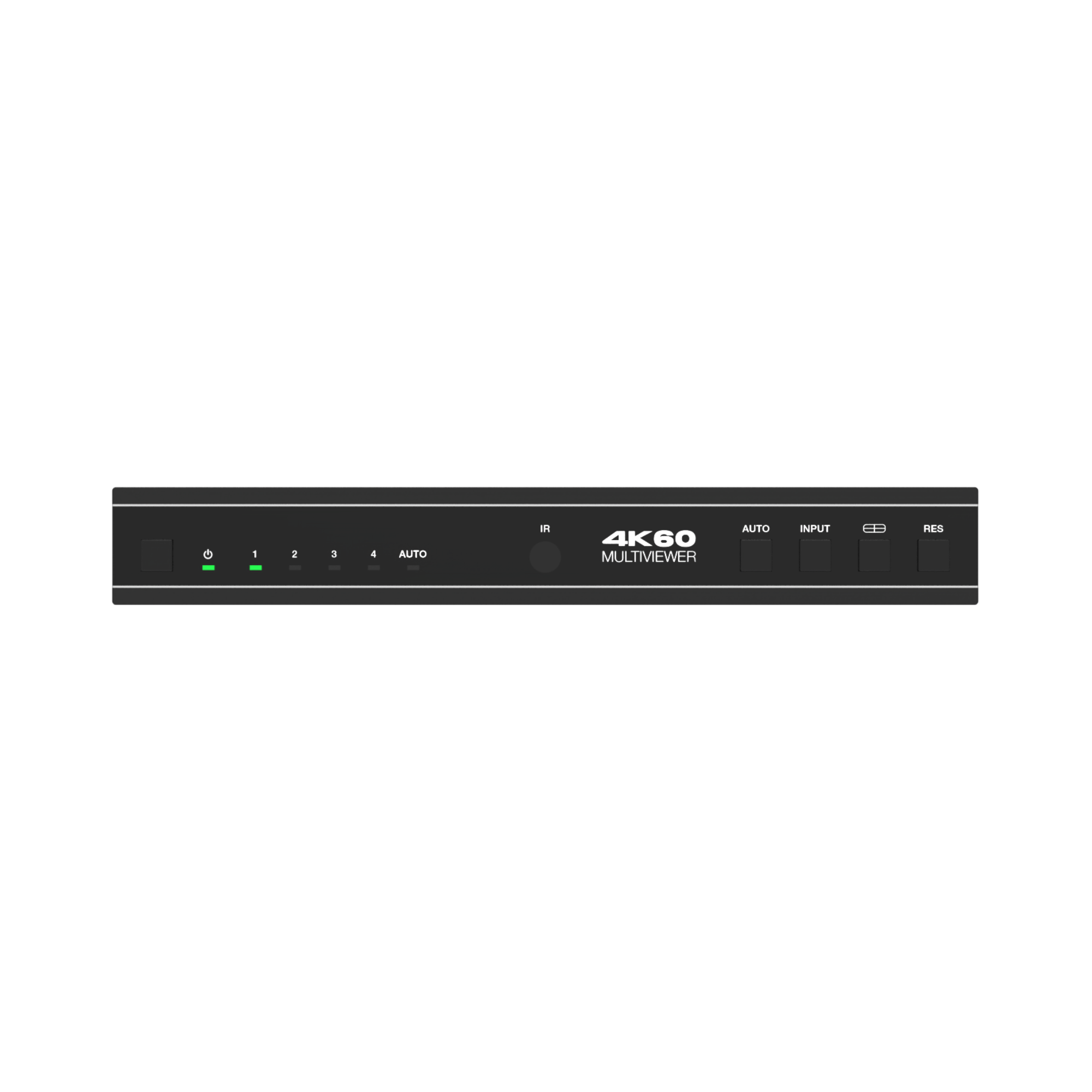

  • 1 2 3 4 AUTO INPUT RES 4K60 MULTIWIER

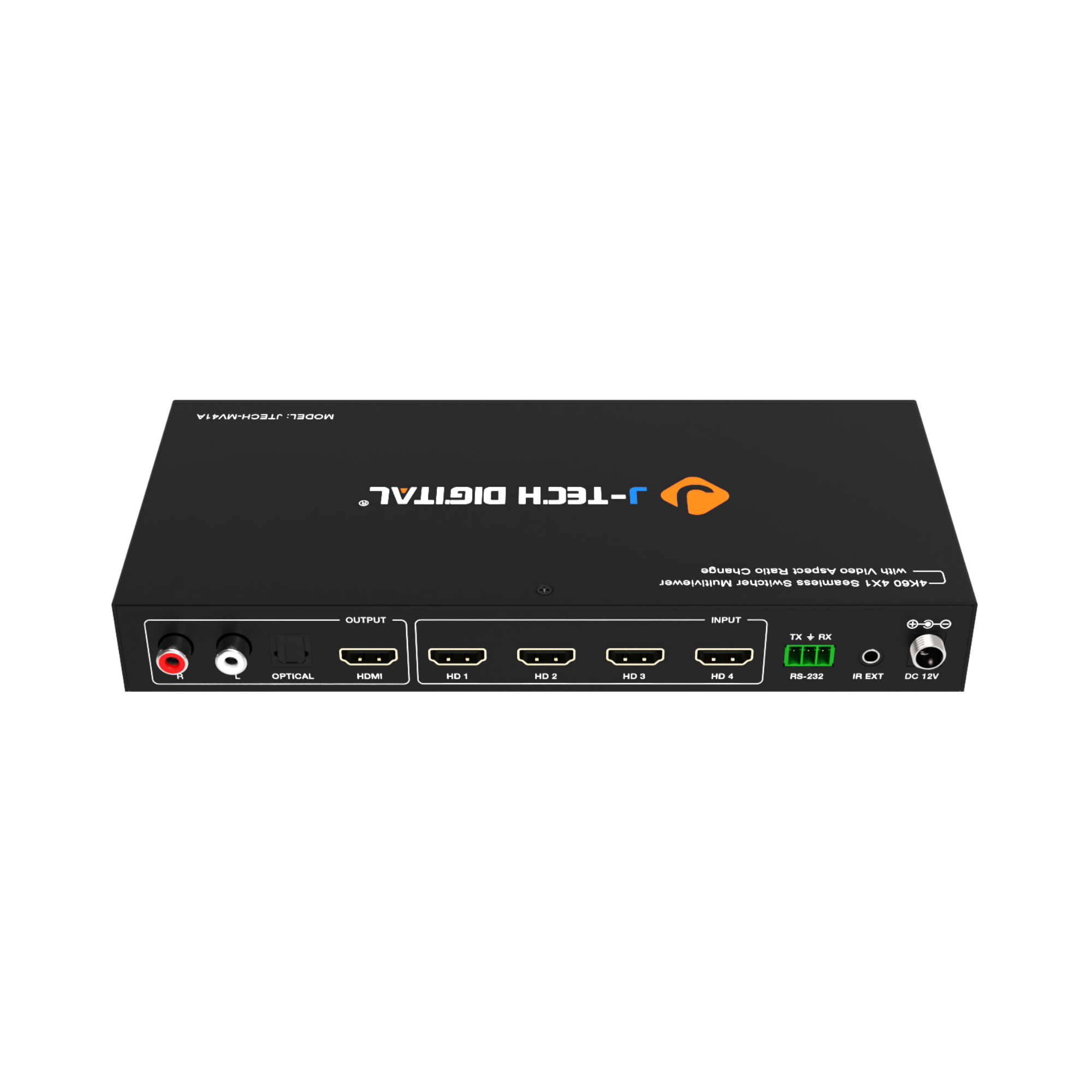

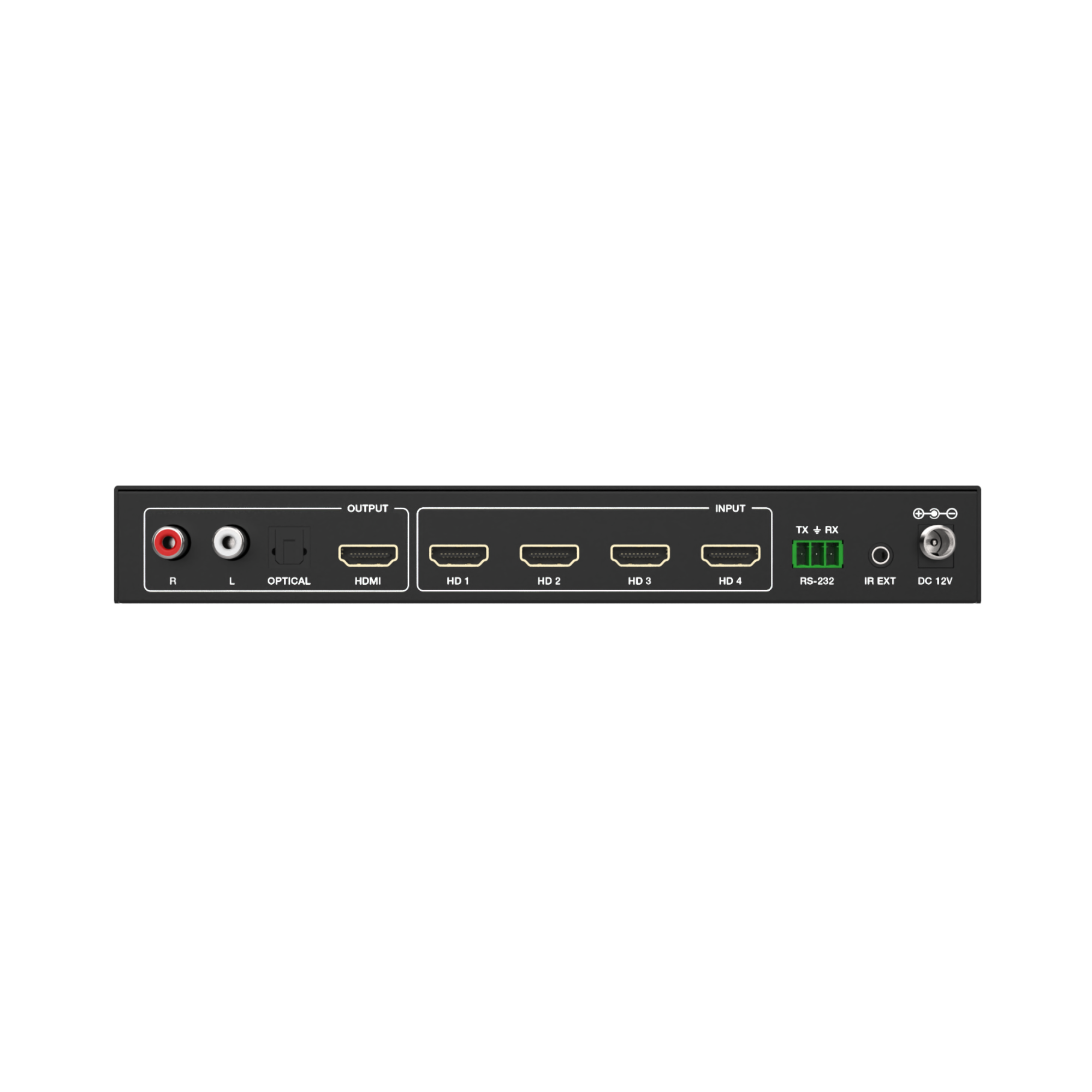

  • OUTPUT INPUT | L OPTICAL HDMI HD 1 HD 2 HD 3 HD 4 S-232 IH EXT DC 12V

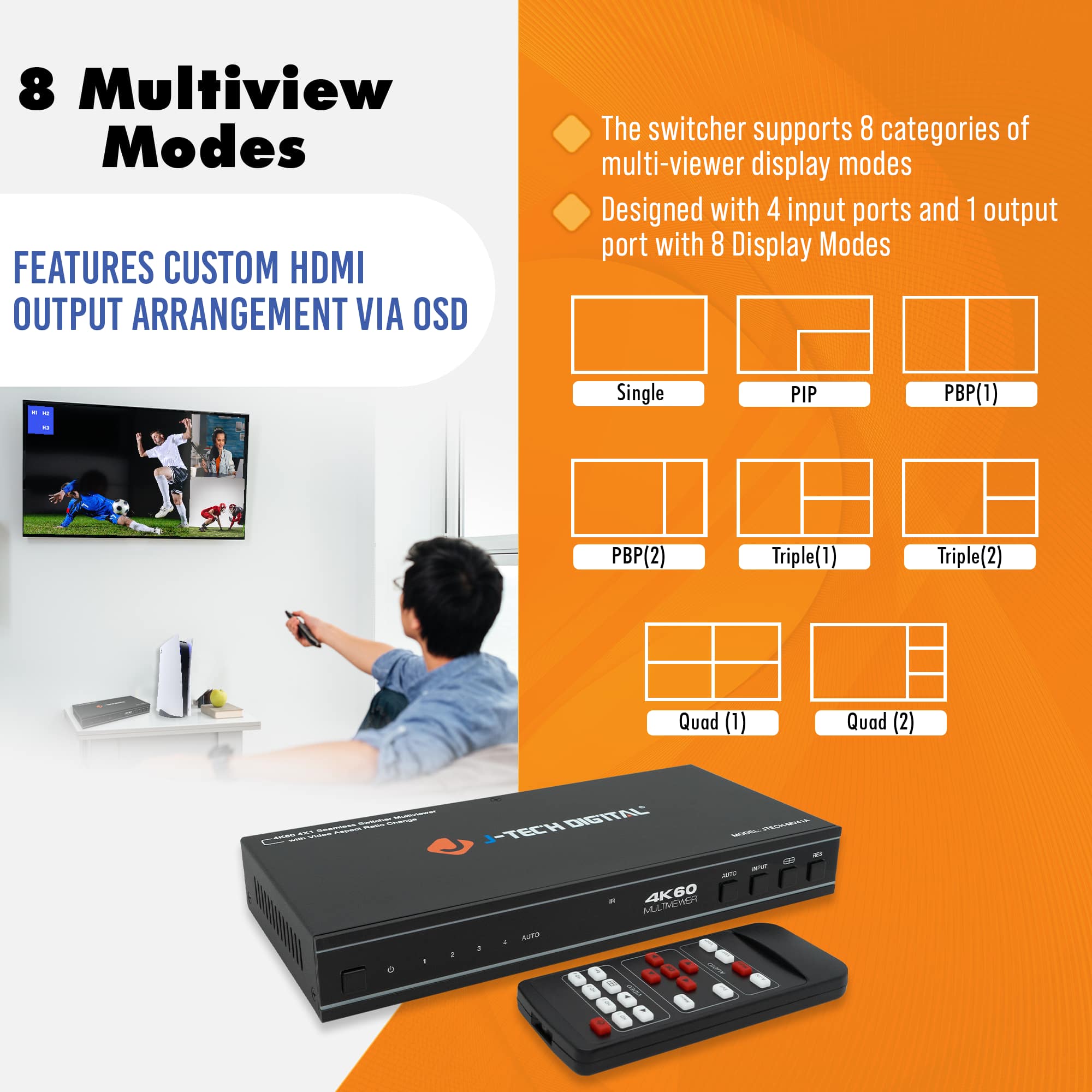

  • 8 Multiview Modes FEATURES CUSTOM HDMI OUTPUT ARRANGEMENT VIA OSD The switcher supports 8 categories of multi-viewer display modes Designed with 4 input ports and 1 output port with 8 Display Modes - Single - PIP - PBP(1) - PBP(2) - Triple(1) - Triple(2) - Quad (1) - Quad (2)

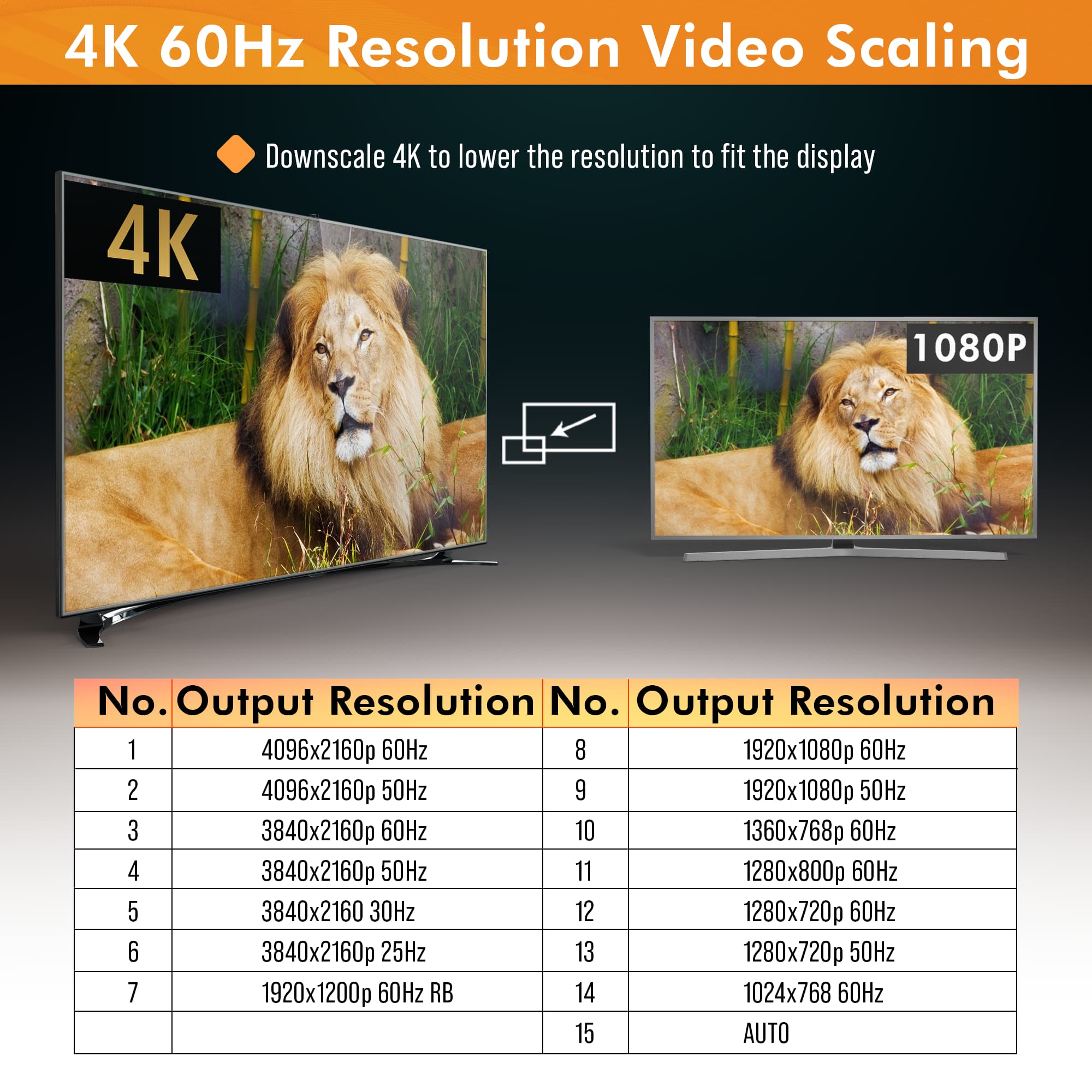

  • 4K 60Hz Resolution Video Scaling Downscale 4K to lower the resolution to fit the display No. Output Resolution 1 4096x2160p 60Hz 2 4096x2160p 50Hz 3 3840x2160p 60Hz 4 3840x2160p 50Hz 5 3840x2160 30Hz 6 3840x2160p 25Hz 7 1920x1200p 60Hz RB 8 1920x1080p 60Hz 9 1920x1080p 50Hz 10 1360x768p 60Hz 11 1280x800p 60Hz 12 1280x720p 60Hz 13 1280x720p 50Hz 14 102
  • Audio Extraction Feature - Extract Audio via RCA / Optical ports - Toggle between HDMI inputs for active audio

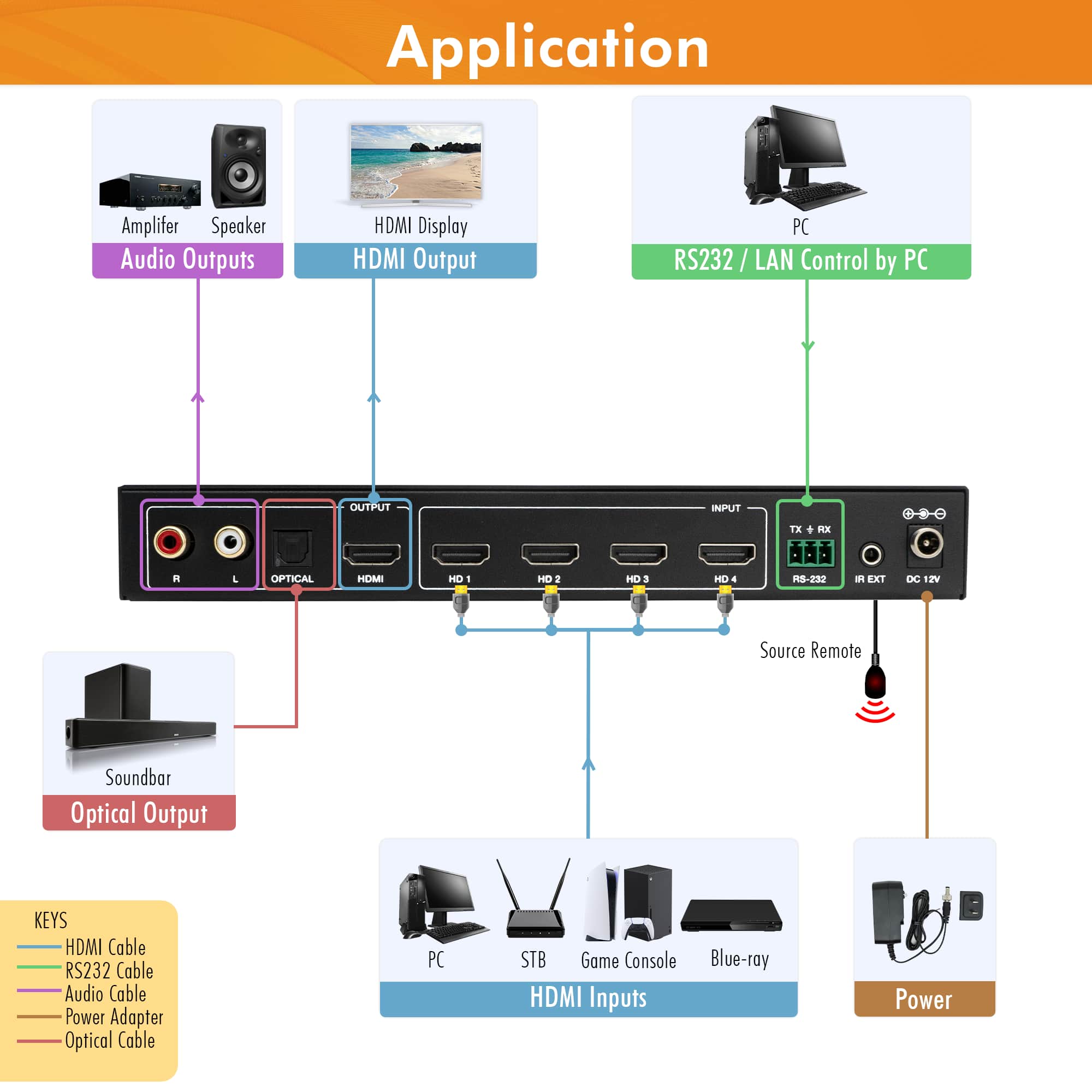

  • Application - Amplifier - Speaker - Audio Outputs - HDMI Display - HDMI Output - RS232 / LAN Control by PC - Soundbar - Optical Output - PC - STB - Game Console - Blue-ray - Power KEYS: - HDMI Cable - RS232 Cable - Audio Cable - Power Adapter - Optical Cable HDMI Inputs Power Source Remote

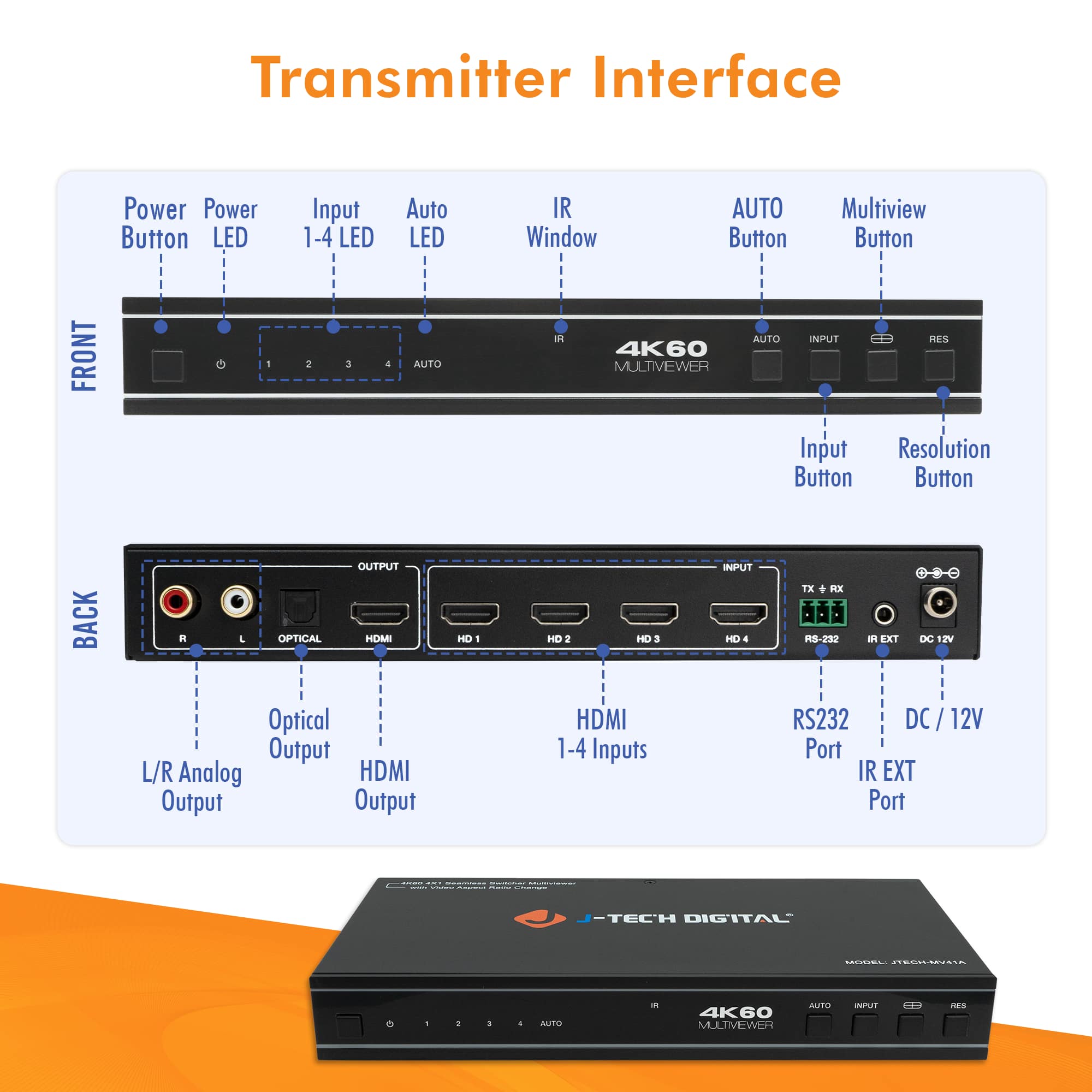

  • Transmitter Interface FRONT - Power Button - Power LED - Input 1-4 LED - Auto LED - IR Window - AUTO Button - Multiview Button - 4K60 MULTIVEWER - Input Button - Resolution Button BACK - L/R Analog Output - Optical Output - HDMI Output - HDMI 1-4 Inputs - RS232 Port - IR EXT Port - DC / 12V Port J-TECH DIGITAL MODEL: JTECH-4K60

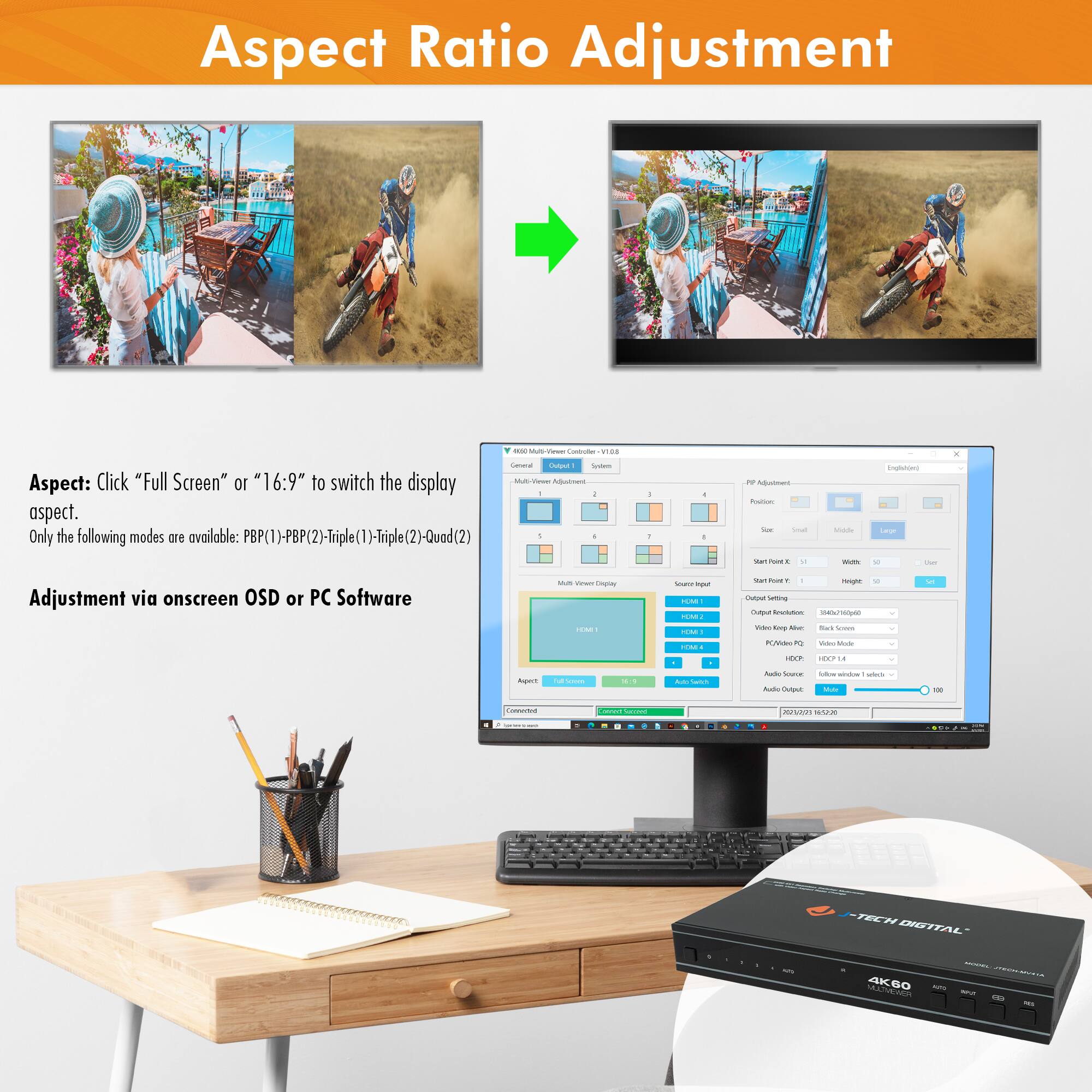

  • Aspect Ratio Adjustment Aspect: Click "Full Screen" or "16:9" to switch the display aspect. Only the following modes are available: PBP(1)-PBP(2)-Triple(1)-Triple(2)-Quad(2) Adjustment via onscreen OSD or PC Software - Aspect Ratio Adjustment - Only the following modes are available: PBP(1)-PBP(2)-Triple(1)-Triple(2)-Quad(2) - Adjustment via onscreen OSD or PC Software TECH DIGITAL AK60

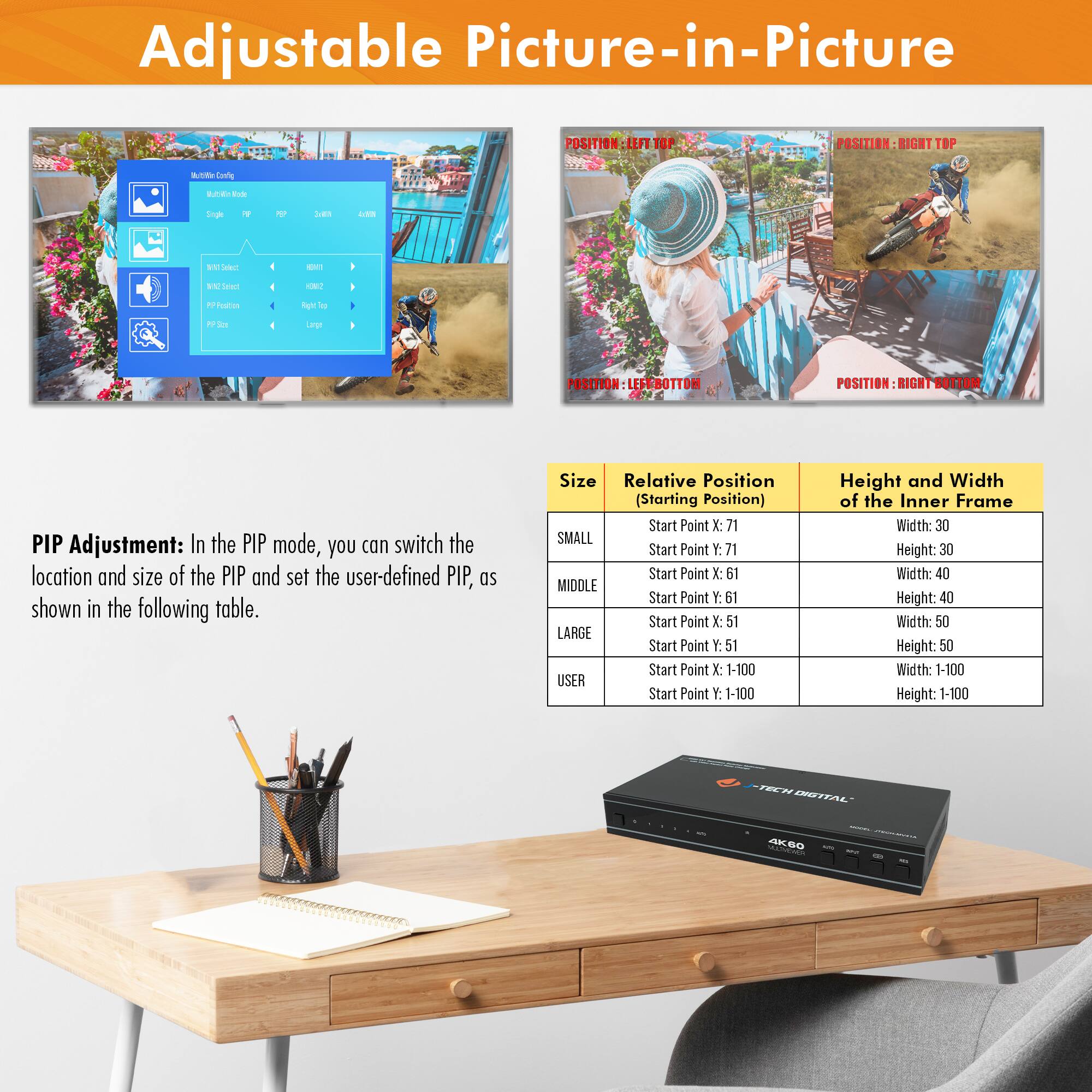

  • Adjustable Picture-in-Picture PIP Adjustment: In the PIP mode, you can switch the location and size of the PIP and set the user-defined PIP, as shown in the following table. | Size | Relative Position (Starting Position) | Height and Width of the Inner Frame | |------|------------------------------------|----------------------------------| | SMALL | Start Point X: 71<br>Start Point Y: 71 | Width: 30<br>Height: 30 | | MIDDLE | Start Point X: 61<br>Start Point Y: 61 | Width: 40<br>Height: 40 | | LARGE | Start Point X: 51<br>Start Point Y: 51 | Width: 50<br>Height: 50 | | USER | Start Point X: 1-100<br>Start Point Y: 1-100 | Width: 1-100<br>Height: 1-100 | POSITION: LEFT TOP POSITION: RIGHT TOP POSITION: LEFT BOTTOM POSITION: RIGHT BOTTOM TECH DIGITAL AK60
  • Package Includes A. J-TECH DIGITAL A.4X1 Switcher Multiviewer x1 B. Remote Control x1 C. User Manual x1 D. 3-pin Phoenix Connector (male) x1 E. IR Wideband Receiver x1 F. 12V/2.5A Power Adapter x1 G. Mounting - Mounting Ears x2 - Machine screws (KM3*4) x4 A. 4X1 Switcher Multiviewer x1 B. Remote Control x1 C. User Manual x1 D. 3-pin Phoenix Connector (male) x1 E. IR Wideband Receiver x1 F. 12V/2.5A Power Adapter x1 G. Mounting - Mounting Ears x2 - Machine screws (KM3*4) x4

J-Tech Digital - 4K 60Hz 4x1 Seamless HDMI Switch and Multiviewer with Video Aspect Ratio Change - Black

Model:
JTECH-MV41A
SKU:
10182369
Your price for this item is $218.89
