Questions & Answers

Q: QuestionWhat type of speaker connections does the MartinLogan distribution amp use?

• A:Answer The MartinLogan distribution amp uses RCA speaker connections.

Q: QuestionHow many audio zones does this MartinLogan distribution amp support?

• A:Answer This MartinLogan distribution amp supports up to 8 audio zones.

Q: QuestionDoes this MartinLogan distribution amp have a fan for cooling?

• A:Answer Yes, this distribution amp is fan cooled.

Q: QuestionCan the zones on this MartinLogan distribution amp be bridged for higher output?

• A:Answer Yes, the zones can be bridged for high-output mode with 200W per channel into 8 ohms.

Q: QuestionHow much power does each channel of this MartinLogan distribution amp deliver?

• A:Answer This MartinLogan 16-channel distribution amp delivers 60W per channel into 8 ohms (or 120W into 4 ohms).

Q: QuestionIn regards to controlling the multizone, can I connect a bunch of Sonos Ports, Bluesound Nodes or WiiM Pro? Then use there app or Roon/Plexamp to control?

Asked 1 year ago by Max.

• A:Answer Hello. Thank you for your question and we hope all is well. Yes, you can! Just set the amp volume in the WebUI and control the source and on-the-fly volume via Sonos, Wiim, etc. We hope this helps and thanks again for your question. We appreciate your interest and support.

  Answered 1 year ago by Anonymous


  Helpful (1)Unhelpful (0)ReportAnswer this question

Q: QuestionI have Martin Logan Aries II speakers that drop the impedance as low as 2 ohns when you turn up the volume would this amp work with them without blowing up in bridged mode. they have fried several other amps.

Asked 2 years ago by JK100.

• A:Answer Thank you for your question and we hope all is well. We apologize to hear about your experience with your speakers and amps. Impedance varies depending on the frequency so it’s constantly changing. Since it’s so dynamic, manufacturers rate impedance as “nominal” or “average” which takes into account some variability. So if the speaker and amp-rated impedance are the same or close, it should be fine. Almost all amps have built-in protection as well so in most cases there is no risk in trying it. The MDA should be fine, but we would recommend not using the bridge mode since bridge mode isn’t as stable at low impedance. We hope this helps and please let us know if you have any other questions.

  Answered 2 years ago by Anonymous


  Helpful (0)Unhelpful (0)ReportAnswer this question

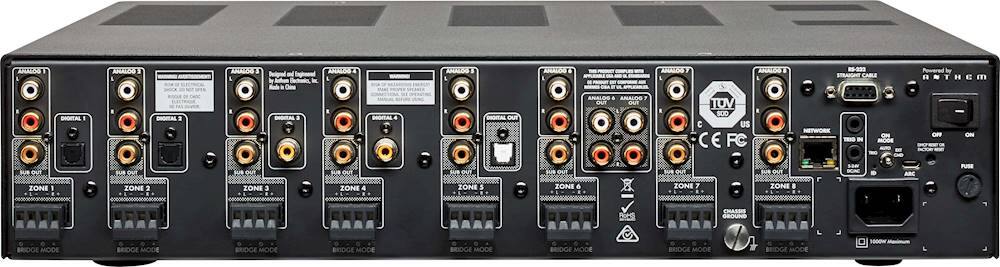

Q: QuestionJust to confirm this will drive 16 speakers at 60 watts each? I see only 8 outputs for speakers so do I bind two speakers to each left and right output? Effectively meaning two pairs of speakers per zone?

Asked 3 years ago by Anonymous.

• A:Answer Each zone has a pair of speakers available to be connected, and each phoenix connector has 4 terminals. So yes, this will drive 16 speakers @ 60wpc. Feel free to give us a call at 785-749-0133 if you have any further questions!

  Answered 3 years ago by Anonymous
