Key Specs
- Number of Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
General

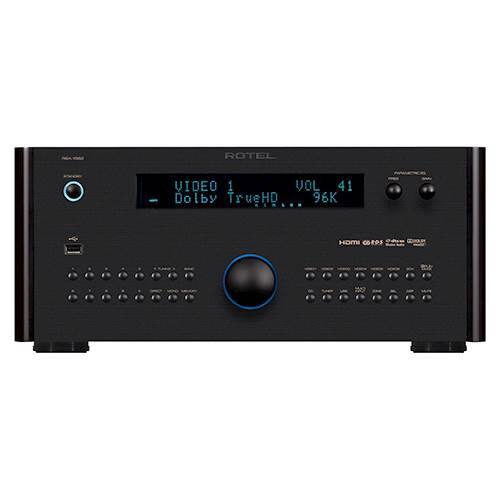

- Product Name: 1400W 7.1-Ch. A/V Home Theater Receiver
- Brand: Rotel
- Model Number: RSX-1562 BLACK
- Color: Black
Audio
- Number of Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Surround Sound Supported: DTS Neo:6, DTS 96/24, Dolby Digital, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby Digital Plus, Dolby TrueHD (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Supported File Formats: WAV, WMA, AAC, MP3
- Equalizer: true (Allows for the control of different frequencies within an audio signal, such as adjusting treble and bass levels.)
Inputs
- Number of HDMI Inputs (Total): 6
Outputs
- Speaker Connection Type: Banana Jack/Screw Terminals
- Number of HDMI Outputs (Total): 2
Features
- Remote Control Included: true
Dimensions
- Product Height: 7.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 16.6 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 34.2 pounds (The out of box weight of the item.)
Warranty
- Manufacturer's Warranty - Parts: 5 years
- Manufacturer's Warranty - Labor: 5 years
Other
- UPC: 672563178115

The RSX-1562 builds upon the excellence established by its highly acclaimed predecessor, the RSX-1560, but with the addition of improved circuitry and technologies such as HDMI 1.4 with 3D. In addition, the advent of so many video sources such as a cable or satellite box, DVRs, DVD players, and Wi-Fi or Ethernet audio / video feeds from devices such as Apple TV and Roku etc., have necessitated adding more HDMI inputs. The RSX-1562 now has six HDMI 1.4 inputs and two HDMI 1.4 outputs, one with an Audio Return Channel (ARC). The ARC in HDMI 1.4 enables a TV via a single HDMI cable, to send audio data "upstream" to an A/V receiver or surround audio controller, increasing user flexibility and eliminating the need for any separate S/PDIF audio connection. Includes HDMI 3D pass-through technology for compatibility with 3D TVs, Blu-ray players and gaming consoles.

Hi-Res audio support: Lets you enjoy high-quality audio playback via USB.
Surround sound decoders: Include Dolby Digital Surround EX, Dolby Digital, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby Digital Plus and Dolby TrueHD for crystal surround sound.
3D passthrough: Passes through 3D content from a variety of devices through your AV receiver to your TV or projector.
0.05% total harmonic distortion: Ensures clear audio.
Remote: Lets you control the receiver from afar.
AM/FM tuner: With 30 station presets lets you program your favorites for simple one-touch recall.
USB port: Enables simple connection of a variety of USB-enabled devices.
Auxiliary input: Makes it easy to connect a variety of devices.
6 HDMI inputs, 2 HDMI outputs: HDMI cable not included. High-speed HDMI cable is the only connection that can deliver a full high-definition experience with a full 1080p picture and digital surround sound.
Apple® iPod®/iPhone®/iPad® ready: So you can easily stream your music library.
