Thermador - Masterpiece Series 30" Built-In Electric Induction Cooktop with 4 elements, Wifi and Frameless Design - Black
- Key Specs
- Color Finish: Black
- Product Height: 4 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 31 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Elements: 4
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Thermador
- Model Number: CIT304YB
- Product Name: Masterpiece Series 30" Built-In Electric Induction Cooktop with 4 elements, Wifi and Frameless Design
- Color: Black
- Color Finish: Black
- Vendor Collection: Thermador Masterpiece (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 4 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 31 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 40 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 3 7/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 3/4 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 19 7/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Installs Over Built-In Oven: true
- Control Type: LED display with touchscreen controls
- Control Location: Top
- Digital Display: true
- Power-On Indicator Light(s): true
- Fingerprint Resistant: false
- Hot Surface Indicator(s): true (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Form Factor: Cooktop (The size, arrangement, and physical configuration of the product.)
- Portable: false
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cooktop Features
- Induction: true (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Glass, Ceramic
- Number of Cooking Zones: 4
- Number of Elements: 4
- Bridge Element: true (This feature is an additional heating element located between two individual burners. When this is enabled, the individual burners and the bridge element act as one connected cooktop. This equal heat distribution on the cooktop surface helps accommodate larger cookware, such as roaster pans or griddles.)
- Specialty Element(s): None
- Expandable Element: false (Accommodate large cookware and ensure even heat distribution with this feature, which allows more surface area for the individual heating element.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Power
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Cooktop Power Source: Electric
- Element Wattage
- Element 1 Wattage: 2200 watts
- Element 2 Wattage: 3700 watts
- Element 3 Wattage: 2200 watts
- Element 4 Wattage: 3700 watts
- Electrical
- Wattage: 7200 watts (Measurement of electrical power.)
- Amperage: 30 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium. For more information about PFAS chemicals, visit https://bshpersona.com/productdisclosures/. Libre de PFAS, PFOA, plomo, y cadmio. Para obtener más información sobre las sustancias químicas PFAS, visite https://bshpersona.com/productdisclosures/. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2-year
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 825225961468
Thermador's innovative induction technology saves time when cooking and is easier to care for and clean than traditional cooking methods. Induction cooktops heat faster than traditional gas and electric cooktops. Equipped with a powerful 3,700 W and 11-inch element can be used for larger pots and pans. The PowerBoost feature increases element power by up to 50%, saving time to heat up pots or cook large quantities. Illuminated touch control panel offers intuitively simple selection of 17 power settings and allows for easy cleaning. Each cooktop provides unmatched precision for even the most challenging recipes, offering more means of control, movement and personalization with frame and glass color options.
- 17 Power Levels provide precise cooking: 17 Power Levels provide precise cooking with an illuminated touch control panel that is easy to clean.

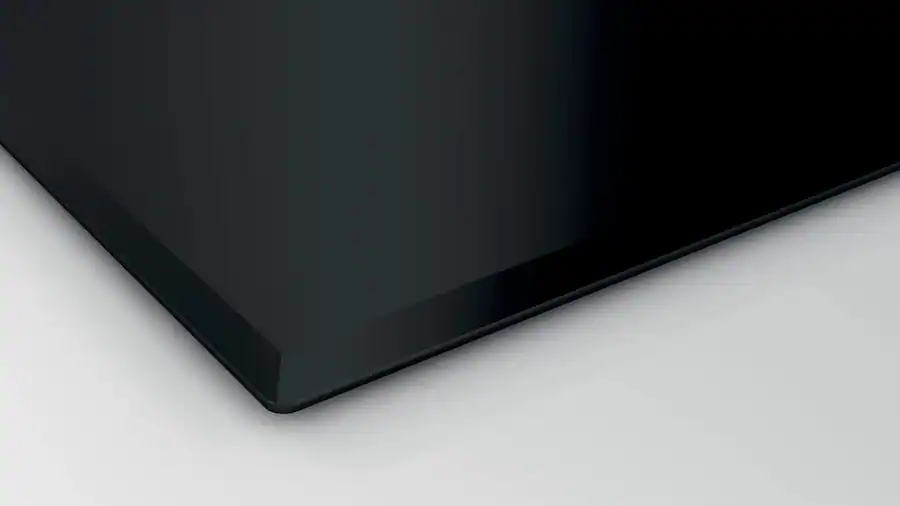

- Black Glass with a frameless design: Black Glass creates a sleek design to complement any kitchen.
- PowerBoost heats up pots or boils water quicker: PowerBoost increases element power by up to 50%, saving time to heat up pots or boil water quicker.
- A timer for each of the four elements: Timers for All Four Elements each burner makes it easier to coordinate the cooking of multiple dishes.
- 11" Heating Element accommodates large cookware: 11" Heating Element allows you to accommodate large pots and pans with the ultra-spacious heating element with up to 3,700 W Power.
- Instantaneous changes in temperature with Induction: Induction technology allows instantaneous temperature changes as the power level is adjusted. Induction automatically recognizes the size, shape and position of your cookware on the cooktop.
- Easy cleanup: Provides a smooth surface that makes cleaning fast and simple.
- Automatic pan recognition: Cooktop automatically recognizes pan.
- Touch controls: Illuminated touch controls provide a sleek design.
- Child safety lock: Child safety lock provides peace of mind.
- 17 Power Levels provide precise cooking: 17 Power Levels provide precise cooking with an illuminated touch control panel that is easy to clean.
- Black Glass with a frameless design: Black Glass creates a sleek design to complement any kitchen.
- PowerBoost heats up pots or boils water quicker: PowerBoost increases element power by up to 50%, saving time to heat up pots or boil water quicker.
- A timer for each of the four elements: Timers for All Four Elements each burner makes it easier to coordinate the cooking of multiple dishes.
- 11" Heating Element accommodates large cookware: 11" Heating Element allows you to accommodate large pots and pans with the ultra-spacious heating element with up to 3,700 W Power.
- Instantaneous changes in temperature with Induction: Induction technology allows instantaneous temperature changes as the power level is adjusted. Induction automatically recognizes the size, shape and position of your cookware on the cooktop.
- Easy cleanup: Provides a smooth surface that makes cleaning fast and simple.
- Automatic pan recognition: Cooktop automatically recognizes pan.
- Touch controls: Illuminated touch controls provide a sleek design.
- Child safety lock: Child safety lock provides peace of mind.
Whats Included
- Masterpiece Series 30" Built-In Electric Induction Cooktop
- Masterpiece Series 30" Built-In Electric Induction Cooktop
Q: Does the cooktop have a digital display, and if so, what information does it provide?
A: Yes, the cooktop has an illuminated digital display with touchscreen controls. It provides information such as the selected power level, cooking time, and temperature.
Q: How many cooking zones does the cooktop have, and where are the controls located?
A: The cooktop has four cooking zones. The controls are located on the top of the cooktop and feature an illuminated touch control panel.
A: The maximum power output of the 11-inch element is 3,700 watts. This high power output allows for rapid heating of larger pots and pans, making it ideal for tasks such as boiling water or searing meats. The large heating element also ensures even heat distribution across the bottom of the cookware, preventing hot spots and ensuring consistent cooking results.
Q: What is the manufacturer's warranty coverage for parts and labor?
A: The manufacturer's warranty coverage for parts and labor is 2 years.
Q: How does the induction cooktop heat faster than traditional gas and electric cooktops?
A: Induction cooktops generate heat directly in the cookware using electromagnetic energy, eliminating the need to transfer heat through a flame or heating element. This direct transfer of energy allows for rapid heating, making induction cooktops faster than traditional gas and electric cooktops.
Q: What is the power source for this cooktop, and what is the amperage requirement?
A: The power source for this cooktop is electric, and the amperage requirement is 30 amperes.
Q: What type of cooktop surface does it have, and what material is it made of?
A: The cooktop surface type is Smoothtop, and the material it is made of is Glass.
Q: What safety features does the cooktop offer, such as hot surface indicators and child lock?
A: The Thermador Masterpiece Series 30" Built-In Electric Induction Cooktop offers several safety features, including hot surface indicators and a child safety lock. The hot surface indicators provide a visual warning when the cooktop is hot to the touch, while the child safety lock prevents children from accidentally turning on the cooktop.
