Key Specs
- Wattage: 650 watts (Measurement of electrical power.)
- Modular: Non-modular
- Energy Efficiency: 80 PLUS Bronze (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 6 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Product Length: 149.86 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
General
- Product Name: Smart BX1 650W 80 Plus Bronze Certified Continuous Power ATX Power Supply
- Brand: Thermaltake
- Model Number: PS-SPD-0650NNFABU-1
Power
- Wattage: 650 watts (Measurement of electrical power.)
- Modular: Non-modular
- Energy Efficiency: 80 PLUS Bronze (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Specification Compliance: ATX12V 2.3/ EPS12V 2.92
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
Connectivity
- ATX Connector: 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: 1 (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 6 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
Dimensions
- Product Height: 139.7 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 86.36 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 149.86 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 73.6 ounces (The out of box weight of the item.)
Cooling
- Cooling Fan Type: 120mm Hydraulic Bearing Fan
Other
- UPC: 841163006238

Built to deliver 80 PLUS Bronze with 88% power efficiency, the Smart BX1 series is available in 550W - 750W models. Constructed with a 120mm hydraulic bearing fan, Japanese main capacitors and other premium components to help deliver a continuous and stable power output at 40℃, near silent operation and reliable performance. With an ample 5-year warranty, the Smart BX1 is able to satisfy the market, where value-oriented users are looking for a new power supply with all the latest features.

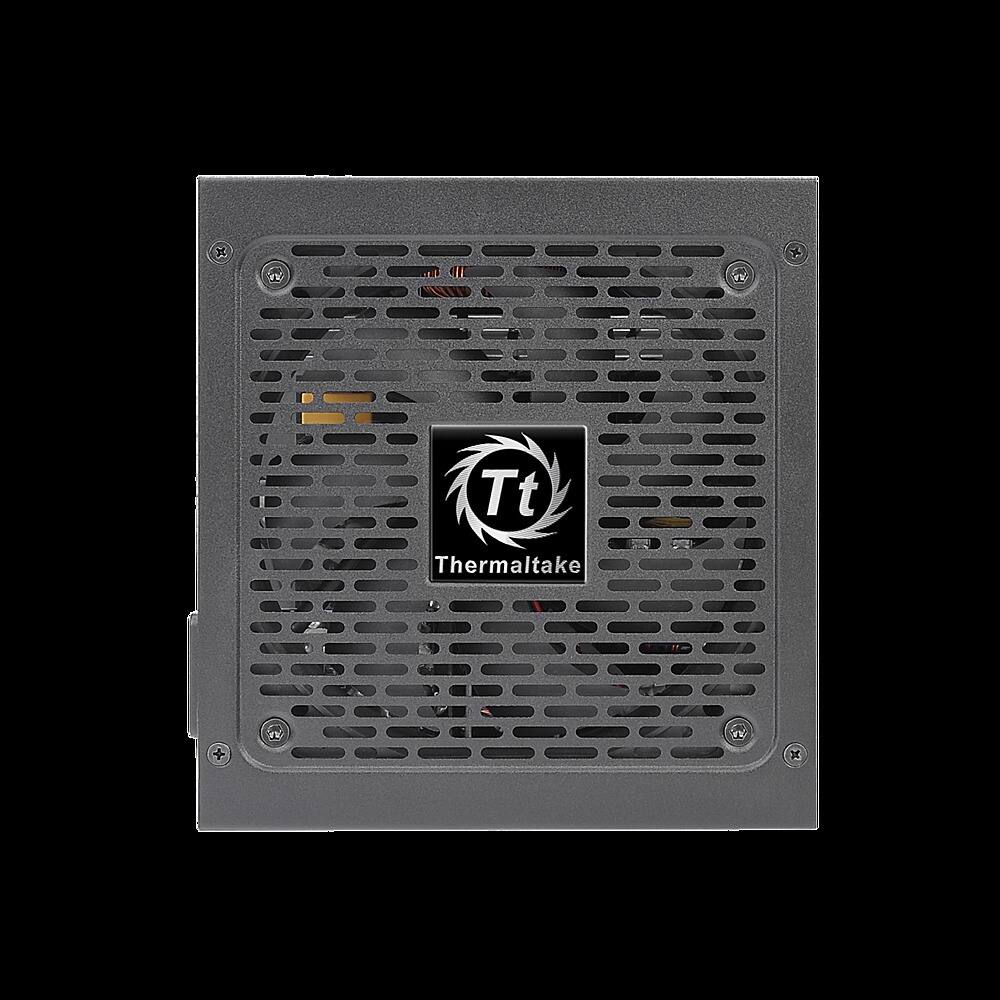

Ultra Quiet 120mm Hydraulic Bearing Fan: Featuring a 120mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.
Premium Japanese Main Capacitor: Providing great durability as well as offering the highest stability, while remaining reliable.
High Amperage Single +12V Rail: Powerful single +12V rail ensures a stable and reliable supply to other PC components.
80 PLUS Bronze Certified: For minimal heat, noise levels and energy consumption.
Multiple Connectors: Soft black cables come with sleeve cabling, designed to make cable installation an easy task while fully powering the system at optimal voltages
