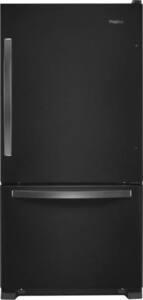

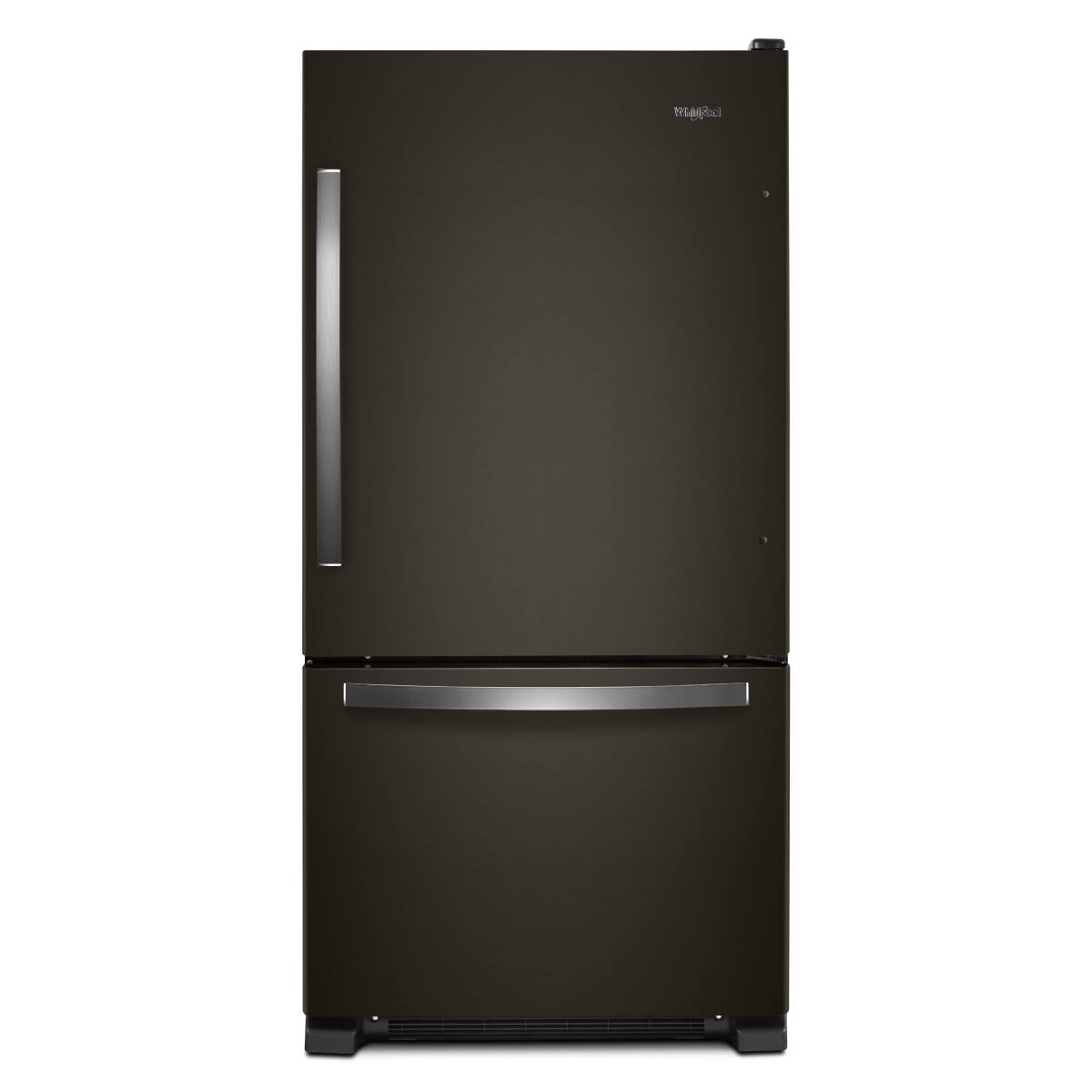

Whirlpool - 33-inch wide Bottom-Freezer Refrigerator - 22 cu. ft. .- Black Stainless - Black Stainless Steel
Model: WRB322DMHV
SKU: 6112639
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Black stainless steel
- Product Height: 70 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 32.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 1/2 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 70 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 30.875 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 33 3/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 6.5 cubic feet
- Refrigerator Style: Bottom Freezer
- Lighting Type: LED
- Ice Maker: Optional
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Whirlpool
- Model Number: WRB322DMHV
- Product Name: Whirlpool - 33-inch wide Bottom-Freezer Refrigerator - 22 cu. ft. .- Black Stainless
- Color: Black Stainless Steel
- Color Finish: Black stainless steel
- Dimensions
- Product Height: 70 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 32.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 33.375 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 1/2 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 70 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 33 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: false (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 30.875 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 33 3/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 28 1/8 inches (Measurement from the back of the product to its front, not including the door.)
- Depth With Door 90 Degrees Open: 62 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 240 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 69 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 33 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 31 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 6.5 cubic feet
- Refrigerator Capacity: 15.6 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 6.5 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Freestanding (The size, arrangement, and physical configuration of the product.)
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: Bottom Freezer
- Fingerprint Resistant: true
- Convertible Temperature Zone: false (Refrigerators with this feature include a separate compartment with independent temperature controls from the main product. These compartments offer a flexible space that allows you to change the temperature based on your additional storage needs. Whether it’s a place to chill beverages for an evening with friends, keep snacks cool, or even provide extra freezer space.)
- Garage Ready: false (Garage Ready appliances have been tested by the manufacturer to operate within a wider range of external temperatures than the average home environment, such as a garage which can fall below freezing or heat above 100 degrees Fahrenheit. Please refer to the manufacturer's documentation for detailed external operating temperature requirements.)
- Door-Open Alarm: false
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Temperature Control Type: Electronic
- Display Type: None
- Defrost Type: Automatic (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: true
- Hinge Setting: Reversible left/right
- Lighting Type: LED
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Ice & Water
- Ice Maker: Optional
- Secondary Ice Maker: No (This feature, often located within a pull-out freezer drawer, produces and stores ice in addition to the primary ice maker.)
- Ice Maker Location(s): Freezer
- Ice and Water Dispenser: None
- Storage
- Number of External Doors/Drawers: 2
- Number of Refrigerator Shelves: 5
- Refrigerator Shelf Style: Adjustable, Fixed
- Quick Access Door: false (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Dairy Center: true (Designated storage with closure for dairy items such as butter, yogurt, and cream cheese, helps keep these items accessible and may reduce the risk of cross-contamination.)
- Gallon Door Storage: true (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
- Humidity-Controlled Crisper: true
- Deli Meat Drawer: true (Designated storage for deli and other meats helps keep these items accessible and may reduce the risk of cross-contamination.)
- Refrigerator Shelf Material: Glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom
- Freezer Shelf Material: Other
- Freezer Interior Light: true
- Quick Freeze: false (Feature that allows you to quickly reduce the temperature when needed, perfect for chilling drinks or freezing large quantities of fresh food. Fast freezing may help maintain food quality.)
- Filter Info
- Water Filtration: false
- Air Filter: false (A filter that works to remove odors and contaminants from the air within the appliance.)
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 584 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 70 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
- Chemical Disclosures: "This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. Mandatory reporting is not required until January 1, 2025. Whirlpool Corporation is in the process of gathering more information on PFAS use across our supplier base, and will update this disclosure as we learn more. For more information about chemicals in this product, visit www.whirlpool.com/regulatory.html. [Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. No se requieren informes obligatorios hasta el 1 de enero de 2025. Whirlpool Corporation está en el proceso de recopilar más información sobre el uso de PFAS en nuestra base de proveedores y actualizará esta divulgación a medida que sepamos más. Para obtener más información sobre los químicos en este producto, visite www.whirlpool.com/regulatory.html.] " (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 883049465005
Conveniently store your family's essentials with this bottom mount refrigerator. Purposeful spaces like the deli drawer and FreshFlowâ„¢ produce preserver store everyday items in their ideal environment, while spillproof glass shelves and a fingerprint-resistant exterior simplify cleanup. Plus, interior LED lights will keep food looking as good as it tastes.
- SpillGuard Glass Shelves: Help you contain leaks and spills for easier cleanup while the transparent design gives the refrigerator's interior a cleaner, brighter appearance.
- FreshFlow Produce Preserver: Keep fruits and veggies in the ideal environment to help produce stay fresher longer.
- Deli Drawer: Store plenty of meat and cheese with a deli drawer.
- Humidity-Controlled Crispers: Store fruits and vegetables in their ideal environment.
- Accu-Chill Temperature Management System: Cool food quickly with technology that senses and adapts to create the ideal environment for food.
- ENERGY STAR Certified: ENERGY STAR certified models exceed government standards to help save money on your utility bills.
- LED Interior Lighting: Keep food looking as good as it tastes. Light is cast inside the refrigerator so food looks like it's supposed to.
- Adaptive Defrost: Adaptive defrost automatically monitors the freezer environment and runs the cycle only when necessary.
- SpillGuard Glass Shelves: Help you contain leaks and spills for easier cleanup while the transparent design gives the refrigerator's interior a cleaner, brighter appearance.
- FreshFlow Produce Preserver: Keep fruits and veggies in the ideal environment to help produce stay fresher longer.
- Deli Drawer: Store plenty of meat and cheese with a deli drawer.
- Humidity-Controlled Crispers: Store fruits and vegetables in their ideal environment.
- Accu-Chill Temperature Management System: Cool food quickly with technology that senses and adapts to create the ideal environment for food.
- ENERGY STAR Certified: ENERGY STAR certified models exceed government standards to help save money on your utility bills.
- LED Interior Lighting: Keep food looking as good as it tastes. Light is cast inside the refrigerator so food looks like it's supposed to.
- Adaptive Defrost: Adaptive defrost automatically monitors the freezer environment and runs the cycle only when necessary.
Whats Included
- Whirlpool 22 Cu. Ft. Bottom-Freezer Refrigerator with SpillGuard Glass Shelves
- Warranty
- Energy Guide
- Owners Manual
- Whirlpool 22 Cu. Ft. Bottom-Freezer Refrigerator with SpillGuard Glass Shelves
- Warranty
- Energy Guide
- Owners Manual
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
A: Yes
Q: How can you remove the divider in the freezer
A: (How about that worthless owner's manual, eh? What a joke!) The key to removing/adjusting the chunky plastic dividers is to release the clip on the front-to-back piece that holds it on the back rail. To do so, you need to push in on the bottom/under part of the clip to clear the rail, then pull up on the piece. Once you have that unclipped, it's fairly easy to work the entire dividers assembly out of the drawer. Hopefully you're able to get that done without removing the drawer. I wasn't. If you want to remove the drawer to get a better look, here's the video I found on YouTube showing how to do it: https://www.youtube.com/watch?v=6UB7jPvwUrw You'll want to separate the left-right divider from the front-back divider and either reposition it or, like we did, leave it out altogether and reinstall the front-back divider to hold the ice bucket in position.
Q: Is there an ice maker in the freezer?
A: Dear Consumer: The Whirlpool refrigerator does have a factory installed ice maker in the freezer compartment. Hopefully this information is beneficial to you. Thank you for your inquiry regarding our Whirlpool appliances! Sincerely, Aisha B.
A: The body of this Whirlpool refrigerator is 68.5 inches high. The measurement to the top of the door hinge is 69.5 inches high and goes back 6.5 inches from the face of the refrigerator. This machine is deep enough that the hinge should not impact or interfere with a standard over refrigerator kitchen cabinet but everyone's situation is different. I hope this helps.
Q: Does my whirlpool refrigerator wrb322dmbw. With ice maker , no water dispenser have a filter?
A: No, it doesn't have a filter, but I put an inline one in at the back of refrigerator where my icemaker line comes out of the wall.
Q: Do you need to hook the fridge up to a water source for the ice maker?
A: If you are not going to use the ice maker, there is a small wire "switch" that can be pushed up to disable that function. It has to have a water supply connected, although I don't have mine connected. So I just flipped the switch up.
Q: Does this unit WRB322DMBM have a water filter for the ice maker and if so where is it located
A: Hello Pip! No, this model does not have a water filter. Thank you for your inquiry on our Whirlpool appliances.
A: The sides are grey and the stainless steel does not have a fingerprint resistant coating.
