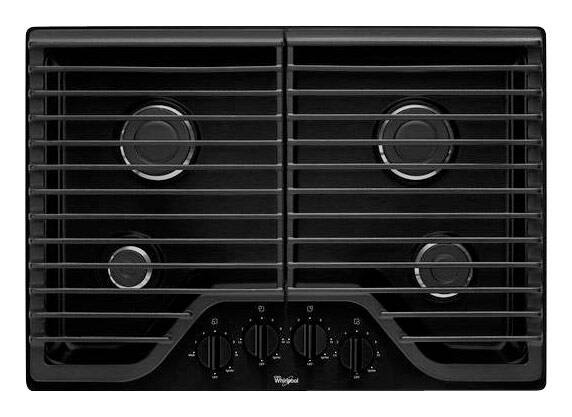

Whirlpool - 30" Built-In Gas Cooktop
- Key Specs
- Product Height: 4.125 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Color Finish: Black
- General
- Product Name: 30" Built-In Gas Cooktop
- Brand: Whirlpool
- Model Number: WCG51US0DB
- Color Finish: Black
- Dimensions
- Product Height: 4.125 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 59 pounds (The out of box weight of the item.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Installs Over Built-In Oven: true
- Control Type: Analog
- Control Location: Top
- Digital Display: false
- Hot Surface Indicator(s): false (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Portable: false
- Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Stainless steel
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Simmer (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Type: Continuous (Continuous grates allow cookware to be slid from burner to burner, while individual grates require the pot or pan to be lifted when moving around the cooktop.)
- Grate Material: Cast iron
- Dishwasher-Safe Grates: true (Cooktop grates are safe to be washed in a dishwasher if they are treated with a special coating that withstands the high heat, water pressure, and detergent used in a standard wash cycle.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: true
- Power
- Cooktop Power Source: Gas
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Other
- UPC: 883049324029
With 4 burners that deliver between 5,000 and 15,000 BTUs of heat, this Whirlpool WCG51US0DB gas cooktop lets you prepare a variety of recipes. SpeedHeat burners allow rapid cooking, and an AccuSimmer burner helps prevent delicate foods from burning.
- Dishwasher-safe knobs: Make it easy to control the cooktop.
- Dishwasher-safe cast-iron grates: Create a flat and sturdy cooking surface that makes movement of pans between burners easy and safe.
- Sealed burners: Eliminate the space between the burners and cooktop to contain spills and boilovers for easy cleaning.
- 4 burners: Include one 5,000 BTU left-front AccuSimmer burner, one 9,100 right-front burner, one 12,000 BTU right-rear SpeedHeat burner and one 15,000 BTU left-rear SpeedHeat burner for versatility.
- SpeedHeat burners: Allow you to boil water and rapidly prepare food.
- AccuSimmer burner: Lets you cook sauce and other delicate recipes.
- SpillGuard cooktop: Makes it easy to wipe away spills.
A: Thank you for inquiry into our Whirlpool appliances. This cooktop is available in white. The model number is WCG51US0DW. You can use the link provided below to view it. We hope this helps! http://bit.ly/28K3JzC
A: Jingky, the kit you need is W10891918. You can visit www.repairclinic.con to purchase the kit.
Q: Is this convert to LP gas ? If it is what are the kit ? Thank you
A: Hello Kris, this Cooktop does convert to LP. The conversion kit is included with the Cooktop. Hopefully this information is beneficial to you. Thank you for your inquiry regarding our Whirlpool appliances!
Q: Does this cook top come in black?
A: Hi Joe, yes this model does come in black. The model is a WCG51US0DB, Whirlpool® 30 inch Gas Cooktop with Multiple SpeedHeat™ Burners in black.
A: Hi ciscokid, for a complete breakdown of the specifications on this Whirlpool - 30" Built-In Gas Cooktop - Stainless Steel, we would suggest going to the Specifications Guide at: https://www.whirlpool.com/content/dam/global/documents/201508/dimension-guide-W10597144-D-UN.pdf
Q: Will this cook top fit over the whirlpool built-in wall over wos51ec0as?
A: ann, these units can be used together and will fit together.
Q: Are there any electrical requirements
A: All that is needed is a standard 110v outlet in the cabinet below the stove top. The unit has a cord attached to the bottom with a 3 prong plug.
A: Hello Mimi! The actual color of the grates are black, we do apologize for the confusion. Thank you for your inquiry on our Whirlpool appliances.
