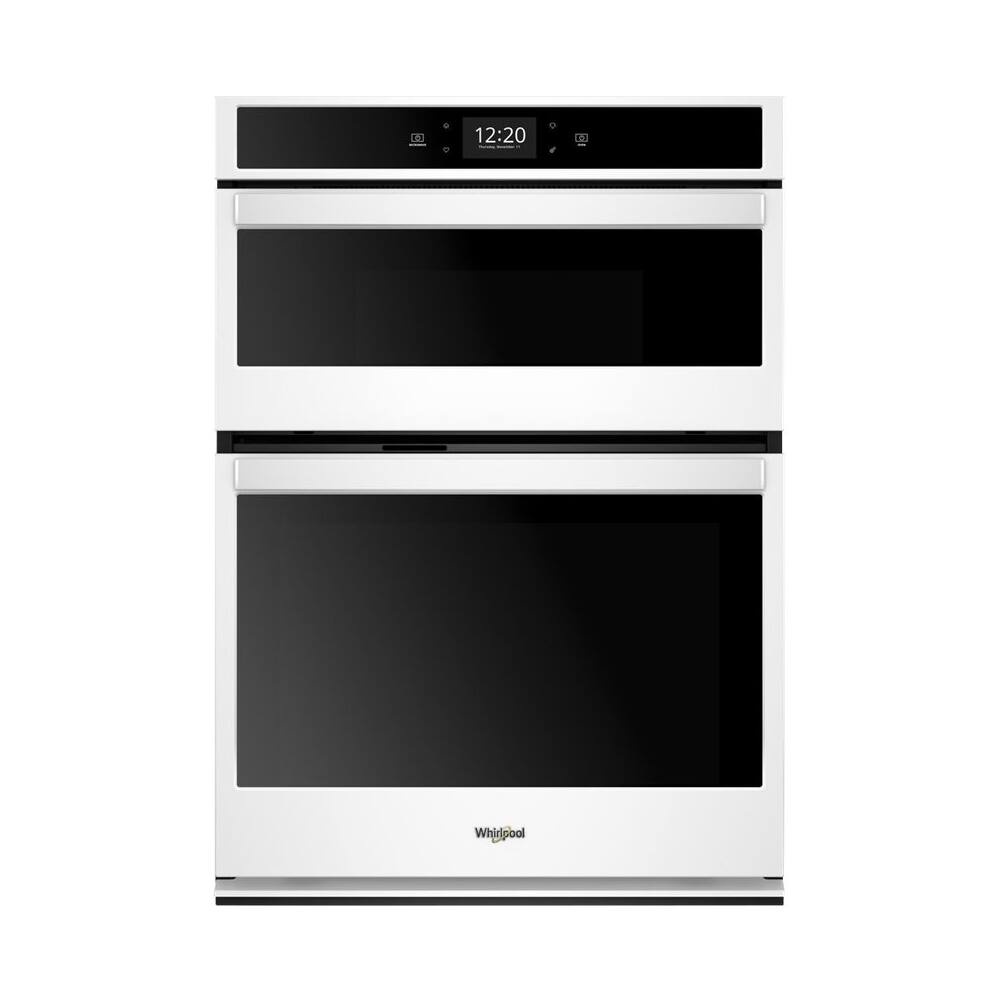

Whirlpool - 30" Single Electric Convection Wall Oven with Built-In Microwave
Model: WOC75EC0HW
SKU: 6183027
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Height: 42.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23.25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Handle: 26.5 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Color Finish: White
- General
- Product Name: 30" Single Electric Convection Wall Oven with Built-In Microwave
- Brand: Whirlpool
- Model Number: WOC75EC0HW
- Color Finish: White
- Dimensions
- Product Height: 42.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23.25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Handle: 26.5 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Cut-Out Dimensions
- Cut-Out Height: 41.3 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28.5 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven 1 Capacity: 5 cubic feet
- Oven 2 Capacity: 1.4 cubic feet
- Features
- Oven Type: Double wall oven
- Oven Power Source: Electric
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Clock Display: true
- Oven Light: true
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Time Bake: true (Allows you to program the appliance to run at a pre-determined time and automatically turn off when baking time is finished. Plan for mealtime or entertaining by setting your oven to start baking at a convenient time and reduce the worry of overcooking your food with the automatic shut off feature.)
- Rapid Preheat: true
- Oven 1 Specification
- Oven 1 Location: Lower
- Oven 1 Cavity Material: Other
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 1 Window: true
- Oven 1 Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 1 Rack Positions: 6
- Number of Oven 1 Racks: 3
- Oven 1 Bake Element: 2800 watts
- Oven 1 Broil Element: 3600 watts
- Oven 2 Specification
- Oven 2 Location: Upper
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Window: true
- Oven 2 Cleaning Method: Manual (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Oven 2 Bake Element: 1600 watts
- Electrical Specification
- Voltage: 230 volts (Amount of power needed to support an electrical current.)
- Other
- UPC: 883049444987
Concoct multicourse meals with this 30-inch Whirlpool combination wall oven. Its top broiler sears meat and vegetables to your desired level of doneness, and the True Convection technology with a third element and circulating fan ensures food cooks evenly every time. This Whirlpool combination wall oven is Wi-Fi capable for control with a smartphone.
- Smart Appliance: Care smarter with connected features that let you send cooking instructions to the oven from your smartphone, control your kitchen with voice commands through a smart home assistant or skip preheating.
- Scan-to-Cook Technology: Get the right settings every time. Scan a frozen food barcode with your smartphone or tablet and send recommended or customized cooking instructions straight to your oven for dinner done the way your family wants it.
- Touchscreen: Get instant access to the settings you use most with an all-new touchscreen that learns, adapts and suggests customized presets based on your family's routines.
- Multi-Step Cooking: Make multi-step meals more simple. Use your smartphone or tablet to send multiple cooking instructions to the oven all at once.
- Frozen Bake™ Technology: Skip preheating and cook frozen favorites like pizza and lasagna faster with preprogrammed settings that automatically adjust cooking times for you.
- True Convection Cooking: Cook foods faster with the addition of a third element plus a fan that distributes hot air evenly over, under and around food so dinner is ready when they are.
- Convection Conversion: Easily get the right convection cooking temperature. Your oven automatically converts traditional recipes for convection cooking, adjusting cooking times and temperatures for you.
- Nest Learning Thermostat™ Integration: Integrate your Nest Learning Thermostat™ with the mobile app to be alerted if your oven is left on while you're away.
- Remote Start: With remote start enabled, use your smartphone or tablet to remotely turn your oven on so it's heated up and ready to cook meals when you are.
- Party Mode: Start preparing for guests from your smartphone or tablet. With remote start enabled, this mode automatically turns on the Keep Warm setting so dishes stay ready to serve.
- Keep Warm Setting: Keep dishes from getting cold with this setting that delivers low heat to the oven. Control it remotely or manually so food stays warm and ready to serve whether you're home or away.
- Enhanced Troubleshooting: Get immediate support for quick solutions by using your smartphone or tablet to access troubleshooting videos.
- Fingerprint Resistant: Resists fingerprints and smudges with steel that easily wipes clean. Available in Black Stainless Steel.
- Guided Service: Keep track of scheduled appointments and make sure issues are known using the mobile app to send data from the appliance directly to Whirlpool brand customer service.
- Self-Close Door: Keep doors from shutting too quickly with the smooth, quiet mechanism of self-close doors.
- Temperature Sensor: Get evenly baked food with a sensor that monitors oven temperature and adjusts the cooking elements.
- Rapid Preheat: Save time with 20% faster preheating. A rear fan combined with the use of all of the elements helps to heat the oven quickly. (Single-rack baking with Rapid Preheat option versus three-rack without option.)
- Control Lock Mode: Use your smartphone or tablet to remotely disable the control panel to avoid unintended use.
- Sabbath Mode: Use your smartphone or tablet to remotely set the oven to remain on the "Bake" setting at a constant temperature until it's manually turned off. When this mode is enabled, all other cooking and cleaning cycles are disabled.
- Tap Touch Controls: Clean these controls as easily as you use them.
- 6.4 cu. ft. Total Capacity: Quickly cook a whole meal with 6.4 cu. ft. total capacity.
- Extra-Large Window: Keep an eye on your meal through the extra-large oven window.
- Scan-to-Connect Technology: You don't need to be a tech expert to connect your new appliance. Simply open the Whirlpool® app, add your appliance and follow the guided experience to get up and running quickly.
Whats Included
- Whirlpool 30" Single Electric Convection Wall Oven with Built-In Microwave
Q: What is the diameter of the revolving turntable plate?
A: Hi LadyCat, for this Whirlpool - 30" Built-In Electric Convection Double Wall Oven with Microwave with Air Fry when Connected, the diameter of the turntable is 14"
Q: Is there any type of exhaust fan built in?
A: Hi jala, on this Whirlpool - 30" Double Electric Convection Wall Oven with Built-In Microwave there is an internal convection fan, but no external exhaust fan. Thank you for your question!
A: Hello EddieC, if you wish to not use convection you would just not select convection from the options. We hope this helps.
Q: I cannot find the wattage on any specifications for this microwave. What is the wattage?
A: Hello Cook, the cooking watts for the microwave is 900. Thank you for your inquiry on our Whirlpool appliances.
A: Hello Moon! The Whirlpool model WOC75EC0HS is a Connected Model meaning this model needs to be connected to the WiFi to sync your date and time. You can learn more about connecting your Smart Appliance at the following link: https://bit.ly/3CKVN9I We hope this is helpful!
A: Hi Gladys, that indicates there is an issue hooking up to wireless connection. We recommend rebooting the unit at the breaker for 1 minute, set the time and then try to reconnect. If you are still having issues, please reach out to us us directly via Facebook https://www.facebook.com/whirlpoolusa or Twitter @WhirlpoolCare for further assistance.
Q: Is there a timeline went this unit will be available? Or where could we find this model and price ?
A: Hello! We are sorry to hear about this concern. Please reach out to Best Buy Customer Care at 1-888-237-8289 for further assistance. We hope this helps.
Q: How does the air fryer function? And why does it say “air fryer when connected”?
A: Hello, this model Wall Oven does not have the Air Fry feature until it is connected to wifi and updated. We hope this helps.
