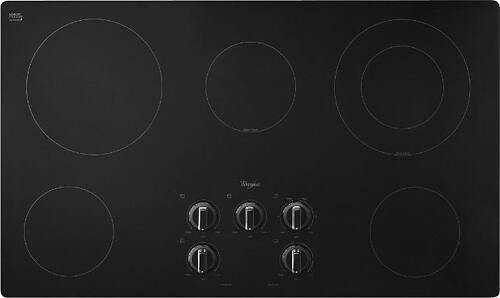

Whirlpool - 36" Built-In Electric Cooktop
Model: W5CE3625AB
SKU: 6992144
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Height: 3 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Color Finish: Black
- General
- Product Name: 36" Built-In Electric Cooktop
- Brand: Whirlpool
- Model Number: W5CE3625AB
- Color Finish: Black
- Dimensions
- Product Height: 3 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 37 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 50 pounds (The out of box weight of the item.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Installs Over Built-In Oven: true
- Control Type: Analog
- Control Location: Top
- Digital Display: false
- Power-On Indicator Light(s): true
- Hot Surface Indicator(s): true (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Portable: false
- Cooktop Features
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Ceramic, Glass
- Bridge Element: false (This feature is an additional heating element located between two individual burners. When this is enabled, the individual burners and the bridge element act as one connected cooktop. This equal heat distribution on the cooktop surface helps accommodate larger cookware, such as roaster pans or griddles.)
- Specialty Element(s): true
- Expandable Element: true (Accommodate large cookware and ensure even heat distribution with this feature, which allows more surface area for the individual heating element.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Power
- Cooktop Power Source: Electric
- Other
- UPC: 883049272016
This Whirlpool W5CE3625AB 36" built-in electric cooktop features infinite-switch controls for easy operation and a warm-zone element that utilizes low-power to keep food from cooling. The Schott Ceran ceramic-glass surface offers a durable design.
- Infinite-switch controls: Allow simple operation.
- 5 elements: Deliver 20-2500 watts of power for a variety of cooking options.
- 6" warm zone element: Utilizes 20-100 watts of power to prevent food from cooling while the rest of the meal is prepared.
- Power burners and simmer burners: Provide precise heating.
- Hot surface indicator light: Displays when elements are hot to the touch after use to help keep you safe.
- Eco-friendly, Schott Ceran ceramic-glass surface: Withstands heat without cracking or chipping.
- Dishwasher-safe knobs: Offer easy cleaning.
- Built-in oven compatible: For added installation flexibility.
Q: Does this need 30 AMP or 50 AMP to properly operate?
A: Hi Manouch,here are the Electrical Requirements for the W5CE3625AB, A 3-wire or 4-wire, single phase, 120/240 volt, 60-Hz., AC only electrical supply is required on a separate, 40-amp circuit fused on both sides of the line. The model/serial number rating plate is located on the metal cabinet underneath the cooktop. Thank you for your time in posting this, We appreciate you!
Q: how to install infini switch
A: undefined
