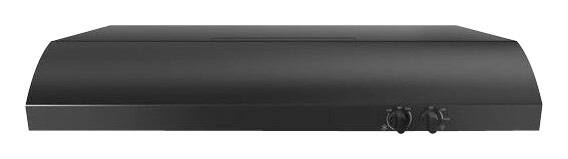

Whirlpool - 36 inches - Black
Model: UXT4236ADB
SKU: 5497001
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Height: 4 15/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Rear
- Vent Type: Convertible
- Color Finish: Black
- General
- Product Name: 36" Convertible Range Hood
- Brand: Whirlpool
- Model Number: UXT4236ADB
- Color Finish: Black
- Dimensions
- Product Height: 4 15/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Maximum Installation Height Above Cooktop: 30 inches
- Product Width: 35 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 14 pounds (The out of box weight of the item.)
- Duct Shape: Rectangular
- Duct Length: 420 inches
- Duct Width: 10 inches
- Features
- Exhaust Vent Location: Rear
- Vent Type: Convertible
- Number of Fan Speeds: 2
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Remote Control: false
- Damper Included: true
- Integrated Light(s): true
- Number of Lights: 1
- Bulb Type Required: Incandescent
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 225 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 225 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Filter Info
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Other
- UPC: 883049326603
This Whirlpool UXT4236ADB convertible range hood features a 2-speed, 225 cfm fan that helps blow smoke and odors out of your kitchen and an incandescent task light that promotes clear visibility while cooking. The FIT system makes installation simple.
- 2-Speed, 225 CFM Motor Class: Effectively removes smoke and odors from your kitchen. (Performance varies based on installation. Resources available at aham.org.)
- Grease Filter: The grease filter helps trap unwanted grease and helps remove odors.
- FIT System: The FIT system eliminates measuring, cutting and trim for a perfect fit every time. (Based on typical installation with existing electrical and ventilation connections. Consult a professional installer to ensure your installation complies with code requirements.)
- Incandescent Lighting: Incandescent lighting makes it easy to see what you’re cooking with bulbs that are inexpensive to replace.
- Recirculation (Non-Vented/Duct-Free): By not having to connect to outside air, this hood can be installed almost anywhere, including a condo. Recirculation happens through filters to help keep the air fresh.
- ADA Compliant: This hood meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Whats Included
- Whirlpool 36" Convertible Range Hood
- Grease filter
A: Hello, model UXT4236ADS can be directly wired or use a Power Cord Kit. Thank you for your inquiry about our Whirlpool appliances.
A: Please visit https://bit.ly/3rNJLK7 and refer to page 4 for more information. We hope this helps!
A: The dimensions are 4.94"H x 35.94"W x 18.63"D.
