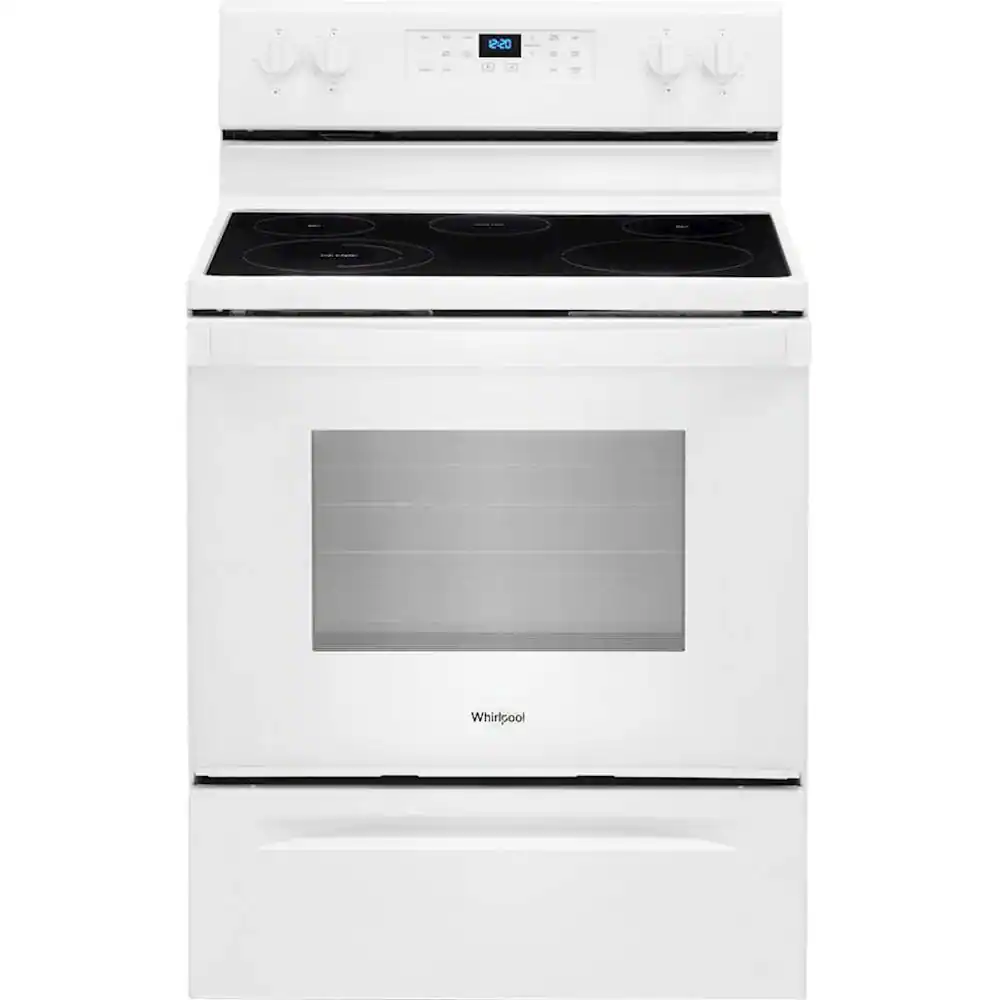

Whirlpool - 5.3 Cu. Ft. Freestanding Electric Range with Self-Cleaning and Frozen Bake
- Key Specs
- Product Height: 36 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 25 5/16 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Single/Double Oven: Single Oven
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Color Finish: White
- General
- Product Name: 5.3 Cu. Ft. Freestanding Electric Range with Self-Cleaning and Frozen Bake
- Brand: Whirlpool
- Model Number: WFE525S0JW
- Color Finish: White
- Dimensions
- Product Height: 36 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 25 5/16 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 144 pounds (The out of box weight of the item.)
- Capacity
- Oven Capacity: 5.3 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Range Power Source: Electric
- Fingerprint Resistant: false
- Hot Surface Indicator(s): true (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Oven Control Location: Rear panel
- Clock Display: true
- Oven Light: true
- Power-On Indicator Light(s): true
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Oven Features
- Single/Double Oven: Single Oven
- Drawer Type: Storage (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Broiler Location: Oven
- Number of Oven Racks: 2
- Number of Oven Rack Positions: 5
- Oven Window: true
- Cooktop Features
- Cooktop Surface Material: Ceramic, Glass
- Specialty Element(s): FlexHeat dual radiant element, Warming Zone
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Electrical Specification
- Amperage: 40 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Other
- UPC: 883049537900
This Whirlpool® electric range with a dual-element stove top helps you get dinner to the table. The range allows you to skip preheating for favorites such as pizza with Frozen Bake™ technology. The self-cleaning oven also prevents cooked food from getting cold with a Warm Zone element on the cooktop and the Keep Warm setting in the oven.
- FlexHeat™ dual radiant element: Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 9" expandable outer ring that makes room for larger cookware.
- Frozen Bake™ technology: Skip preheating, and cook frozen favorites such as pizza in fewer steps with preprogrammed settings.
- Warm Zone element: Keep food warm while you're finishing the rest of the meal using this low-powered center element.
- Keep Warm setting: Prevent dishes from getting cold with this setting that delivers low heat to the oven.
- Large oven window: Keep an eye on your meal through the large oven window.
- Closed-door broiling: Maintain the optimal broiling temperature for food while still keeping the kitchen comfortable using this broiling temperature management system.
- Control Lock mode: Disable the control panel to avoid unintended use.
- Adjustable self-cleaning technology: Clean without harsh chemicals or special cleaners by running this high-temperature setting that automatically cleans the oven according to a preprogrammed cycle.
- 5.3 cu. ft. capacity: Easily cook large meals with a 5.3 cu. ft. capacity.
- Hidden bake element: Get easier oven cleaning with a hidden bake element.
- Ceramic glass cooktop: Wiping up spills is simple with the ceramic glass cooktop.
- Upswept SpillGuard™ cooktop: Clean up faster with a cooktop that has raised edges to help contain spills.
Whats Included
- Whirlpool 5.3 Cu. Ft. Freestanding Electric Range with Self-Cleaning and Frozen Bake
- Anti-tip bracket
- Owner's manual
Product Manuals
A: The Closed-door broiling feature maintains the optimal broiling temperature by managing the broiling temperature, ensuring the kitchen remains comfortable during the cooking process. It achieves this by regulating the oven's heat levels and cycling the bake and broil elements or burners on and off in intervals.
A: The large oven window allows users to easily monitor their food while it cooks, eliminating the need to open the oven door and potentially disrupting the cooking process. This helps maintain the optimal cooking temperature and ensures consistent results. Additionally, the larger window provides a better view of the food, making it easier to check on its progress and avoid overcooking or undercooking.
A: The Keep Warm setting in the Whirlpool 5.3 Cu. Ft. Freestanding Electric Range is designed to keep cooked dishes warm without overcooking them. It delivers low heat to the oven, maintaining a temperature of 170°F (75°C) to prevent food from getting cold. To use this feature, press the "KEEP WARM" button, and place the cooked food in the oven. The Keep Warm setting can be used for up to an hour, but it's recommended to cover the food to prevent it from drying out.
A: The hidden bake element in the Whirlpool 5.3 Cu. Ft. Freestanding Electric Range contributes to easier oven cleaning by eliminating the need to clean around a traditional exposed element. Additionally, the hidden element helps to distribute heat more evenly, resulting in more consistent cooking.
A: The adjustable self-cleaning technology uses high temperatures to burn soil to a powdery ash, which can then be easily removed with a damp cloth. This method eliminates the need for harsh chemicals or special cleaners. Additionally, the self-cleaning cycle is adjustable between 2 hours 30 minutes and 4 hours 30 minutes, allowing users to customize the cleaning time based on the level of soil.
Q: What is the Control Lock mode, and how does it prevent unintended use of the range?
A: The Control Lock mode disables the control panel of the Whirlpool 5.3 Cu. Ft. Freestanding Electric Range to prevent unintended use. To activate it, press and hold the "CONTROL LOCK" button for 3 seconds. A tone will sound, and a lock icon will appear on the display. The control panel will be locked, and no keypads will function until the Control Lock mode is deactivated. To deactivate the Control Lock mode, repeat the same process of pressing and holding the "CONTROL LOCK" button for 3 seconds.
A: The dimensions of the electric range are 36 inches in height, 29 7/8 inches in width, and 27 3/4 inches in depth. The cutout dimensions for installation are 36 inches in height, 30 inches in width, and 24 inches in depth. This range should fit standard kitchen counter heights, which are typically around 36 inches.
Q: What type of electrical outlet is required for this range, and what is the voltage it operates on?
A: This Whirlpool range requires a standard 120-volt electrical outlet.
