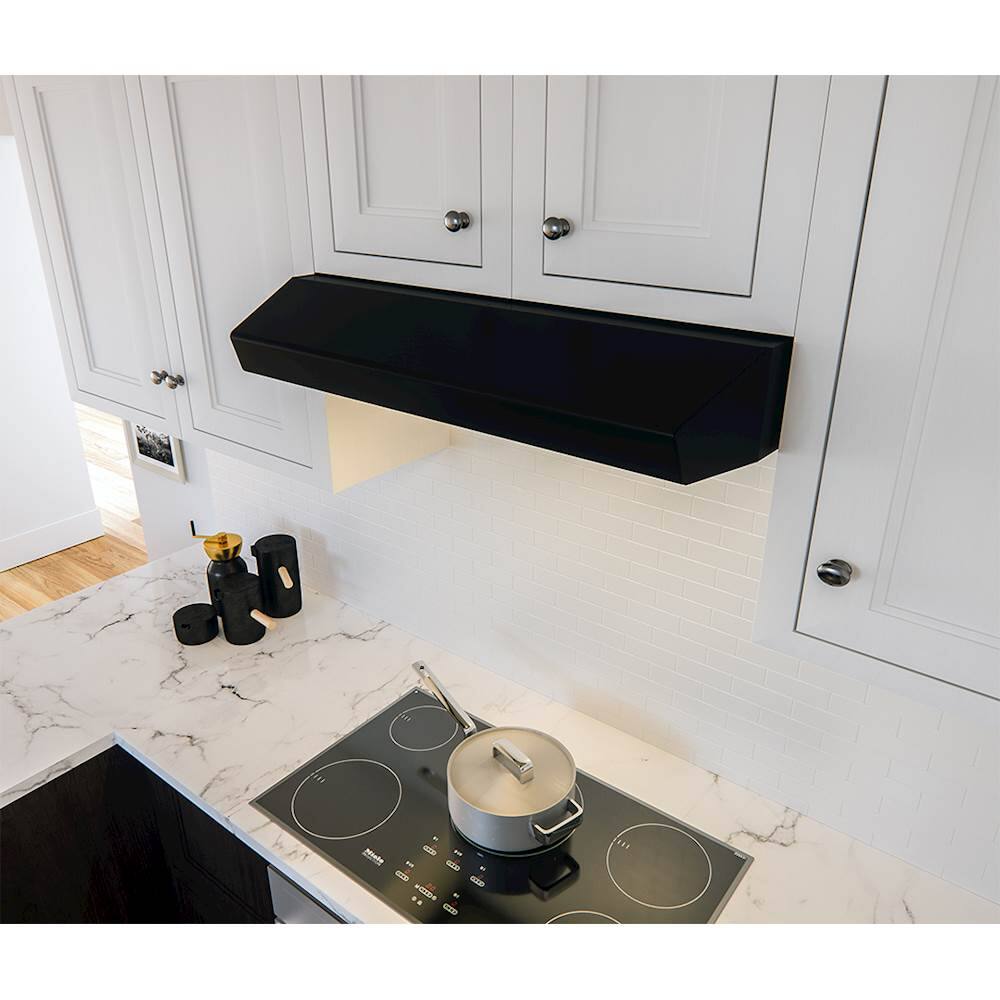

Zephyr - Breeze II 30" Externally Vented Range Hood - Black
- Key Specs
- Product Height: 5.50 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30.00 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Color Finish: Black
- General
- Product Name: Breeze II 30" Externally Vented Range Hood
- Brand: Zephyr
- Model Number: AK1200BB
- Color Finish: Black
- Dimension
- Product Height: 5.50 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30.00 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 19.4 pounds (The out of box weight of the item.)
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Integrated Light(s): true
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 400 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 175 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Filter Info
- Filter Material: Aluminum
- Dishwasher-Safe Filter: true
- Electrical Specification
- Amperage: 1.4 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Manufacturer's Warranty - Parts: 3 Years
- Manufacturer's Warranty - Labor: 1 Year
- Other
- UPC: 646328005831
Updated with dual-level BriteStrip™ LED lighting the Breeze II’s modern, clean lines provide a perfect complement to any interior. Equipped with 3-speed electronic controls, 400-CFM blower, convenient dishwasher-safe aluminum filters and an auto delay-off feature that clears the air and powers down after 5 minutes. Available in black, white, stainless steel and black stainless finishes.
- BriteStrip™ LED lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Low-profile body: Low-profile body for a minimalist appearance.
- Extra-wide mesh filters: High quality mesh filters with an increased width for improved capture and performance.
- Vertical or Horizontal Ducting: This hood has the ability to vent either out the top or out the back.
- Multiple color options: Multiple colors available to match your kitchen décor.
- Optional ductless recirculating kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Compatible Appliances: 0AK11-21001, 0AK11-20001
Whats Included
- Zephyr Breeze II 30" Externally Vented Range Hood
Q: Does this have an electric cord to plug into an outlet? Or must it be hard wired?
A: Hello, The ventilation hoods are hard wired. If you would like technical assistance, you may contact Zephyr Product Support at: [email protected] Thank you for your inquiry!
A: Hello, The Max CFM for this hood is 400. You may view more detailed information on the Zephyr web site here: https://zephyronline.com/product/breeze-ii-cabinet-hood/ Thank you for your inquiry! - Zephyr
Q: Is the duct exhaust circular or rectangular?
A: Hello, The Duct specs for the Breeze II are: 10" X 3 1/4" rectangular. Thank you for your inquiry!
Q: What is the sones rating zone for this range hood?
A: Hello ,The sones rating for the Breeze II is 1.9-4.5 sones. Thank you for your inquiry!
Q: can this be installed ventless and recirculate?
A: Hello, Yes! You may purchase/ install an optional recirculating Kit # OAK-21001 to convert the Breeze II 30" hood to recirculating. You may want to log on to our web site to view more detailed information: http://docs.zephyronline.com/docs/specs/breeze2b_spec.pdf Thank you for your inquiry!
