Audio-Technica - Audio Technica AT-XP3/H Headshell Combo Kit - Blue
Audio-Technica - Audio Technica AT-XP3/H Headshell Combo Kit - Blue
FREE shipping to
More Buying Options
Related Item
About This Item
- Key Specs
- Accessory Type: Turntable Accessory
- Model Compatibility: Audio-Technica Turntables
- General
- Brand: Audio-Technica
- Model Number: AUD ATXP3H
- Product Name: Audio Technica AT-XP3/H Headshell Combo Kit
- Color: Blue
- Features
- Accessory Type: Turntable Accessory
- Quantity: 1
- Compatibility
- Model Compatibility: Audio-Technica Turntables
- Dimensions
- Product Width: 3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: U.S. ONE-YEAR LIMITED END-USER WARRANTY
- Warranty - Labor: U.S. ONE-YEAR LIMITED END-USER WARRANTY
- Other
- UPC: 4961310146573

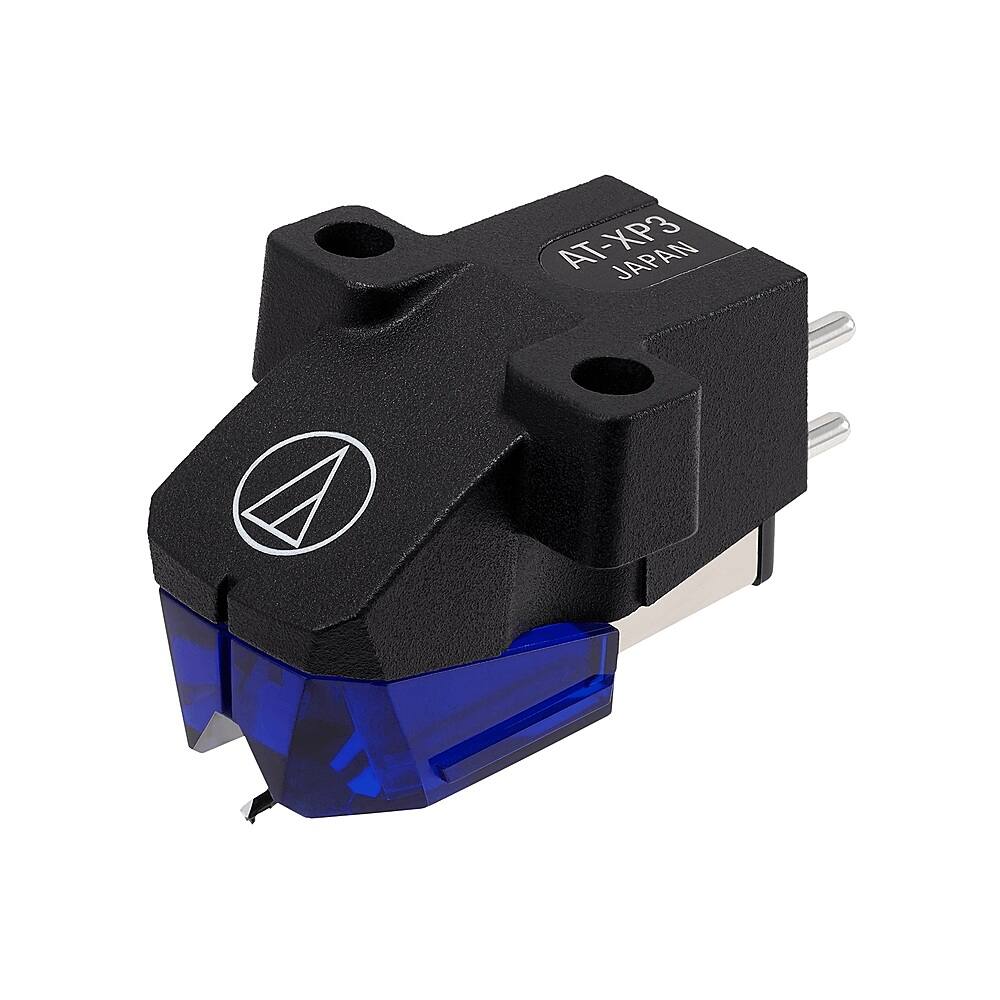

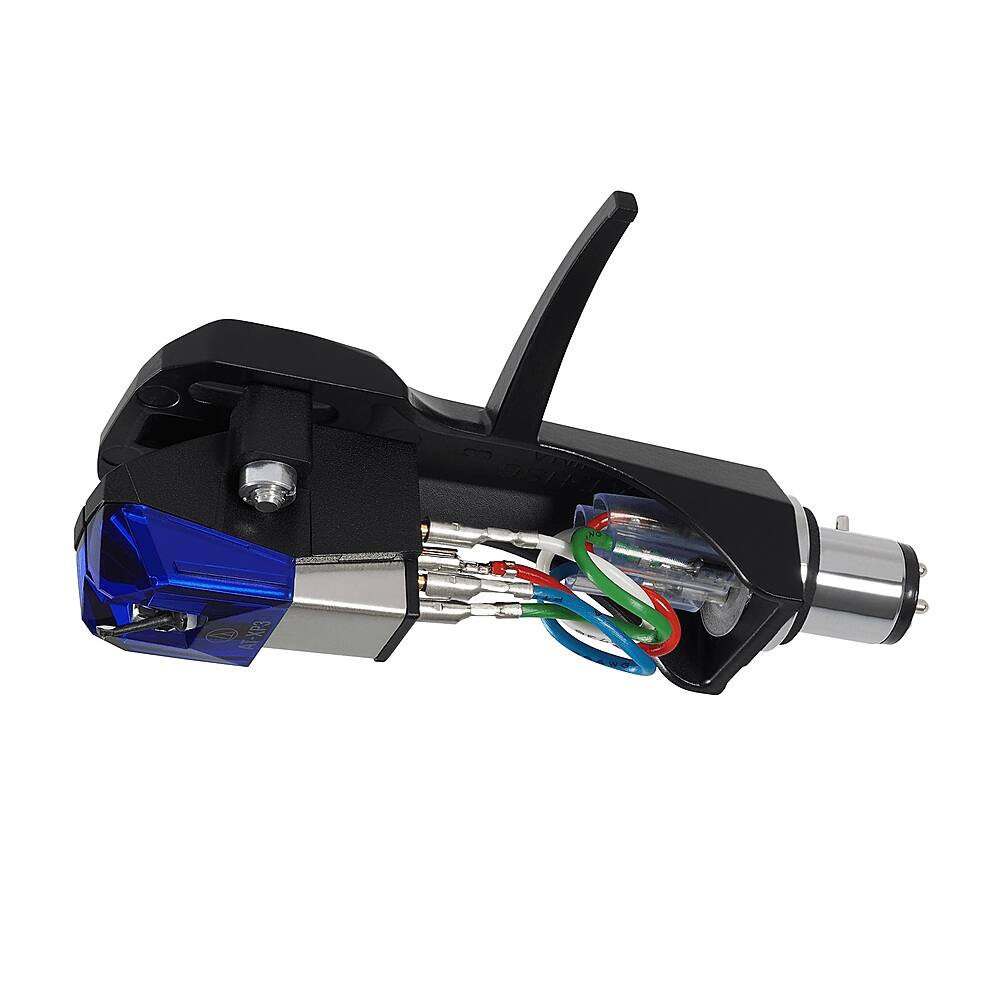

The AT-XP3/H combo kit includes the AT-XP3 DJ cartridge premounted on the AT-HS6BK headshell. 0.6 mil conical bonded stylus tip. Highly-rigid polyphenylene sulfide (PPS)/glass fiber body. 5.5 mV high-level output. Tracking force of 2.0 to 4.0 grams (3.0 grams standard). Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking. Design offers maximum visibility of the stylus tip. Great tracking and channel separation for high-fidelity sound. AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application. Universal ½"-mount headshell for 4-pin turntable cartridges.
- Frequency Response: 20-18,000 Hz
- Stylus Construction: Bonded round shank
- Stylus Shape: 0.6 mil conical
- Cantilever: Carbon fiber-reinforced ABS
- Recommended Load Impedance: 47,000 ohms
- Mount: Half-inch
- Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver
Whats Included
- Audio Technica AT-XP3/H Headshell Combo Kit
Product Manuals
Q: What is the purpose of the highly rigid, lightweight polyphenylene sulfide (PPS)/glass fiber body?
A: The highly rigid, lightweight polyphenylene sulfide (PPS)/glass fiber body ensures great tracking and channel separation for high-fidelity sound.
Q: What is the standard tracking force for this cartridge?
A: The standard tracking force for this cartridge is 3.0 grams.
Q: Is the headshell compatible with all 4-pin turntable cartridges?

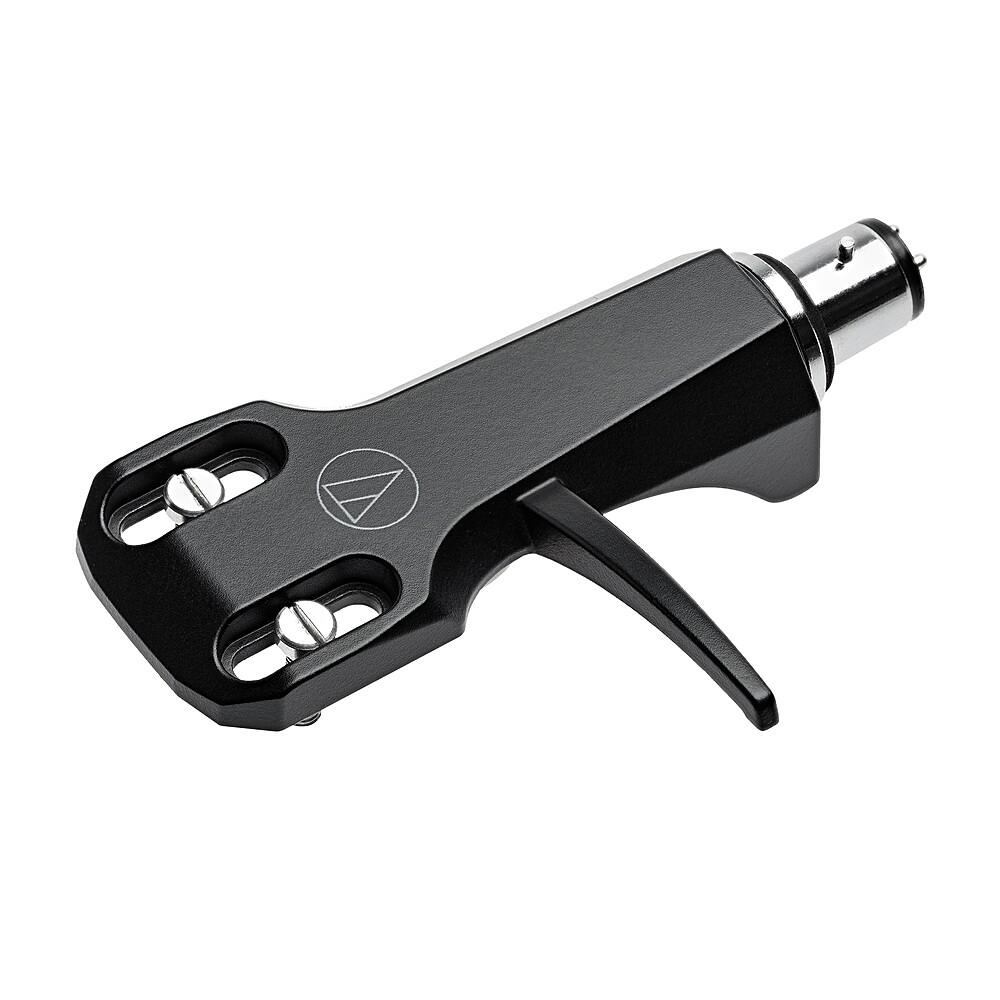

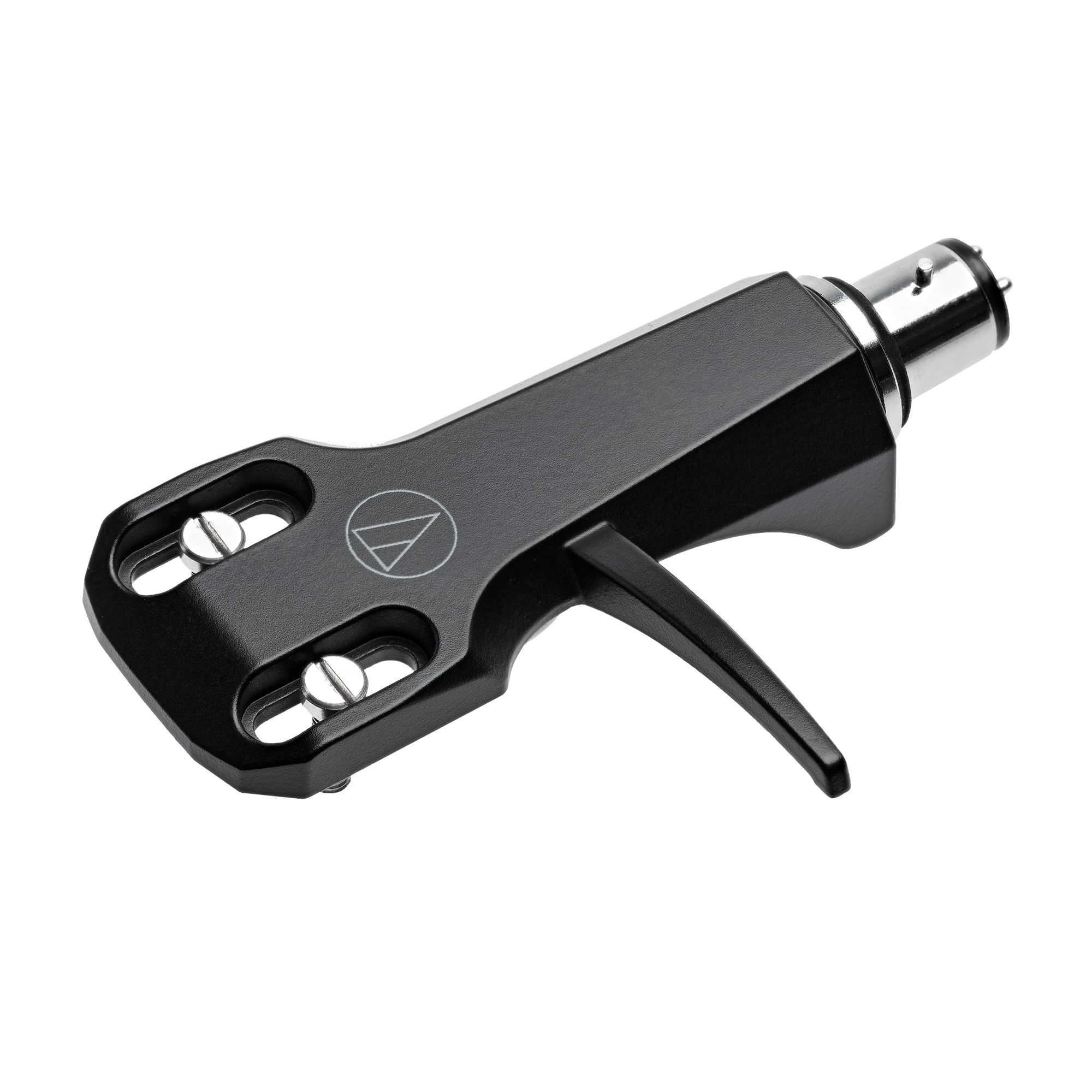

A: This universal ½"-mount headshell is compatible with 4-pin turntable cartridges.
Q: will this fit and work on a 'vintage' Technics SL-3200 semi auto turntable?
A: Yes, it will.
Q: Is this what your sound come from?
A: Please call for further assistance.
Q: I am replacing the cartridge on Dual 1214 and wondering if this will fit.
A: You may use the cartridge itself, the AT-XP3, but not the headshell that is provided with the AT-XP3/H Headshell/Cartridge Combo Kit. You must use the proprietary angled Dual headshell and the Dual cartridge sled (aka carrier or clip).
A: Yes, it will.
A: Yes, it will, and it just happens to be set at the correct overhang, 15.5mm
Reviews
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
Compare similar products
The AT-XP3/H combo kit includes the AT-XP3 DJ cartridge premounted on the AT-HS6BK headshell. 0.6 mil conical bonded stylus tip. Highly-rigid polyphenylene sulfide (PPS)/glass fiber body. 5.5 mV high-level output. Tracking force of 2.0 to 4.0 grams (3.0 grams standard). Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking. Design offers maximum visibility of the stylus tip. Great tracking and channel separation for high-fidelity sound. AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application. Universal ½"-mount headshell for 4-pin turntable cartridges.

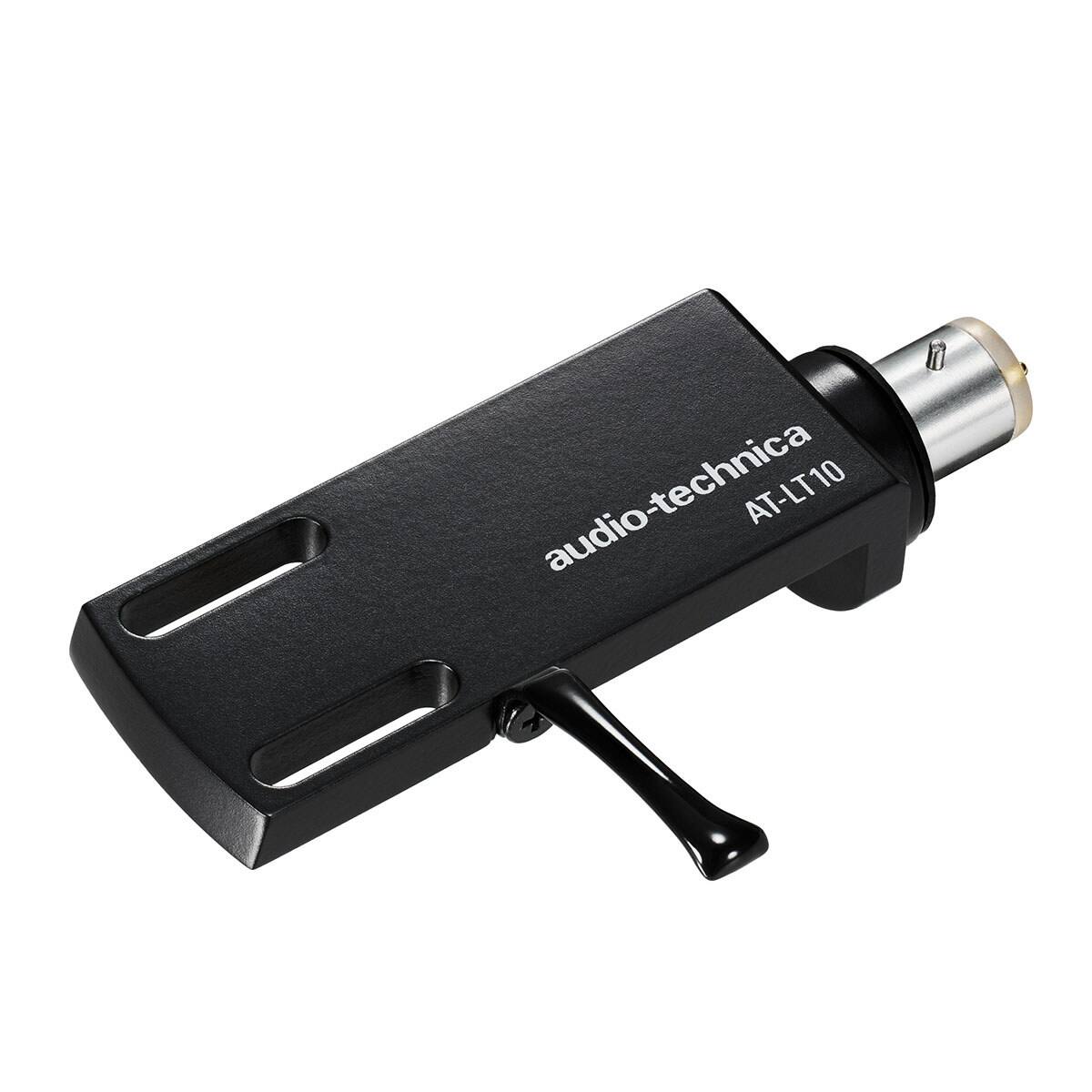

The AT-VM740xML/H combo kit includes the AT-VM740xML microlinear dual moving magnet cartridge premounted on the AT-LT10 universal 1/2"-mount headshell. The AT-VM740xML is part of the updated AT-VMx series which introduces material and design changes to further refine the VM sound offering responsive playback that is especially sensitive to the dynamism of musical expression.FeaturesAT-VM740xML Dual Moving Magnet CartridgeMicrolinear StylusParatoroidal Coils Improve Channel Separation Channel Balance and Transient ResponseCenter Shield Plate Reduces CrosstalkDurable Low-Resonance Polymer HousingAluminum CantileverCompatible with Any Turntable Headshell That Accepts 1/2” CartridgesAT-LT10 Universal ½”-Mount HeadshellFor 4-Pin Turntable Cartridges with or Without Threaded InsertsUltra-Lightweight Aluminum Die-Cast Body Keeps Vibration to the Bare MinimumElongated Through Holes Enable Precise Cartridge Positioning and Overhang AdjustmentOFC (Oxygen-Free Copper) Lead Wires for Exceptional Sound QualitySlip-Resistant Finger Lift Allows Stylus to Be Placed Precisely on the RecordIncludes Mounting ScrewsWhat's in the BoxAT-VM740xML/H VMx Headshell & Microlinear Dual MM Cartridge Combo KitInstallation HardwareManualSpecificationsType: VMFrequency response: 20 to 25000 HzOutput voltage: 3.2 mV (1 kHz 5 cm/sec.)Channel separation: 25 dB (1 kHz)Output balance: 1.0 dB (1 kHz)Tracking force: 1.8 to 2.2 g (2.0 g standard)Coil impedance: 3.2 k ohms (1 kHz)DC resistance: 750 ohmsRecommended load impedance: 47 k ohmsRecommended load capacitance: 150 to 250 pFCoil inductance: 480 mH (1 kHz)Static compliance: 20 × 10?6 cm/dyneDynamic compliance: 7 × 10?6 cm/dyne (100 Hz)Stylus: Nude MicrolinearStylus curvature radius: 2.2 × 0.12 milCantilever: Aluminum tapered pipeVertical tracking angle: 20°Dimensions: 2.7” × 0.73” × 0.85”Weight: 20.3 g (0.72 oz)Replacement stylus (sold separately): AT-VMN40xML
