Audio-Technica - Audio Technica AT-XP5/H Headshell Combo Kit - Red
More Buying Options from Marketplace sellers
Related Item
About This Item
- Key Specs
- Accessory Type: Turntable Accessory
- Model Compatibility: Audio-Technica Turntables
- General
- Brand: Audio-Technica
- Model Number: AUD ATXP5H
- Product Name: Audio Technica AT-XP5/H Headshell Combo Kit
- Color: Red
- Features
- Accessory Type: Turntable Accessory
- Quantity: 1
- Compatibility
- Model Compatibility: Audio-Technica Turntables
- Dimensions
- Product Width: 3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: U.S. ONE-YEAR LIMITED END-USER WARRANTY
- Warranty - Labor: U.S. ONE-YEAR LIMITED END-USER WARRANTY
- Other
- UPC: 4961310146566

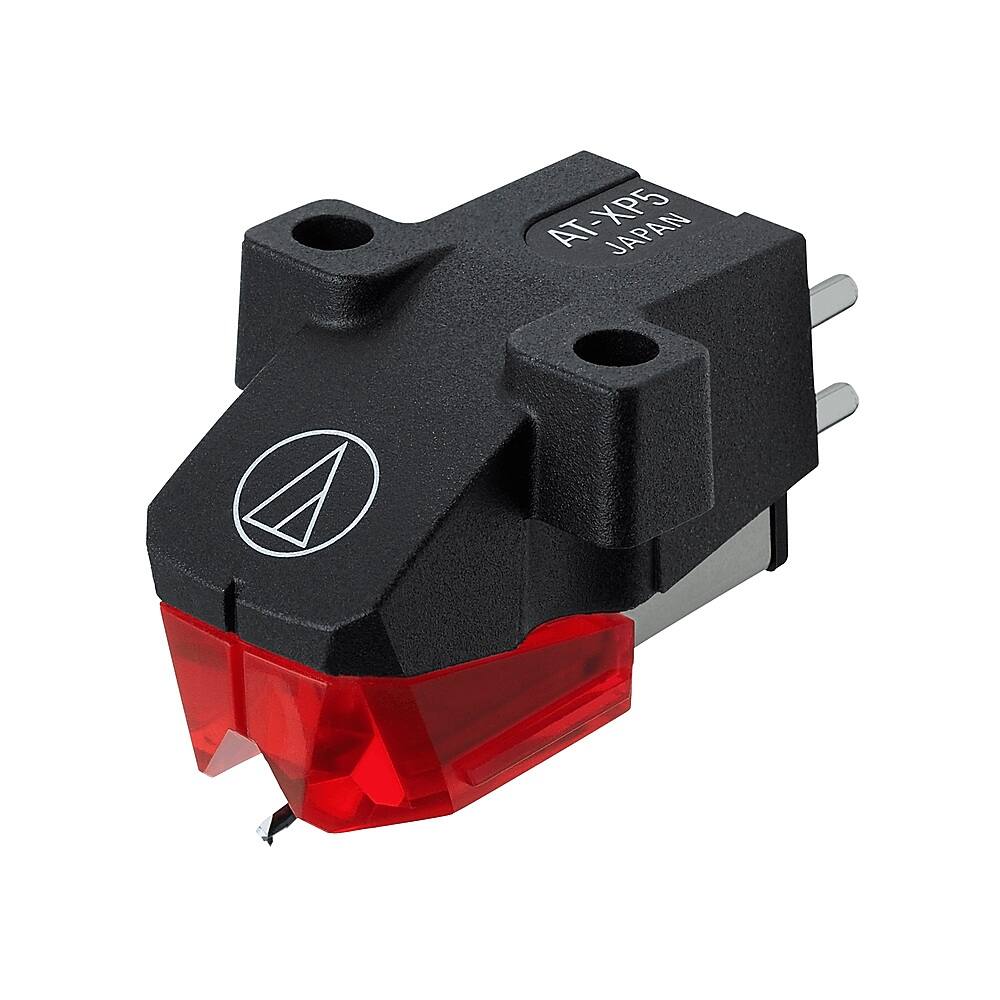

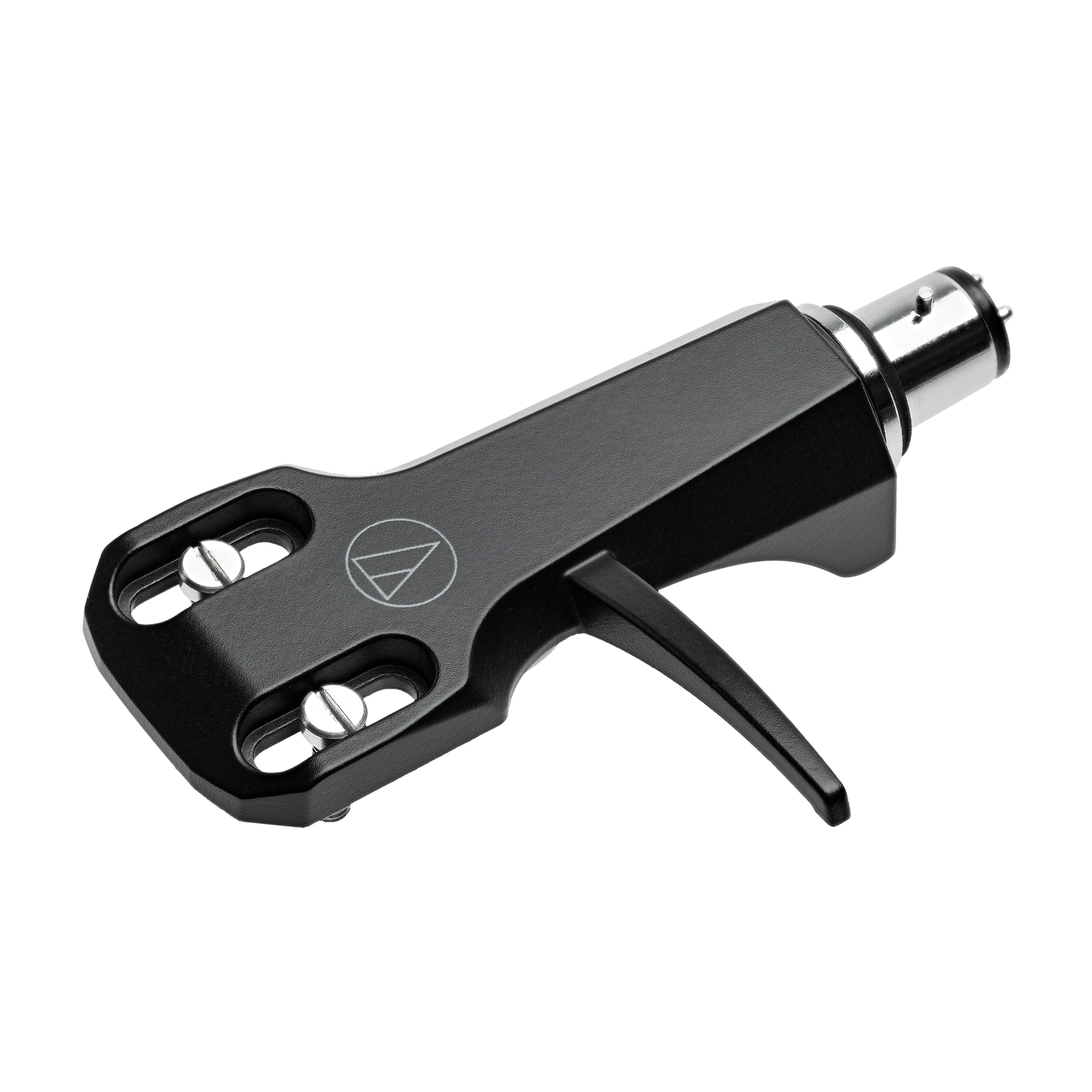

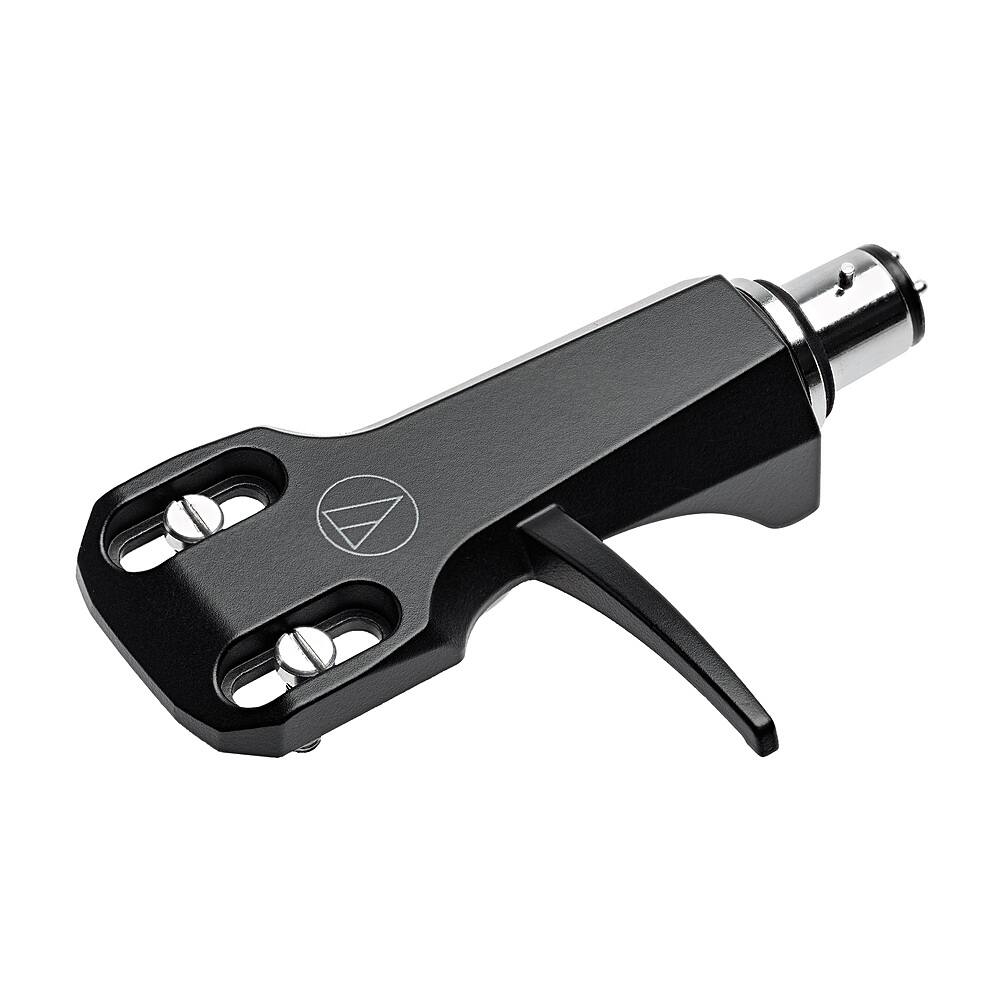

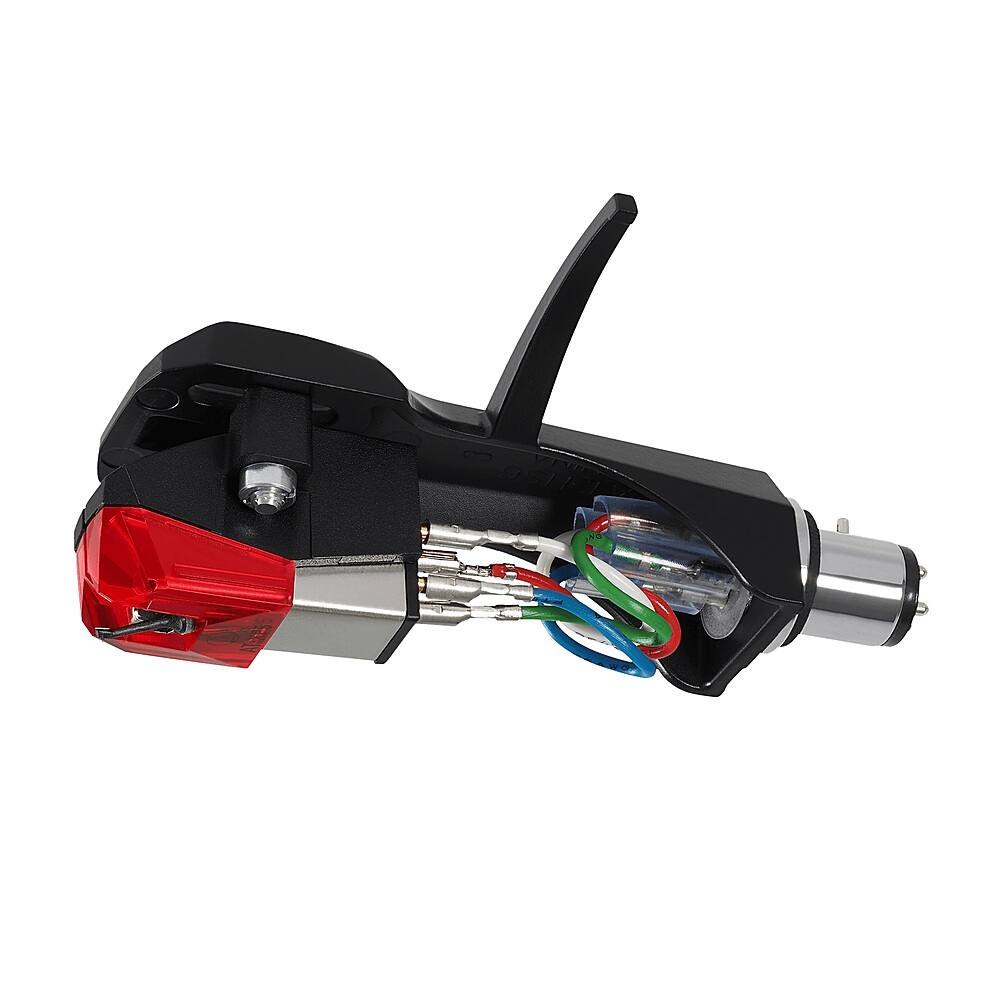

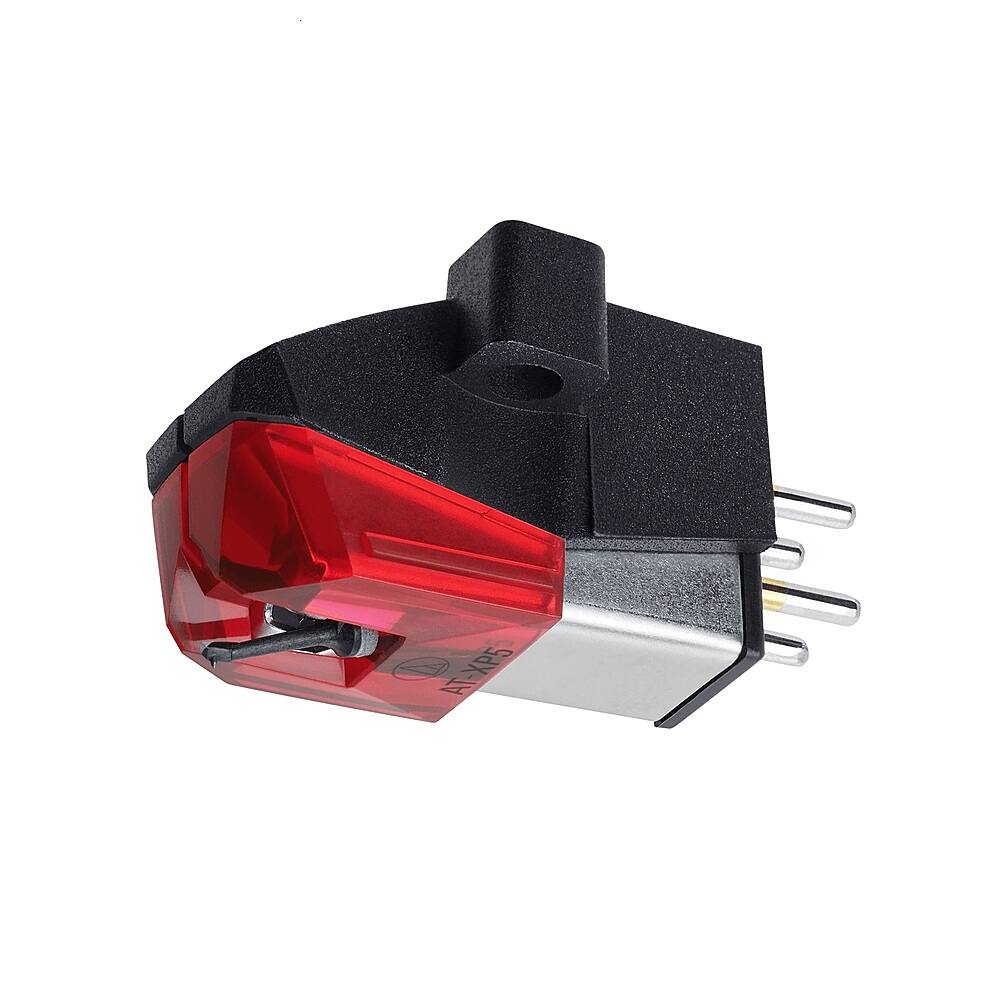

The AT-XP5/H combo kit includes the AT-XP5 DJ cartridge premounted on the AT-HS6BK headshell. 0.3 x 0.7 mil elliptical bonded stylus tip. Highly rigid, lightweight polyphenylene sulfide (PPS)/glass fiber body. 5.5 mV high-level output. Tracking force of 2.0 to 4.0 grams (3.0 grams standard). Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking. Design offers maximum visibility of the stylus tip. Great tracking and channel separation for high-fidelity sound. Universal ½"-mount headshell for 4-pin turntable cartridges.
- Frequency Response: 20-18,000 Hz
- Stylus Construction: Bonded round shank
- Stylus Shape: 0.3 x 0.7 mil elliptical
- Cantilever: Carbon fiber-reinforced ABS
- Recommended Load Impedance: 47,000 ohms
- Mount: Half-inch
- Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver
Whats Included
- Audio Technica AT-XP5/H Headshell Combo Kit
Product Manuals
Q: What is the purpose of the highly rigid, lightweight polyphenylene sulfide (PPS)/glass fiber body?
A: The highly rigid, lightweight polyphenylene sulfide (PPS)/glass fiber body ensures great tracking and channel separation for high-fidelity sound.
Q: What is the standard tracking force for this cartridge?
A: The standard tracking force for this cartridge is 3.0 grams.
Q: Is the headshell compatible with all 4-pin turntable cartridges?
A: This universal ½"-mount headshell is compatible with 4-pin turntable cartridges.

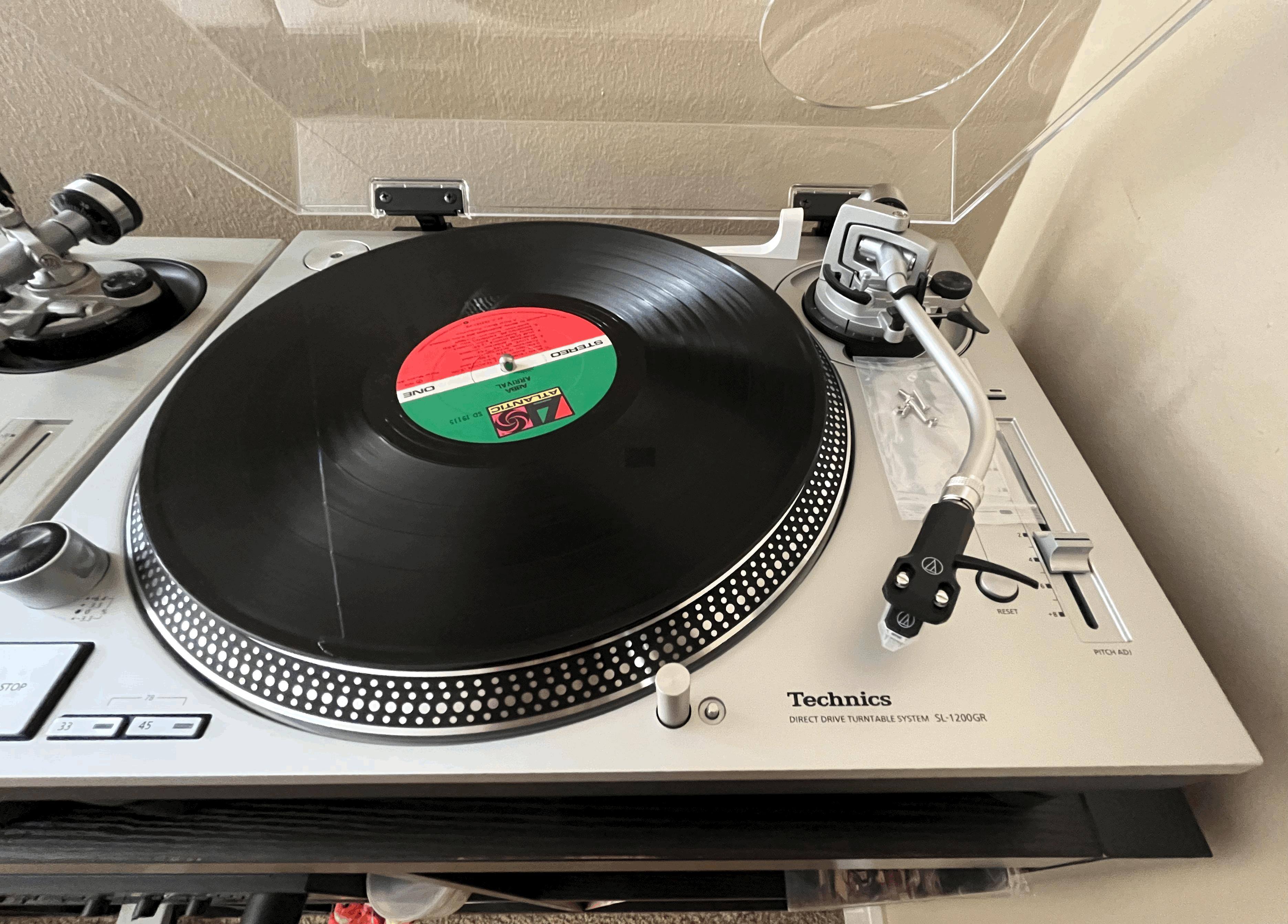

Q: will this fit and work on a 'vintage' Technics SL-3200 semi auto turntable?
A: Yes, it will.
Q: Is this what your sound come from?
A: Please call for further assistance.
Q: I am replacing the cartridge on Dual 1214 and wondering if this will fit.
A: You may use the cartridge itself, the AT-XP3, but not the headshell that is provided with the AT-XP3/H Headshell/Cartridge Combo Kit. You must use the proprietary angled Dual headshell and the Dual cartridge sled (aka carrier or clip).
A: Yes, it will.
A: Yes, it will, and it just happens to be set at the correct overhang, 15.5mm
