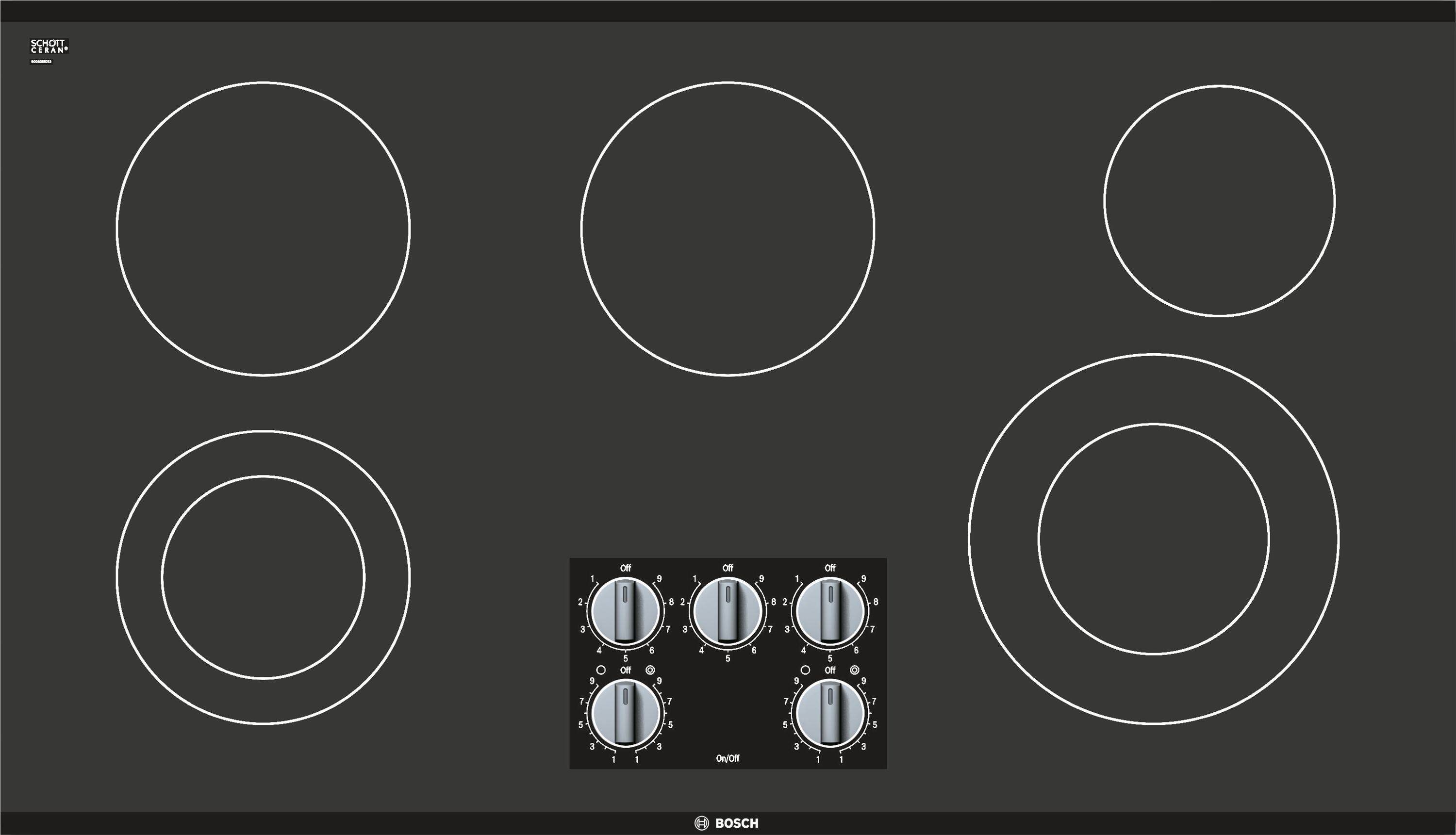

Bosch - 500 Series 36" Built-In Electric Cooktop with 5 elements - Black
Model: NEM5666UC
SKU: 5096376
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Black
- Product Height: 4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Elements: 5
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Bosch
- Model Number: NEM5666UC
- Product Name: 500 Series 36" Built-In Electric Cooktop with 5 elements
- Color: Black
- Color Finish: Black
- Vendor Collection: Bosch 500 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 30 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 34 7/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 20 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Installs Over Built-In Oven: true
- Control Type: Electronic
- Control Location: Top
- Digital Display: false
- Power-On Indicator Light(s): true
- Hot Surface Indicator(s): true (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Form Factor: Cooktop (The size, arrangement, and physical configuration of the product.)
- Portable: false
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cooktop Features
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Ceramic, Glass
- Number of Cooking Zones: 5
- Number of Elements: 5
- Bridge Element: false (This feature is an additional heating element located between two individual burners. When this is enabled, the individual burners and the bridge element act as one connected cooktop. This equal heat distribution on the cooktop surface helps accommodate larger cookware, such as roaster pans or griddles.)
- Specialty Element(s): none
- Expandable Element: true (Accommodate large cookware and ensure even heat distribution with this feature, which allows more surface area for the individual heating element.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Element Wattage
- Element 1 Wattage: 1700 watts
- Element 2 Wattage: 1800 watts
- Element 3 Wattage: 1800 watts
- Element 4 Wattage: 1200 watts
- Element 5 Wattage: 2500 watts
- Power
- Cooktop Power Source: Electric
- Electrical Specification
- Wattage: 9000 watts (Measurement of electrical power.)
- Amperage: 40 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium. Libre de PFAS, PFOA, plomo, y cadmio. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 825225907497
This Bosch 500 Series NEM5666UC built-in electric cooktop features 5 elements, including 2 dual elements, for versatile cooking. Extensive temperature controls simplify operation, and the seamless glass smoothtop design lets you easily wipe away spills.
- Extensive temperature controls: Allow you to achieve precise results.
- 2 dual elements: Accommodate multiple pan sizes for flexible cooking.
- 5 elements: Include one 6", 1200W back-right element, one 7", 1800W back-left element, one 7", 1800W center element, one dual 5"/7", 700W/1700W front-left element and one dual 6"/9", 1100W/2500W front-right element for versatility.
- 2-level heat indicator: Shows you when the cooktop is warm or hot. An element-on indicator light lets you know when an element is turned on for safety.
- Seamless glass smoothtop design: Helps simplify cleanup.
Whats Included
- Bosch 500 Series 36" Built-In Electric Cooktop
- Owner's manual
Q: What are the cutout dimensions?
A: Hi sk. Thank you for your question. Here are the cutout dimensions for this cooktop. Also included are the distances from counter front and rear wall that are required. Cutout Dimensions: 4" H x 34 7/8" W x 20" D. Minimum distance from counter front 2 1/4". Minimum distance from rear wall 2".
Q: How does one remove the knobs for cleaning?
A: Hi Jaclyn, thank you for your question and interest in Model:NEM5666UC. To remove the knobs, pull them up from the cooktop. To replace the knobs, please make certain that they line up and press them back down. If you have further questions, please contact our Customer Support Team at 1-800-944-2904.
