Cerwin Vega - B54 - Stealth Bomber 4-Channel Class-D Full Range Amplifier Full PWM ( RMS Power Bridged @ 4Ω: 300W x 2 ) - Black
Cerwin Vega - B54 - Stealth Bomber 4-Channel Class-D Full Range Amplifier Full PWM ( RMS Power Bridged @ 4Ω: 300W x 2 ) - Black
Specifications
- Amplifier ClassDNumber Of Channels4Bass BoostVariable
- Key Specs
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 4
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- General
- Brand: Cerwin Vega
- Model Number: B54
- Product Name: Cerwin Vega - B54 - Stealth Bomber 4-Channel Class-D Full Range Amplifier Full PWM ( RMS Power Bridged @ 4Ω: 300W x 2 )
- Color: Black
- Audio Power
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 4
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Dimensions
- Product Height: 1.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 8.8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 2.4 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 847169024252
The Stealth Bomber Series Amplifiers embody the perfect fusion of sleek design and unmatched power, making them a cornerstone of the Cerwin-Vega Mobile lineup. Designed for seamless integration, these ultra-compact amplifiers are proof that big sound can come in small packages.The Stealth Bomber Series Amplifiers pack monstrous power into a compact design, making them the ideal choice for enthusiasts seeking an efficient, space-saving solution without compromising performance. Perfect for tight installations, these amps are engineered to deliver clean, distortion-free sound with explosive bass and dynamic clarity.With Cerwin-Vega Mobile’s legacy of innovation and expertise, the Stealth Bomber Series is your ultimate audio companion for maximum impact in any vehicle.Unleash the power. Command the clarity. Take your sound system to new heights with the Stealth Bomber Series.
- High-Tech Innovation Meets Raw Power: Updated High-Efficiency Full-Range Digital Topology: Delivers unparalleled sound clarity with maximum energy efficiency. Class D IR Chipset with Direct-FET Power MOSFET Output: Ensures precision and performance for every beat.
- Built for Durability and Precision: Ultra-Compact High-Density Aluminum Alloy Chassis: Offers robust protection and optimal heat dissipation in a sleek form factor. Advanced Rollback Power/Thermal Protection: Keeps your system running at peak performance, even under the most demanding conditions.
- Versatility at Your Fingertips: Switchable 12dB HP/FLAT/LP Crossovers: Tailor your audio experience with precise control over high-pass, low-pass, or flat outputs. VEGA Bass Boost: Elevate your low-end frequencies with a dynamic bass enhancement feature. Remote Turn-On Configurator (REM/DC/VOX): Simplifies integration with a variety of systems for effortless operation.

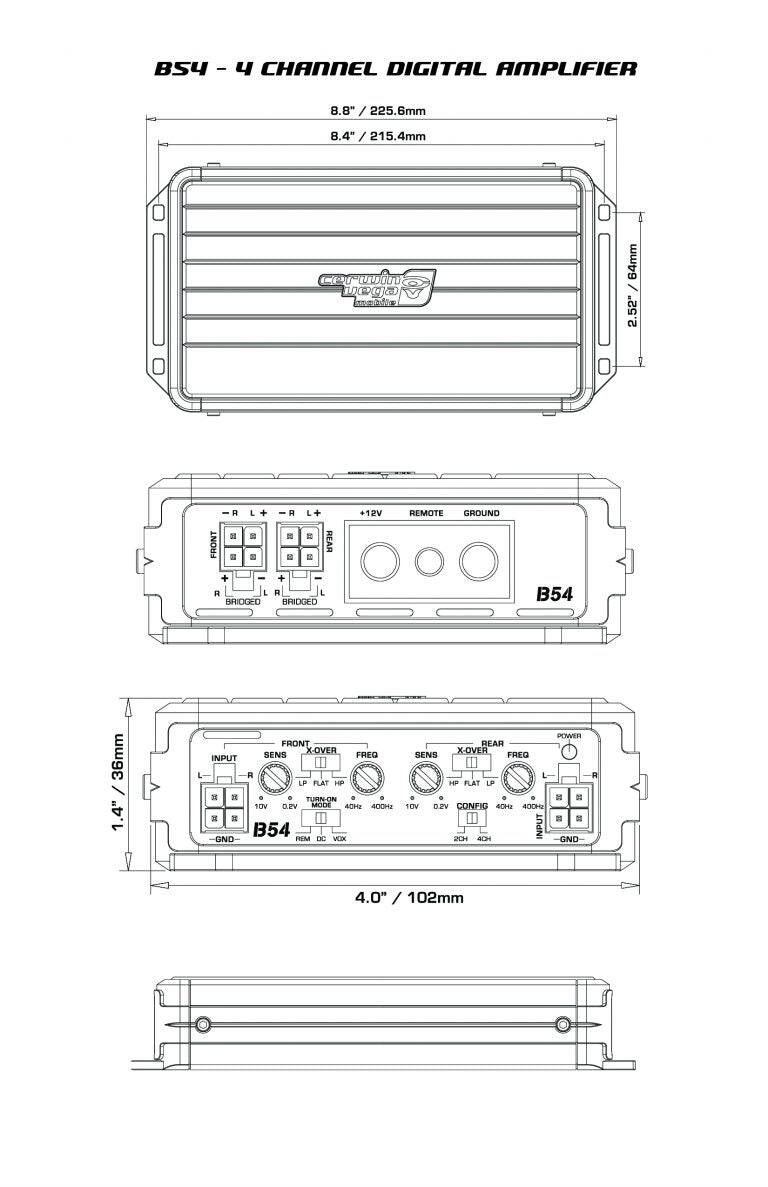

- POWER RATING: Low Input Level: 200mV-10.0V High Input Level: 200mV-10.0V INPUT IMPEDANCE Low Input Level: 20 KΩ High Input Level: 20 KΩ OUTPUT STAGE Output Impedance: 0.011Ω Damping Factor (50Hz @ 4Ω): >250 Bandwidth (-3dB): 10Hz-35KHz CROSSOVER (-12/-24 dB/Oct) Variable High-Pass: Variable Low-Pass: 40Hz-400Hz Variable Sub-Sonic: 10Hz-55Hz FUSE RATINGS ATC: 25A L x W x H: 7.7”x 4.02”x 1.4” (195.6mm x 102mm x 36mm) Low Input Level: 20 KΩ High Input
- FEATURES: Full Range Class D IR Chipset DirectFET Power Mosfet Output Stage SMD Technology on 4-Layer PCB Board Water Resistant Conformal PCB Board Coating 1-year Manufacturer's Warranty MFR #: B54
- High-Tech Innovation Meets Raw Power: Updated High-Efficiency Full-Range Digital Topology: Delivers unparalleled sound clarity with maximum energy efficiency. Class D IR Chipset with Direct-FET Power MOSFET Output: Ensures precision and performance for every beat.
- Built for Durability and Precision: Ultra-Compact High-Density Aluminum Alloy Chassis: Offers robust protection and optimal heat dissipation in a sleek form factor. Advanced Rollback Power/Thermal Protection: Keeps your system running at peak performance, even under the most demanding conditions.
- Versatility at Your Fingertips: Switchable 12dB HP/FLAT/LP Crossovers: Tailor your audio experience with precise control over high-pass, low-pass, or flat outputs. VEGA Bass Boost: Elevate your low-end frequencies with a dynamic bass enhancement feature. Remote Turn-On Configurator (REM/DC/VOX): Simplifies integration with a variety of systems for effortless operation.
- POWER RATING: Low Input Level: 200mV-10.0V High Input Level: 200mV-10.0V INPUT IMPEDANCE Low Input Level: 20 KΩ High Input Level: 20 KΩ OUTPUT STAGE Output Impedance: 0.011Ω Damping Factor (50Hz @ 4Ω): >250 Bandwidth (-3dB): 10Hz-35KHz CROSSOVER (-12/-24 dB/Oct) Variable High-Pass: Variable Low-Pass: 40Hz-400Hz Variable Sub-Sonic: 10Hz-55Hz FUSE RATINGS ATC: 25A L x W x H: 7.7”x 4.02”x 1.4” (195.6mm x 102mm x 36mm) Low Input Level: 20 KΩ High Input
- FEATURES: Full Range Class D IR Chipset DirectFET Power Mosfet Output Stage SMD Technology on 4-Layer PCB Board Water Resistant Conformal PCB Board Coating 1-year Manufacturer's Warranty MFR #: B54
- High-Tech Innovation Meets Raw Power: Updated High-Efficiency Full-Range Digital Topology: Delivers unparalleled sound clarity with maximum energy efficiency. Class D IR Chipset with Direct-FET Power MOSFET Output: Ensures precision and performance for every beat.
- Built for Durability and Precision: Ultra-Compact High-Density Aluminum Alloy Chassis: Offers robust protection and optimal heat dissipation in a sleek form factor. Advanced Rollback Power/Thermal Protection: Keeps your system running at peak performance, even under the most demanding conditions.
- Versatility at Your Fingertips: Switchable 12dB HP/FLAT/LP Crossovers: Tailor your audio experience with precise control over high-pass, low-pass, or flat outputs. VEGA Bass Boost: Elevate your low-end frequencies with a dynamic bass enhancement feature. Remote Turn-On Configurator (REM/DC/VOX): Simplifies integration with a variety of systems for effortless operation.
- POWER RATING: Low Input Level: 200mV-10.0V High Input Level: 200mV-10.0V INPUT IMPEDANCE Low Input Level: 20 KΩ High Input Level: 20 KΩ OUTPUT STAGE Output Impedance: 0.011Ω Damping Factor (50Hz @ 4Ω): >250 Bandwidth (-3dB): 10Hz-35KHz CROSSOVER (-12/-24 dB/Oct) Variable High-Pass: Variable Low-Pass: 40Hz-400Hz Variable Sub-Sonic: 10Hz-55Hz FUSE RATINGS ATC: 25A L x W x H: 7.7”x 4.02”x 1.4” (195.6mm x 102mm x 36mm) Low Input Level: 20 KΩ High Input
- FEATURES: Full Range Class D IR Chipset DirectFET Power Mosfet Output Stage SMD Technology on 4-Layer PCB Board Water Resistant Conformal PCB Board Coating 1-year Manufacturer's Warranty MFR #: B54
Whats Included
- amp
- amp
- amp
