Coolgear - 7-Port USB Hub - USB Type-A & USB Type-C - Wide Power Input - Supports Multi TT - DIN Rail Ready - 5Gbps - Power LED - Black
Coolgear - 7-Port USB Hub - USB Type-A & USB Type-C - Wide Power Input - Supports Multi TT - DIN Rail Ready - 5Gbps - Power LED - Black
$6.99 shipping to
Related Item
Specifications
- Number of USB Port(s)7
- Key Specs
- Number of USB Port(s): 7
- General
- Brand: Coolgear
- Model Number: CG-7PU313C
- Product Name: 7-Port USB Hub - USB Type-A & USB Type-C - Wide Power Input - Supports Multi TT - DIN Rail Ready - 5Gbps - Power LED
- Color: Black
- Features
- Hub Type: USB hubs (The type of connection, such as Ethernet or USB, used to connect peripheral devices to the hub for shared access.)
- Ports
- Number of USB Port(s): 7
- Port Type(s): USB (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Dimensions
- Product Height: 1.43 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 5.23 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 2.42 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.65 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 045079158771

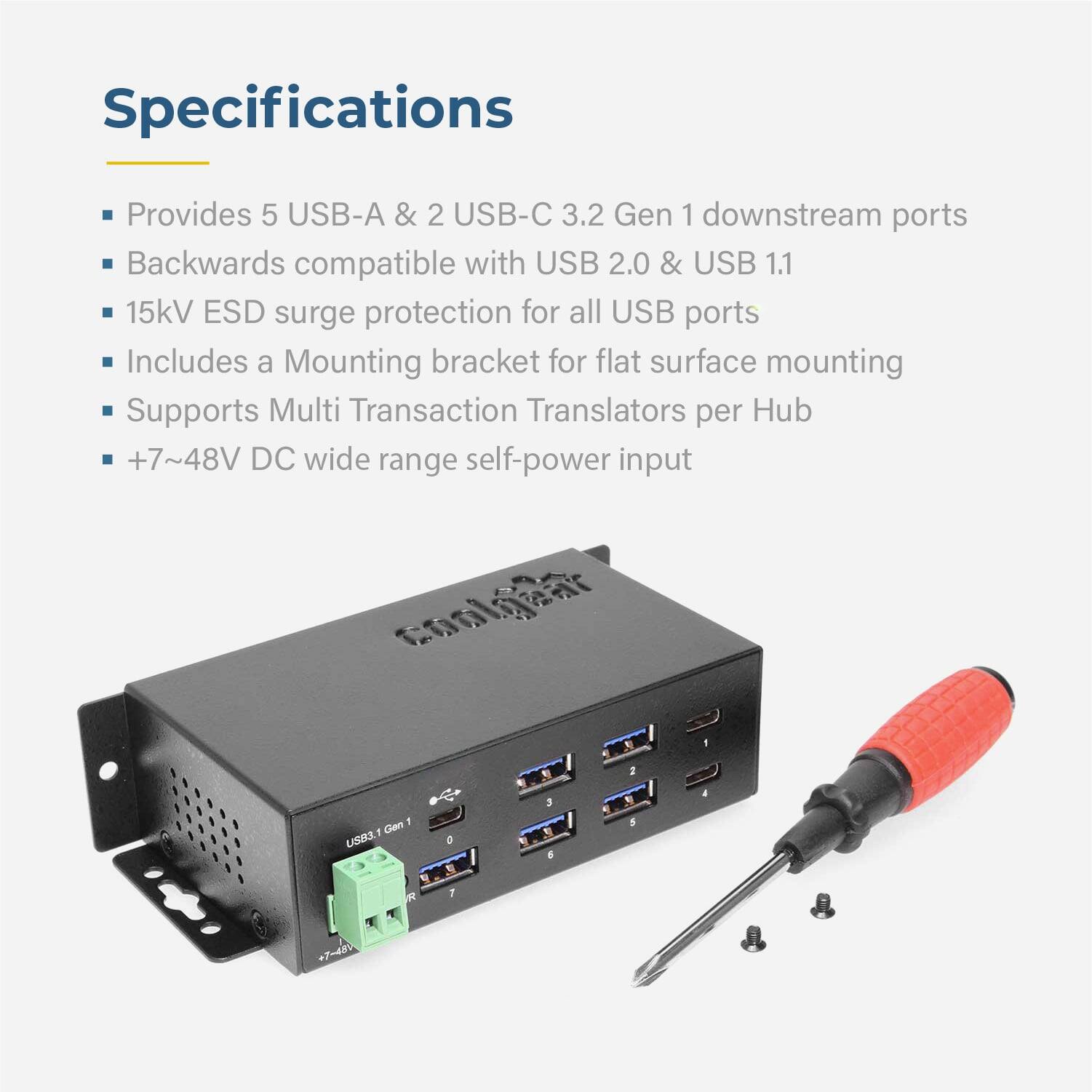

The CG-7PU313C is a 7-port USB 3.2 Gen 1 hub designed for industrial and professional environments requiring a mix of USB-C and USB-A connectivity. With 2 USB-C and 5 USB-A downstream ports plus a USB-C upstream connection, it delivers data transfer speeds up to 5Gbps and supports both charging and data functions through CDP and DCP modes. Each port is safeguarded with 15kV ESD protection, and the rugged steel chassis supports wall, surface, and DIN rail mounting. Powered via a 7–48V DC terminal block, this hub includes Multi-TT support for efficient performance with mixed-speed devices and is compatible with USB 2.0 and 1.1.
- Expand your connections: Instantly add 7 USB 3.2 Gen 1 ports to your setup, including 5 Type-A and 2 Type-C ports - ideal for industrial bench setups where dependable, high-capacity USB connectivity is a must.
- Smart port layout: Features 7 downstream USB 3.2 Gen 1 ports (5 Type-A and 2 Type-C) for device connections and 1 upstream USB Type-C port to the host.
- Flexible mounting options: Rugged metal enclosure is ready for secure installation on a desktop, wall, or DIN rail with included hardware for easy integration into your setup.
- Power and device protection: Accepts wide range 7–48V DC input via 2-pin terminal block, and includes 15kV ESD protection to keep your devices safe and uninterrupted.
- Broad OS compatibility: Works seamlessly with Windows 7 through Windows 11, macOS, and Linux.
- Expand your connections: Instantly add 7 USB 3.2 Gen 1 ports to your setup, including 5 Type-A and 2 Type-C ports - ideal for industrial bench setups where dependable, high-capacity USB connectivity is a must.
- Smart port layout: Features 7 downstream USB 3.2 Gen 1 ports (5 Type-A and 2 Type-C) for device connections and 1 upstream USB Type-C port to the host.
- Flexible mounting options: Rugged metal enclosure is ready for secure installation on a desktop, wall, or DIN rail with included hardware for easy integration into your setup.
- Power and device protection: Accepts wide range 7–48V DC input via 2-pin terminal block, and includes 15kV ESD protection to keep your devices safe and uninterrupted.
- Broad OS compatibility: Works seamlessly with Windows 7 through Windows 11, macOS, and Linux.

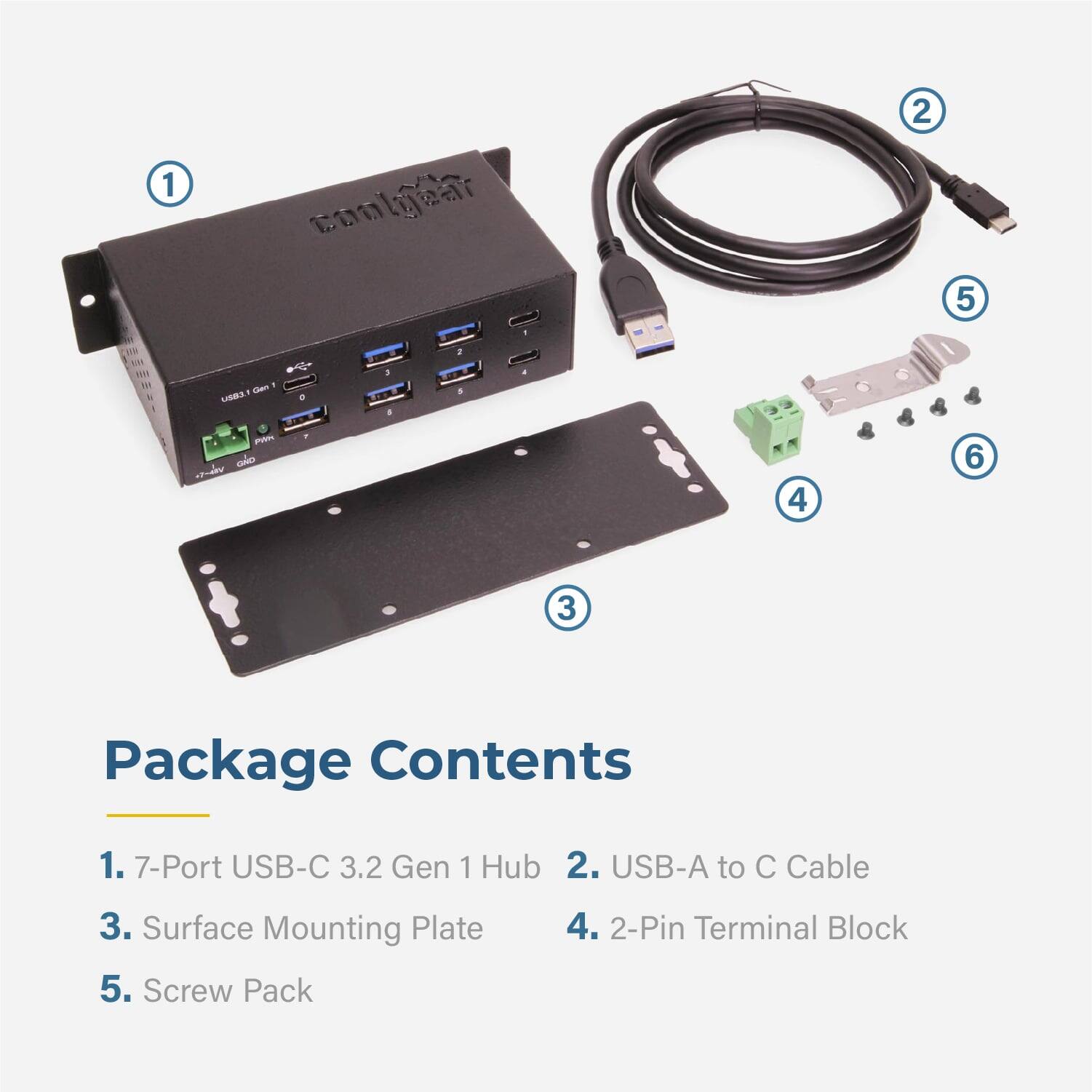

Whats Included
- 7-Port Hub, 3ft USB Type-A to Type-C Cable, 2-Pin Terminal Block, Mounting Kit, Screws
- 7-Port Hub, 3ft USB Type-A to Type-C Cable, 2-Pin Terminal Block, Mounting Kit, Screws
