CORSAIR - HXi Series HX1200i 80 PLUS Platinum Cybenetics Platinum Fully Modular ATX Power Supply - Black
Related Item
Specifications
- Wattage1200 wattsModularFully modularEnergy EfficiencyCybenetics Platinum, 80 PLUS PlatinumATX Connector1x 24-pin ATX (24-pin) Connector. 2x /ATX12V CABLE (4+4 - pin)ConnectorsPCIe Connector4x PCIe (6+2-pin)Peripheral Connector8
- Key Specs
- Wattage: 1200 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: Cybenetics Platinum, 80 PLUS Platinum (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 1x 24-pin ATX (24-pin) Connector. 2x /ATX12V CABLE (4+4 - pin)Connectors (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 4x PCIe (6+2-pin) (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 8 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 8x SATA (Straight) Connectors (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 200 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: CORSAIR
- Model Number: CP-9020281-NA
- Product Name: HXi Series HX1200i 80 PLUS Platinum Cybenetics Platinum Fully Modular ATX Power Supply
- Color: Black
- Power
- Wattage: 1200 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: Cybenetics Platinum, 80 PLUS Platinum (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Cord Length: 5 feet
- Connectivity
- ATX Connector: 1x 24-pin ATX (24-pin) Connector. 2x /ATX12V CABLE (4+4 - pin)Connectors (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: FALSE (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: 4x PCIe (6+2-pin) (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 8 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 8x SATA (Straight) Connectors (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 86 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 150 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 200 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 84.8 ounces (The out of box weight of the item.)
- Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Fan Type: Fluid Dynamic Bearing Fan
- Number of Fans Included: 1
- Features
- Lighting Type: None
- Warranty
- Warranty - Parts: 10 years
- Warranty - Labor: 10 years
- Other
- UPC: 840006671619
CORSAIR HXi Series Fully Modular Ultra-Low Noise Power Supplies deliver exceptional 80 PLUS Platinum efficient power and low-noise fluid dynamic bearing fan performance. ATX 3.0 and PCIe 5.0 compliance, HXi PSUs have every connection needed to power today’s most demanding PC upgrades. Powerful CORSAIR iCUE software enables custom fan curves, monitoring and adjusting power settings, and more thanks to a fully digital platform. Japanese 105°C-rated electrolytic capacitors deliver long life and reliability, backed by a ten-year warranty. Wake your computer faster and consume less power with Modern Standby sleep mode. Zero RPM mode ensures near-silent operation at low and medium loads. The HXi Series puts platinum power at your command.

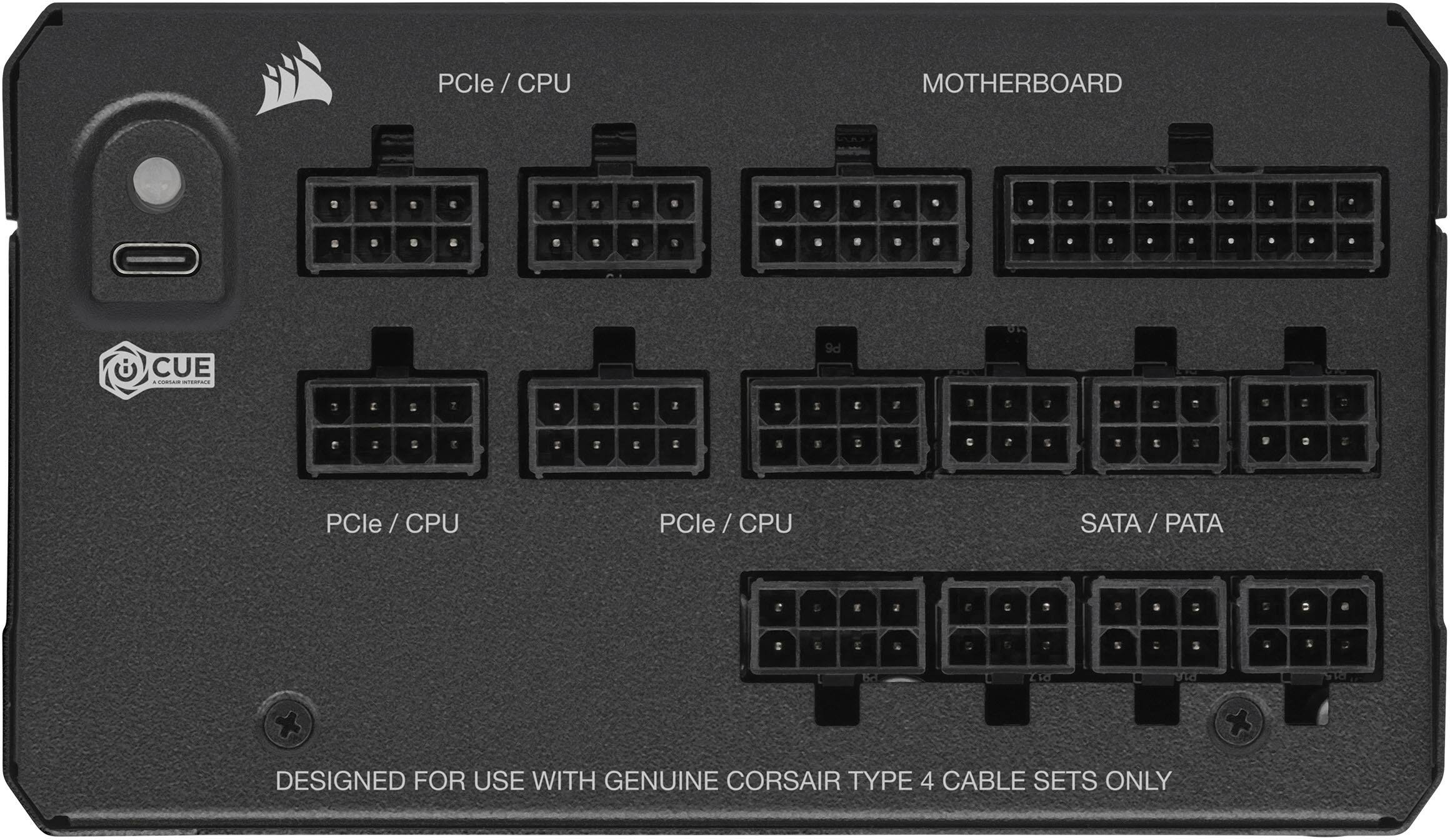

- Fully Modular Cabling: Connect only the cables your system needs, making clean and tidy builds easy.
- Intel ATX 3.0 Certified: Compliant with the ATX 3.0 power standard, supporting the PCIe Gen 5 platform and resisting transient power spikes.
- 140mm Fluid Dynamic Bearing (FDB) Fan: Delivers extremely quiet and long-lasting fan performance.
- Powerful CORSAIR iCUE Software: Create custom fan curves, monitor power settings, and toggle between single to multi-rail overcurrent protection (OCP) on the-fly.
- Zero RPM Fan Mode: At low and medium loads the cooling fan switches off entirely for near-silent operation.
- 80 PLUS Platinum Certified: Up to 92% efficiency for exceptional low power consumption, less noise, and cooler temperatures.
- 100% Japanese 105°C Electrolytic Capacitors: Premium internal components ensure unwavering power delivery and long-term reliability.
- Modern Standby Compatible: Extremely fast wake-from-sleep times and better low-load efficiency.
- Fully Digital Platform: Resonant LLC topology and DC-to-DC conversion provides clean, consistent power.
- Ten-Year Warranty: Your guarantee of reliable operation that will last across several system builds.

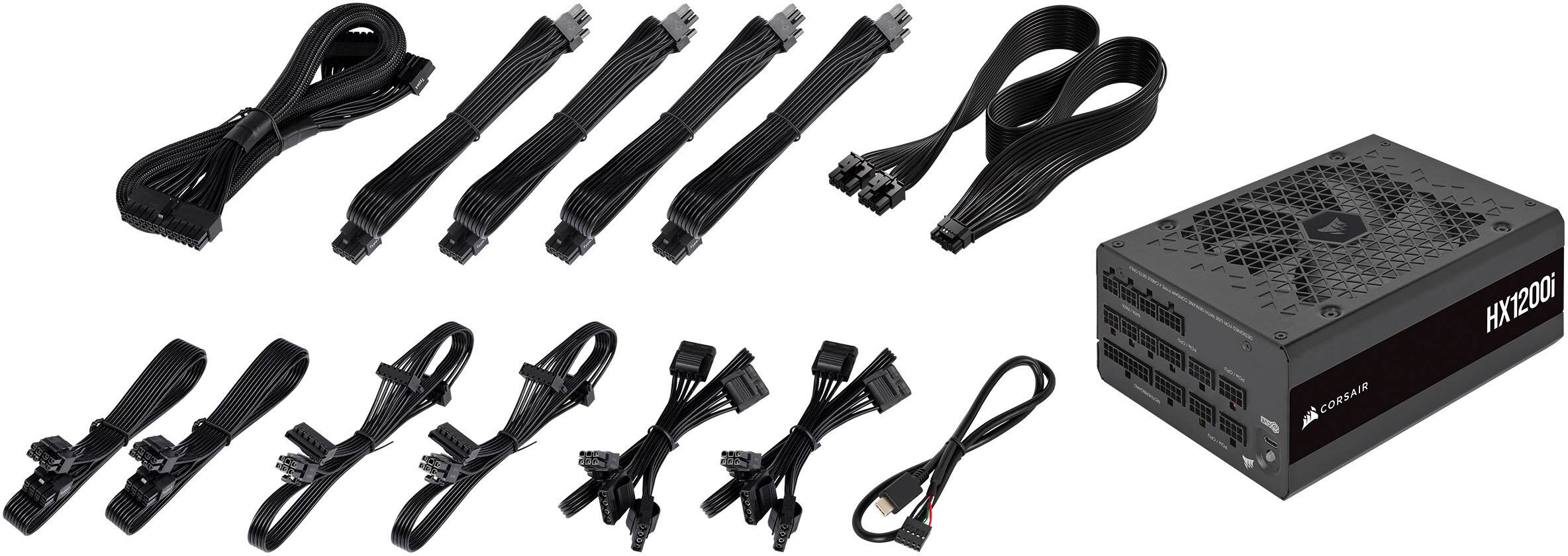

Whats Included
- HX1200i Power Supply
- DC Cable Kit
- Power Cord
- Mounting Screws
- Cable Ties
Q: Does the power supply support Modern Standby sleep mode?
A: This computer power supply has a feature that allows it to wake your computer faster and consume less power with Modern Standby sleep mode.
Q: Can the power supply be controlled using software?
A: Yes, the Corsair HXi power supply can be controlled using software.
Q: What is the warranty period for the power supply?
A: The power supply has a ten-year warranty.
Q: What type of cooling system does the power supply use?
A: The power supply uses an air cooling system.
Q: What are the dimensions of the power supply?
A: The power supply has a product length of 200 millimeters, a height of 86 millimeters, and a width of 150 millimeters.
Q: What is the power supply's wattage?
A: The wattage for this power supply is 1200 watts.
