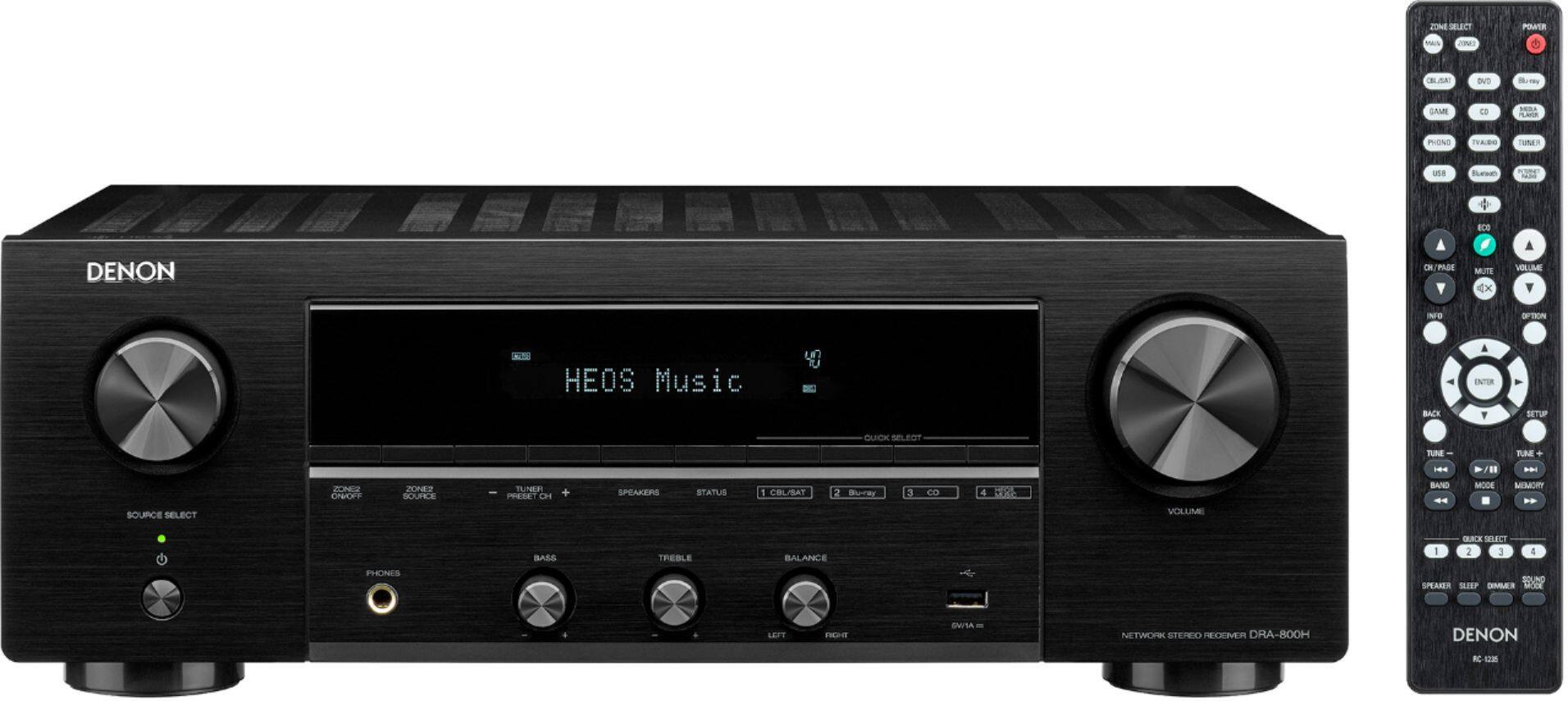

Denon - DRA-800H 2-Channel Stereo Network Receiver for Home Theater | Hi-Fi Amplification | Connects to All Audio Sources - Black
- Key Specs
- Number of Channels: 2.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Audio Only Inputs: 1 x Coaxial digital audio, 2 x Optical digital audio, 1 x Phono
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: Siri, Amazon Alexa (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Denon
- Model Number: DRA-800H
- Product Name: DRA-800H 2-Channel Stereo Network Receiver for Home Theater | Hi-Fi Amplification | Connects to All Audio Sources
- Color: Black
- Audio
- Number of Channels: 2.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Surround Sound Supported: Other (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Supported File Formats: FLAC, WAV, ALAC, DSD
- Inputs
- Audio Only Inputs: 1 x Coaxial digital audio, 2 x Optical digital audio, 1 x Phono
- Number of HDMI Inputs (Total): 5
- Number of USB Inputs: 1
- Outputs
- Number of HDMI Outputs (Total): 0
- Features
- Remote Control Included: true
- Connectivity
- Wireless Multi-Room Audio: true (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Multi-Room Technology: Apple AirPlay 2, Denon Heos, Google Cast (Proprietary technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Compatibility
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: Siri, Amazon Alexa (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Dimensions
- Product Height: 6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 13.3 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 18.3 pounds (The out of box weight of the item.)
- Other
- UPC: 883795004817
The Denon DRA-800H seamlessly integrates HiFi amplification, a network player and advanced AV receiver technologies. Featuring advanced custom amplifier design, the DRA-800H ensures your loudspeakers drive detailed, precise imaging through the dedicated circuitry of its short, straight paths between power supplies. With five 4K Ultra HD HDMI inputs and the latest wireless music streaming technologies (Wi-Fi, AirPlay 2, Bluetooth and HEOS Built-in), the DRA-800H integrates seamlessly with your TV, game consoles, turntable, CD-Player, wireless music and Hi-Fi systems. Enjoy network streaming and USB front-panel audio playback of MP3, WAV, FLAC, ALAC and DSD (2.8/5.6MHz) files. Equipped with A/B speaker terminals (supports bi-wiring), dual subwoofer pre-outs, three digital and two analog inputs, one phono (MM) input and ARC for TV audio, the DRA-800H delivers a premium stereo listening experience for your music collection and home theater viewing.
- High-performance Discrete 2-Channel AMP: Feel the power & hear every audio detail with this ultra-stylish & powerful receiver (100W per channel at 8 ohms) that offers greater stability with a wide range of speakers & delivers balanced sound each time
- Expert Sound Engineering: Denon’s experience in designing award-winning amplifiers and their use of Hi-Fi parts, custom resistors, audio grade capacitors, a double differential DAC circuit and analog preamp circuits deliver a superior sound experience
- Advanced HDMI video section for a Stunning Cinematic Experience: Features full 4K Ultra HD 60Hz video, 4:4:4 Pure Color sub sampling, HDR10, HLG, and BT.2020 pass-through. Watch your favorite movies & shows with exceptional color, clarity and contrast.Input sensitivity:200 mV
- Enjoy Multi-room Streaming: Built-in HEOS technology allows you to playback music through any popular streaming service such as Pandora, Spotify, Amazon Prime Music and others via Bluetooth, Wi-Fi or AirPlay 2 in one room and more simultaneously
- Voice Control Compatibility with all Major Voice Agents: Change audio tracks, control volume, switch inputs, and play & pause music with your voice. Just command Amazon Alexa, Apple Siri, Google Assistant or any home automation systems like Josh.ai
- Hi-res Audio Playback: Listen to your favorite tracks stored on a memory device via the USB port on the front panel, or through network sources. Also, connect your turntable to the speakers or amp via the integrated phono input and MM equalizer
Product Manuals
Q: My speakers use wires, not RCA jacks. Is there a way to make these work?
A: Yes. You can unscrew/release the speaker connection, slide the wire in and tighten to secure. I have banana plugs for the speaker and bare wire for the receiver.
Q: Will this DRA-800H unit power JBL 4 ohm loud speakers ?
A: Hello and thank you for the question. The Denon DRA-800H should have no trouble at all driving a pair of JBL speakers as the DRA-800H is 4ohm stable. Most JBL speakers tend to be highly efficient speakers making them easier to drive.
A: Hi Martini, The record out feature can be found on our integrated amplifiers, but the DRA-800H does not have this feature. The closest to such a port on the DRA-800H is the Zone 2 pre-out. As this is not a line level output port, it is affected by the DRA-800H's volume control (which can work as a secondary record level if used to feed a cassette deck's line-in). Connect the Zone 2 output of the DRA-800H to your cassette deck's Line-in port, select Zone 2 with your DRA-800H remote control, then select the source you wish to record from with the same remote control. This should allow you to record from any 2 channel source.
Q: Describe CD PLAYER connection....it seems to be lacking play out/rec in?
A: Unfortunately, today's receivers don't include a Record Out function as the use of that technology has diminished greatly. The workaround here with the DRA-800H is to use the analog Zone 2 pre-out to your Teak's input. To do this properly, you would have to set the DRA's Zone 2 pre-out to a fixed level (i.e. 80) in the menu. (General - Zone 2 Setup - Volume Level)
A: Unfortunately, today's receivers don't include a Record Out function as the use of that technology has diminished greatly. The workaround here with the DRA-800H is to use the analog Zone 2 pre-out to your Teak's input. To do this properly, you would have to set the DRA's Zone 2 pre-out to a fixed level (i.e. 80) in the menu. (General - Zone 2 Setup - Volume Level)
Q: Where do you plug in a sub woofer
A: The 800H has 2 Subwoofer pre-outs (RCA) on the rear panel. A powered sub or sub amp can be connected there.
Q: does this have Am/Fm built in?
A: Yes it receives am/fm stations
A: Hello, The sub-woofer output on the DRA-800H is a dedicated pre-out, so the answer is yes.
