Eaton Tripp Lite Series USB-C Dock for Microsoft Surface - 4K HDMI, USB 3.x Gen 2 (10Gbps) and USB 2.0 Hub Ports, GbE
Eaton Tripp Lite Series USB-C Dock for Microsoft Surface - 4K HDMI, USB 3.x Gen 2 (10Gbps) and USB 2.0 Hub Ports, GbE
About This Item
- Key Specs
- Maximum Number of Displays Supported: 3
- Number of DisplayPort Outputs (Total): 1
- General
- Brand: Tripp Lite
- Product Name: Eaton Tripp Lite Series USB-C Dock for Microsoft Surface - 4K HDMI, USB 3.x Gen 2 (10Gbps) and USB 2.0 Hub Ports, GbE
- Display
- Maximum Number of Displays Supported: 3
- Ports
- Display Connector(s): 1 x HDMI (The number and type of connectors used to connect to an external display.)
- Number of DisplayPort Outputs (Total): 1
- Number of HDMI Ports (Total): 1
- Number of VGA Ports: 0 (VGA (Video Graphics Adapter or Video Graphics Array) is a display standard that transmits via analog signals. This type of interface is typically used to connect a computer to a display device such as a monitor, projector, or TV.)
- USB Ports: 4 x USB-C (The number and type of USB ports the product has.)
- Power
- Powered: true
- Compatibility
- Brand Compatibility: Microsoft
- Model Compatibility: Dell Rugged 14, Dell Rugged 13, Dell 5430, Dell 7330, Dell 5420, Dell 5424, Dell 7424, Dell 5414, Dell 7214, Dell 5404, Dell 7204
- Dimensions
- Product Height: 1.26 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 1.32 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 8.78 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.6 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 037332272645
Eaton Tripp Lite Series USB-C Dock for Microsoft Surface - 4K HDMI, USB 3.x Gen 2 (10Gbps) and USB 2.0 Hub Ports, GbE, 100W PD Charging, Black - for Notebook/Desktop PC/Monitor/Workstation/Keyboard/Mouse/Hard Drive - 100 W - USB Type C - 1 Displays Supported - 4K, 2K - 3840 x 2160, 1920 x 1200, 1280 x 720 - 4 x USB Ports - 1 x USB 2.0 - 3 x USB Type-A Ports - USB Type-A - 1 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - HDMI - DisplayPort - 1 x Mini DisplayPort - Blac

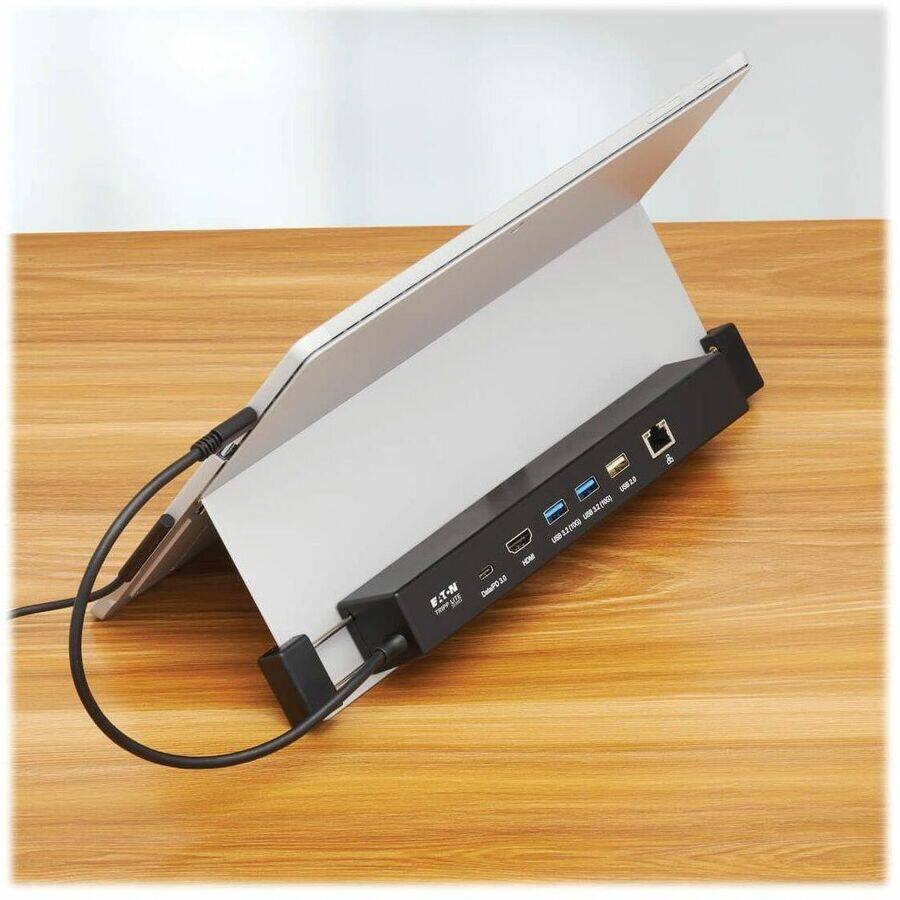

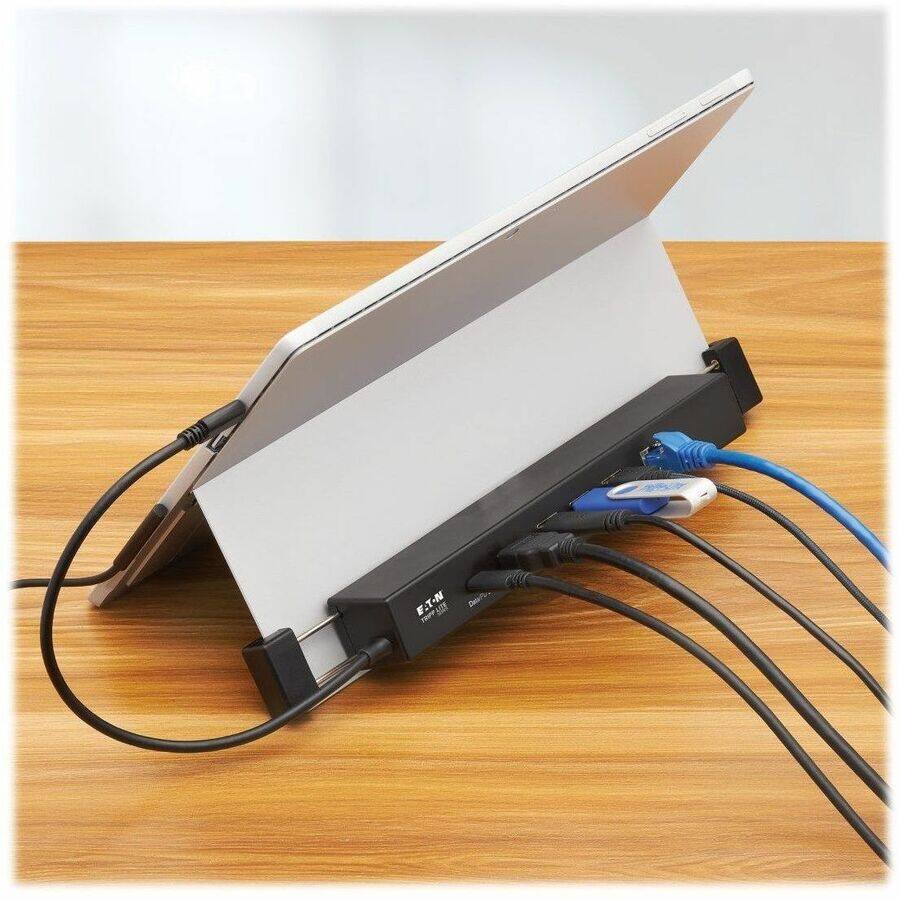

- USB-C Docking Station Turns Your Microsoft Surface into a...: This multipurpose dock is compatible with any Surface device with a USB-C port. An adjustable clamp firmly secures the dock to compatible Surface devices up to 12 inches (30.5 centimeters) wide. You can connect to a wired Gigabit Ethernet network, transmit 4K video with audio to a larger screen, add a thumb drive and other USB peripherals, and charge your Surface, all at the same time. Note: This dock clamps to the following models:
- Transmits Crystal-Clear 4K Video with Digital Audio: The HDMI port supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz. HDCP 2.3 compliance allows you to stream 4K Amazon and Netflix content with no complications. You may also connect to a DVI display by connecting an HDMI-to-DVI adapter (sold separately).

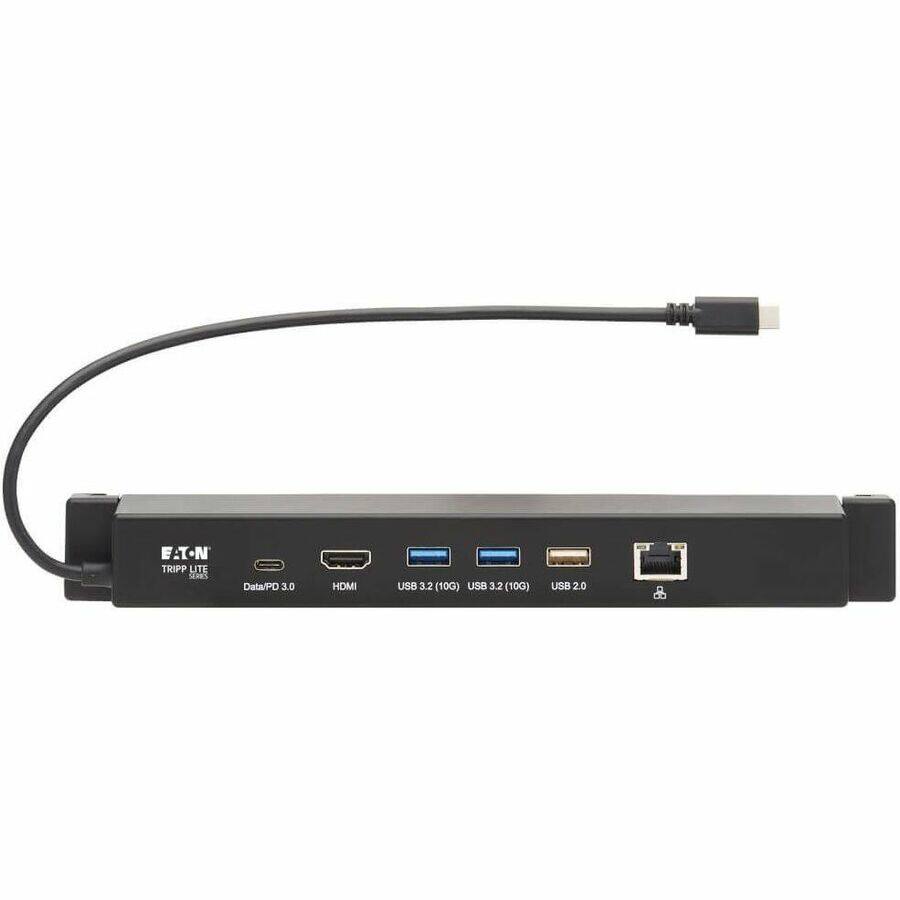

- USB 3.2 Gen 2 Ports Connect Keyboards, Thumb Drives and O...: Two USB-A ports and one USB-C port support USB 3.2 Gen 2 data transfer rates up to 10 Gbps for USB peripherals, such as flash drives, RAID storage, mice and keyboards. Another USB-A port supports USB 2.0 specifications for devices that require less speed. All ports are backward compatible with previous USB generations, so you can use legacy equipment.
- PD Charging Port Charges Host Device via AC Wall Charger: The USB-C Power Delivery port supports power output up to 20V 5A (100W), which is more than sufficient for charging and powering the connected Surface. Just connect the device's wall charger to both the USB-C PD port and an AC outlet.
- Accesses a Wired Gigabit Ethernet Network: The RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.
