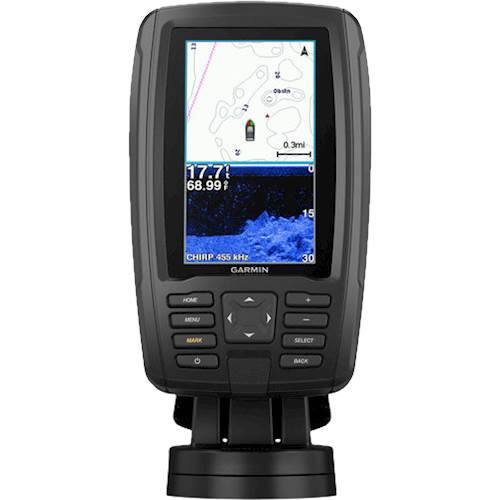

Garmin - ECHOMAP Plus 44cv Fishfinder/Charplotter GPS - Black

Model: 010-01886-01
SKU: 6162953
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Screen Size: 4.3 inches (Size of the screen, measured diagonally from corner to corner.)
    • Touch Screen: false (Touch-screen devices make navigating more intuitive. Using a touch-screen display, you can do things such as tap to select, hold and drag to move items, swipe to scroll, and pinch to zoom.)
    • 3D-Map View: true
    • Lifetime Map Updates: false
    • Chartplotter: true
    • Topographic Maps: false
    • App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
    • Depthfinder: true
    • Fish Finder: true
  • General
    • Brand: Garmin
    • Model Number: 010-01886-01
    • Product Name: ECHOMAP Plus 44cv Fishfinder/Charplotter GPS
    • Color: Black
    • Designed Usage: Boating, Fishing
    • Case Included: false
    • Number Of Languages Supported: 30
  • Display
    • Screen Size: 4.3 inches (Size of the screen, measured diagonally from corner to corner.)
    • Touch Screen: false (Touch-screen devices make navigating more intuitive. Using a touch-screen display, you can do things such as tap to select, hold and drag to move items, swipe to scroll, and pinch to zoom.)
    • Color Display: true
    • 3D-Map View: true
    • Resolution: 480 x 272 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
    • Backlit Display: true (Integrated lights allow for visibility of the display in low-light conditions.)
    • Multi Window Display: true
    • Fish Icon Display: true
  • Map
    • Lifetime Map Updates: false
    • Integrated Base Maps: true
    • Map Sharing: false
    • Number Of Waypoints: 5000
    • Chartplotter: true
    • Topographic Maps: false
    • HD Mapping: true
    • Optional Chart Upgrades: true
  • Navigation
    • Voice Prompts: false
    • Emergency Services Locator: false
    • Electronic Compass: true
  • Environmental
    • Water Resistant: true (Resists some degree of water penetration.)
    • Maximum Depth Of Water Resistance: 3.28 feet (Measurement of the maximum depth of water in which the product is able to resist some degree of water penetration.)
    • Barometric Altimeter: false
    • Sun/Moon Information: false
    • Hunt/Fish Calendar: false
  • Features
    • Location Reporting: true
    • Portable: false
    • Recording: true
    • Advanced Signal Processing: false
    • Autopilot: Not compatible
    • Hand Strap: false
    • Text-To-Speech: false (A system that converts language text into speech.)
    • MP3 Playback: false
  • Storage
    • Expandable Storage: true
    • Memory Card Slot: true
    • Memory Card Included: false (Indicates whether a memory card is included.)
  • Compatibility
    • App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
    • Computer Compatibility: Mac, Windows
    • Unit-To-Unit Transfer: true
    • Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
  • Connectivity
    • Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
    • Number Of USB Port(s): 0 (The total number of USB ports including all generations and versions.)
  • Depthfinding
    • Depthfinder: true
    • Downscan Imaging: true
    • Side Imaging: false
    • Fish Finder: true
    • Maximum Readable Freshwater Depth: 2300 feet
    • Maximum Readable Saltwater Depth: 1100 feet
    • Sonar Compatible: Built-in
    • Sonar Coverage: true
    • Sonar Frequency: Traditional: 50/77/83/200 kHz, ClearVü: 260/455/800 kHz
    • Sonar Transducer Beams: Single
  • Dimensions
    • Product Height: 8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 3.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Product Weight: 1.6 pounds (The out of box weight of the item.)
  • Power
    • Power Source: Battery-powered
  • Mounting
    • GPS Mount Type: In-dash
    • Transducer Mount Type: Transom
  • Warranty
    • Warranty - Parts: 1 year
    • Warranty - Labor: 1 year
  • Other
    • UPC: 753759185398

Set a course for your favorite fishing or boating destinations with this Garmin ECHOMAP Plus navigation system. Preloaded charts provide detailed information about U.S. coastal regions and the Great Lakes, while the QuickDraw Contours software lets you create your own charts for lakes and rivers. Featuring Garmin CHIRP ClearVu scanning sonar, this Garmin ECHOMAP Plus navigation system delivers photo-like images of fish and underwater landmarks.

  • Preloaded BlueChart g2 charts for the coastal U.S.: Use easy navigation in a wide variety of locales.
  • 4.3" color display: Bright and easy-to-read.
  • Includes transducer for Garmin CHIRP traditional sonar plus CHIRP ClearVü scanning sonar: Deliver nearly photographic images of what’s below the boat.
  • Built-in Quickdraw Contours mapping software: Instantly creates personalized fishing maps on-screen with 1’ contours as you fish.
  • Share waypoints and routes: Lets you easily share your waypoints, tracks, routes and geocaches with users of other ECHOMAP or STRIKER units.
  • Preloaded BlueChart g2 charts for the coastal U.S.: Use easy navigation in a wide variety of locales.
  • 4.3" color display: Bright and easy-to-read.
  • Includes transducer for Garmin CHIRP traditional sonar plus CHIRP ClearVü scanning sonar: Deliver nearly photographic images of what’s below the boat.
  • Built-in Quickdraw Contours mapping software: Instantly creates personalized fishing maps on-screen with 1’ contours as you fish.
  • Share waypoints and routes: Lets you easily share your waypoints, tracks, routes and geocaches with users of other ECHOMAP or STRIKER units.
Whats Included
  • Garmin ECHOMAP Plus 44cv with BlueChart g2 for U.S.
  • CV20-TM transducer
  • Power/data cable
  • Tilt/swivel mount with quick release cradle
  • Flush mount
  • Protective cover
  • Hardware
  • Documentation
  • Garmin ECHOMAP Plus 44cv with BlueChart g2 for U.S.
  • CV20-TM transducer
  • Power/data cable
  • Tilt/swivel mount with quick release cradle
  • Flush mount
  • Protective cover
  • Hardware
  • Documentation
