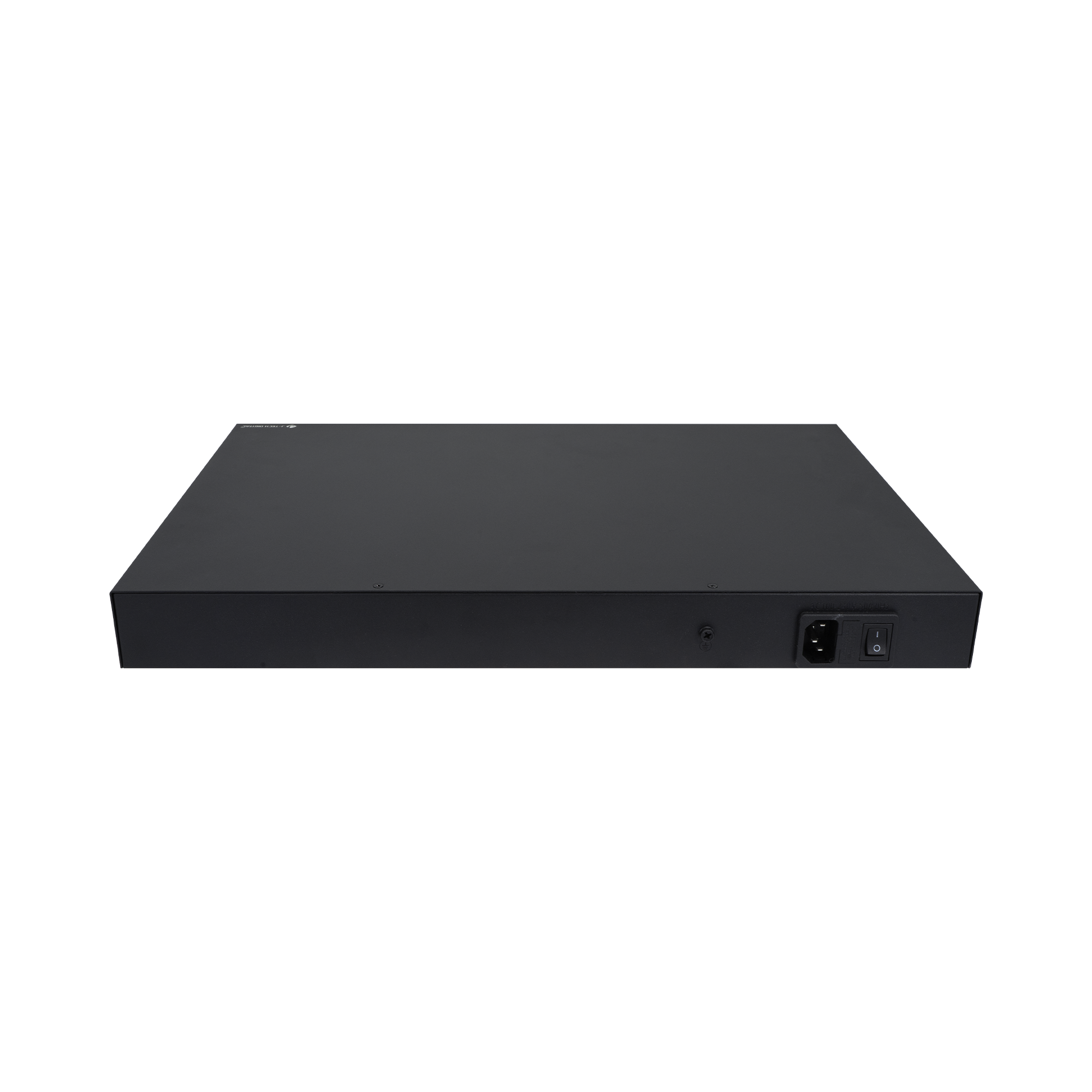

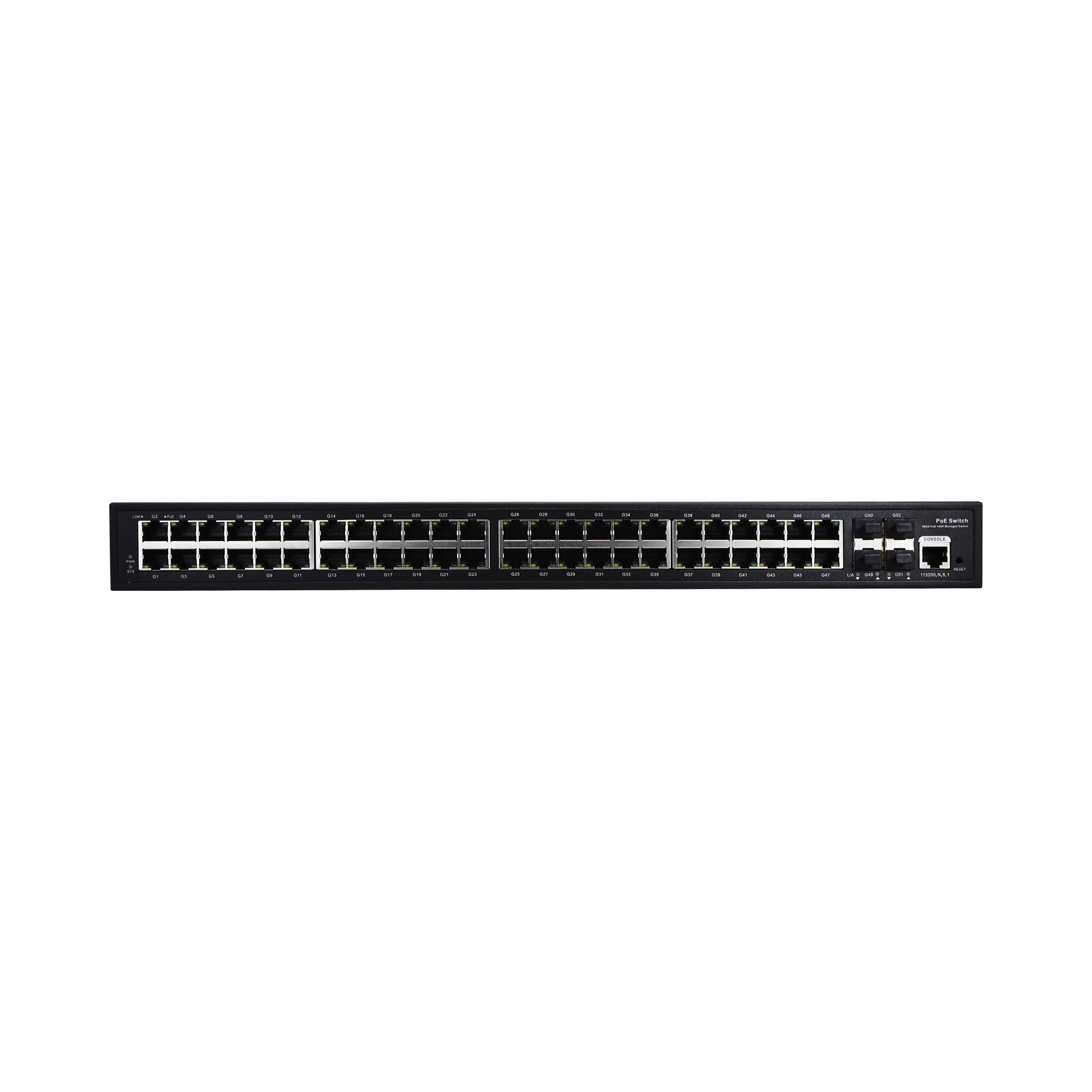

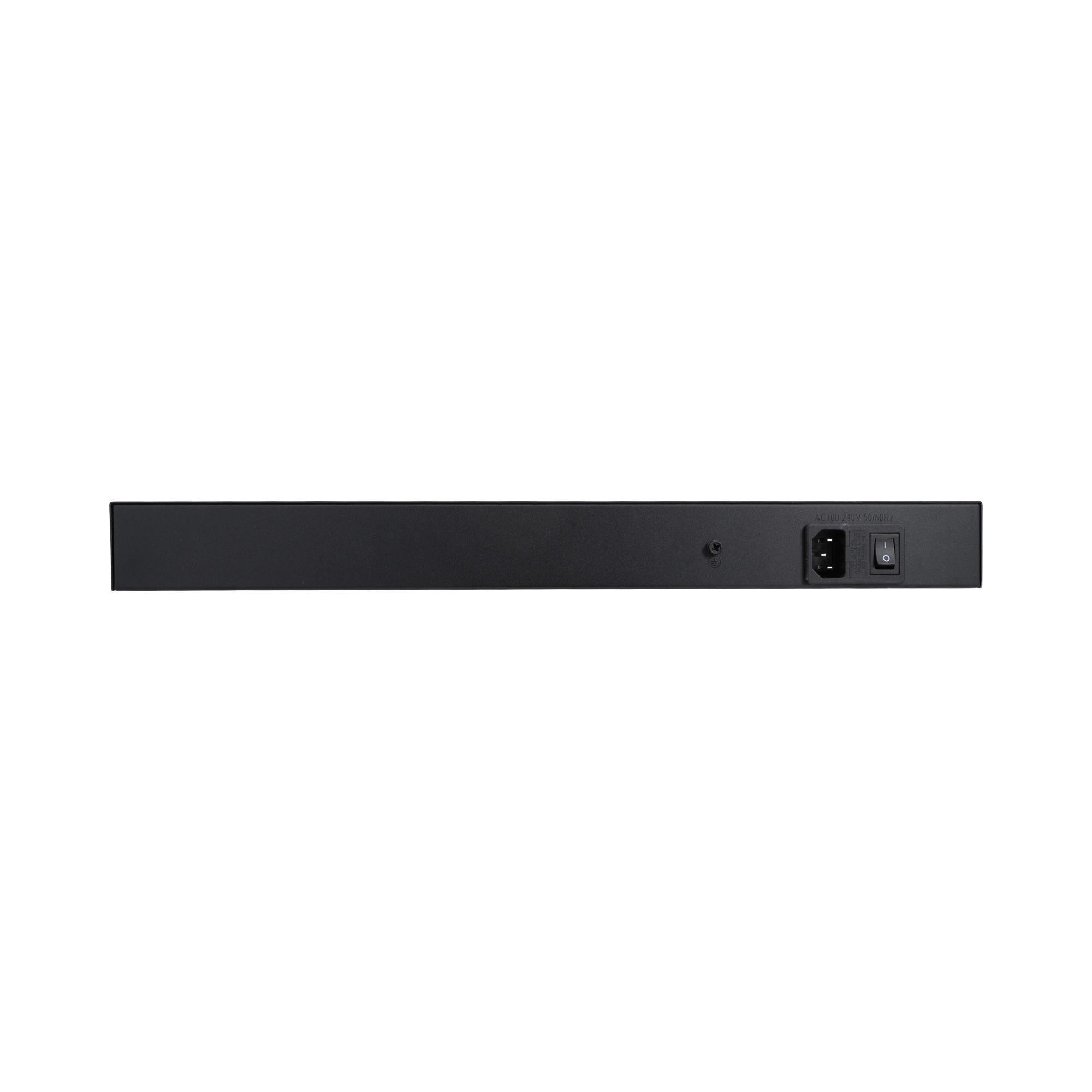

J-Tech Digital - 48-Port Gigabit Ethernet PoE Switch For AV Over IP System - Black
$7.99 shipping to
Specifications
- Number of PoE (Power over Ethernet) Ports48Form FactorRack mountable (mount kit included)Switch Management TypeWeb managedNumber of LAN Ports48
- Key Specs
- Number of PoE (Power over Ethernet) Ports: 48 (Allow connection of a single cable that provides both data connection and electrical power (Power over Ethernet).)
- Form Factor: Rack mountable (mount kit included)
- Switch Management Type: Web managed (Unmanaged switches don't require user configuration and are typically used for basic connectivity. Managed switches have more features and can be configured by the user for custom network use.)
- Number of LAN Ports: 48 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- General
- Brand: J-Tech Digital
- Model Number: JTECH-NSP48
- Product Name: J-Tech Digital 48-Port Gigabit Ethernet PoE Switch For AV Over IP System
- Color: Black
- Speed
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Dimensions
- Product Height: 3.93 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 20.87 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 15.98 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 12.13 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 810058920843
J-Tech Digital JTECH-NSP48, 48 Port PoE Gigabit Managed Ethernet Switch is designed for use with J-Tech Digital N2N transmitters and receivers for creating a flexible AV over IP setup. With necessary functions such as VLAN, IGMP Snooping, Jumbo Frames etc., route AV over IP signals with ease, and using web-based interface for control, users are able to control all aspects of the switch without any hassle.
- 48 Ethernet Ports w/ PoE Function: Equipped with 48 Gigabit Ethernet ports supporting Power over Ethernet function, and 4 Gigabit SFP uplink ports. Designed to work with J-Tech Digital AV over IP N2N units (JTD-H264-N2N-T Encoder & JTD-H264-N2N-R Decoder)

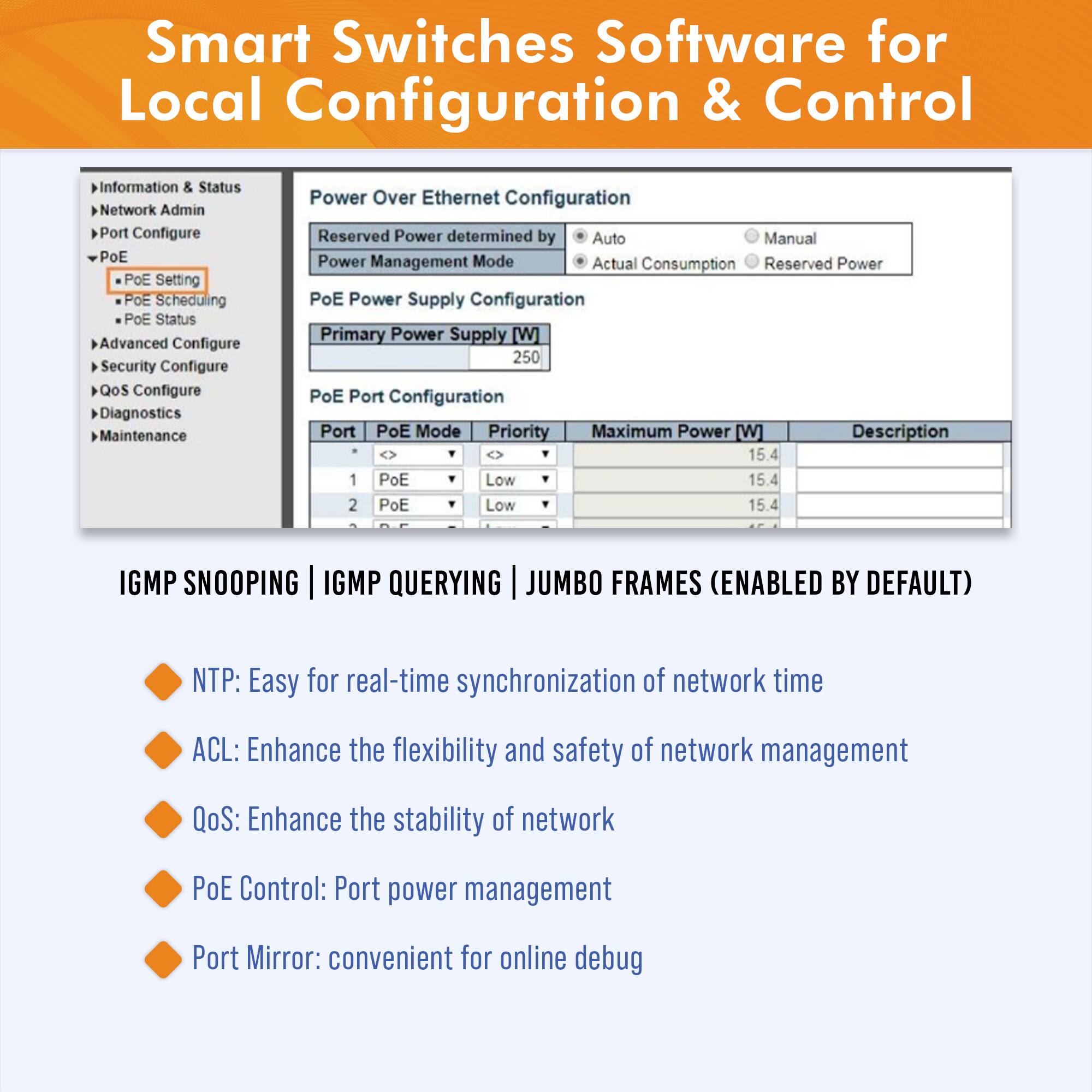

- Easy & Convenient Control: This AV Over IP Gigabit Network Switch w/ PoE features a web-based interface allows users to control the switch functions with ease. Also supports control via Telnet allowing for convenient switch management
- AV over IP Made Easy: Using J-Tech Digital N2N transmitters and receivers, create a one-many or many-many A/V distribution setup. Max power of single PoE port for IEEE 802.3af devices 12.5W
- Layer 2+ Functionality: This AV over IP gigabit network switch supports functions, such as VLAN, Port Isolation, Loop Protection, IGMP Snooping, MLD Snooping, DCHP Snooping, DHCP client, Static routing, Port Mirror, and Jumbo frames (enabled by default)
- 48 Ethernet Ports w/ PoE Function: Equipped with 48 Gigabit Ethernet ports supporting Power over Ethernet function, and 4 Gigabit SFP uplink ports. Designed to work with J-Tech Digital AV over IP N2N units (JTD-H264-N2N-T Encoder & JTD-H264-N2N-R Decoder)
- Easy & Convenient Control: This AV Over IP Gigabit Network Switch w/ PoE features a web-based interface allows users to control the switch functions with ease. Also supports control via Telnet allowing for convenient switch management
- AV over IP Made Easy: Using J-Tech Digital N2N transmitters and receivers, create a one-many or many-many A/V distribution setup. Max power of single PoE port for IEEE 802.3af devices 12.5W
- Layer 2+ Functionality: This AV over IP gigabit network switch supports functions, such as VLAN, Port Isolation, Loop Protection, IGMP Snooping, MLD Snooping, DCHP Snooping, DHCP client, Static routing, Port Mirror, and Jumbo frames (enabled by default)
Whats Included
- Network Switch, User Manual, Serial Cable, Power Supply, Mounting Kit
- Network Switch, User Manual, Serial Cable, Power Supply, Mounting Kit
