J-Tech Digital - 4K 60Hz 4x4 HDBaseT HDMI Extender with PoC (130ft) - Black
Related Item
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-MXT40
- Product Name: J-Tech Digital 4K 60Hz 4x4 HDBaseT HDMI Extender with PoC (130ft)
- Color: Black
- Features
- Maximum Video Resolution: 2160p (4K) (Maximum resolution refers to the highest number of pixels that a screen can process and display. Higher resolution signals produce more detailed video.)
- Maximum Supported Resolution (Video Passthrough): 2160p (4K) @ 60 Hz (The highest video resolution supported by the device for passing through video to another device.)
- Powered: true
- Connectivity
- Wireless: false
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI
- Maximum Transmission Range: 130 feet
- Dimensions
- Product Height: 1.73 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 8.71 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 810058921352

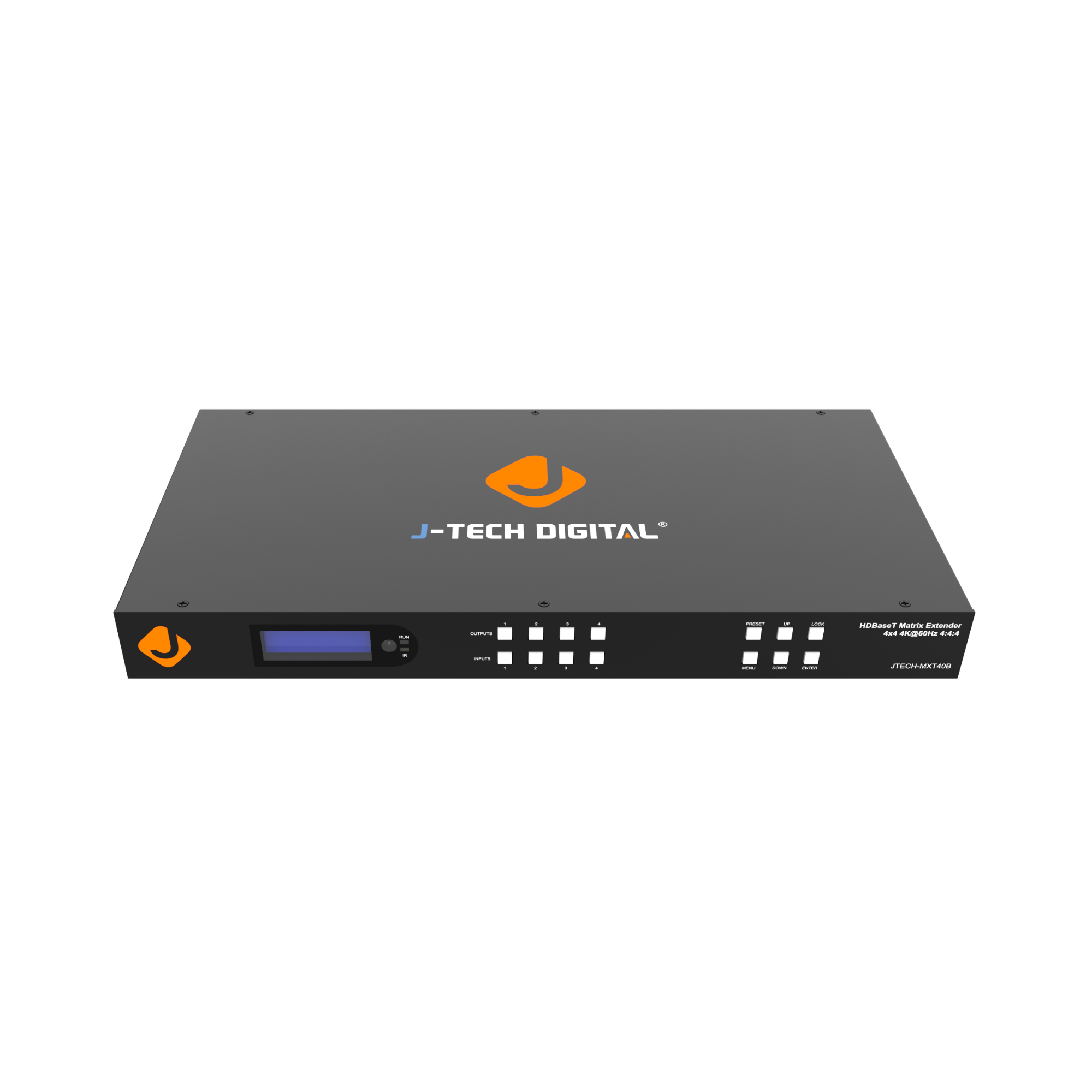

The JTECH-MXT40B is a professional 4K 60HZ UHD matrix switch extender that can extend a 4K signal up to 130ft., and a 1080P signal up to 230ft. via HDBaseT over a single CAT5e/6 cable. Included are 4 HDMI inputs, and 4 local HDMI outputs along with 4 HDBaseT outputs for 4 included receivers. Each receiver provides 2 HDMI outputs, so users can connect a total of 12 displays to one matrix. Easily distribute and route your signal using the JTECH-MXT40B via web-based interface, RS232 commands, included IR remote, front panel buttons, or by using the J-Tech Digital Control App for Android and iOS. With support for HDR and Dolby Vision, enjoy your content without making any compromises for quality. The built in PoC function allows the HDBaseT receivers to get power from the main matrix, effectively keep your setup clean without any unnecessary cables.
- 4 x HDMI Inputs | 4 x HDMI Outputs + 4 x HDBaseT Outputs: Distribute any connected source device signal to any display via single Cat5/6 ethernet cable. All output displays can share the same source or each output can be treated individually & display its own unique source signal. 4 Local HDMI outputs mirror your 4 HDBaseT outputs for a total of 12 displays (2 HDMI outputs per HDBaseT receiver)
- Long Distance Signal Transmission: Extend 4K signals up to 130ft and 1080p signals up to 230 ft. with this HDBaseT HDMi extender
- Up To 4K@60Hz Resolution Support: Local HDMI Outputs support 4K 60Hz 4:4:4 Dolby Vision signals. HDBaseT Outputs support 4K 60Hz 4:2:0. Wide range of supported digital audio formats including LPCM, DTS-HD and Dolby TrueHD. Follows HDMI 2.0 standard & HDCP 2.2/1.4 compliant
- Features Power over Cable (PoC): Included HDBaseT receiver units receive power from the main matrix device via PoC (Power Over Cable). There is no need for additional receiver power supplies and keeps installation at your display neat and tidy
- Flexible Control Options: Control the matrix switcher via the front panel buttons, RS-232 serial port, ethernet port (web GUI) or included IR remote control. Easily control your source devices and/or displays via bi-directional IR and RS-232 pass-through ports
Whats Included

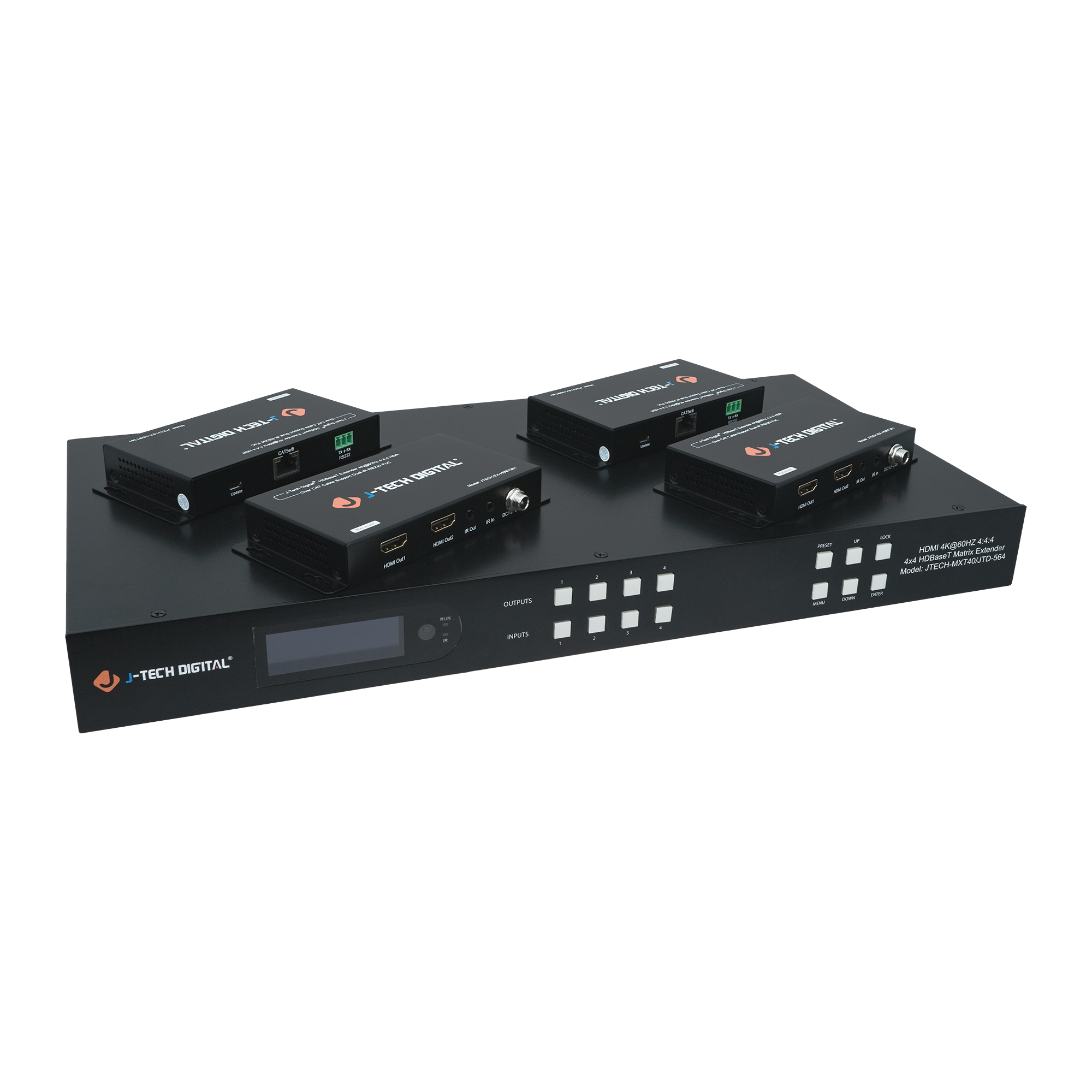

- Transmitter, Receivers, Power Adapter, User Manual, IR Cables, Mounting Kit
Product Manuals
Reviews
This product doesn't have any reviews yet.
