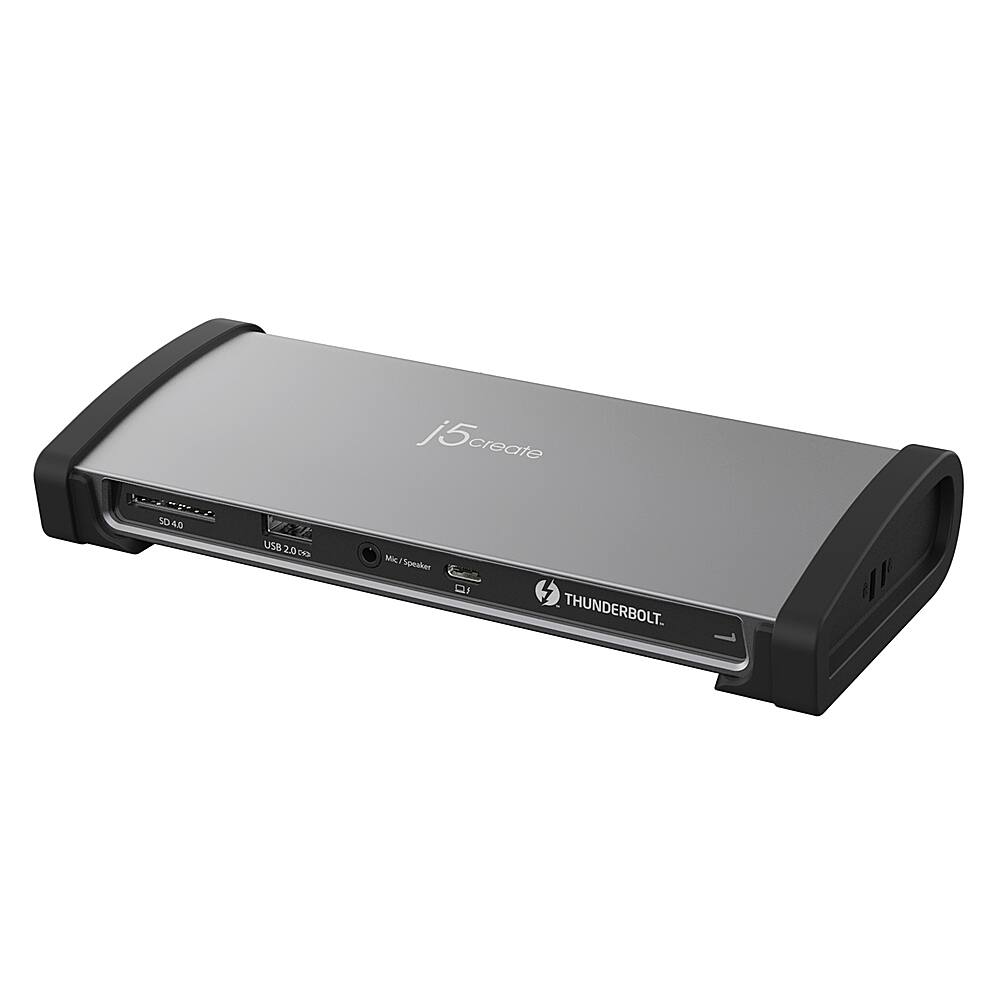

j5create - 8K Thunderbolt 4 Docking Station - Black / Space Grey

Model: JTD562
SKU: 6557678
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Maximum Number of Displays Supported: 2
    • Maximum Supported Resolution: 8K (4320p)
    • Number of DisplayPort Outputs (Total): 0
    • Number of Thunderbolt Ports (Total): 3
    • Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
  • General
    • Brand: j5create
    • Model Number: JTD562
    • Product Name: 8K Thunderbolt 4 Docking Station
    • Color: Black / Space Grey
  • Display
    • Maximum Number of Displays Supported: 2
    • Maximum Supported Resolution: 8K (4320p)
    • Maximum Supported Refresh Rate: 60Hz (The number of frames per second the device can support, expressed as a frequency. Higher rates help produce smooth, seamless pictures.)
  • Ports
    • Display Connector(s): 3 x Thunderbolt 4 (The number and type of connectors used to connect to an external display.)
    • Number of DisplayPort Outputs (Total): 0
    • Number of HDMI Ports (Total): 0
    • Number of Thunderbolt Ports (Total): 3
    • Number of VGA Ports: 0 (VGA (Video Graphics Adapter or Video Graphics Array) is a display standard that transmits via analog signals. This type of interface is typically used to connect a computer to a display device such as a monitor, projector, or TV.)
    • Number Of Ethernet Ports: 1
    • Number of USB Ports (Total): 4
    • USB Ports: 3 x USB-A 3.2, 1 x USB-A 2.0 (The number and type of USB ports the product has.)
    • Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
    • Microphone Input: true (The device features an input for connecting an external microphone.)
    • Memory Card Slot: true
    • Memory Card Type: Secure Digital High Capacity (SDHC)
  • Power
    • Powered: true
    • Power Supply Included: true
    • Power Supply Input: DC Jack
    • Maximum Input Power: 135 watts (The maximum amount of power allowed to come into the device.)
    • Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
    • Power Supply Output: DC Jack (The connector type(s) used by the device to send electrical power to another device.)
    • Maximum Output Power: 96 watts (The maximum amount of power produced or allowed to flow through the device.)
  • Compatibility
    • System Requirements: Available Thunderbolt 4 port. If connected to a USB 3.2 host port or under, or if using a USB 3.2 host cable or under, performance or functionality may be limited. (The software that a product must have for it to be able to integrate with another product.)
    • Brand Compatibility: Apple, Microsoft
    • Model Compatibility: MacBook Pro 2016 and later, Surface Pro 8, Surface laptop studio, 2021 iMac M1, 2019/2017 iMac , iMac Pro , 2021 iPad Pro M1
  • Features
    • Material: Aluminum
    • Indicator Light(s): true
  • Dimensions
    • Product Height: 1.21 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Length: 7.64 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
    • Product Width: 3.32 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Weight: 0.9 ounces (The out of box weight of the item.)
  • Warranty
    • Warranty - Parts: 2 year limited
    • Warranty - Labor: 2 year limited
  • Other
    • UPC: 847626006319

This Thunderbolt 4 Docking Station turns your Mac or Windows laptop into a full workstation with three Thunderbolt 4 outputs. Supports resolution up to dual display 4K or one display at 8K. Great for content creators, professionals, and enthusiast that require high resolution displays for the best visual experience. With 96W Power Delivery, three USB 3.2 ports, and a USB-C port, this docking station is perfect for your MacBook , or Windows laptop that support Thunderbolt 4 allowing you to add high-speed ports to your laptop. This Thunderbolt 4 docking station also has an RJ45 Gigabit Ethernet port, SD 4.0 memory card reader/writer, and combo audio jack for added flexibility.

  • 11-in-1 Functions: Maximize productivity with Thunderbolt 4 40Gbps, USB-C Power Delivery 96W, USB 3.2 Type-A Gen 2 10Gbps, USB 2.0 Type-A with BC1.2 fast charging, SD 4.0 UHS-II 312 MB/s memory card, 3.5 mm combo audio jack, RJ45 Gigabit Ethernet.
  • Comes With Two 4K DisplayPort Cables: With refresh rates of 4K 144 Hz and 8K 60 Hz, you can get the most out of your movie and gaming experiences.
  • Thunderbolt Daisy Chain Support: Equipped with 3 Thunderbolt 4 ports with 40Gbps ultra-high speeds and let you create 3 separate daisy chains.
  • High-Speed Charging: PD 96W and USB BC1.2 quick-charging capabilities for your laptop and mobile device.
  • Wide Compatibility: With an Intel Thunderbolt 4 chip specifically designed for MacBook Pro 2021 and Thunderbolt 4 laptops.
  • 11-in-1 Functions: Maximize productivity with Thunderbolt 4 40Gbps, USB-C Power Delivery 96W, USB 3.2 Type-A Gen 2 10Gbps, USB 2.0 Type-A with BC1.2 fast charging, SD 4.0 UHS-II 312 MB/s memory card, 3.5 mm combo audio jack, RJ45 Gigabit Ethernet.
  • Comes With Two 4K DisplayPort Cables: With refresh rates of 4K 144 Hz and 8K 60 Hz, you can get the most out of your movie and gaming experiences.
  • Thunderbolt Daisy Chain Support: Equipped with 3 Thunderbolt 4 ports with 40Gbps ultra-high speeds and let you create 3 separate daisy chains.
  • High-Speed Charging: PD 96W and USB BC1.2 quick-charging capabilities for your laptop and mobile device.
  • Wide Compatibility: With an Intel Thunderbolt 4 chip specifically designed for MacBook Pro 2021 and Thunderbolt 4 laptops.
Whats Included
  • 1 - JTD562 Thunderbolt 4 Docking Station
  • 1 - 135W AC adapter with up to 96W PD charge
  • 1 - Thunderbolt 4 to Thunderbolt 4 Cable (2.3 ft / 70 cm)
  • 2 - USB-C to 4K DisplayPort Cable (JCA141)
  • 1 - Quick Installation Guide (QIG)
  • 1 - JTD562 Thunderbolt 4 Docking Station
  • 1 - 135W AC adapter with up to 96W PD charge
  • 1 - Thunderbolt 4 to Thunderbolt 4 Cable (2.3 ft / 70 cm)
  • 2 - USB-C to 4K DisplayPort Cable (JCA141)
  • 1 - Quick Installation Guide (QIG)
