j5create - USB-C® Dual HDMI™ 4K60 Mini Dock for Windows, macOS, Chrome OS - Space Gray
j5create - USB-C® Dual HDMI™ 4K60 Mini Dock for Windows, macOS, Chrome OS - Space Gray
- Insignia™ - 6' 4K Ultra HD HDMI Cable - Black$24.99
Related Item
About This Item
- Key Specs
- Maximum Number of Displays Supported: 2
- Maximum Supported Resolution: 4K (2160p)
- Number of DisplayPort Outputs (Total): 0
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- General
- Brand: j5create
- Model Number: JCD396
- Product Name: USB-C® Dual HDMI™ 4K60 Mini Dock for Windows, macOS, Chrome OS
- Color: Space Gray
- Display
- Maximum Number of Displays Supported: 2
- Maximum Supported Resolution: 4K (2160p)
- Maximum Supported Refresh Rate: 144Hz (The number of frames per second the device can support, expressed as a frequency. Higher rates help produce smooth, seamless pictures.)
- Ports
- Display Connector(s): 2 x HDMI 2.1 (The number and type of connectors used to connect to an external display.)
- Number of DisplayPort Outputs (Total): 0
- Number of HDMI Ports (Total): 2
- Number of VGA Ports: 0 (VGA (Video Graphics Adapter or Video Graphics Array) is a display standard that transmits via analog signals. This type of interface is typically used to connect a computer to a display device such as a monitor, projector, or TV.)
- Number of USB Ports (Total): 4
- USB Ports: 2 x USB-C 3.0, 2 x USB-A 3.0 (The number and type of USB ports the product has.)
- Power
- Powered: true
- Power Supply Input: USB-C
- Maximum Input Power: 100 watts (The maximum amount of power allowed to come into the device.)
- Maximum Input Voltage: 20 volts
- Maximum Input Amperage: 5 amperes (The maximum amount of amperage allowed to come into the device.)
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- Power Supply Output: USB-C (The connector type(s) used by the device to send electrical power to another device.)
- Maximum Output Power: 100 watts (The maximum amount of power produced or allowed to flow through the device.)
- Maximum Output Voltage: 20 volts
- Maximum Output Amperage: 4.6 amperes (The maximum amount of amperage produced or allowed to flow through the device.)
- Compatibility
- Maximum Data Speed: 5 megabits per second
- System Requirements: Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0. (The software that a product must have for it to be able to integrate with another product.)
- Brand Compatibility: Chrome, Mac, Windows
- Model Compatibility: Windows/ macOS/ Chrome OS Compatible
- Dimensions
- Product Height: 7.87 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 5.43 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 0.63 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.19 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 year limited
- Warranty - Labor: 2 year limited
- Other
- UPC: 847626008078

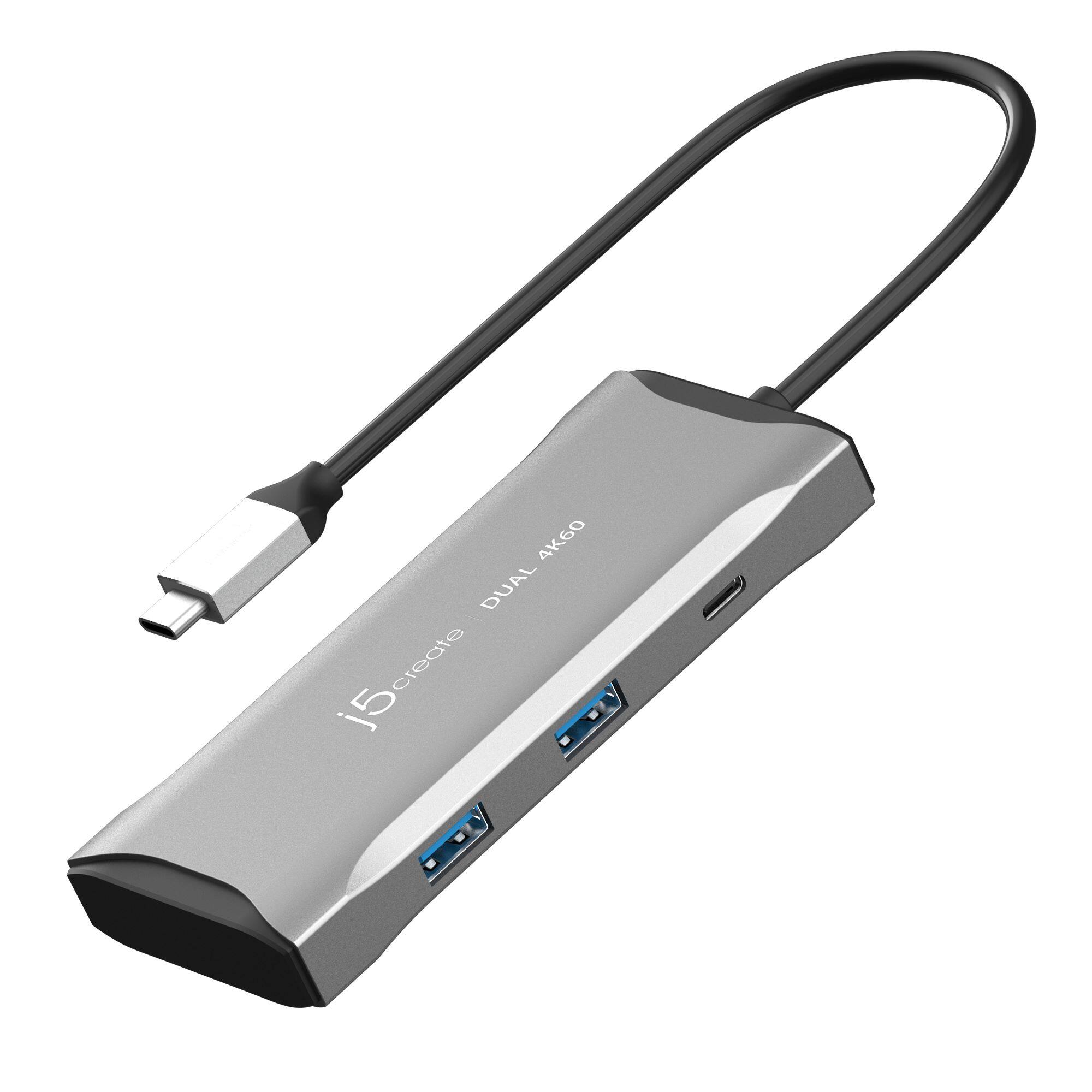

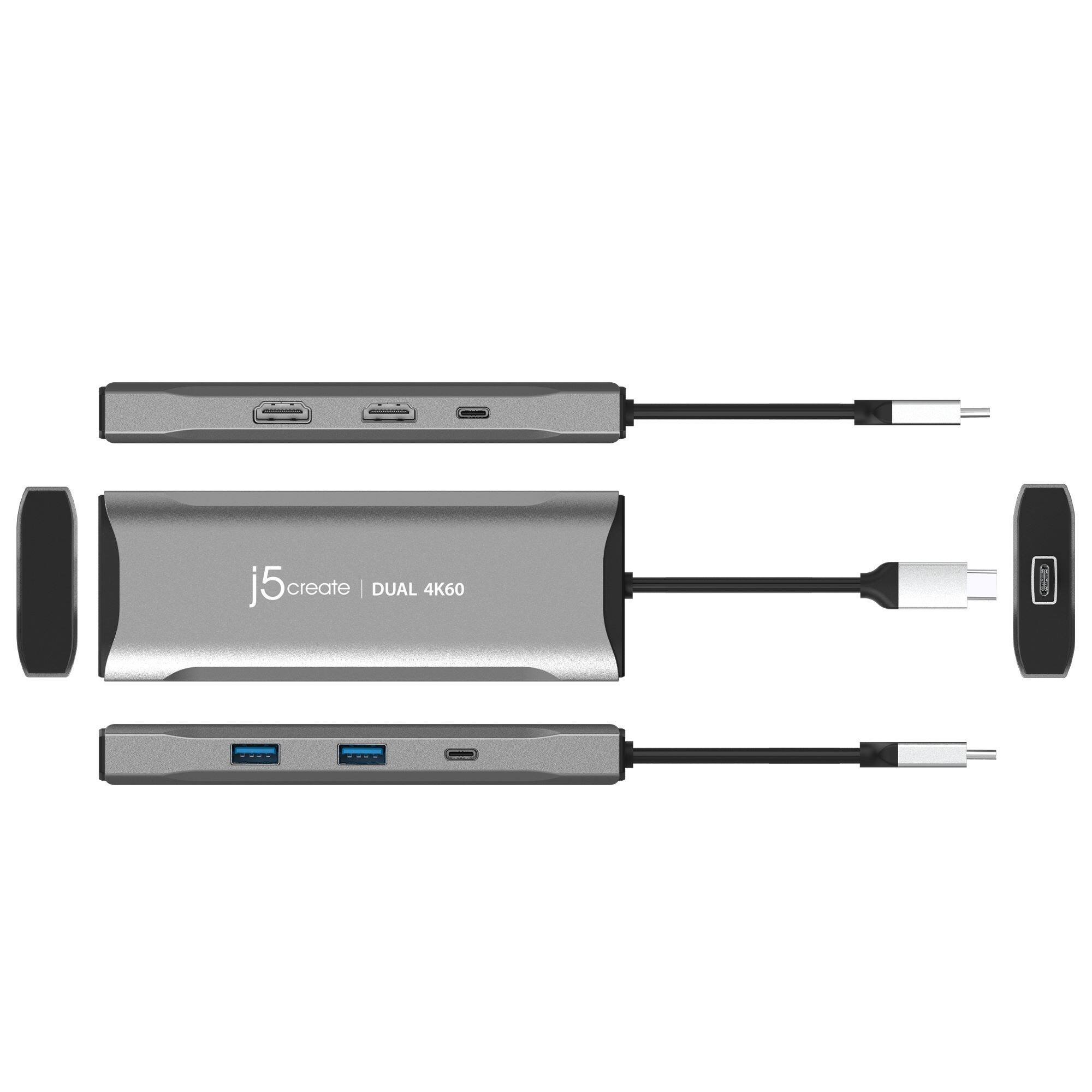

Featuring all the ports you need, the USB-C® Dual 4K60 Mini Dock. This USB-C® mini dock supports DisplayPort™ 1.4 and Multi-Stream Transport (MST), giving you the ability to create a dual 4K workstation with two HDMI™ outputs. It includes three USB™ SuperSpeed 5Gbps ports (1 USB-C® and 2 USB™ Type-A) for peripheral connectivity or downstream charging. It also supports Power Delivery 3.0, which provides up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.
- Resolution: Features Dual 4K HDMI™ outputs, supporting video resolutions up to 3840 x 2160 at 60 Hz. Maximize your gaming experience with 1920 x 1080 @ 144 Hz refresh rate. Extend one display up to 3840 x 2160 @ 60 Hz, easily switch to a higher refresh rate of 2560 x 1440 @ 120 Hz via HDMI™ port to enjoy your gaming under Windows® OS.

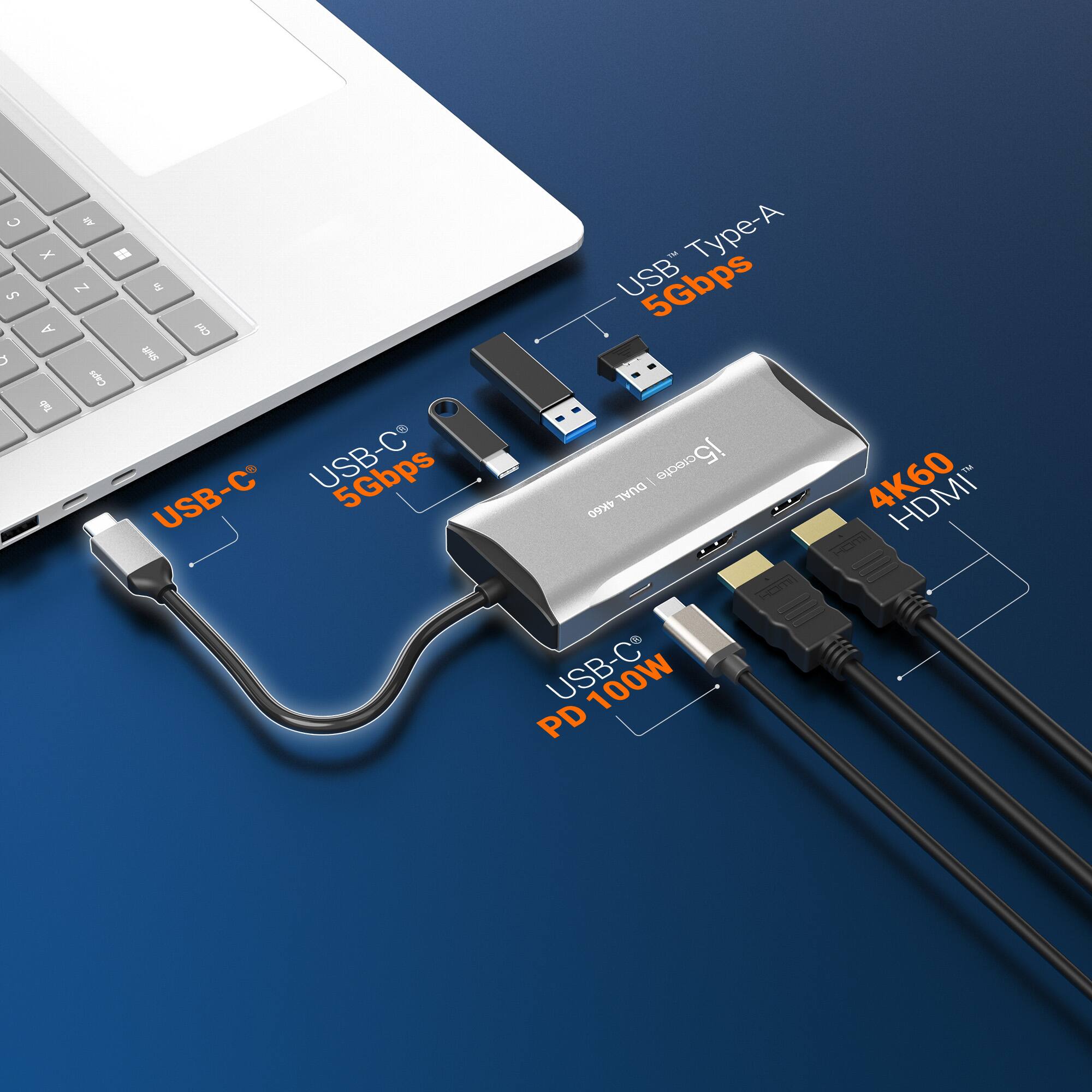

- Connection: Three SuperSpeed USB™ 5Gbps downstream ports (1 USB-C® and 2 Type-A) to connect peripherals.

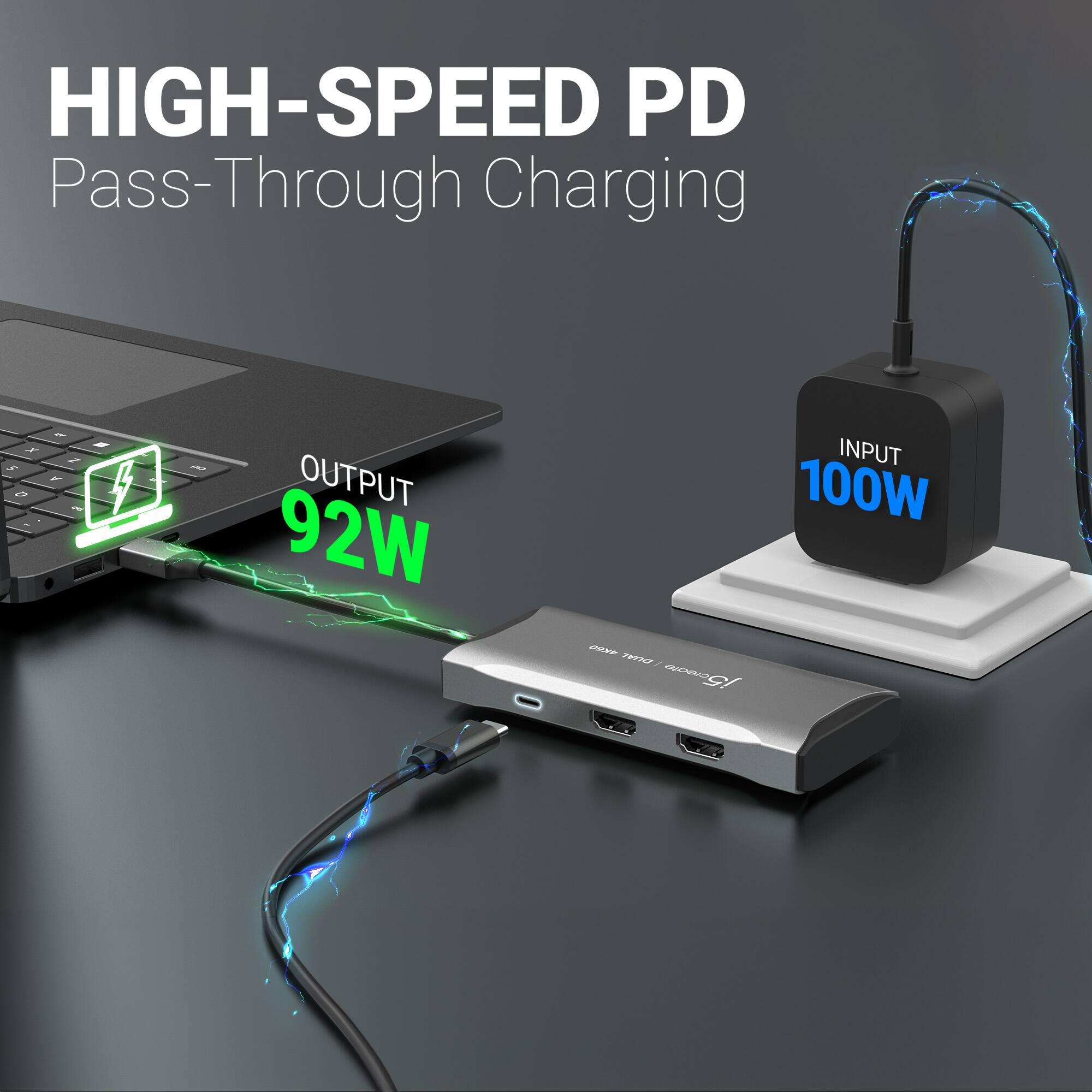

- Power Delivery: Charge and power a connected laptop and peripherals with 100W Power Delivery.
- Plug-and-play: Plug-and-play, no driver installation required.
- Resolution: Features Dual 4K HDMI™ outputs, supporting video resolutions up to 3840 x 2160 at 60 Hz. Maximize your gaming experience with 1920 x 1080 @ 144 Hz refresh rate. Extend one display up to 3840 x 2160 @ 60 Hz, easily switch to a higher refresh rate of 2560 x 1440 @ 120 Hz via HDMI™ port to enjoy your gaming under Windows® OS.
- Connection: Three SuperSpeed USB™ 5Gbps downstream ports (1 USB-C® and 2 Type-A) to connect peripherals.
- Power Delivery: Charge and power a connected laptop and peripherals with 100W Power Delivery.
- Plug-and-play: Plug-and-play, no driver installation required.
- Resolution: Features Dual 4K HDMI™ outputs, supporting video resolutions up to 3840 x 2160 at 60 Hz. Maximize your gaming experience with 1920 x 1080 @ 144 Hz refresh rate. Extend one display up to 3840 x 2160 @ 60 Hz, easily switch to a higher refresh rate of 2560 x 1440 @ 120 Hz via HDMI™ port to enjoy your gaming under Windows® OS.
- Connection: Three SuperSpeed USB™ 5Gbps downstream ports (1 USB-C® and 2 Type-A) to connect peripherals.
- Power Delivery: Charge and power a connected laptop and peripherals with 100W Power Delivery.
- Plug-and-play: Plug-and-play, no driver installation required.
Whats Included
- 1 - JCD396 USB-C® HDMI™ Dual 4K60 Mini Dock
- 1 - Quick Installation Guide (QIG)
- 1 - JCD396 USB-C® HDMI™ Dual 4K60 Mini Dock
- 1 - Quick Installation Guide (QIG)
- 1 - JCD396 USB-C® HDMI™ Dual 4K60 Mini Dock
- 1 - Quick Installation Guide (QIG)
Product Manuals
Disclaimers
- The host device must support Multi-Stream Transport (MST) and DisplayPort™ 1.4 to achieve triple-monitor configuration.
- The host device must support DisplayPort™ 1.4 to achieve 4K resolution at 60 Hz.
- The host device must support Multi-Stream Transport (MST) and DisplayPort™ 1.4 to achieve triple-monitor configuration.
- The host device must support DisplayPort™ 1.4 to achieve 4K resolution at 60 Hz.
- The host device must support Multi-Stream Transport (MST) and DisplayPort™ 1.4 to achieve triple-monitor configuration.
- The host device must support DisplayPort™ 1.4 to achieve 4K resolution at 60 Hz.
Q: How many USB ports does this mini dock have in total?
A: This mini dock has a total of four USB ports.
Q: Are there any HDMI ports on this mini dock?
A: Yes, this mini dock has two HDMI ports.
Q: Does this mini dock support power pass through?
A: Yes, this mini dock supports power pass through.
Q: Can this device charge a connected laptop?
A: Yes, this device can charge a connected laptop with 100W Power Delivery.
Q: What is the maximum power output of this device?
A: The maximum power output of this device is 100 watts.
Q: Does this mini dock require any driver installation?
A: No, this mini dock is plug-and-play and does not require any driver installation.
Q: What is the maximum refresh rate supported by this device?
A: The maximum refresh rate supported by this device is 144Hz.
