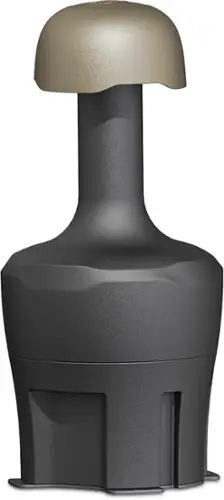

JBL - GSB12 12" 1800W 6 Ohm and 70V/100V In-Ground Landscape Subwoofer, (Each) - Tan
Color
TanRelated Item
Specifications
- Speaker TypeLandscapeRMS Power450 watts
- Key Specs
- Speaker Type: Landscape
- RMS Power: 450 watts (The maximum amount of continuous power the device is able to handle.)
- General
- Brand: JBL
- Model Number: JBL-GSB12-TN
- Product Name: GSB12 12" 1800W 6 Ohm and 70V/100V In-Ground Landscape Subwoofer, (Each)
- Color: Tan
- Audio
- Speaker Type: Landscape
- RMS Power: 450 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 1800 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 6 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 30 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 0.12 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 85.5 decibels
- Tweeter Type: Not Applicable
- Woofer Type: Cone
- Number of Speakers: 1
- Woofer Size: 12 inches
- Connectivity
- Speaker Connectivity: Wired
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Audio Only Inputs: No audio only inputs
- Network Connector(s): No network connectors
- Speaker Wire Connection Type: Banana Jack/Screw Terminals
- Features
- Indoor Or Outdoor Use: Outdoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions

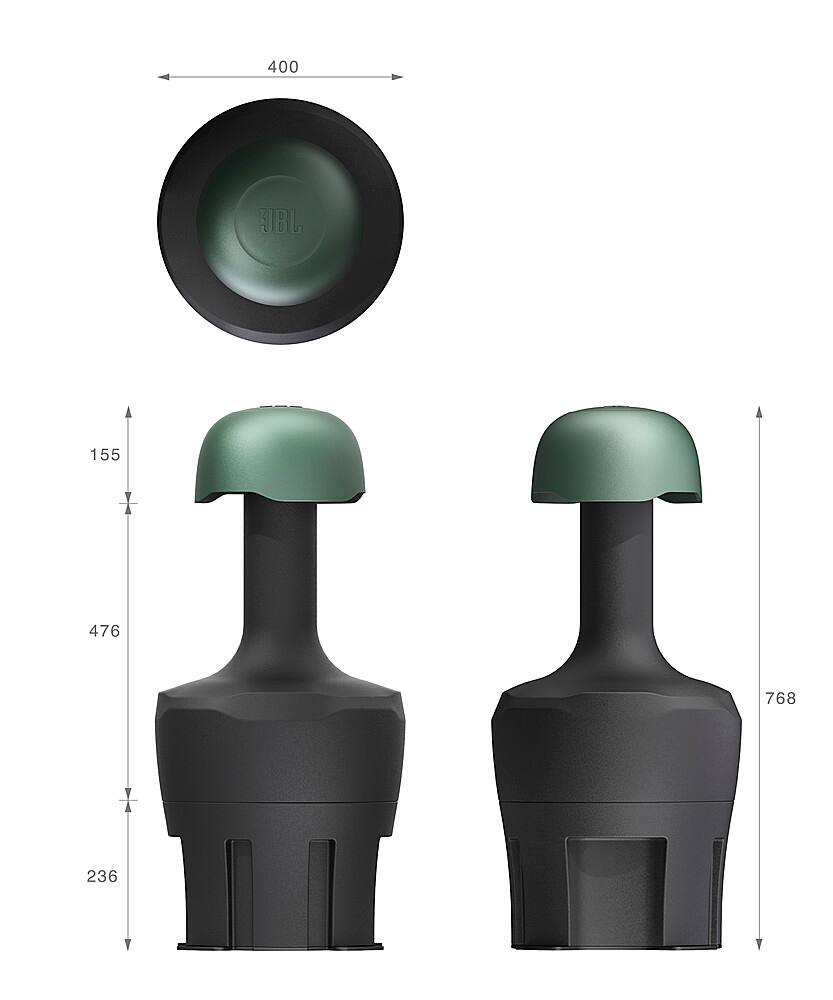

- Product Height: 33.2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 15.8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15.8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 35.7 pounds (The out of box weight of the item.)
- Material
- Woofer Material: [Polypropylene]
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 691991037825
The JBL GSB12 in-ground 12-inch landscape subwoofer augments the low-frequency performance of JBL GSF full-range landscape speakers to provide rich, full-range sound in lawn and garden areas, pool areas at home, hospitality, corporate and retail spaces.The GSB12 focuses on fidelity, with true subwoofer extension down to 30 Hz and a steep, multiple-slope lowpass filter for superior sound. Its premium grade, 200-watt subwoofer-band transformer allows use in 70V/100V systems or can be connected for low-impedance direct operation. Pair up with landscape outdoor ground-stake or surface mount GSF6 series speakers.
- Power Rating: 900 W continuous program (2 hrs) 450 W (1800 W peak), continuous pink noise (2 hrs) 300 W (1200 W peak), continuous pink noise (100 hrs).
- Design: This sleek, ultra-low-profile speaker—winner of international design awards for industrial design excellence and installs underground, with only the audio port visible. It’s designed to withstand the elements: its chamber is oriented directly below the audio port to prevent accidental damage from landscaping, which can be a problem with side-located chambers. Grab handles allow easy installation and tabs secure the subwoofer to blocks or anchors.
- Transducer: 305 mm (12”) polypropylene driver, 50mm (1.5”) voice coil on Kapton former.
- Multi-Tap 200W Transformer: Low-impedance ohm direct operation, plus premium-grade subwoofer-band transformer for use in 70V/100V systems.
- Transformer Taps: 70V: 200 W, 100 W, 50 W 100V: 200 W, 100 W.
- IP Rating: IP-66 rating per IEC529 (dust protected and protected against strong jets of water). Exceeds MilSpec 810 for humidity, salt spray, temperature, & UV. Passes Mil-Std-202F for salt spray.
- Expandable: Pairs well with JBL GSF6 and GSF3 in-ground landscape speakers.
- Installation Note: Installation must be done by qualified persons using safe installation standards. The installer is responsible for proper selection and use of mounting hardware and processes to install the speakers in a safe manner.
Whats Included
- 1 In-Ground subwoofer
- (7) Gel-filled wire nuts
Product Manuals
Q: Can the subwoofer be used with 70V/100V systems?
A: This subwoofer's premium grade, 200-watt subwoofer-band transformer allows use in 70V/100V systems.
Q: What is the minimum frequency response of the subwoofer?
A: The minimum frequency response of the subwoofer is 30 hertz.
Q: What is the peak power handling of the subwoofer?
A: The peak power handling of the subwoofer is 1800 watts.
Q: What are the dimensions of the subwoofer?
A: The JBL GSB12 subwoofer has a width of 15.8 inches, a depth of 15.8 inches, and a height of 33.2 inches.
Q: Are there any other speakers that can be paired with this subwoofer?
A: Yes, this subwoofer can be paired with landscape outdoor ground-stake or surface mount GSF6 series speakers.
Q: What is the minimum frequency response of the subwoofer?
A: The minimum frequency response of the subwoofer is 30 hertz.
Q: Can the subwoofer be connected for low-impedance direct operation?
A: Yes, the subwoofer can be connected for low-impedance direct operation.
Q: What is the peak power handling of the subwoofer?
A: The peak power handling of the subwoofer is 1800 watts.
Compare similar products
The JBL GSB12 in-ground 12-inch landscape subwoofer augments the low-frequency performance of JBL GSF full-range landscape speakers to provide rich, full-range sound in lawn and garden areas, pool areas at home, hospitality, corporate and retail spaces.The GSB12 focuses on fidelity, with true subwoofer extension down to 30 Hz and a steep, multiple-slope lowpass filter for superior sound. Its premium grade, 200-watt subwoofer-band transformer allows use in 70V/100V systems or can be connected for low-impedance direct operation. Pair up with landscape outdoor ground-stake or surface mount GSF6 series speakers.
Bring exceptional sound outdoors with the Sonance MAG6.1 Landscape Outdoor Speaker System, powered by Sonos. This 6.1-channel outdoor speaker system combines six satellite landscape speakers and a discreet in-ground subwoofer to deliver powerful, evenly balanced audio across patios, gardens, and poolside spaces up to 1,500 sq ft. Designed to blend beautifully into natural surroundings, the system offers the immersive clarity of an indoor surround setup with the durability and weather resistance expected from a premium outdoor sound system. Whether you're entertaining guests or enjoying a quiet evening under the stars, the MAG6.1 System fills your space with rich, detailed audio while staying virtually hidden in plain sight. Seamlessly stream your favorite content using Sonos wireless control and experience a refined alternative to a Bluetooth outdoor speaker system that’s built to outperform expectations.
The Control 85M Mushroom-Style Landscape Speaker is a two-way highly weather resistant speaker providing 360 degree coverage of the listening space. A highlighted mid-range presence cuts through in high ambient environments for especially clear paging and voice content while providing excellent full-range sound quality. Designed to be mounted on or in the ground, the Control 85M can be used in a wide variety of applications including landscaping of homes, pool areas, hospitality and leisure venues, entranceways, and anywhere a high quality music and/ or paging speaker landscape speaker is required. Its compact size allows the speaker to blend into landscaping and shrubbery, while its tough hunter green polyethylene enclosure resists abuse from lawn care equipment and the elements. The enclosure color extends throughout the material so the speaker will maintain color even when scraped or scratched.
Designed and engineered in our world-famous Acoustic Engineering Center of Excellence in Northridge, California, Stage 280F is the flagship of the new JBL Stage Series. This floorstanding loudspeaker features a 2.5-way design with Next Generation patented High-Definition Imaging (HDI) waveguide geometry, 1-inch (25mm) Anodized Aluminum dome tweeter, and dual 8-inch (200mm) Polycellulose cone woofers that provide deep, signature JBL bass.
| Pros for JBL - GSB12 12" 1800W 6 Ohm and 70V/100V In-Ground Landscape Subwoofer, (Each) - Tan | |||
|---|---|---|---|
| There were no pros for this product— | Sound Quality, Bass, Ease of use, Installation, Volume | There were no pros for this product— | Sound Quality, Bass, Size, Tweeter |
| Cons for JBL - GSB12 12" 1800W 6 Ohm and 70V/100V In-Ground Landscape Subwoofer, (Each) - Tan | |||
| There were no cons for this product— | Size, Speaker Wire | There were no cons for this product— | There were no cons for this product— |
Specs
Reviews
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Hits hard with good amp
iI'm using a cheap 100W subwoofer amplifier between this sub and an old Yamaha 5.1 receiver. Anything less than 100 watts isn't going to push it hard enough. I'm running this along with 4 small 3way outdoor speakers and sound coverage is great. For best coverage from one of these bury it next to a wall. Price seems high for one 12"sub in a speaker box. But it's less than most competition.
This review is from JBL - GSB12 12" 1800W 6 Ohm and 70V/100V In-Ground Landscape Subwoofer, (Each) - Green
Posted by Teksun
