Jensen - JA2CH Class-D 2-Channel Amplifier | Car, Motorcycle, ATV/UTV | 600W Peak | Compact Design | Bridegeable - Black
Jensen - JA2CH Class-D 2-Channel Amplifier | Car, Motorcycle, ATV/UTV | 600W Peak | Compact Design | Bridegeable - Black
Reviews coming soon
FREE shipping to
Specifications
- Continuous Watts x Channel @ Ohms240 Watts RMS x 1 channels @ 4 ohms (bridged)Maximum Watts x Channel @ Ohms120 Watts RMS x 2 channelsAmplifier ClassDNumber Of Channels2Bass BoostVariableBridgeableYes
- Key Specs
- Continuous Watts x Channel @ Ohms: 240 Watts RMS x 1 channels @ 4 ohms (bridged)
- Maximum Watts x Channel @ Ohms: 120 Watts RMS x 2 channels (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 2
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Variable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- General
- Brand: Jensen
- Model Number: JA2CH
- Product Name: Jensen JA2CH Class-D 2-Channel Amplifier | Car, Motorcycle, ATV/UTV | 600W Peak | Compact Design | Bridegeable
- Color: Black
- Mounting Hardware Included: true
- Audio Power
- Continuous Watts x Channel @ Ohms: 240 Watts RMS x 1 channels @ 4 ohms (bridged)
- Total Power Handling RMS: 240 watts
- Watts Per Channel RMS: 80 watts
- Maximum Watts x Channel @ Ohms: 120 Watts RMS x 2 channels (This is the maximum load the speaker, subwoofer or amp can drive.)
- Total Power Handling Maximum: 600 watts
- Watts Per Channel Maximum: 240 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 2
- Minimum Frequency Response: 20 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 20 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Signal-to-Noise Ratio (SNR): 0.15 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Variable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- MOSFET Power Supply: true (A specific type of power supply with the advantages of high switching speed and efficiency at low voltages.)
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Remote Control Included: No
- Marine: false
- Input
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Dimensions
- Product Height: 9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 4 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: None
- Compatibility
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 827204121788
JENSEN JA2CH Class-D 2-Channel Car Audio Amplifier | Motorcycle, ATV/UTV, Golf Cart Audio | 600 Watts Peak Power | Efficient Compact Design | Bridegeable
- CLASS-D 2-CHANNEL AMPLIFIER: This 2-channel amplifier brings efficiency and performance to your audio system. It features a Class-D design, offering selectable crossover options for versatility in various sound setups. Whether used for stereo sound or bridged for subwoofer applications, this amplifier delivers clean power and a reliable performance.
- CLASS-D EFFICIENT DESIGN: Produces 600 Watts peak power, 80 Watts RMS x 2 channel @ 4 ohms , 120 Watts RMS x 2 channel @ 2 ohms, and 240 Watts RMS x 1 channel @ 4 ohms (Bridged).
- HIGH PASS & LOW PASS CROSSOVERS & BASS BOOST: When constructing your Jensen amplifier, we added a low pass variable crossover plus a variable bass boost at 45Hz.
- SHORT CIRCUIT PROTECTION: Given the vast amounts of dynamic power in your mono amplifier we built-in a thermal DC offset safety protection.

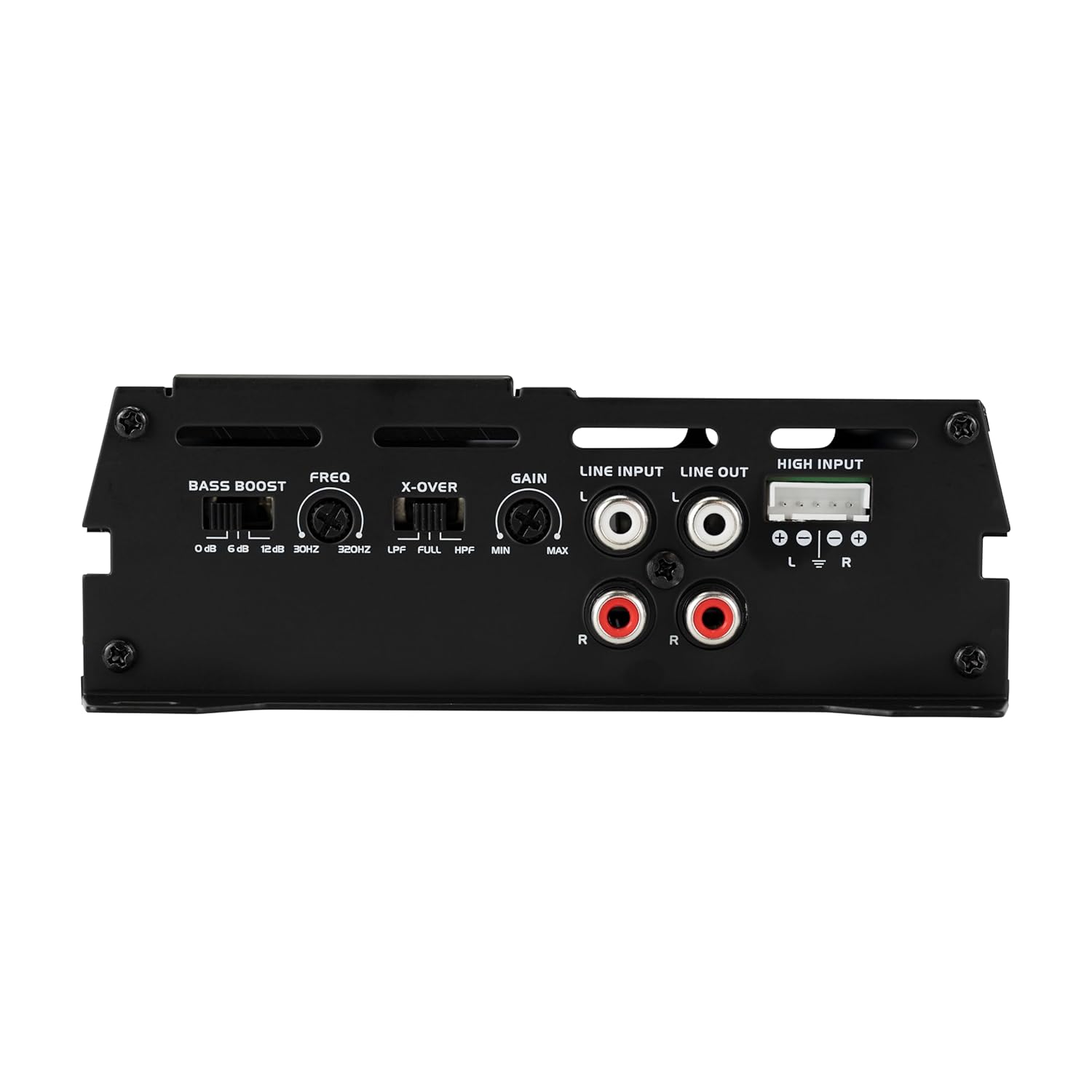

- ADDITIONAL FEATURES INCLUDE: Adjustable bass boost at 50Hz, high level input (speaker wire), low level input (RCA), RCA pass-thru outputs and selectable high pass/low pass/full range crossovers.
Whats Included
- JA2CH
