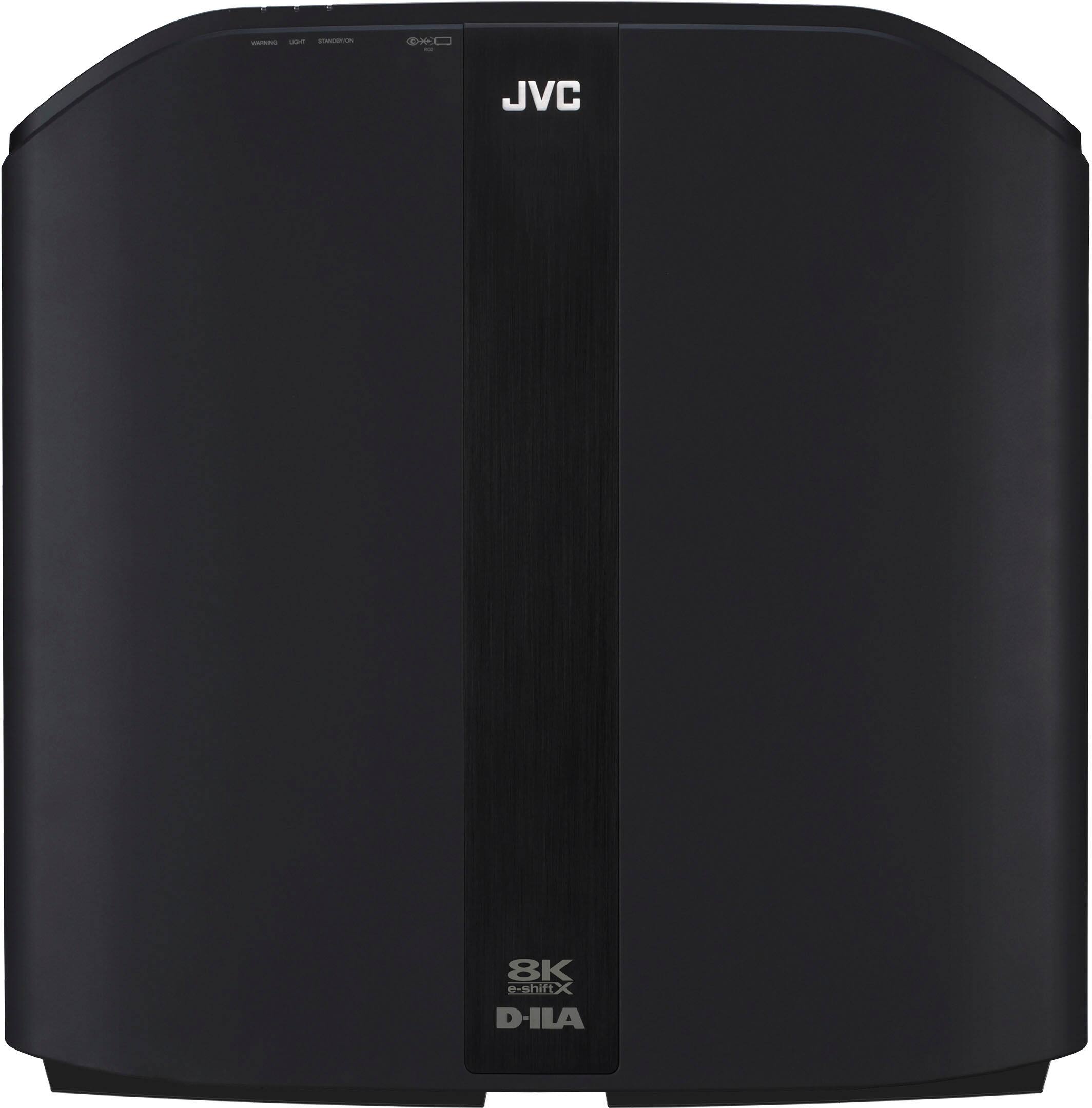

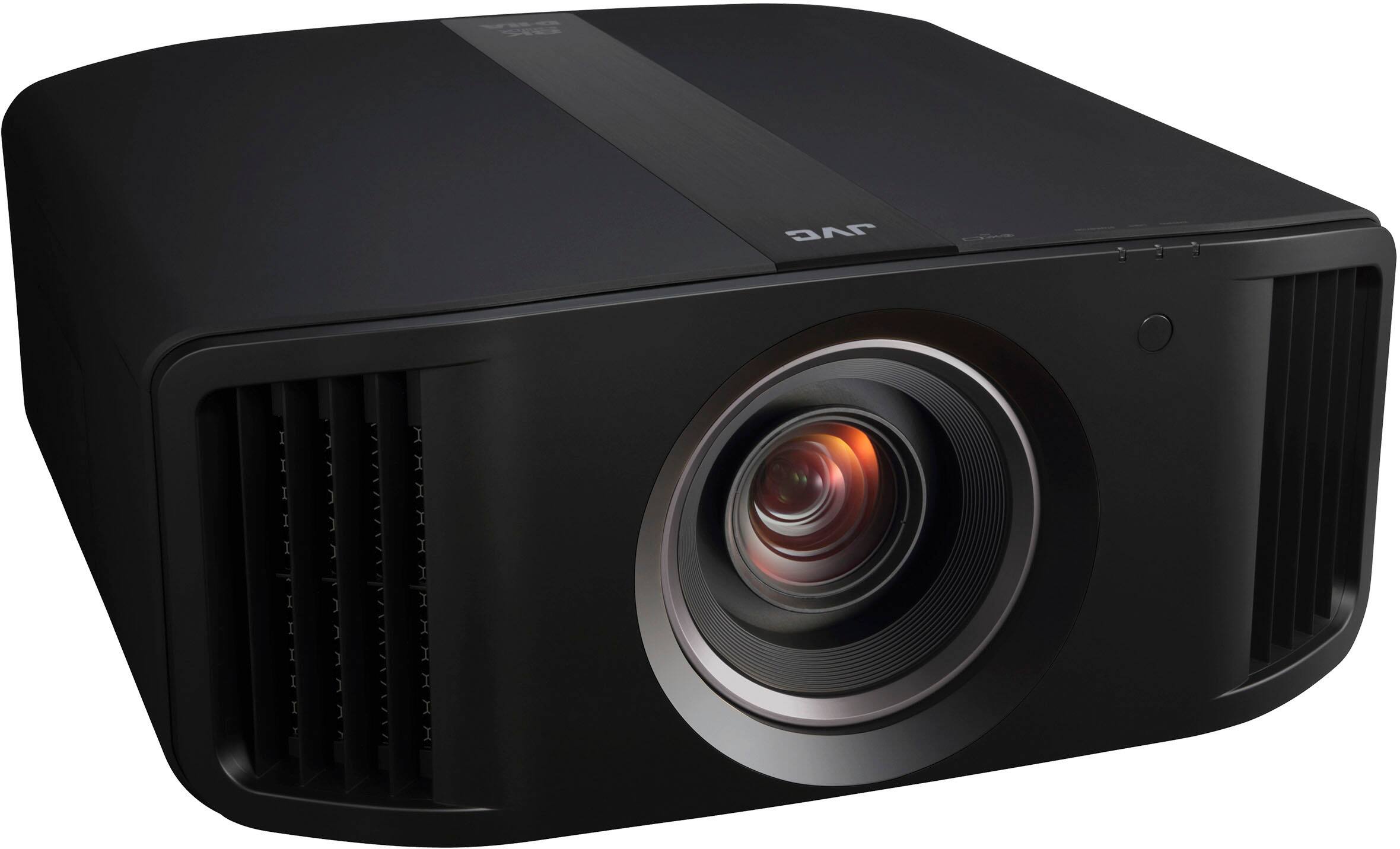

JVC - DLANZ800 D-ILA 8K/4K Laser Home Projector 2700lm 100,000:1 Native Contrast, 8K/60P 4K/120P, HDR10+, Frame Adapt HDR - Black
Related Item
Specifications
- Product Weight50.8 poundsLight SourceLaserResolution8K (4320p)Color Brightness (IDMS)2700 lumensWhite Brightness (ISO)2700 lumensContrast Ratio100,000:1 Native, Infinity:1 Dynamic Contrast Ratio
- Key Specs
- Product Weight: 50.8 pounds (The out of box weight of the item.)
- Light Source: Laser
- Resolution: 8K (4320p) (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Color Brightness (IDMS): 2700 lumens (Measurement of the device's color light output measured accordance with standards established by the Information Display Measurements Standard (IDMS). The more lumens, the brighter the output. In large and/or well-lit environments, such as auditoriums or rooms with plenty of natural light, a higher brightness improves the color quality of the projected image.)
- White Brightness (ISO): 2700 lumens (Measurement of the device's white light output measured in accordance with standards established by the International Organization for Standardization (ISO). The more lumens, the brighter the output. In large and/or well-lit environments, such as auditoriums or rooms with plenty of natural light, a higher brightness improves the quality of the projected image.)
- Contrast Ratio: 100,000:1 Native, Infinity:1 Dynamic Contrast Ratio (Measured difference between a displayed image's brightest whites and darkest blacks. The larger the first number, the more detail and color that can be displayed.)
- Projector Use: Home Theater, Gaming
- Projector Throw Type: Standard Throw (The distance from the screen that the projector can be placed to project images. Standard throw projectors typically need to be at least 6 feet away while short throw and ultra short throw projectors can be placed closer to the screen for use in smaller rooms.)
- Portability: Fixed (Fixed projectors are ideal when creating an authentic theater atmosphere in your home. Often designed to stay in one place they may require significant recalibration if moved. Portable projectors, weighing around 5 pounds, are easy to move, but will still require set-up calibration and often have technology to reduce the complexity. Ultra-portable projectors are very light, often battery-powered, and ideal for on-the-go use.)
- Smart Capable: false (Smart, or smart-capable devices are able to connect directly to your home network in order to stream content from the Internet, run Internet-based apps, or connect to other smart devices.)
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Display Connector(s): 1 x HDMI (The number and type of connectors used to connect to an external display.)
- Power Source: Plug-in
- General
- Brand: JVC
- Model Number: DLA-NZ800
- Product Name: DLANZ800 D-ILA 8K/4K Laser Home Projector 2700lm 100,000:1 Native Contrast, 8K/60P 4K/120P, HDR10+, Frame Adapt HDR
- Color: Black
- Projector Mount Pattern: Dedicated (Universal mounts can be adjusted to support a variety of devices. Dedicated mounts are designed to fit a specific device.)
- Dimensions
- Product Height: 9 7/32 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 19 11/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 29/32 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 50.8 pounds (The out of box weight of the item.)
- Display
- Light Source: Laser
- Display Technology: D-ILA (Denotes the product’s visual process, sometimes manufacturer specific, used to display an image.)
- Resolution: 8K (4320p) (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Resolution (Native): 4096 x 2160 (4K) (Native resolution of a screen refers to its single, fixed resolution. Sometimes screens must scale an image up or down in order to fit the native resolution. This can cause a loss of resolution or detail.)
- 3-Chip Technology: true (Projectors with this technology are able to display images with optimal brightness, color, and detail. Because of their high-performance design, these projectors are primarily used in large venues and digital cinemas.)
- Color Brightness (IDMS): 2700 lumens (Measurement of the device's color light output measured accordance with standards established by the Information Display Measurements Standard (IDMS). The more lumens, the brighter the output. In large and/or well-lit environments, such as auditoriums or rooms with plenty of natural light, a higher brightness improves the color quality of the projected image.)
- White Brightness (ISO): 2700 lumens (Measurement of the device's white light output measured in accordance with standards established by the International Organization for Standardization (ISO). The more lumens, the brighter the output. In large and/or well-lit environments, such as auditoriums or rooms with plenty of natural light, a higher brightness improves the quality of the projected image.)
- High Dynamic Range (HDR): true (An HDR-compatible 4K TV or other HDR-compatible product displays HDR video content when it's available from sources like 4K Ultra HD Blu-ray Discs and 4K streaming services.)
- High Dynamic Range Format: HDR 10+, HDR 10, Hybrid Log-Gamma (HLG) (There are a few HDR formats that tell the TV or other HDR-compatible product how to best utilize its capabilities to display HDR content. HDR technology can support one or multiple formats, each with various benefits to picture quality.)
- Light Source Life (Economy Mode): 20000 hours (The light source's estimated length of operating time when economy mode is enabled.)
- Contrast Ratio: 100,000:1 Native, Infinity:1 Dynamic Contrast Ratio (Measured difference between a displayed image's brightest whites and darkest blacks. The larger the first number, the more detail and color that can be displayed.)
- Aspect Ratio: 17:9 (The measurement of the width of a screen compared to the height of a screen, expressed as a ratio.)
- Throw Ratio Range: 1.45:1 Minimum, 2.9:1 Maximum Screen Width (This measurement indicates what size of projected image can be produced from a certain distance. The smaller the ratio, the closer the projector can be to the screen while still producing a large image.)
- Digital Keystone Correction: true ("Keystone effect" refers to the distortion of an image when it is projected on an angled surface or when the projector is positioned too high or too low from the center of the display. Projectors with a digital keystone correction feature are able to scale the image as needed before it is projected, resulting in the correct image orientation no matter where it is displayed.)
- Horizontal Scan Rate: 8192 (Number of horizontal lines displayed per second on the device.)
- Vertical Scan Rate: 4320 (Number of vertical lines displayed per second on the device.)
- 3D Technology: true
- Viewing
- Minimum Viewable Screen Size: 60 inches
- Maximum Viewable Screen Size: 200 inches
- Features
- Projector Use: Home Theater, Gaming
- Projector Throw Type: Standard Throw (The distance from the screen that the projector can be placed to project images. Standard throw projectors typically need to be at least 6 feet away while short throw and ultra short throw projectors can be placed closer to the screen for use in smaller rooms.)
- Portability: Fixed (Fixed projectors are ideal when creating an authentic theater atmosphere in your home. Often designed to stay in one place they may require significant recalibration if moved. Portable projectors, weighing around 5 pounds, are easy to move, but will still require set-up calibration and often have technology to reduce the complexity. Ultra-portable projectors are very light, often battery-powered, and ideal for on-the-go use.)
- Smart Capable: false (Smart, or smart-capable devices are able to connect directly to your home network in order to stream content from the Internet, run Internet-based apps, or connect to other smart devices.)
- Remote Control Included: true
- TV Tuner: false (The ATSC TV Tuner is a component built into conventional TV sets or other devices for receiving over-the-air broadcast TV without a cable/satellite box. Digital tuners may be purchased separately and connected to a device if it does not have one built in.)
- Minimum Noise Level: 24 decibels
- Exposure Control
- Focus Adjustment: Powered (The method used to focus the device in order to view or display a sharper image.)
- Optical Zoom: 2x (The optical zoom uses a combination of lenses that magnify the image prior to it being registered at high resolution by the imaging sensor.)
- Digital Zoom Capability: true (Projectors with this feature allow for digital adjustment to the projected image size without changing the location of the projector.)
- Connectivity
- Number of HDMI Inputs (Total): 2
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Display Connector(s): 1 x HDMI (The number and type of connectors used to connect to an external display.)
- Network Connector(s): 1 x RS-232
- Audio Only Outputs: No audio only outputs, No audio only outputs, No audio only outputs, No audio only outputs, No audio only outputs
- Number of USB Port(s): 1
- Audio
- Integrated Speaker(s): false
- Speaker(s) Included: false
- Compatibility
- Voice Assistant Built-in: No, No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Operating System Compatibility: Windows, Mac
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Power
- Power Source: Plug-in
- Voltage: 100 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 3 Years, 1st Year Advanced Warranty Exchange
- Warranty - Labor: 3 Years, 1st Year Advanced Warranty Exchange
- Other
- UPC: 046838503610
The sheer beauty of D-ILA images results from over 25 years of JVC engineering and technology. Enhance your home cinema experience with JVC's DLA-NZ800 8K D-ILA Home Theater Projector, featuring two 48Gbps 8K/60p, 4K/120p HDMI inputs. Proprietary Gen3 0.69-inch 4K Native D-ILA devices (x3), a high-quality 17-element, 15-group 65 mm all-glass lens with a full aluminum barrel, and a high-contrast optical block deliver stunning picture quality. The 2,700-lumen BLU-Escent laster light engine offers a 101-step laser light control and a longevity of 20,000 hours. The 2nd generation Frame Adapt HDR function instantaneously analyzes the different peak brightness per scene or frame for HDR10 content and performs real-time tone mapping for optimized brightness, color, and details. Discover images brimming with reality with a native contrast ratio of 100,000:1 translated to a spectacular dynamic contrast ratio of Infinity:1. Pixel perfect Gen2 8K e-shiftX with new 8K Scaling Engine featuring 4-way, multi-axis shift that yields 8,192 x 4,320 pixel projection. The Display Mastering Luminance (DML) adjusts/sets the dynamic range for better HDR experience and Vivid Picture mode enhances SDR content with more saturated colors with greater vividness. The DLA-NZ800 achieves a Color Gamut of over 100% DCI-P3 with a Cinema Filter. Pair this projector with your favorite gaming system with low latency mode and clear motion drive for the smoothest video. JVC's multiple pixel control (MPC) increases sharpness and detail. Motorized lens memory and 10 customized presets make this projector ideal for any screen size or aspect ratio. Controls include Control4, SDDP, LAN, RS-232C, IR, 12V screen trigger out, and 3D sync out. With hand-selected components, ISF certification, and JVC Auto Calibration the DLA-NZ800 offers a True Cinematic Experience. Enjoy piece of mind with a 3 year warranty, alongside a first year advanced replacement. Discover the pure beauty of reality with JVC.
- 8K Laser Projector With Exceptional Picture Quality: The 3rd Gen 0.69-inch NATIVE 4K D-ILA device offers a native contrast ratio of 100,000:1. JVC’s exclusive 8K/e-shiftx, combines high-resolution display technology that uses a 240Hz driver with a 4-way multi-axis pixel shift, together with 0.69-inch native 4K D-ILA devices, for visual enhancements as the 2nd Gen 8K/e-shiftx. JVC's newest 8K scaling engine improves the projector’s sharpness and detail across all content, including 8K sources.

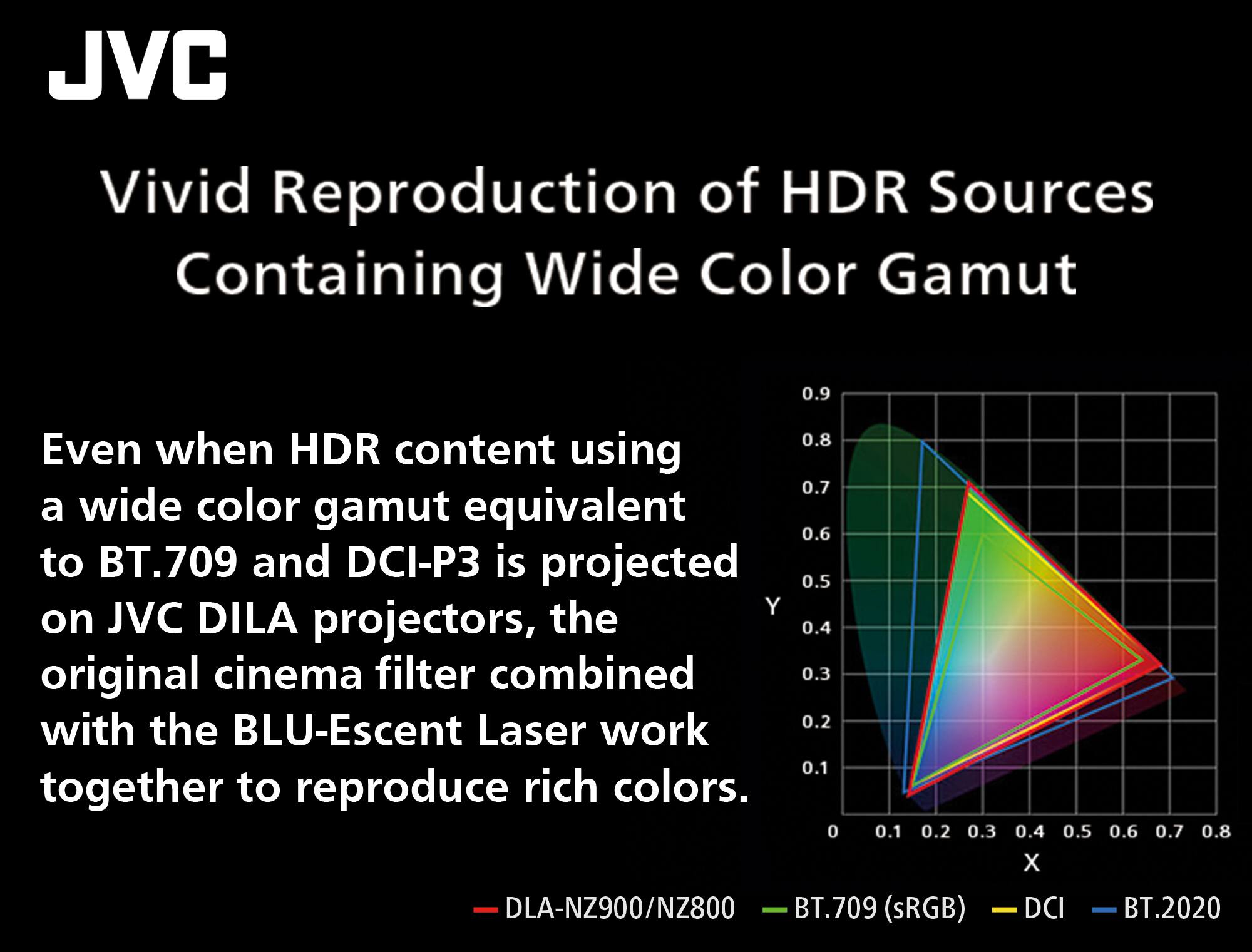

- Vibrant Images And Color: The 2nd Gen Frame Adapt HDR function analyzes the different peak brightness per scene or frame for HDR10 content and performs real-time tone mapping for optimized brightness, color, and details. The new Deep Black mode offers more contrast and Vivid Picture Mode reproduces SDR content with better-saturated colors and vividness in animated movies and gaming. The DLA-NZ800 achieves a Color Gamut of over 100% DCI-P3 with a Cinema Filter.
- Peak Brightness And Longevity: JVC’s original laser light source “BLU-Escent Laser” achieves exceptional peak brightness of 2,700 lumens on the DLA-NZ800 with a longevity of 20,000 hours. NEW Max Display Mastering Luminance (DML) metadata, which represents the nit level of the professional monitor used to grade the movie to the director’s standards, is used to set the dynamic range of the title for improved HDR tone mapping. On the DLA-NZ800 both DML and maxcll values are used for the HDR levels.
- Deeper Blacks For Richer Gradation: The new Deep Black function has been added to Frame Adapt HDR, with a new algorithm to further subdue tones in dark areas to achieve more realistic darkness. This function maximizes the dynamic range of the new-generation 4K D-ILA devices and delivers images with more contrast than ever before. Scenes with light and dark shades can be projected with greater realism.

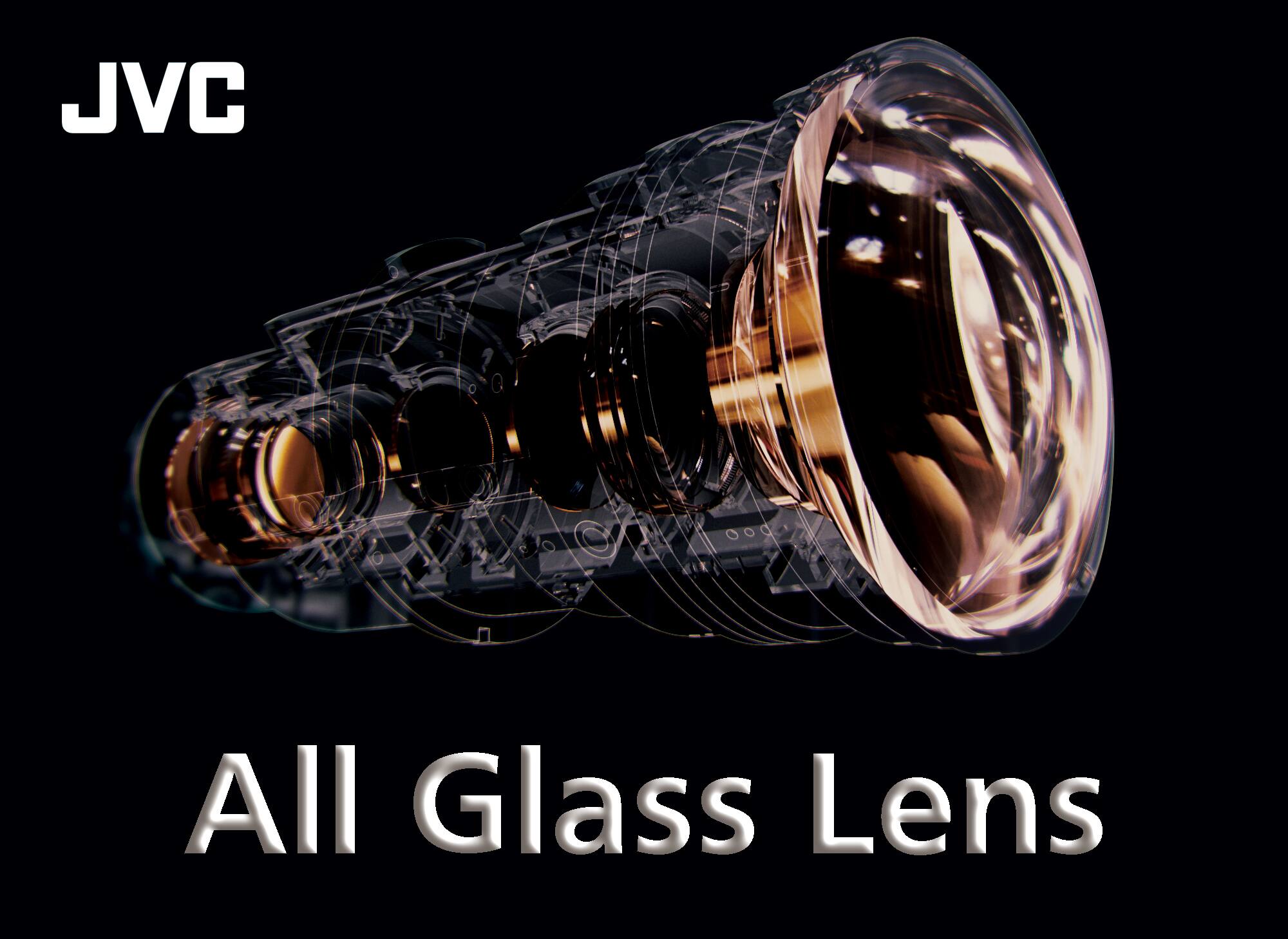

- Connectivity And Lenses: Installation mode offers 10 profiles for lens control, pixel adjustment, masking, aspect ratios, and more. The 65mm lens system with 17-element and 15-group all-glass lenses projects high-resolution images to every corner of the screen, with wide shift ranges of 80% vertically and 34% horizontally. Two Full 8K inputs are enabled with 48Gbps 8K/60p HDMI HDCP 2.3. Controls include Control4 SDDP, LAN, RS-232C, IR, 12V screen trigger out and 3D sync out.
- HDR10+: JVC Is Proud To Add HDR10+ Support, Which Offers Dynamic Tone Mapping For 4K HDR10+ Blu-Ray & Streaming Content That Is True To The Director’s Intent.
- HDR10+: JVC is proud to add HDR10+ support, which offers dynamic tone mapping for 4K HDR10+ Blu-ray & streaming content that is true to the director’s intent.
- 3 Year Warranty, 1st Year Advanced Exchange: JVC's projectors are built to last, but in case something happens, rest easy with JVC's 3 year parts and labor warranty. Within the first year from the date of purchase, JVC offers an advanced exchange.
- 8K Laser Projector With Exceptional Picture Quality: The 3rd Gen 0.69-inch NATIVE 4K D-ILA device offers a native contrast ratio of 100,000:1. JVC’s exclusive 8K/e-shiftx, combines high-resolution display technology that uses a 240Hz driver with a 4-way multi-axis pixel shift, together with 0.69-inch native 4K D-ILA devices, for visual enhancements as the 2nd Gen 8K/e-shiftx. JVC's newest 8K scaling engine improves the projector’s sharpness and detail across all content, including 8K sources.
- Vibrant Images And Color: The 2nd Gen Frame Adapt HDR function analyzes the different peak brightness per scene or frame for HDR10 content and performs real-time tone mapping for optimized brightness, color, and details. The new Deep Black mode offers more contrast and Vivid Picture Mode reproduces SDR content with better-saturated colors and vividness in animated movies and gaming. The DLA-NZ800 achieves a Color Gamut of over 100% DCI-P3 with a Cinema Filter.
- Peak Brightness And Longevity: JVC’s original laser light source “BLU-Escent Laser” achieves exceptional peak brightness of 2,700 lumens on the DLA-NZ800 with a longevity of 20,000 hours. NEW Max Display Mastering Luminance (DML) metadata, which represents the nit level of the professional monitor used to grade the movie to the director’s standards, is used to set the dynamic range of the title for improved HDR tone mapping. On the DLA-NZ800 both DML and maxcll values are used for the HDR levels.
- Deeper Blacks For Richer Gradation: The new Deep Black function has been added to Frame Adapt HDR, with a new algorithm to further subdue tones in dark areas to achieve more realistic darkness. This function maximizes the dynamic range of the new-generation 4K D-ILA devices and delivers images with more contrast than ever before. Scenes with light and dark shades can be projected with greater realism.
- Connectivity And Lenses: Installation mode offers 10 profiles for lens control, pixel adjustment, masking, aspect ratios, and more. The 65mm lens system with 17-element and 15-group all-glass lenses projects high-resolution images to every corner of the screen, with wide shift ranges of 80% vertically and 34% horizontally. Two Full 8K inputs are enabled with 48Gbps 8K/60p HDMI HDCP 2.3. Controls include Control4 SDDP, LAN, RS-232C, IR, 12V screen trigger out and 3D sync out.
- HDR10+: JVC Is Proud To Add HDR10+ Support, Which Offers Dynamic Tone Mapping For 4K HDR10+ Blu-Ray & Streaming Content That Is True To The Director’s Intent.
- HDR10+: JVC is proud to add HDR10+ support, which offers dynamic tone mapping for 4K HDR10+ Blu-ray & streaming content that is true to the director’s intent.
- 3 Year Warranty, 1st Year Advanced Exchange: JVC's projectors are built to last, but in case something happens, rest easy with JVC's 3 year parts and labor warranty. Within the first year from the date of purchase, JVC offers an advanced exchange.
Whats Included
- Projector
- Batteries
- Power Cord
- Lens Cover
- Remote
- Projector
- Batteries
- Power Cord
- Lens Cover
- Remote
Q: What is the difference between 8K e-shift and native 8K resolution?
A: The JVC DLA-NZ800 projector uses 8K e-shift technology to achieve an 8K resolution. This technology shifts the pixelsdiagonally to create an image with 8,192 x 4,320 pixels. Native 8K resolution, on the other hand, has 7,680 x 4,320pixels without any pixel shifting.
Q: What is the warranty period for the projector?
A: The warranty period for the projector is 3 years, with a 1st year advanced replacement.
Q: What is the maximum screen size for the projector?
A: The maximum screen size for the JVC DLANZ800 D-ILA 8K/4K Laser Home Projector is 200 inches.
Q: How does the Frame Adapt HDR function work?
A: The Frame Adapt HDR function analyzes the peak brightness of each scene or frame in HDR10 content and performs real-timetone mapping to optimize brightness, color, and details. This results in images with a native contrast ratio of100,000:1 and a dynamic contrast ratio of Infinity:1.
