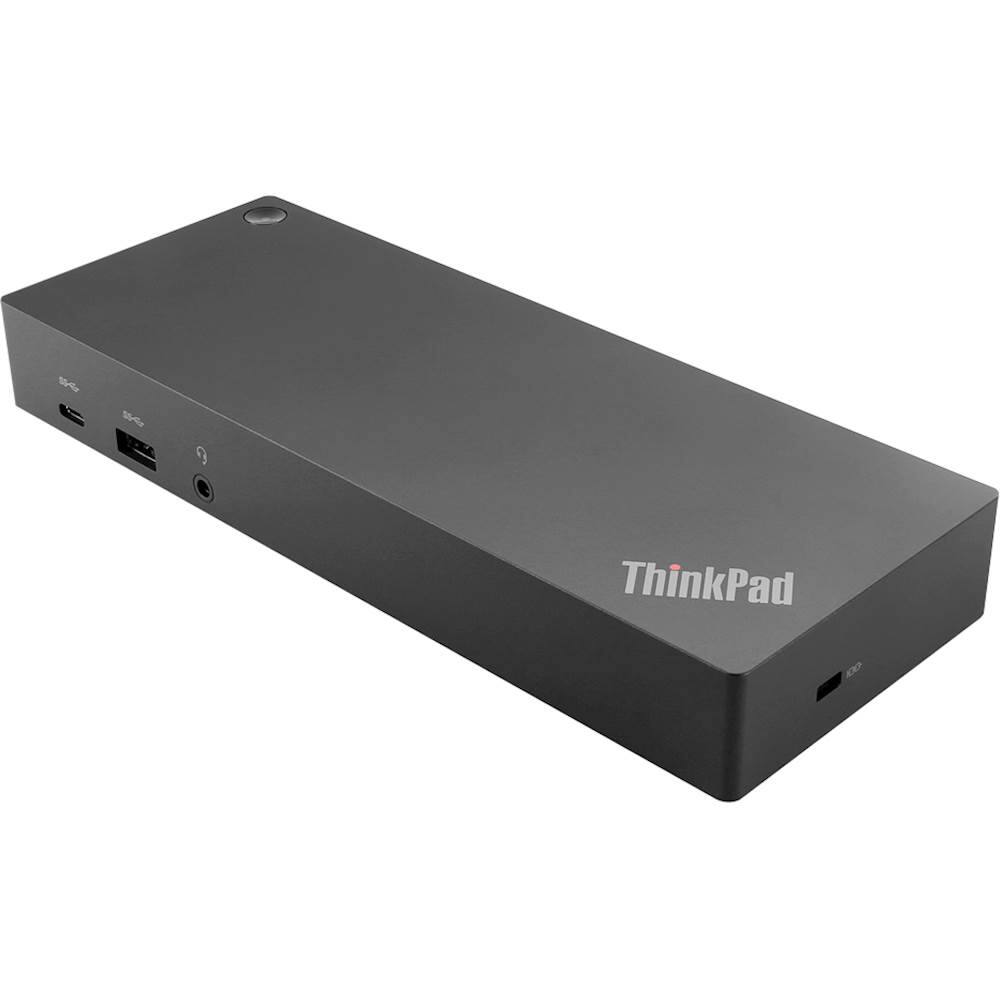

Lenovo - ThinkPad Hybrid USB-C with USB-A Docking Station - Black
- Key Specs
- Maximum Number of Displays Supported: 2
- Number of DisplayPort Outputs (Total): 2
- General
- Brand: Lenovo
- Model Number: 40AF0135US
- Product Name: ThinkPad Hybrid USB-C with USB-A Docking Station
- Color: Black
- Display
- Maximum Number of Displays Supported: 2
- Ports
- Display Connector(s): 2 x DisplayPort (The number and type of connectors used to connect to an external display.)
- Number of DisplayPort Outputs (Total): 2
- Number of HDMI Ports (Total): 2
- Number of VGA Ports: 0 (VGA (Video Graphics Adapter or Video Graphics Array) is a display standard that transmits via analog signals. This type of interface is typically used to connect a computer to a display device such as a monitor, projector, or TV.)
- Number Of Ethernet Ports: 1
- Number of USB Ports (Total): 6
- USB Ports: 2 x USB-A (The number and type of USB ports the product has.)
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Memory Card Slot: false
- Power
- Powered: false
- Compatibility
- System Requirements: Microsoft Windows 10 (64-bit), Windows 7 (64-bit). Machine with full function USB-C port or USB 3.0 port (The software that a product must have for it to be able to integrate with another product.)
- Brand Compatibility: Universal
- Model Compatibility: Universal
- Dimensions
- Product Height: 1.18 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 8.27 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 3.15 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1.05 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 Years
- Warranty - Labor: 3 Years
- Other
- UPC: 191999788441

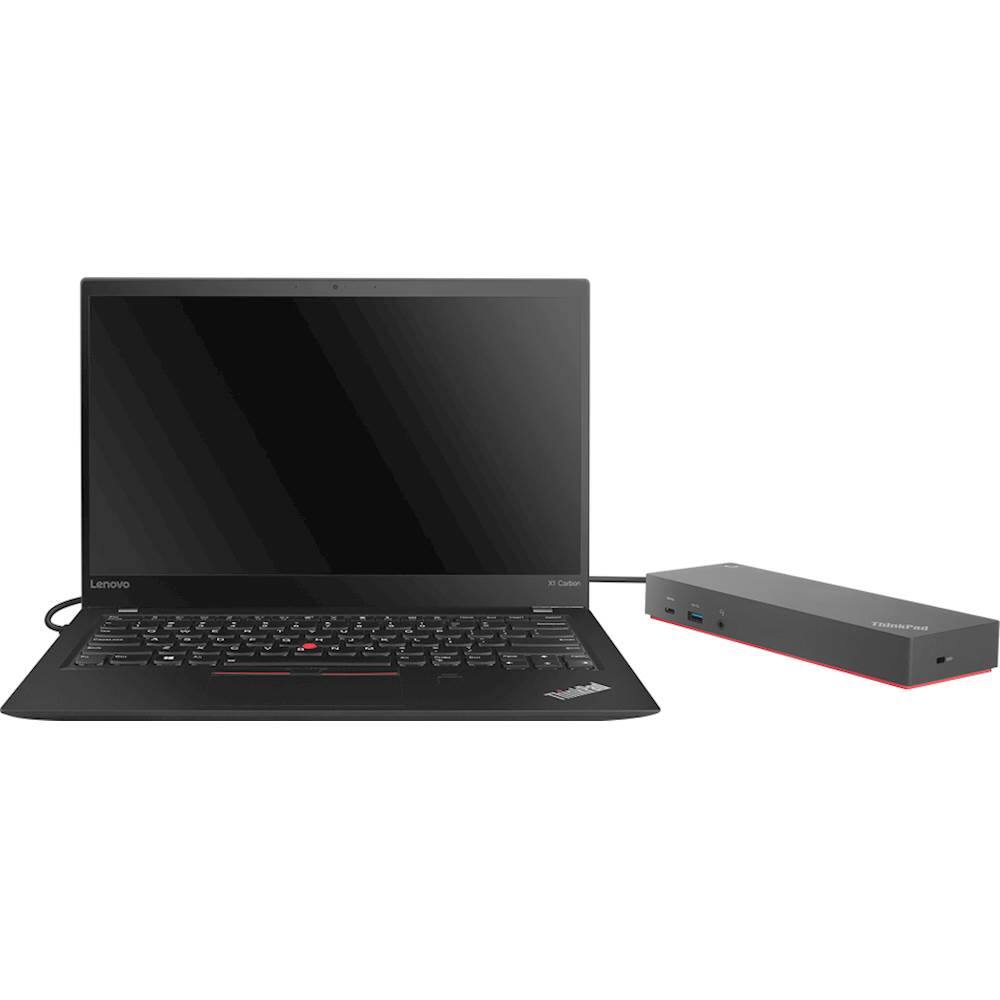

Maximize productivity with your laptop by using this universal Lenovo ThinkPad hybrid USB-C dock. Three USB 3.1 ports enable high-speed data transfers with multiple devices, and the USB-C to USB-A adapter lets you connect to non-Lenovo or previous-generation Lenovo laptops. Connect up to two 4K monitors via the DisplayPort and HDMI outputs of this enterprise-class Lenovo ThinkPad hybrid USB-C dock.
- Designed for use with almost any laptops: Provides port replication to Lenovo and non-Lenovo or USB-C notebooks.
- Enterprise manageability and simplification: Host of manageability features, such as PXE boot, Wake-On LAN from Sleep mode, and MAC address pass-through. Ideal for enterprise customers.
- Charges your ThinkPad laptops: Lets you charge your laptop via the continuous power supply, so your device is ready for use when you need it.
- Rich performance: Features up to dual UHD 4K display with two DisplayPort and two HDMI ports, up to 10 Gbps data transfer speed on three USB 3.1 ports. It also includes one USB Type-C, two USB 2.0 ports, Gigabit Ethernet and audio combo jack.

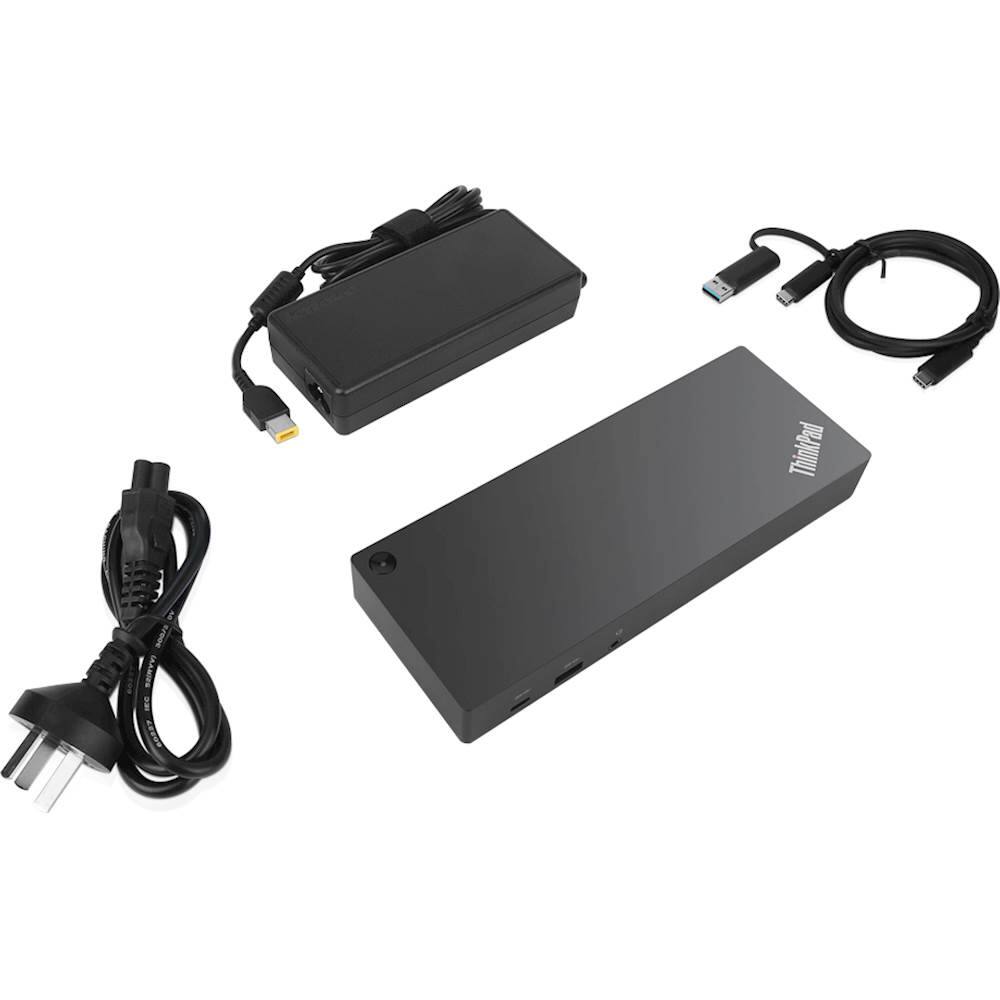

Whats Included
- Lenovo ThinkPad Hybrid USB-C with USB-A Docking Station
- USB-C cable (with USB-C to USB-A dongle)
- ThinkPad 135W AC adapter (Slim tip)
- Power cord
- Poster
- Owner's manual
Product Manuals
Q: Does this docking station have an ethernet port?
A: Yes, this docking station includes a Gigabit Ethernet port.
Q: How many monitors does this Lenovo ThinkPad dock support?
A: This Lenovo ThinkPad dock supports up to two 4K monitors.
Q: What is the maximum data transfer speed of the USB ports on this docking station?
A: The USB 3.1 ports on this docking station offer data transfer speeds up to 10 Gbps.
Q: Can I use this dock to charge my ThinkPad laptop?
A: Yes, you can charge your ThinkPad laptop through the docking station's continuous power supply.
Q: Is this Lenovo ThinkPad dock compatible with laptops from other brands?
A: This dock is designed for universal compatibility and can be used with both Lenovo and non-Lenovo laptops.
Q: Does this docking station include a USB-C to USB-A adapter?
A: Yes, a USB-C to USB-A adapter is included with this docking station.
Q: What operating systems is this docking station compatible with?
A: This docking station is compatible with Microsoft Windows 10 (64-bit) and Windows 7 (64-bit).
Q: My monitors are 60hz. Do the hdmi ports reach this potential?
A: This Lenovo ThinkPad Hybrid USB-c to USB-A universal docking station can support: DisplayPort: 3840 x 2160 @ 60 Hz, HDMI: 3840 x 2160 @ 60 Hz, Bundle DisplayPort 1 & DisplayPort 2 to the monitor: 5120 x 2880 @ 60 Hz, Maximum resolution refers to what can be supported by the dock. Actual resolution will vary by laptop.
