Specifications
- Video Input(s)HDMIVideo Output(s)NoneMaximum Supported Resolution (Video Capture)1440p (2K)Compatible Platform(s)Windows, Mac, Linux
- Key Specs
- Video Input(s): HDMI
- Video Output(s): None
- Maximum Supported Resolution (Video Capture): 1440p (2K) (The highest video resolution supported by the device to capture video from another source.)
- Compatible Platform(s): Windows, Mac, Linux
- General
- Brand: Magewell
- Model Number: 11080
- Product Name: Pro Capture Dual HDMI Video Capture Card
- Color: Green
- Device Type: PC Card
- Connectivity
- Video Input(s): HDMI
- Audio Input(s): None
- Video Output(s): None
- Audio Output(s): None
- Display
- Maximum Supported Resolution (Video Capture): 1440p (2K) (The highest video resolution supported by the device to capture video from another source.)
- Dimensions
- Product Height: 1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.57 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 2.71 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 1 pounds (The out of box weight of the item.)
- Compatibility
- Compatible Platform(s): Windows, Mac, Linux
- Warranty
- Warranty - Parts: Limited 1-Year Manufacturer Warranty
- Warranty - Labor: Limited 1-Year Manufacturer Warranty
- Other
- UPC: 8143950200341

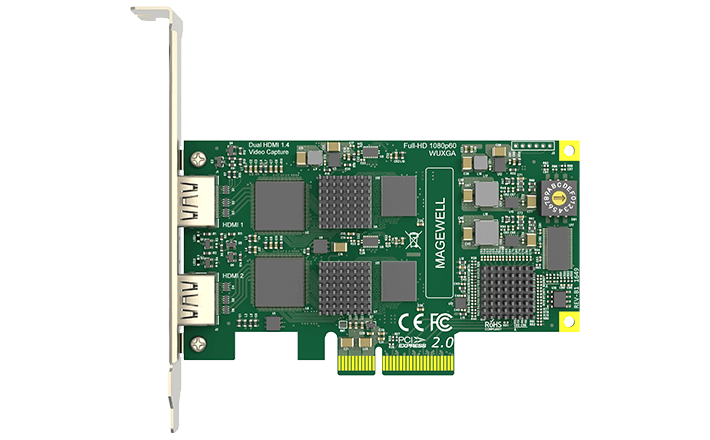

Dual HDMI capture for professional multi-source workflows with the Magewell Pro Capture Dual HDMI 11080. This PCIe capture card features two independent HDMI inputs, allowing you to ingest two HD video sources simultaneously in broadcast, live production, and professional AV environments. Capture two HDMI sources at the same time, each supporting HD formats up to 2048x2160 with embedded audio. This makes the card ideal for multi-camera setups, dual computer feeds, and production systems requiring parallel ingest. The Pro Capture Dual HDMI 11080 supports 8/10/12-bit color depth and multiple color spaces, enabling accurate capture from cameras, switchers, media players, and computer outputs. Built-in processing supports cropping, scaling, de-interlacing, aspect ratio conversion, color format conversion, and frame rate conversion. These functions can be accessed through Magewell’s SDK to optimize output and reduce host CPU load. Using a direct PCI Express interface, the card delivers consistent, low-latency performance without the bandwidth limitations of external devices. This is ideal for live switching, monitoring, and real-time encoding workflows. Compatible with Windows, macOS, and Linux, the Pro Capture Dual HDMI 11080 integrates easily into a wide range of streaming, recording, and production software environments. Designed for continuous operation, it is built to deliver dependable performance in demanding professional settings.
- Dual-Channel HDMI Capture: PCIe capture card with two independent HDMI inputs for simultaneous capture of two HD video sources.
- Up to 1080p Per Channel: Each HDMI input supports HD formats up to 2048x2160 for professional multi-source workflows.
- 8/10/12-Bit Color Depth Support: Handles multiple color spaces and bit depths for accurate color reproduction in professional capture applications.
- Hardware-Based Video Processing: Supports cropping, scaling, de-interlacing, aspect ratio conversion, color format conversion, and frame rate conversion via SDK control.
- Low-Latency PCIe Interface: Direct PCI Express 2.0 x4 connection delivers stable, low-latency performance for live production, switching, and real-time encoding. Supports multiple cards per system.
Whats Included
- Magewell Pro Capture Dual HDMI Card (2 Channel)
