Magewell - Pro Capture Quad HDMI - Green
Specifications
- Video Input(s)HDMI Type AVideo Output(s)NoneMaximum Supported Resolution (Video Capture)2160p (4K)Compatible Platform(s)Windows, Mac, Linux
- Key Specs
- Video Input(s): HDMI Type A
- Video Output(s): None
- Maximum Supported Resolution (Video Capture): 2160p (4K) (The highest video resolution supported by the device to capture video from another source.)
- Compatible Platform(s): Windows, Mac, Linux
- General
- Brand: Magewell
- Model Number: 11100
- Product Name: Pro Capture Quad HDMI
- Color: Green
- Device Type: PC Card
- Connectivity
- Video Input(s): HDMI Type A
- Audio Input(s): None
- Video Output(s): None
- Audio Output(s): None
- Display
- Maximum Supported Resolution (Video Capture): 2160p (4K) (The highest video resolution supported by the device to capture video from another source.)
- Dimensions
- Product Height: 4.42 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 4.05 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 0.66 pounds (The out of box weight of the item.)
- Compatibility
- Compatible Platform(s): Windows, Mac, Linux
- Warranty
- Warranty - Parts: Limited 1-Year Manufacturer Warranty
- Warranty - Labor: Limited 1-Year Manufacturer Warranty
- Other
- UPC: 8143950200358

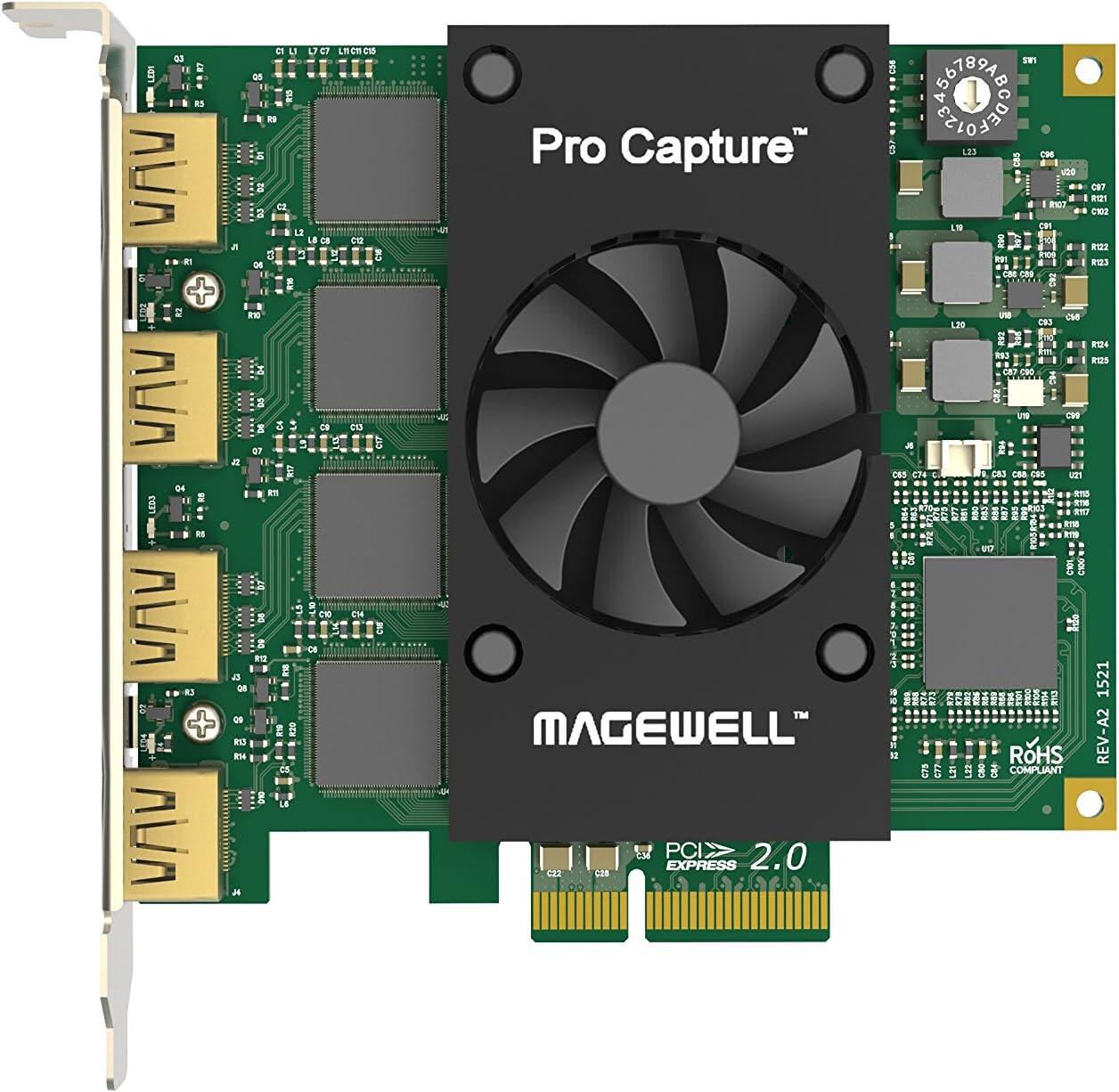

Capture four HDMI channels in one professional card with the Magewell Pro Capture Quad HDMI 11100. Designed for multi-camera studios, live event production, eSports rigs, and multi-source capture workflows, this card delivers high-quality HDMI-to-PC ingest with advanced hardware processing and reliability. Four-Channel HDMI Capture: This card features four HDMI Type-A inputs allowing four full streams of HDMI + embedded audio. With resolution support up to 2048×2160 and frame rates up to 144 fps (depending on system bandwidth), you can handle high frame-rate, multi-source ingest for capture or streaming. Advanced Video Processing Onboard: The built-in FPGA delivers professional features including de-interlacing, up/down scaling, cropping, aspect ratio conversion, color space conversion, and on-screen display composition. These hardware-based processes reduce the burden on your host PC—keeping performance smooth and predictable. Pro-Level Audio & Color Fidelity: Supports 8/10/12-bit color depths, RGB 4:4:4, YCbCr 4:4:4/4:2:2 sampling, and up to 8 audio channels per input. Ideal for production workflows requiring precision color and multi-channel audio capture. Ready for Professional Workflows: With ultra-low latency (down to 64 video lines in SDK mode), support for multiple cards in one machine, and compatibility with Windows, macOS and Linux, the Pro Capture Quad HDMI is built for mission-critical capture in broadcast, AV, event and production environments.

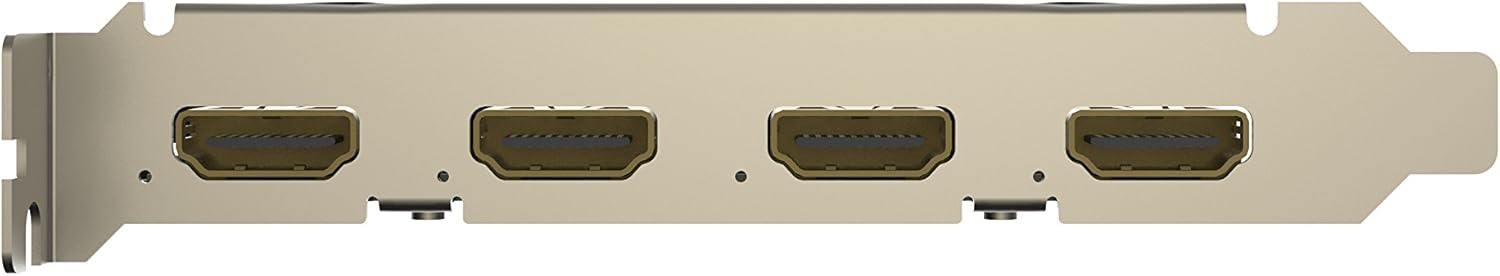

- Four Independent HDMI Inputs: Capture four simultaneous HDMI channels with embedded audio, ideal for multi-camera setups, switchers or monitoring rigs.
- High Resolution & Frame Rate Support: Supports input resolutions up to 2048×2160 and frame rates up to 144 fps (actual rate depends on system bandwidth).
- On-Board Video Processing: FPGA hardware provides cropping, scaling, de-interlacing, aspect ratio conversion, color format conversion and OSD composition to reduce host CPU load.
- Pro-Grade Audio & Color: Supports 8/10/12-bit color depths, RGB 4:4:4 and YCbCr 4:4:4/4:2:2 sampling, and up to 8-channel audio per input for high-fidelity capture.
- Low Latency & Multi-Card Support: Designed for latency down to 64 video lines; supports multiple cards in one system with rotary switch ID.
Whats Included
- Magewell Pro Capture Quad HDMI Card (4 Channel)
