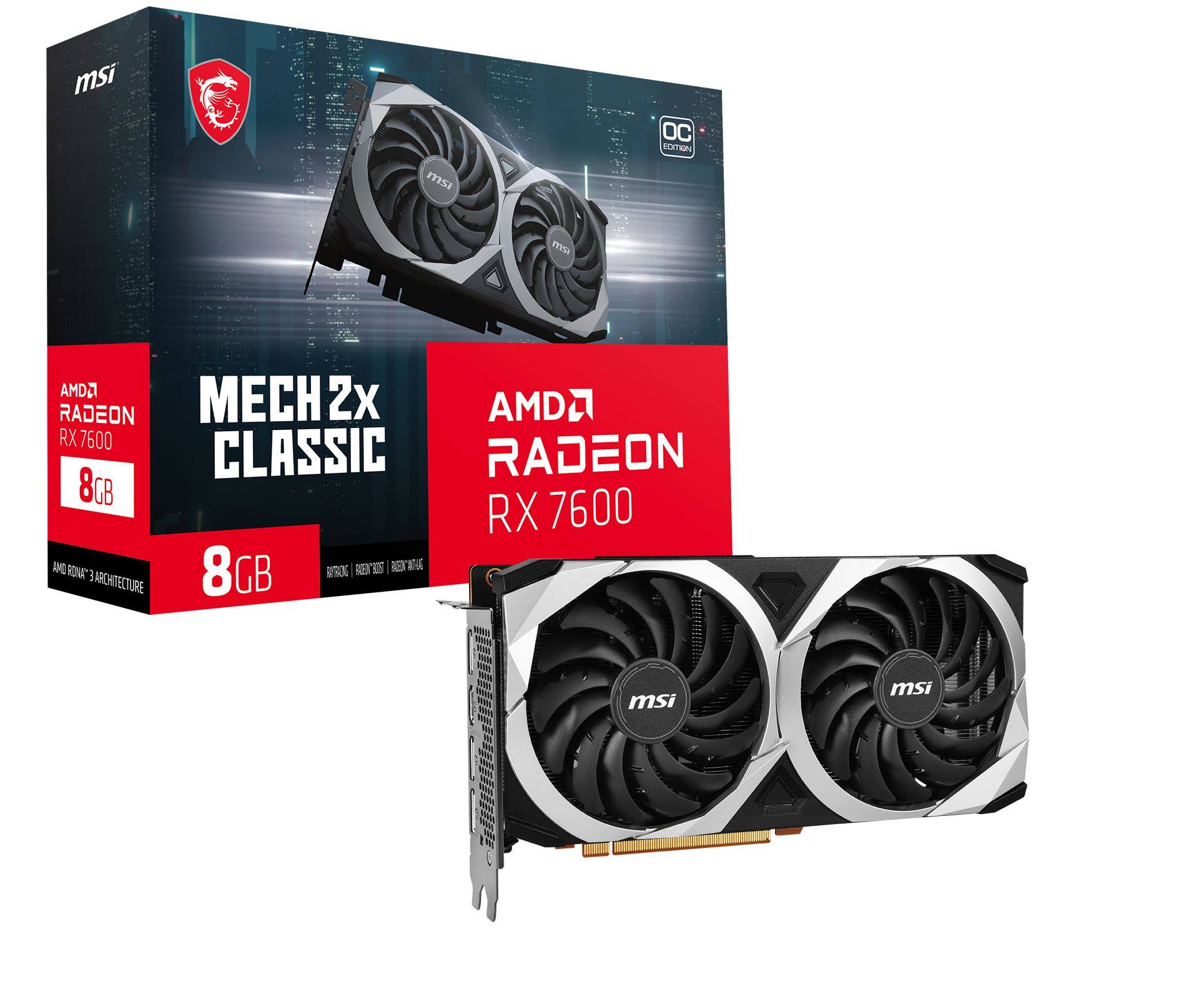

MSI - AMD Radeon RX 7600 Mech 2X CLASSIC 8G OC 8GB GDDR6 PCI Express 4.0 Graphics Card - Black
Model: RX 7600 MECH 2X CLASSIC 8G OC
SKU: 6545113
This item is no longer available in new condition. See similar items below
- Key Specs
- GPU Base Clock Frequency: 1.72 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.695 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- DisplayPort Ports: 3 x DisplayPort (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): RIS (Radeon Image Sharpening), Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 8 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 1-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 4.0
- Product Height: 235 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 125 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 47 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): AMD Radeon RX 7600M (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: MSI
- Model Number: RX 7600 MECH 2X CLASSIC 8G OC
- Product Name: AMD Radeon RX 7600 Mech 2X CLASSIC 8G OC 8GB GDDR6 PCI Express 4.0 Graphics Card
- Color: Black
- GPU Chipset Manufacturer: AMD
- Graphics Processing Unit (GPU): AMD Radeon RX 7600M (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Performance
- GPU Base Clock Frequency: 1.72 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.695 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 3 x DisplayPort (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Power Connector: 8 pin (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Display
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): RIS (Radeon Image Sharpening), Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 8 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 2.2 gigahertz
- Compatibility
- Slot Size: 1-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 4.0
- Operating System Compatibility: Windows
- Power
- Total Graphics Power: 165 watts
- Recommended Power Supply: 550 watts
- Dimensions
- Product Height: 235 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 125 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 47 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 1.5 pounds (The out of box weight of the item.)
- Other
- UPC: 824142325810
The Radeon RX 7000 MECH series arms you for the final blow with a performance-focused design that retains the essentials to tackle any task at hand. Rocking a trusted dual fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build. A clean-looking backplate reinforces the length of the card.
- AMD Radeom RX 7600 MECH: With a MHz boost clock speed to help meet the needs of demanding games.
- 8 GB GDDR6 (128-bit) on board memory: 2048 processing cores provides the memory needed to create striking visual realism
- PCI Express 4.0 x 8 interface: Offers compatibility with a range of systems
- PCI Express 4.0 interface: The AMD Radeon RX 7000 Series graphics cards feature PCIe 4.0, with a throughput of 16GT/s which enables two times the bandwidth when compared to PCIe 3.0
Whats Included
- AMD Radeon RX 7600 Mech 2X CLASSIC 8G OC 8GB GDDR6 PCI Express 4.0 Graphics Card
Q: what is the power requirements for this ?
A: The RX 7600 MECH 2X CLASSIC 8G OC is suggested to be paired with a 550 W.
