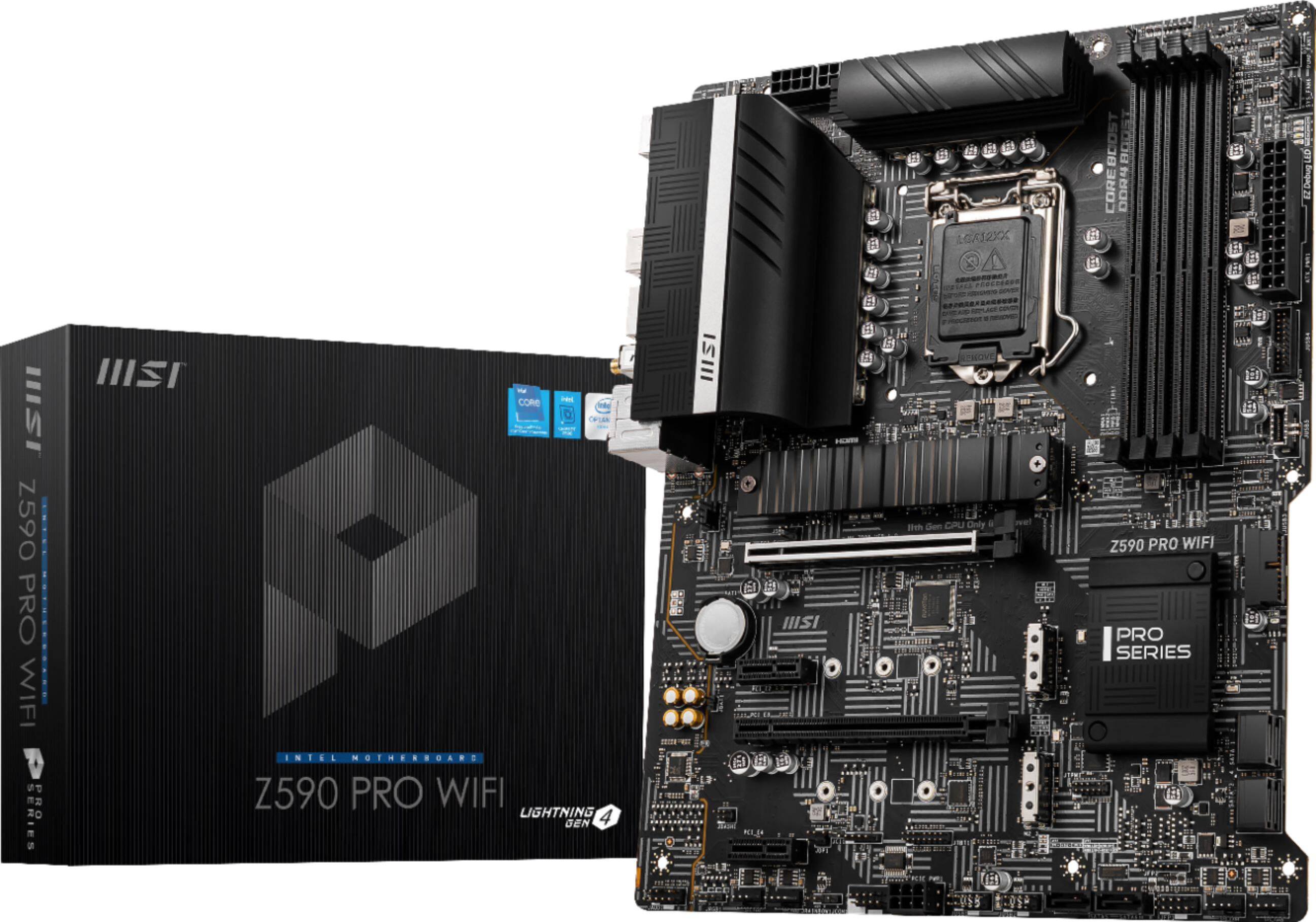

MSI - Z590 PRO WIFI (Socket LGA1200) Intel Motherboard
- Key Specs
- Chipset: Intel Z590
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1200 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number Of Memory Slots: 4
- General
- Brand: MSI
- Model Number: Z590 PRO WIFI
- Product Name: Z590 PRO WIFI (Socket LGA1200) Intel Motherboard
- Compatibility
- Chipset: Intel Z590
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1200 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Celeron, Intel Core i5, Intel Core i3, Intel Core i7, Intel Core i9
- Slot
- Number Of Memory Slots: 4
- Dimensions
- Product Width: 3.1 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Memory
- Memory Slot Type: 288-pin DIMM
- Other
- UPC: 824142242148
The Z590 PRO WIFI ATX motherboard employs a robust VRM platform for the Intel Z590 chipset (LGA 1200, 11th Gen Core ready) with a 12 Duet Rail 55A power system (4+8 Pin connector) supported by passive cooling heat sinks and Frozr AI thermal monitoring. Designed to support the latest 11th Gen Intel Core processors, the Z590 PRO WIFI includes future-friendly hardware support options in the form of 4 x DDR4 dual-channel DIMMs (5333 MHz/OC) and a steel-reinforced PCIe 4.0 x16 slot to support heavier GPU’s (2-way AMD CrossFire available via secondary PCIe 3.0 x16 slot). Storage options include 1 x M.2 Gen4 x4 64Gb/s slot (with Shield Frozr) and 2 x M.2 Gen3 x4 32Gb/s slots for ultra-fast SSD access (compatible with Intel Optane). Featuring advanced connectivity such as Wi-Fi 6E and Bluetooth 5.2 technology, the Z590 PRO WIFI also supports Intel 2.5G LAN, HD Audio 7.1 with Audio Boost, and HDMI 2.0b (4K/60Hz) outputs. For creative professionals looking to expand their wireless capabilities, the MSI Z590 PRO WIFI offers a premium platform with the capacity to support a broad spectrum of both cutting-edge and legacy hardware.
- Supports Intel® processors: Including Celeron®, Core™ i5, Core™ i3, Core™ i7, Core™ i9 and Pentium® Gold in an LGA 1200 socket
- 5333MHz (OC) system speed: With an Intel® Z590 chipset for fast computing.
- AMD CrossFireX graphics support: Provides ultrarealistic image detail when gaming
- Peripheral interfaces: Include 2 USB 3.2 Gen 1, 1 LAN (2.5Gigabit Ethernet), 4 USB 2.0, 1 PS/2 (mouse/keyboard), 1 DisplayPort, 1 HDMI, 1 audio line-out, 1 microphone, 1 audio line-in, and more.
- Expansion capabilities: Include 2 PCI Express 3.0 x16 and 2 PCI Express 3.0 x1.
- Supports Intel® processors: Including Celeron®, Core™ i5, Core™ i3, Core™ i7, Core™ i9 and Pentium® Gold in an LGA 1200 socket
- 5333MHz (OC) system speed: With an Intel® Z590 chipset for fast computing.
- AMD CrossFireX graphics support: Provides ultrarealistic image detail when gaming
- Peripheral interfaces: Include 2 USB 3.2 Gen 1, 1 LAN (2.5Gigabit Ethernet), 4 USB 2.0, 1 PS/2 (mouse/keyboard), 1 DisplayPort, 1 HDMI, 1 audio line-out, 1 microphone, 1 audio line-in, and more.
- Expansion capabilities: Include 2 PCI Express 3.0 x16 and 2 PCI Express 3.0 x1.
Product Manuals
A: The CPU PWR 2 pin out is not mandatory unless you plan to manually overclock.
Q: Does it come with a wifi card?
A: yes, it's integrated up top to the left of the cpu with all of the other i/o ports. The motherboard also comes with two antennae to screw into them for much better signal.
Q: Will this fit a mid size tower?
A: Yes but I recommend a Corsair case because sometimes the 6pin connector of the pci express port is too close to the power supply
A: It works with DDR 4 Corsair vengeance 16GB 3200 MHz
Q: Does it competiable with 3070
A: YES
