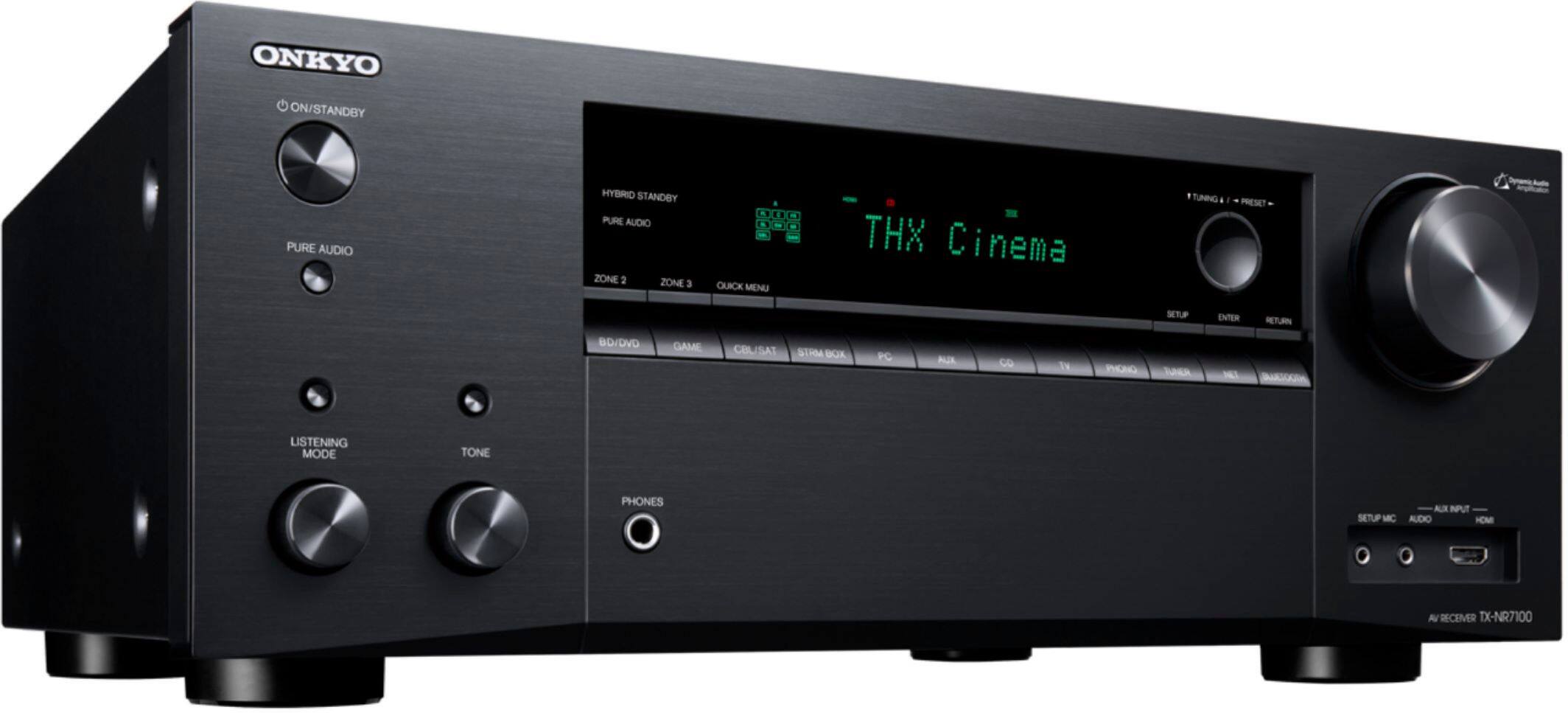

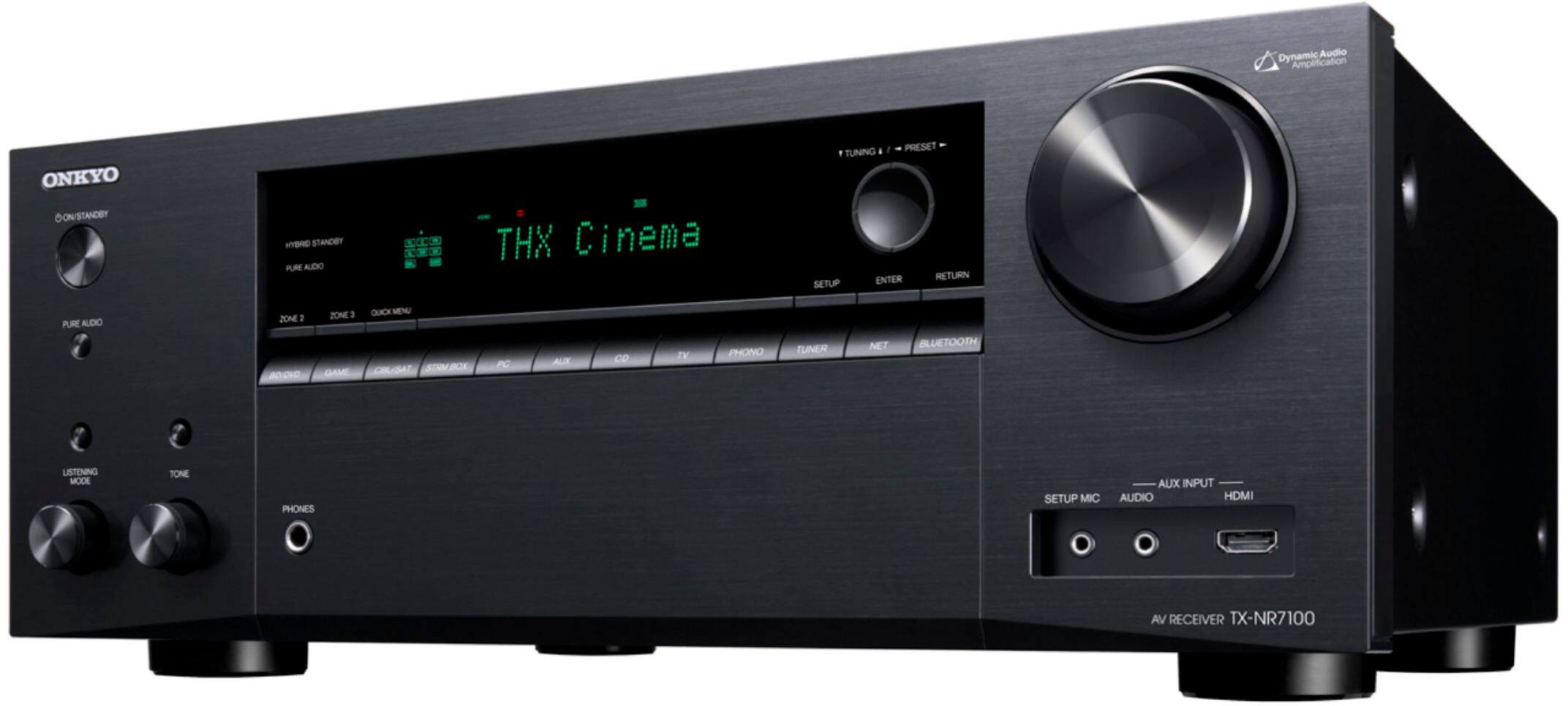

Onkyo - TX-NR7100 9.2 Channel THX Certified Network A/V Receiver - Black
Onkyo - TX-NR7100 9.2 Channel THX Certified Network A/V Receiver - Black
FREE shipping to
More Buying Options
Related Item
Specifications
- Continuous Watts x Channel @ Ohms100 watts x 9 channels @ 8 ohmsMaximum Watts x Channel @ Ohms100W/ch (8ohms, 20Hz~20kHz, 0.08% THD, 2ch driven, FTC)Number of Channels9.2Audio Only Inputs1 x Optical digital audio, 1 x Coaxial digital audio, 1 x PhonoAudio/Video Inputs7 x HDMINetwork Connector(s)1 x LAN
- Key Specs
- Continuous Watts x Channel @ Ohms: 100 watts x 9 channels @ 8 ohms
- Maximum Watts x Channel @ Ohms: 100W/ch (8ohms, 20Hz~20kHz, 0.08% THD, 2ch driven, FTC) (This is the maximum load the speaker, subwoofer or amp can drive.)
- Number of Channels: 9.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Audio Only Inputs: 1 x Optical digital audio, 1 x Coaxial digital audio, 1 x Phono
- Audio/Video Inputs: 7 x HDMI (The number and type of HDMI inputs the product has.)
- Network Connector(s): 1 x LAN
- Video Pass-through: HDR (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- Audio/Video Outputs: 2 x HDMI (The number and type of HDMI outputs the product has.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: Amazon Alexa, Google Assistant (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Onkyo
- Model Number: TX-NR7100
- Product Name: TX-NR7100 9.2 Channel THX Certified Network A/V Receiver
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 100 watts x 9 channels @ 8 ohms
- Maximum Watts x Channel @ Ohms: 100W/ch (8ohms, 20Hz~20kHz, 0.08% THD, 2ch driven, FTC) (This is the maximum load the speaker, subwoofer or amp can drive.)
- Number of Channels: 9.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- High Resolution Audio: true (Hear music the way musicians and sound technicians intended it to be heard. Products that support hi-res audio deliver audio signals with a dynamic range and bandwidth far greater than that of a standard CD so you'll be able to enjoy pure music with outstanding sound quality. The device supports high-resolution audio signals, which more closely resemble the quality of music as it was originally recorded, with more texture and detail than can be heard via typical music streaming services or CDs.)
- Surround Sound Supported: Dolby Atmos, DTS:X (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Maximum Sampling Rate Supported: 24-bit/192kHz. (Generally, the higher the sampling rate, the greater the quality of audio and/or video.)
- Speaker A/B Switching: false (Allows a user to select between one of two sets of primary speakers.)
- Tuner Type(s): AM/FM, FM only, Internet
- Inputs

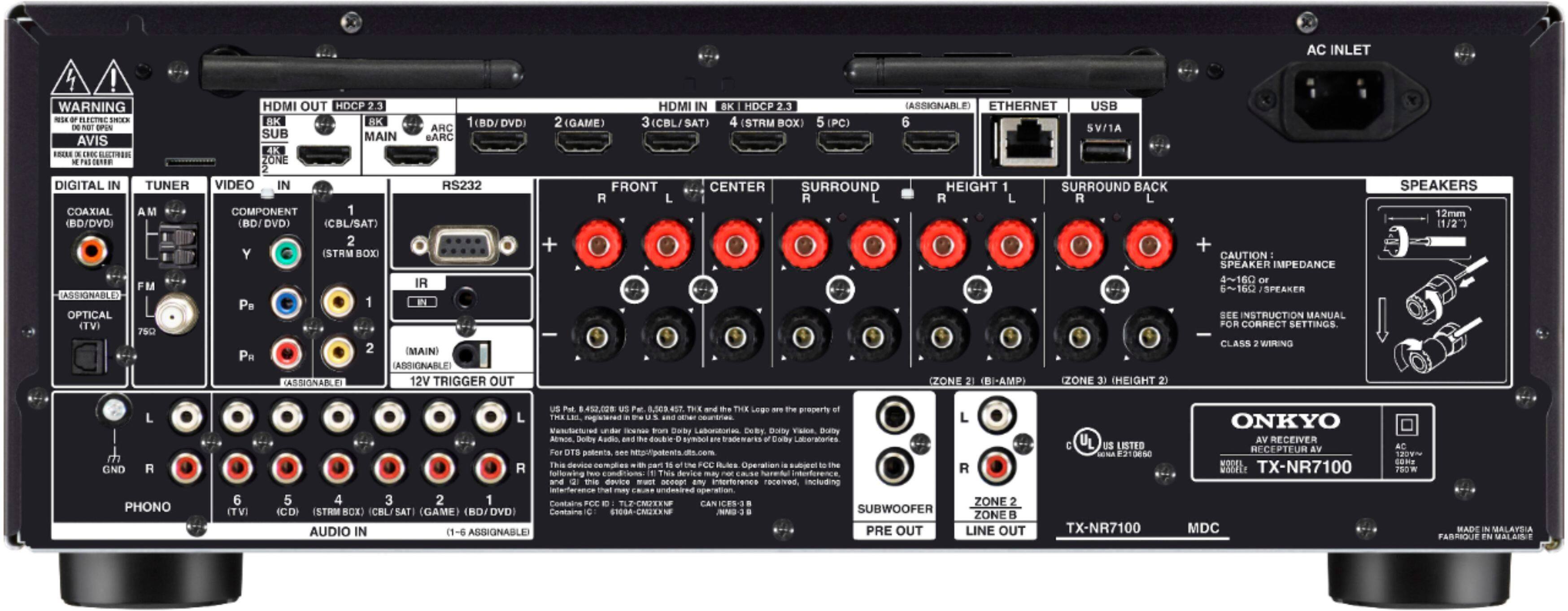

- Audio Only Inputs: 1 x Optical digital audio, 1 x Coaxial digital audio, 1 x Phono
- Video Only Inputs: 1 x Component video (The number and type of video signal only inputs the product has.)
- Audio/Video Inputs: 7 x HDMI (The number and type of HDMI inputs the product has.)
- Network Connector(s): 1 x LAN
- Number of HDMI Inputs (Total): 7
- Number of USB Inputs: 1
- Video
- Video Pass-through: HDR (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- Outputs
- Video Only Outputs: 1 x Component video (The number and type of video signal only outputs the product has.)
- Audio/Video Outputs: 2 x HDMI (The number and type of HDMI outputs the product has.)
- Speaker Connection Type: Banana Jack/Screw Terminals
- Number of HDMI Outputs (Total): 2
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Auto Calibration: true (Home theater systems and receivers with an autocalibration function can automatically determine basic settings like speaker volume, crossover point, equalization, and more.)
- Remote Control Included: true
- Connectivity
- Wireless Multi-Room Audio: true (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Multi-Room Technology: Sonos, Google Cast, Apple AirPlay 2 (Proprietary technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Compatibility
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: Amazon Alexa, Google Assistant (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Dimensions
- Product Height: 6.81 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.13 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 14.93 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 22.9 pounds (The out of box weight of the item.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 889951003496
Turn your home into a living media sanctuary with Onkyo TX-NR7100 9.2-channel Dynamic Audio Amplification (DAA) supporting 3D surround-sound and powered multi-zone audio together with the SMART AV Receiver suite for effortless voice-controllable entertainment via a Google Assistant or Amazon Alexa enabled device. HDMI supports 8K/60p and dynamic HDR (including HDR10+ and Dolby Vision) passthrough to compatible TVs, projectors, or gaming monitors connected via eARC-ready Main Out. Be overwhelmed by the hyper-realistic THX Certified Select reference experience, and explore the master-quality IMAX Enhanced film library. Unique functions such as Front-to-Height stereo switching for ambient background listening, DSP vocal/dialog enhancement, and practical GUI functions simplify everyday operation. Whether you’re gaming, watching a favorite TV series, or streaming Hi-Res Audio, a richer emotional life awaits inside the Onkyo signature sound.
- THX Certified Select theater-reference sound: THX Certified Select guarantees the same reference volume of a commercial theater in rooms where the screen-to-seat distance is about 12 ft. (3.5 m). Certified receivers must pass 2,000 bench-tests in 75 categories.
- Discover the IMAX experience: IMAX Enhanced uses DTS:X technology optimized for the
- Welcome to the 8K Ultra HD experience: Features defined in HDMI 2.1 specification enable 8K/60p video passthrough to your compatible display. As well as HDR10 and HLG, HDR10+ and Dolby Vision formats optimize brightness, contrast, and color scene-by-scene or frame-by-frame.
- New enhancements for gamers: Transform your playtime with 3D surround-sound and gain the winning edge with new gamer-friendly features defined in HDMI 2.1.
- SMART AV Receiver multi-room audio streaming: SMART AV Receiver shares audio around your home.
- Works with Sonos: Expand your Sonos Home Sound System by pairing this AVR with up to three Sonos Connect or Port* devices. The receiver ties into the Sonos ecosystem, waking, changing inputs, and playing at the desired volume on command from the Sonos app*.* Sonos Connect and Port sold separately.
- Chromecast built-in works with Hey Google: Stream music from your smartphone, lStream music from your smartphone, laptop, or PC to the receiver via Chromecast built-in.
- Works with Alexa: Alexa lets you use your voice to control the A/V receiver by speaking commands through an Alexa device.
- Dolby Atmos and DTS:X – celebrate a new world of sound: Dolby Atmos and DTS:X translate 3D soundtracks from the studio mixing desk to your room. Sounds are no longer tied to specific channels, and are free to move around and above your audience, placing them at the heart of the action.
- Dirac Live Room Correction: Onkyo TX-NR7100 Dirac Live analyzes your audio system and listening environment by examining acoustic data measured by microphone and detecting deficiencies.
- 5 GHz/2.4 GHz dual-band Wi-Fi supports the 802.11ac standard: A powerful quad-core SoC (System on a Chip) performs multiple processing tasks at once. It evolves network functions and supports the 802.11ac (2×2 MIMO) standard for stable multi-room audio streaming.
- Bi-directional Bluetooth wireless technology: This AVR can send and receive audio via Bluetooth wireless technology.
- Clearer dialog at the touch of a button: Vocal Enhancer solves the problem of inaudible dialog in movies and TV programs by using DSP algorithms to elevate vocal frequencies in the soundtrack. The effect level can be raised or lowered using keys on the remote control.
- Three-Zone Whole Home Audio: Manage playback in up to three rooms using the Onkyo Controller app.
- Multi-function Zone 2/Zone B line-out: Analog RCA line-out supports two Zone audio modes. Zone 2 supports active speaker or hi-fi system connection.
- Relax with Stereo Assign Mode: Onkyo TX-NR7100 Stereo Assign Mode switches playback from Front to Height 1, Height 2, Surround, or Surround Back speakers (depending on your layout). It’s ideal for ambient background listening.
- Connections for custom installations: A 12 V trigger output syncs operation with an external component, such as a power amp, while IR input connects an IR repeater.
Whats Included
- Remote Controller
- Speaker Set-Up Microphone
- Indoor FM Antenna
- AM Loop Antenna
- Power Cord
Q: Does this receiver support Dolby Atmos?
A: Yes, this receiver supports Dolby Atmos and DTS:X for 3D sound.
Q: What is the wattage per channel for this receiver?
A: This receiver offers 100 watts per channel at 8 ohms.
Q: Can this receiver be used with a Sonos system?
A: Yes, you can expand your Sonos Home Sound System by pairing this AVR with up to three Sonos Connect or Port devices.
Q: Does this receiver have bluetooth?
A: Yes, this receiver has bluetooth connectivity.
Q: What is the maximum sampling rate supported by this receiver?
A: The maximum sampling rate supported is 24-bit/192kHz.
Q: How many channels does this Onkyo receiver have?
A: This Onkyo receiver has 9.2 channels.
A: According to the manual the NR 7100 has 3 zones. I think they're both powered, with an additional pre-amp out for Zone 2. Check the manual to see if it does what you want. I have deck and living room speakers that I want to mostly adjust volume independently ( like for a party ) or source independently from my iphone - I think it'll do it with certain combinations of inputs.
A: Hello You can use regular speakers as long as they are compatible with the wattage and the impedance that the receiver supports. The TXNR7100 is rated with an 8ohm load with 100 watts per channel. Thank you Onkyo
