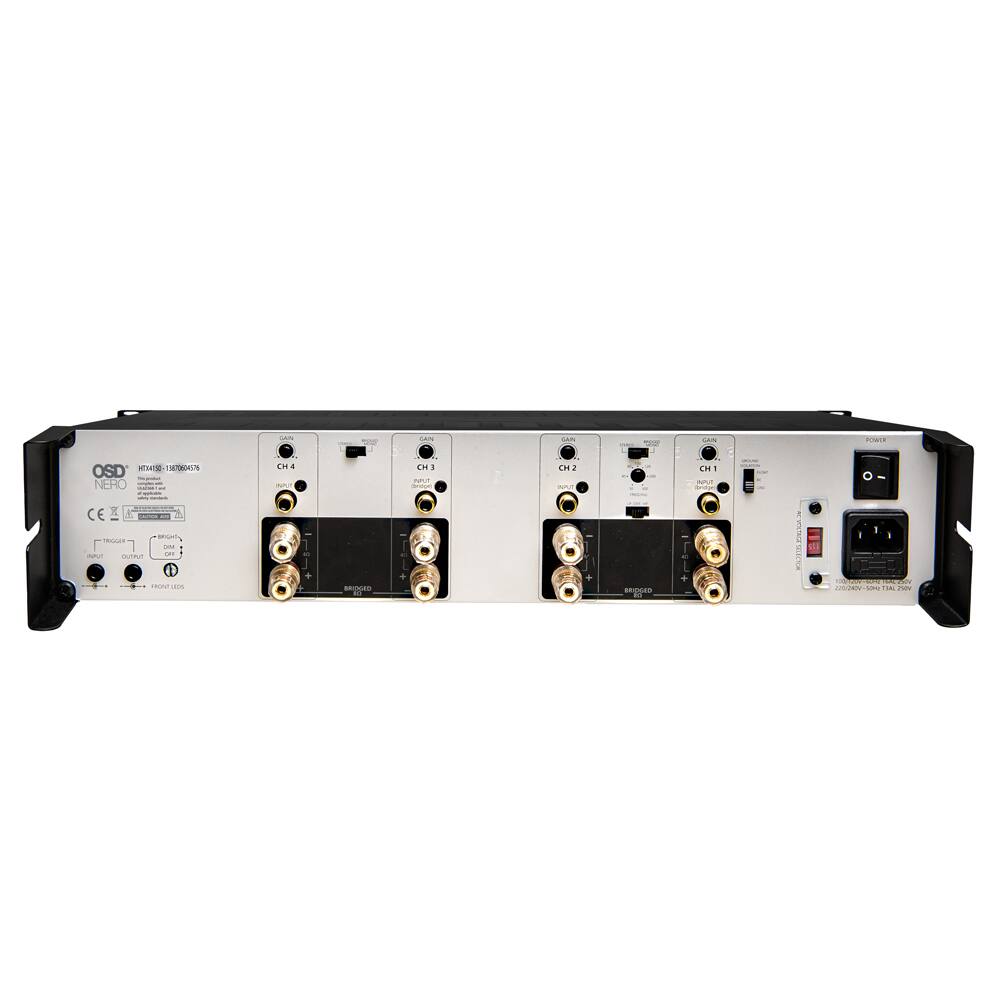

OSD Audio - Nero HTX4150 4-Channel Class D Power Amplifier, 175W RMS per Channel, Bridgeable, Fan Cooled - Black
Reviews coming soon
About this product
The Nero HTX4150 is a 4-channel Class D power amplifier rated at 175W per channel into 4 ohms and 100W per channel into 8 ohms with all channels driven, not the single-channel figures most competitors publish. Adjacent channels can be bridged to produce 2 x 400W into 8 ohms, or 1 x 400W plus 2 x 175W, so a single chassis handles several system layouts. Two bridged channels can also serve as a subwoofer amplifier with frequency crossover and level control. A 105dB A-weighted signal-to-noise ratio at rated power gives the amplifier exceptional dynamic range, and 10Hz to 30kHz frequency response covers the full audible band with margin at both ends. Fan-assisted cooling keeps the chassis running cool in confined spaces such as an equipment rack or credenza, while a switching power supply rejects RF interference from nearby electronics. RCA inputs, a 12V trigger, per-channel status LEDs and a ground terminal for troubleshooting hum complete the package.
Features
175W x4 with All Channels Driven
Output is rated at 175W RMS per channel into 4 ohms and 100W per channel into 8 ohms with all four channels driven simultaneously at 1% THD, not with one channel measured in isolation. Single-channel output reaches 200W at 4 ohms. This gives a realistic picture of how the amplifier performs in an actual system.
Configurable for 2, 3 or 4 Channels
Adjacent channels bridge to produce 2 x 400W into 8 ohms, or 1 x 400W plus 2 x 175W. Two bridged channels can run a passive subwoofer with onboard crossover and level control, which makes this a strong fit for an outdoor system with two patio speakers and a sub, or for a home theater needing surround plus bass.
105dB Signal-to-Noise for Wide Dynamic Range
A 105dB A-weighted signal-to-noise ratio at rated power combined with 10Hz to 30kHz frequency response and a damping factor of 90 delivers a silent background and firm speaker control. Quiet passages stay free of hiss while peaks arrive with full impact, reaching reference cinema levels across all channels.
Fan-Assisted Cooling for Tight Spaces
Class D efficiency rated at 88 percent, combined with active fan cooling, lets the amplifier operate reliably inside a closed rack, cabinet or credenza where ventilation is limited. A switching power supply provides strong rejection of RF from nearby electronics and from the mains supply.
12V Trigger, Status LEDs and Ground Terminal
A 12V trigger handles remote power on and off for automated systems. Per-channel LEDs show on, standby or protection status at a glance. A dedicated ground terminal helps troubleshoot hum in complex installations. Rack mountable, 15.16 by 16.73 by 3.46 inches, CE/UL certified, 2-year warranty.
Specifications
- Continuous Watts x Channel @ Ohms175W x 4 @ 4 Ohms; 100W x 4 @ 8 Ohms, all channels drivenNumber of Channels4Number of Audio Zones1Network Connector(s)No network connectors
